Transmission Internal Wiring Harness Frame: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the transmission wiring harness assembly and install the bolts. Connect the transmission shift solenoid electrical connectors and the TFT sensor electrical connector and lock the connectors. Connect the transmission fluid pressure sensor electrical connector.

    Torque

    : 89 lb.in (10 Nm)

    GFD428464Courtesy of FORD MOTOR COMPANY
  2. Install the transmission wiring harness bolts.

    Torque

    : 71 lb.in (8 Nm)

    GFD428381Courtesy of FORD MOTOR COMPANY
  3. Connect and lock the bulkhead electrical connector.

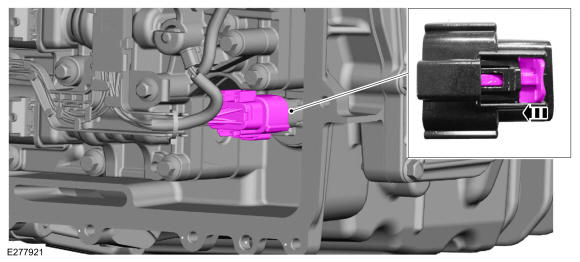

    GFD428382Courtesy of FORD MOTOR COMPANY
  4. Connect and lock the OSS sensor electrical connector.

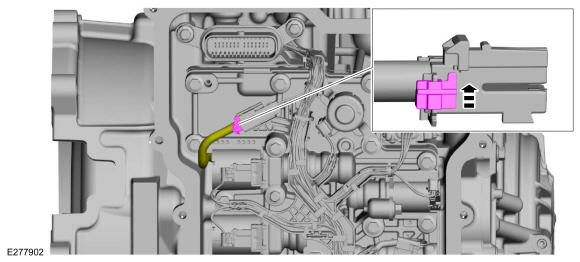

    GFD428384Courtesy of FORD MOTOR COMPANY
  5. Connect and lock the TR sensor electrical connector.
    GFD428462Courtesy of FORD MOTOR COMPANY
  6. Install the main control cover. Refer to: Main Control Cover  .
