Transmission Fluid Temperature (TFT) Sensor: Installation
WARNING: This page is about a different variant/trim than selected.
- Lubricate TFT sensor O-ring with clean transmission fluid.
Material
: Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)

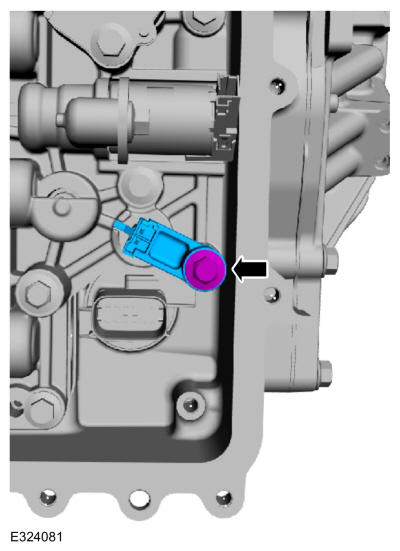

- Install the TFT sensor and the bolt.
Torque
: 89 lb.in (10 Nm)

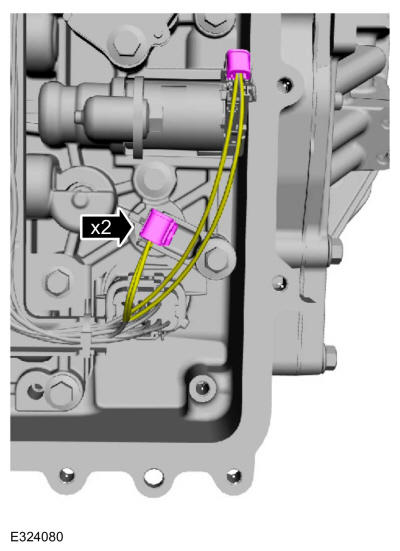

- Connect and lock the TFT sensor and the LPC solenoid electrical connector.
- Install the main control cover. Refer to: Main Control Cover .
