Torque Converter Seal: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the transmission. Refer to: Transmission .
- For information on component views and base part numbers. Refer to: Transmission Description .
- Install the special tool and secure the transmission to the bench mounted fixture. Use Special Service Tool: 307-773 Bench Mount Fixture.
- Remove the special tool. Use Special Service Tool: 307-566 Retainer, Torque Converter.
-
NOTE: The torque converter is heavy. Be careful not to drop it or damage will result.
Using the special tools, remove the torque converter from the transmission. Use Special Service Tool: 307-091 Handle, Torque Converter.

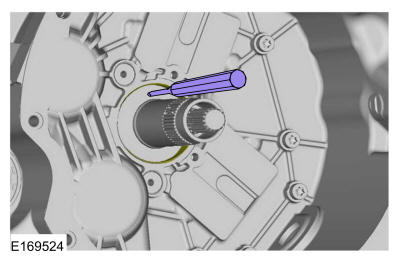

- Using a small punch, poke a small hole in the seal. Use the General Equipment: Punch
-

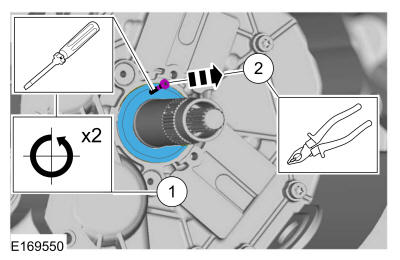

- 2.5 x 15 mm self-tapping screw Rotate the screw by two full threads. Use the General Equipment: Flat Headed Screw Driver
- Remove the input shaft seal and remove the self-tapping screw. Use the General Equipment: Locking Pliers
