Torque Converter Seal: Installation
WARNING: This page is about a different variant/trim than selected.
- Place a new torque converter hub seal on the special tool. Use Special Service Tool: 307-575 Converter Seal Installer.

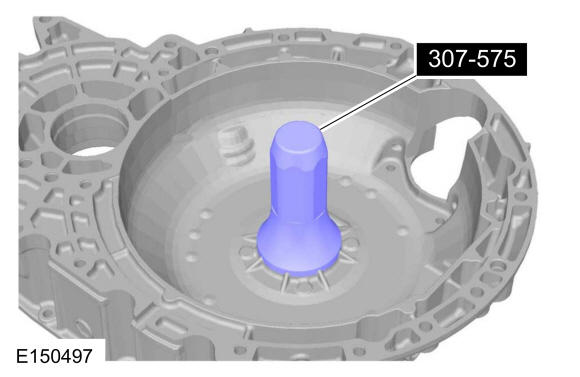

- Using the special tools, install the torque converter hub seal. Use Special Service Tool: 307-575 Converter Seal Installer.
-
NOTE: The torque converter is heavy. Be careful not to drop it or damage will result.

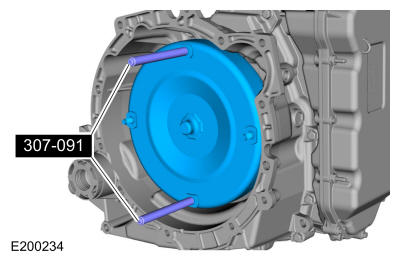

Using the special tools, install the torque converter from the transmission. Use Special Service Tool: 307-091 Handle, Torque Converter.

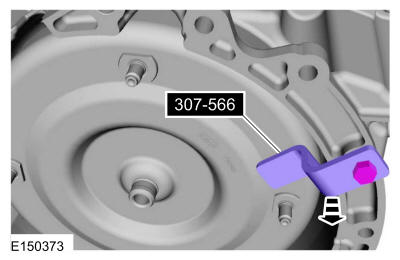

- Install the special tool. Use Special Service Tool: 307-566 Retainer, Torque Converter.
- Remove the transmission from the bench-mounted holding fixture and the special tool. Use Special Service Tool: 307-773 Bench Mount Fixture.
- Install the transmission. Refer to: Transmission .
