Roll Restrictor RH: Installation
WARNING: This page is about a different variant/trim than selected.

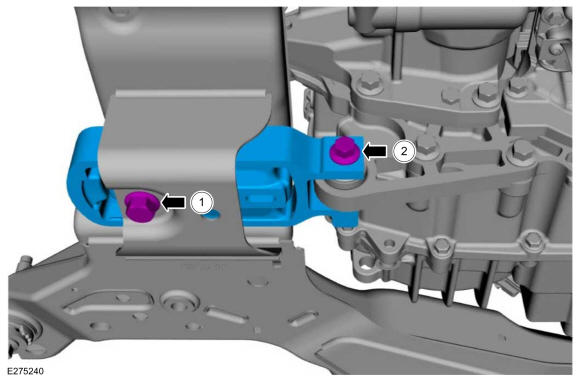

- Install the roll restrictor and new bolts.
- Install a new roll restrictor-to-subframe bolt.
Torque
: 129 lb.ft (175 Nm)
- Install a new roll restrictor-to-roll restrictor bracket bolt.
Torque
: 85 lb.ft (115 Nm)
- Install a new roll restrictor-to-subframe bolt.
- Install the LH exhaust flexible pipe. Refer to: Exhaust Flexible Pipe 2.7L EcoBoost .
