Main Control Valve Body: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Note the location of the short and long main control valve body bolts. Tighten the main control valve body bolts in the sequence shown.

Install the main control valve body, the transmission wiring harness and the main control valve body bolts.

Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Install the transmission wiring harness bolts.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Connect and lock the bulkhead electrical connector.

Courtesy of FORD MOTOR COMPANY

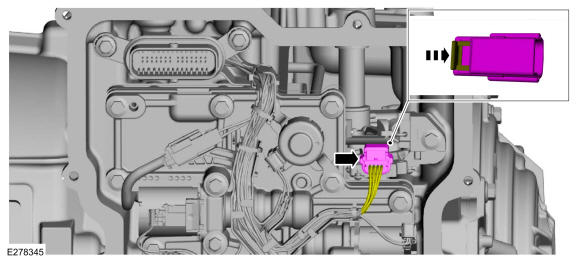

Connect and lock the TR sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
Connect and lock the OSS sensor electrical connectors.

Courtesy of FORD MOTOR COMPANY
Install the main control cover. Refer to: Main Control Cover .
If a replacement transmission assembly is being installed or a new main control valve body is installed, the PCM must be reflashed with a new solenoid body strategy and identification data file. Refer to: Transmission Strategy Download .
If a new main control valve body is installed, install a new solenoid body identification tag.

Courtesy of FORD MOTOR COMPANY
