Main Control Cover: Installation

WARNING: This page is about a different variant/trim than selected.

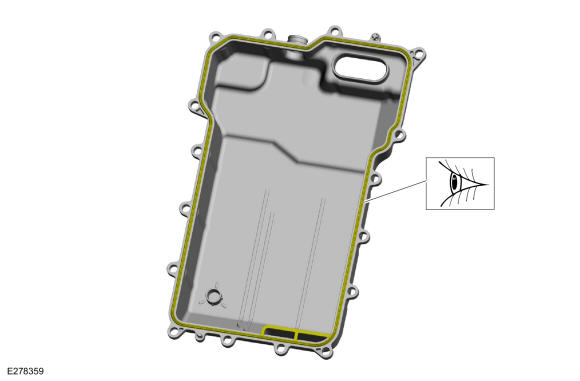

Inspect the main control cover seal for damage and install new if necessary.

Courtesy of FORD MOTOR COMPANY

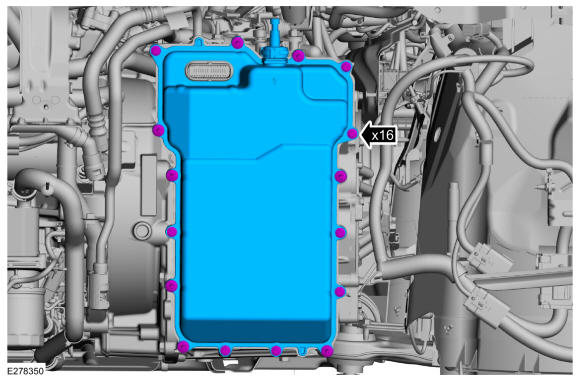

Install the main control cover and the stud bolts.
Torque

: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
Position back the wiring harness, install the wiring harness retainers and the nut.
Torque

: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the transmission electrical connector.
1. Rotate the connector latch until it locks in place.
2. Slide the locking clip back to its original position.
Courtesy of FORD MOTOR COMPANY
Attach the coolant hose to the starter motor bracket.

Courtesy of FORD MOTOR COMPANY

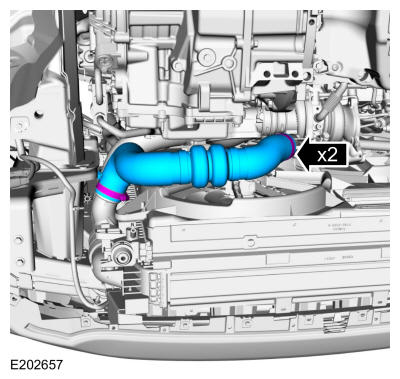

Install the LH intake pipe, tighten the clamps.
Torque

: 42 lb.in (4.8 Nm)

Courtesy of FORD MOTOR COMPANY

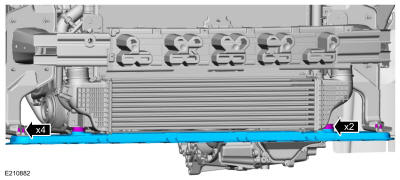

Install the lower radiator support and the bolts.
Torque

: 18 lb.ft (24 Nm)

Courtesy of FORD MOTOR COMPANY

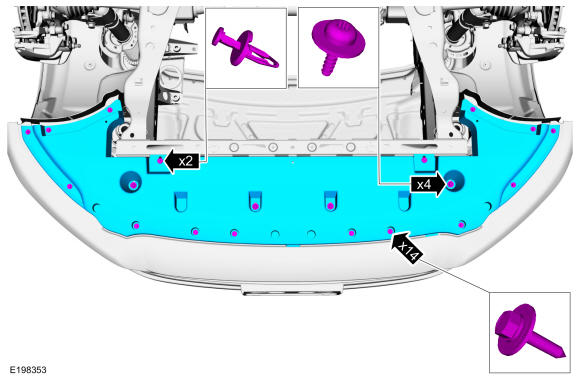

Install the retainers and the front under body shield.

Courtesy of FORD MOTOR COMPANY
Install the underbody shield and the retainers.

Courtesy of FORD MOTOR COMPANY

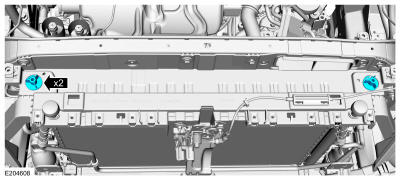

Remove the tie straps and install the radiator guide pins.

Courtesy of FORD MOTOR COMPANY

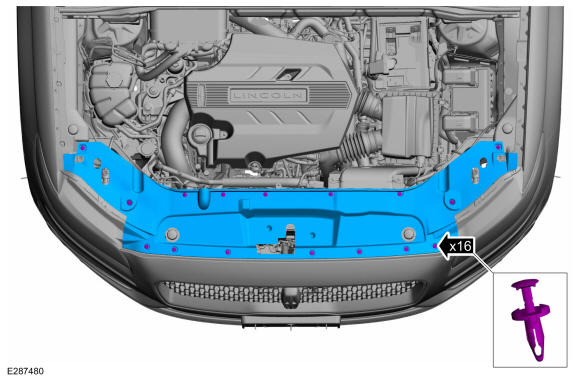

Install the radiator sight shield and the push pins.

Courtesy of FORD MOTOR COMPANY
Install the battery. Refer to: Battery .

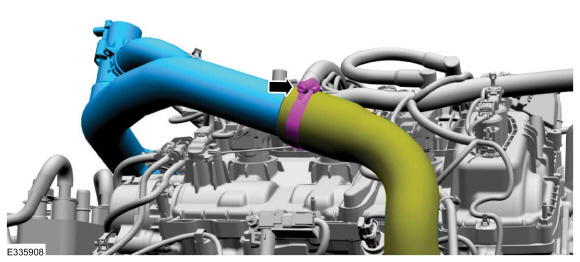

Install the RH intake pipe and tighten the clamp.
Torque

: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

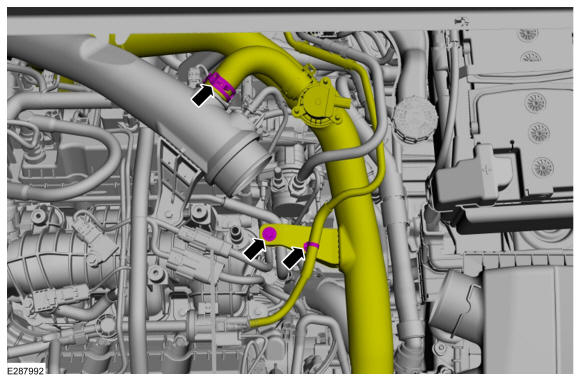

- Position the RH intake pipe and install the bolt.
  Torque

  : 71 lb.in (8 Nm)
- Install the clamp.
- Attach the retainer.
Courtesy of FORD MOTOR COMPANY

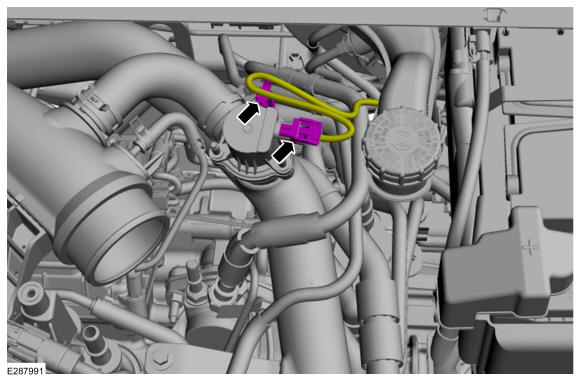

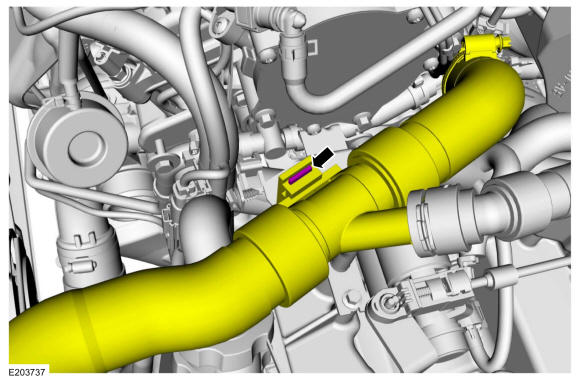

Connect the turbocharger bypass valve electrical connector and attach the wire harness retainer to the mounting stud.

Courtesy of FORD MOTOR COMPANY
Install the RH air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe RH .
Install the LH air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe LH .
Fill the transmission with transmission fluid. Refer to: Transmission Fluid Drain and Refill .
