Halfshaft Seal LH: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Remove the front LH halfshaft. Refer to: Front Halfshaft LH .

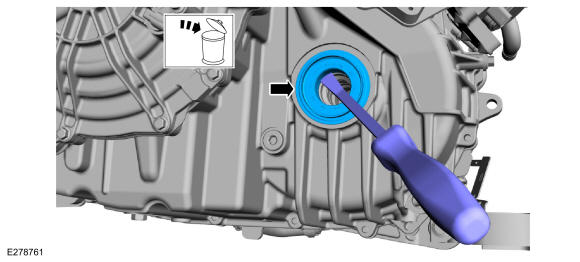

  3. Remove and discard halfshaft seal. Use the General Equipment: Flat Headed Screw Driver
GFD428361Courtesy of FORD MOTOR COMPANY
