Transmission Case: Disassembly
WARNING: This page is about a different variant/trim than selected.

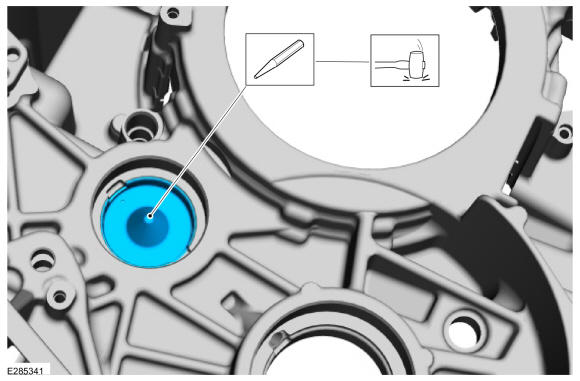

- Using a suitable punch and hammer, crush the pointed area of the transfer shaft tube fluid funnel. Use the General Equipment: Punch

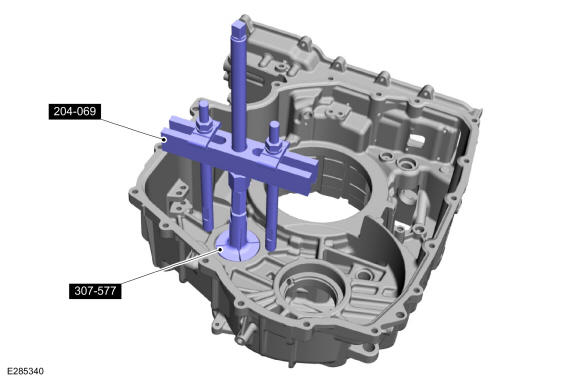

- Using the special tool, remove the transfer shaft bearing cup from the transmission case. Use Special Service Tool: 204-069 (T81P-1104-C) Remover/Installer, Front Wheel Hub., 307-577 Transfer Gear Bearing race remover.

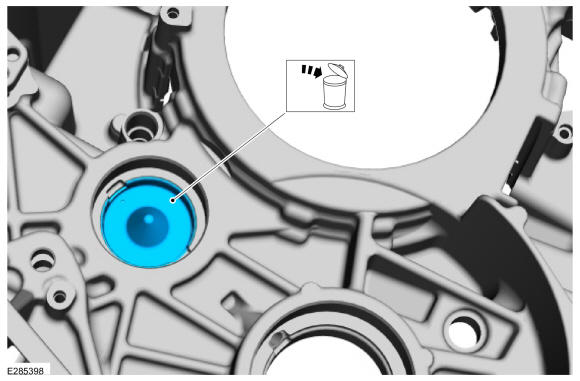

- Remove and discard the transfer shaft tube fluid funnel.
- Using the special tool, remove the differential bearing cup.

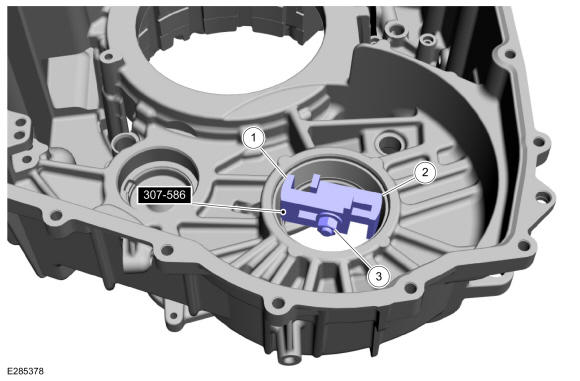

- Position the Differential Bearing Cup Remover 307-586 in the transmission case with the tabs on the Differential Bearing Cup Remover 307-586 aligned with the slots in the transmission case. Use Special Service Tool: 307-586 Differential bearing cup remover.
- Expand the Differential Bearing Cup Remover 307-586 by hand.
- While holding the Differential Bearing Cup Remover 307-586 in the expanded position with the tabs in the slots of the transmission case, tighten the nut.

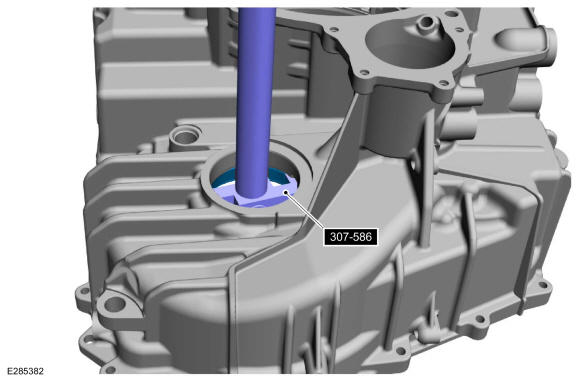

- Using the general equipment, press the differential bearing cup out of the transmission case. Use Special Service Tool: 307-586 Differential bearing cup remover. Use the General Equipment: Hydraulic Press
- Remove the bolts and the park rod guide plate.
- Remove the park pawl return spring.
- Remove the pin and the park pawl.
- Remove the park pawl return spring.
