Transfer Shaft: Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Install the park pawl wheel.
    GFD428685Courtesy of FORD MOTOR COMPANY

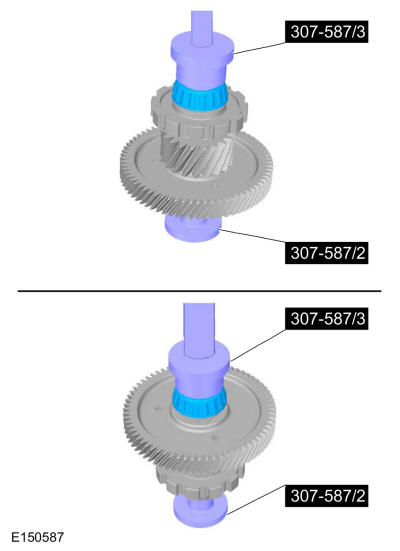

  2. Using the special tool, install the transfer shaft bearings. Use Special Service Tool: 307-587 Differential bearing installer and guide. Use the General Equipment: Hydraulic Press
    GFD428686Courtesy of FORD MOTOR COMPANY
  3. Select a new transfer shaft shim. Refer to: Torque Converter Housing  .
