Torque Converter Housing: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Using special tools, remove the transfer shaft bearing cup from the torque converter housing. Use Special Service Tool: 204-069 (T81P-1104-C) Remover/Installer, Front Wheel Hub., 307-577 Transfer Gear Bearing race remover.

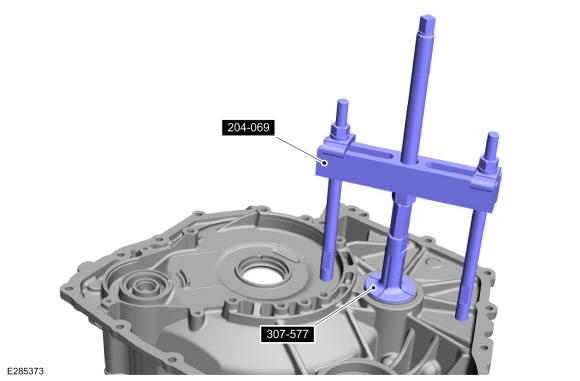

    GFD428663Courtesy of FORD MOTOR COMPANY
  2. Remove the transfer shaft bearing shim.

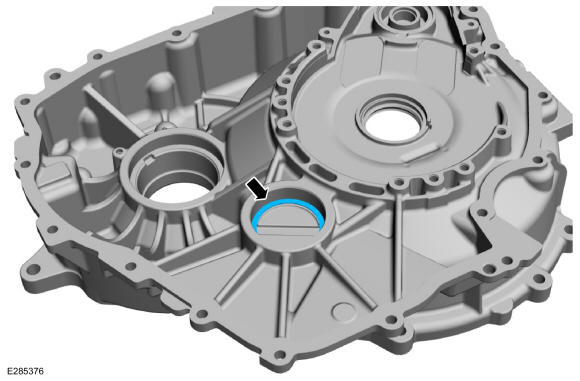

    GFD428664Courtesy of FORD MOTOR COMPANY
  3. Install the special tool on the bearing cup.

    1. Position the Differential Bearing Cup Remover 307-586 in the torque converter housing with the tabs on the Differential Bearing Cup Remover 307-586 aligned with the slots in the torque converter housing. Use Special Service Tool: 307-586 Differential bearing cup remover.
    2. Expand the Differential Bearing Cup Remover 307-586 by hand.
    3. While holding the Differential Bearing Cup Remover 307-586 in the expanded position with the tabs in the slots of the torque converter housing, tighten the nut.

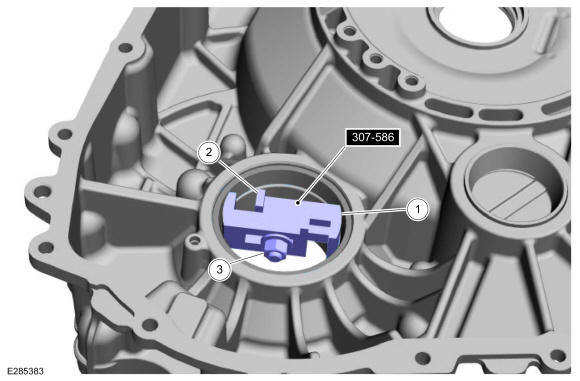

    GFD428665Courtesy of FORD MOTOR COMPANY
  4. Using the general equipment, press the differential bearing cup out of the torque converter housing. Use Special Service Tool: 307-586 Differential bearing cup remover. Use the General Equipment: Hydraulic Press

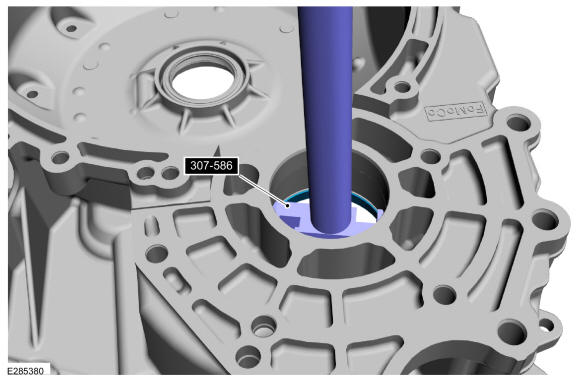

    GFD428666Courtesy of FORD MOTOR COMPANY
  5. Remove the differential bearing preload shim.

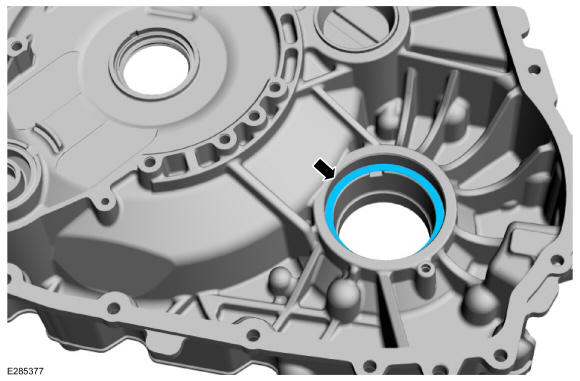

GFD428667Courtesy of FORD MOTOR COMPANY
