Accessory Drive Belt Tensioner: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Remove the accessory drive belt. Refer to: Accessory Drive Belt 2.7L EcoBoost  .

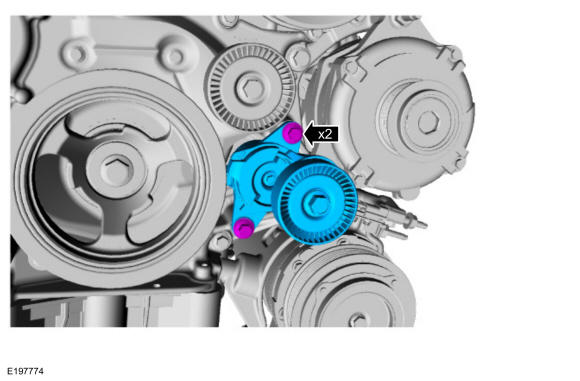

  3. Remove the bolts and the accessory drive belt tensioner.

    Torque: 18 lb.ft (25 Nm)

GFD427379Courtesy of FORD MOTOR COMPANY
