Muffler and Tailpipe: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
NOTE: Excessive bending of the exhaust flexible pipe may cause damage resulting in failure.

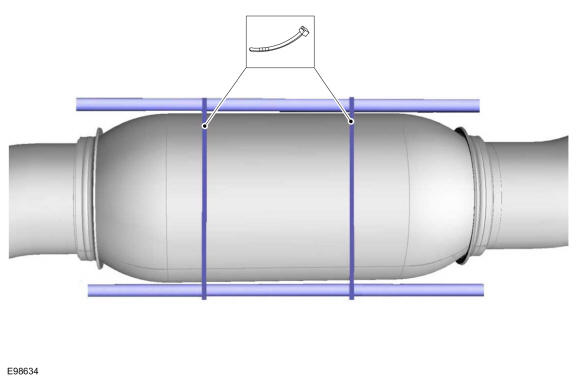

Secure both LH and RH exhaust flexible pipe.

Courtesy of FORD MOTOR COMPANY

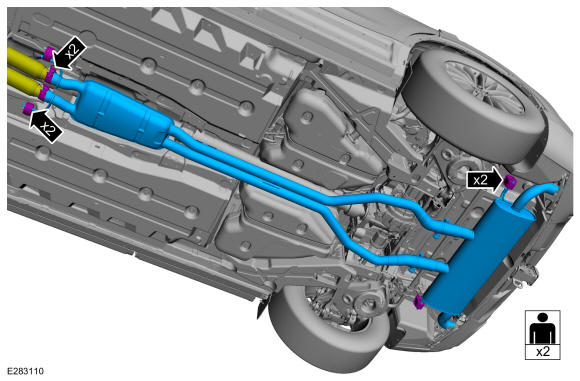

AWD vehicles: Loosen the clamp, detach the exhaust isolators and remove the muffler and tailpipe.

Courtesy of FORD MOTOR COMPANY

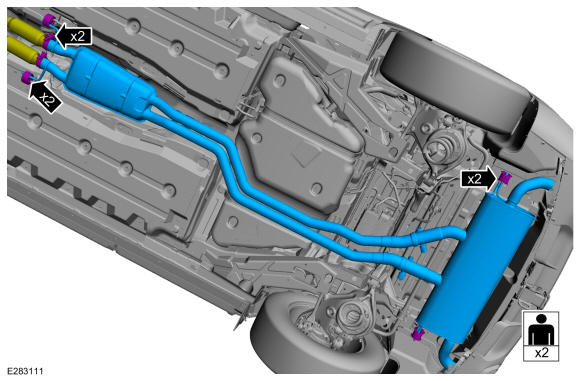

FWD vehicle: Loosen the clamp, detach the exhaust isolators and remove the muffler and tailpipe.

Courtesy of FORD MOTOR COMPANY
