Exhaust System - Component Location
WARNING: This page is about a different variant/trim than selected.

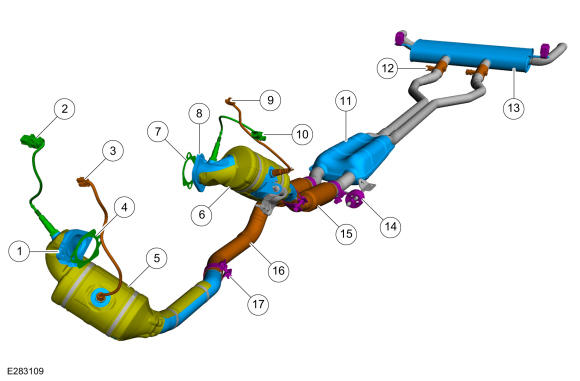

| Item | Description |
|---|---|
| 1 | LH catalytic converter |
| 2 | LH universal heated exhaust gas oxygen (U-HEGO) sensor |
| 3 | LH catalyst monitor sensor |
| 4 | LH catalytic converter gasket |
| 5 | LH catalytic converter heat shield |
| 6 | RH catalytic converter heat shield |
| 7 | RH catalytic converter gasket |
| 8 | RH catalytic converter |
| 9 | RH catalyst monitor sensor |
| 10 | RH universal heated exhaust gas oxygen (U-HEGO) sensor |
| 11 | Resonator assembly |
| 12 | Passive valve |
| 13 | Muffler and tailpipe assembly |
| 14 | Isolator |
| 15 | RH exhaust flexible pipe |
| 16 | LH exhaust flexible pipe |
| 17 | Exhaust clamp |
