Turbocharger Bypass Valve: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
-

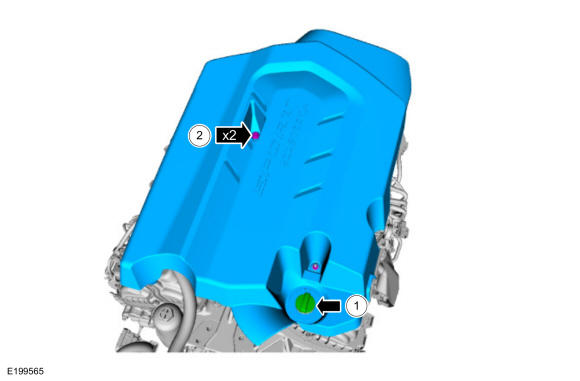

- Remove the oil filler cap.
- Remove the nut and bolt and remove the engine appearance cover.
Torque: 42 lb.in (4.8 Nm)

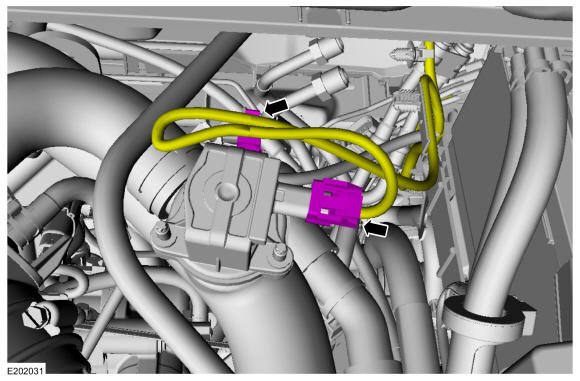

- Disconnect the turbocharger bypass valve electrical connector, and remove harness from mounting stud.

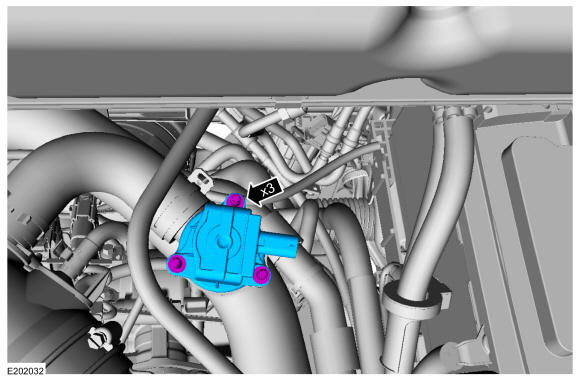

- Remove the retainers and the turbocharger bypass valve.
Torque: 62 lb.in (7 Nm)
