Fuel Pressure Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
-
NOTE: Removal steps in this procedure may contain installation steps.
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Release the fuel system pressure. Refer to: Fuel System Pressure Release .

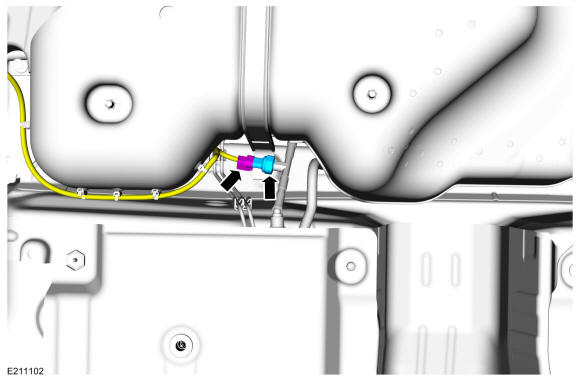

- Disconnect the electrical connector and remove the fuel pressure sensor.
Torque: 22 lb.ft (30 Nm)
