Crankshaft Position (CKP) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

- Remove the oil filler cap.
- Remove the nut and bolt and remove the engine appearance cover.
  Torque: 42 lb.in (4.8 Nm)
Courtesy of FORD MOTOR COMPANY
Remove the RH air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe RH 2.7L EcoBoost .
Remove the RH CAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe 2.7L EcoBoost .

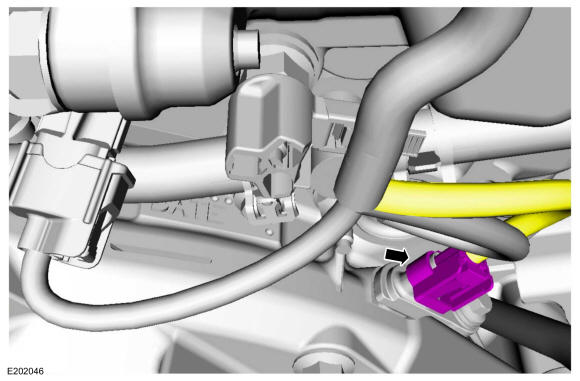

Disconnect the CKP sensor.

Courtesy of FORD MOTOR COMPANY

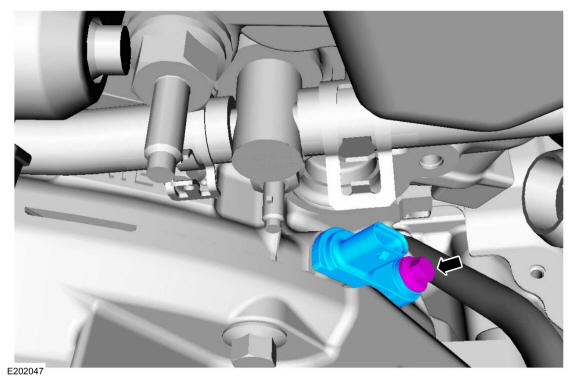

Remove the retainer and the CKP sensor.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
