Catalyst Monitor Sensor: Removal

All sensors

1. • Remove the nut.

     Torque: 42 lb.in (4.8 Nm)

   • Remove the bolt.

     Torque: 93 lb.in (10.5 Nm)

   • Remove the engine appearance cover.
   • If the engine appearance cover stud bolt is loosened or removed, it must be installed/tightened.

     Torque: 62 lb.in (7 Nm)

   Courtesy of FORD MOTOR COMPANY

2. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

   Right hand Catalyst monitor sensor

3. Remove the RH air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe RH 2.7L EcoBoost .
4. Remove the RH CAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe 2.7L EcoBoost .

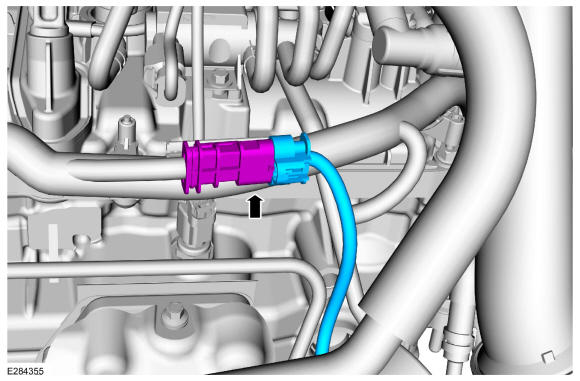

5. Disconnect the catalyst monitor sensor electrical connector.

   Courtesy of FORD MOTOR COMPANY

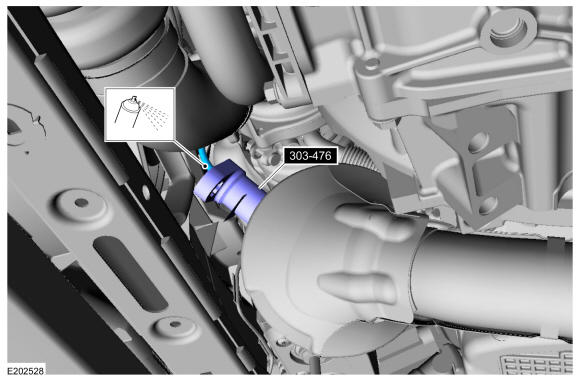

6. Apply penetrating oil to sensor, using the special tool remove the Catalyst monitor sensor. Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.

   Material: Motorcraft® Penetrating and Lock Lubricant / XL-1

   Courtesy of FORD MOTOR COMPANY

   Left hand Catalyst monitor sensor

7. Remove the LH air cleaner. Refer to: Air Cleaner Outlet Pipe LH 2.7L EcoBoost .
8. Disconnect the catalyst monitor sensor electrical connector.

   Courtesy of FORD MOTOR COMPANY

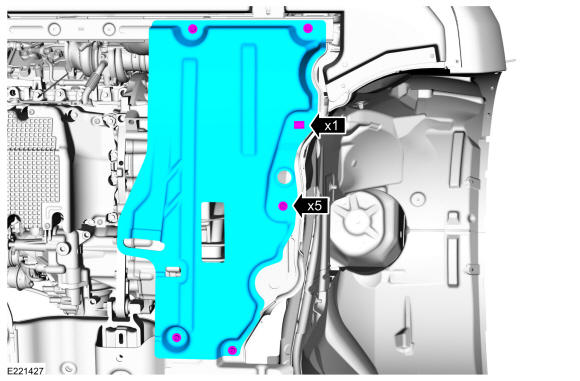

9. Remove the retainers and the LH underbody splash shield.

   Courtesy of FORD MOTOR COMPANY

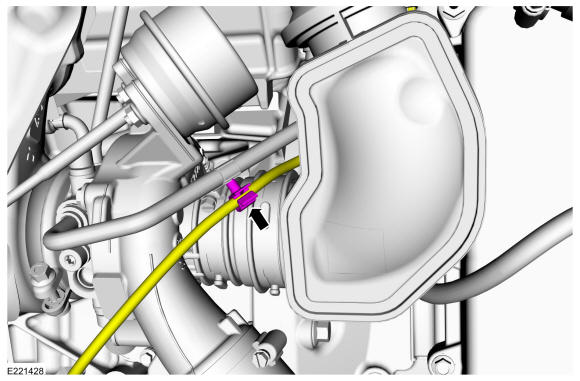

10. Disconnect the catalyst monitor sensor electrical harness retainer.

    Courtesy of FORD MOTOR COMPANY

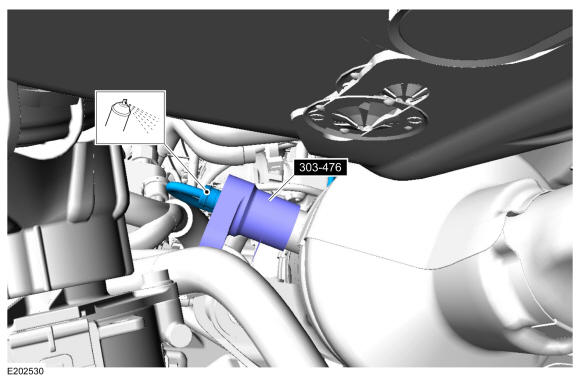

11. Apply penetrating oil to sensor, using the special tool remove the Catalyst monitor sensor. Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.

    Material: Motorcraft® Penetrating and Lock Lubricant / XL-1

Courtesy of FORD MOTOR COMPANY
