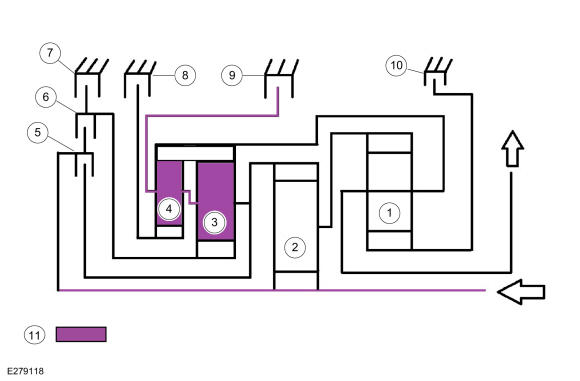

Component Description: Park: Powerflow
WARNING: This page is about a different variant/trim than selected.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Output planetary |
| 2 |
Input planetary |
| 3 |
Reaction planetary |
| 4 |
Overdrive planetary |
| 5 |
E (5, 6, 7, 8) clutch |
| 6 |
B (4, 6, R) clutch |
| 7 |
C (3, 7) clutch |
| 8 |
F (2, 8) clutch |
| 9 |
Electronic Selectable One-Way Clutch (SOWC)/One-Way clutch |
| 10 |
A (1, 2, 3, 4, 5) clutch |
| 11 |
Held components |
