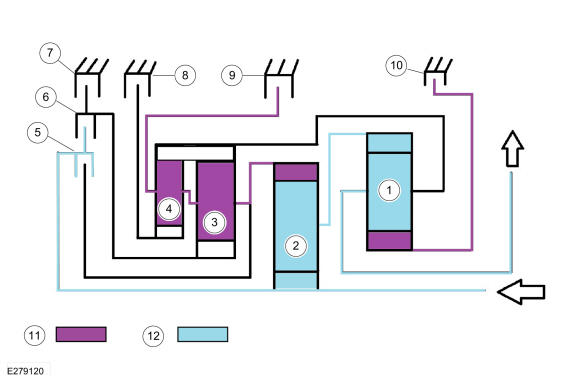

1st Gear: Powerflow
WARNING: This page is about a different variant/trim than selected.
| Item | Description |
|---|---|
| 1 | Output planetary |
| 2 | Input planetary |
| 3 | Reaction planetary |
| 4 | Overdrive planetary |
| 5 | E (5, 6, 7, 8) clutch |
| 6 | B (4, 6, R) clutch |
| 7 | C (3, 7) clutch |
| 8 | F (2, 8) clutch |
| 9 | Electronic Selectable One-Way Clutch (SOWC)/One-Way clutch |
| 10 | A (1, 2, 3, 4, 5) clutch |
| 11 | Held components |
| 12 | Driven components |
