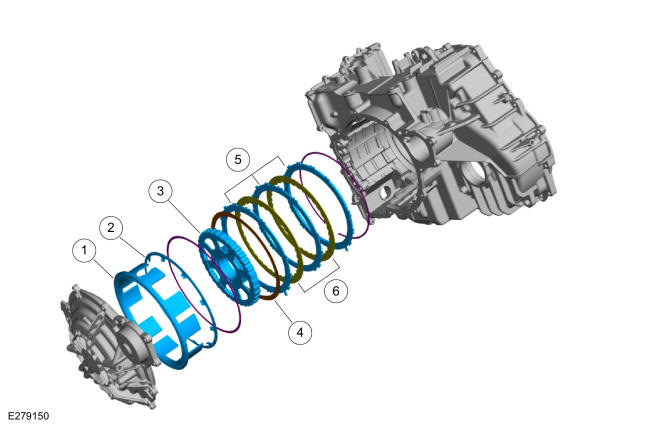

F Clutch Exploded View
WARNING: This page is about a different variant/trim than selected.
| Item | Description |
|---|---|
| 1 | F (2, 8) clutch piston |
| 2 | F (2, 8) clutch piston return spring |
| 3 | Sun gear and shell assembly |
| 4 | Wave plate |
| 5 | F (2, 8) clutch steel plates |
| 6 | F (2, 8) clutch fiber plates |

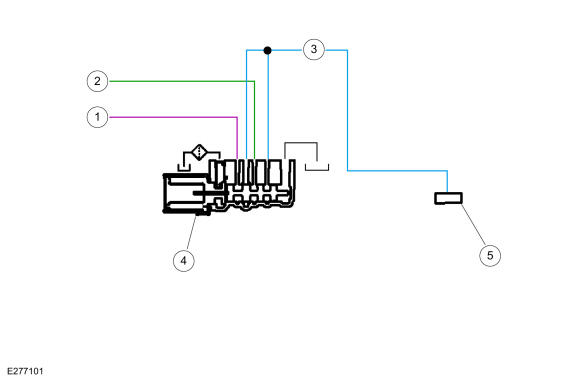

F Clutch Hydraulic Circuits
| Item | Description |
|---|---|
| 1 | Pump output |
| 2 | Clutch exhaust |
| 3 | Control |
| 4 | SSF/control valve |
| 5 | Mechanical F (2, 8) clutch |
F Clutch Hydraulic Operation
Line pressure is supplied to the F (2, 8) clutch control valve. As SSF turns on, it moves the F (2, 8) clutch control valve allowing regulated line pressure to flow to the mechanical F (2, 8) clutch.

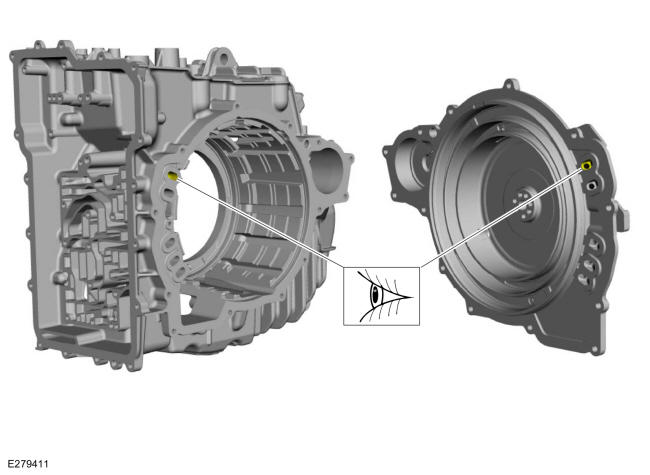

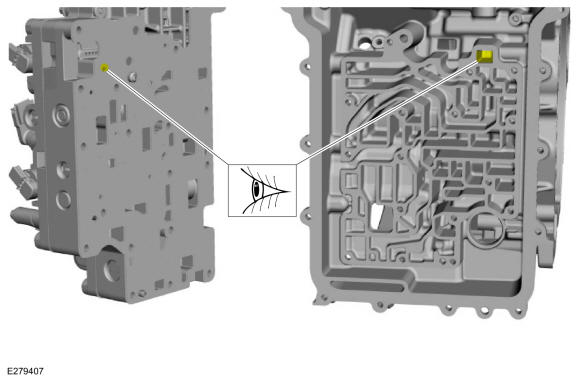

F Clutch Hydraulic Passages
