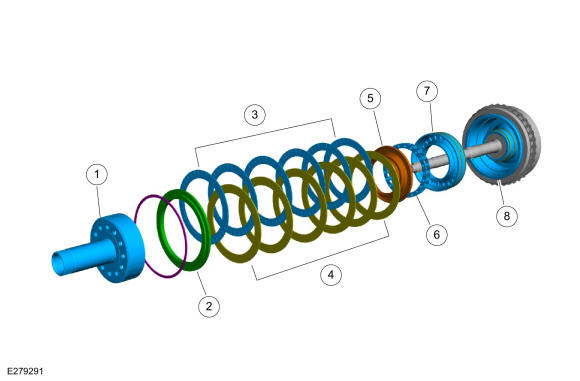

E Clutch Exploded View
WARNING: This page is about a different variant/trim than selected.
| Item | Description |
|---|---|
| 1 | Hub |
| 2 | Reaction plate |
| 3 | E (5, 6, 7, 8) clutch friction plate (6 required) |
| 4 | E (5, 6, 7, 8) clutch steel plate (6 required) |
| 5 | E (5, 6, 7, 8) clutch balance piston |
| 6 | E (5, 6, 7, 8) clutch balance piston return spring |
| 7 | E (5, 6, 7, 8) clutch piston |
| 8 | E (5, 6, 7, 8) clutch hub |

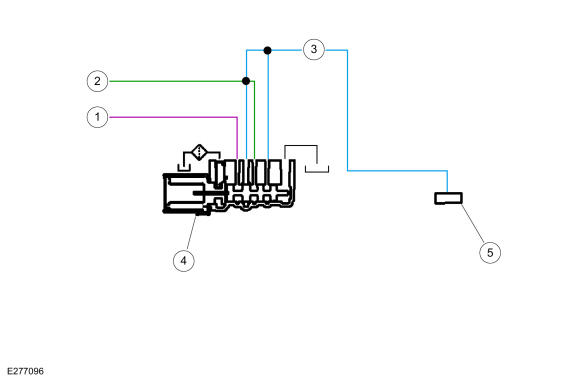

E Clutch Hydraulic Circuits
| Item | Description |
|---|---|
| 1 | Line pressure |
| 2 | Clutch exhaust |
| 3 | Control |
| 4 | SSE/control valve |
| 5 | Mechanical E (5, 6, 7, 8) clutch |
E Clutch Hydraulic Operation
Line pressure is supplied to the E (5, 6, 7, 8) clutch control valve. As SSE turns on, it moves the E (5, 6, 7, 8) clutch control valve allowing regulated line pressure to flow to the mechanical E (5, 6, 7, 8) clutch.

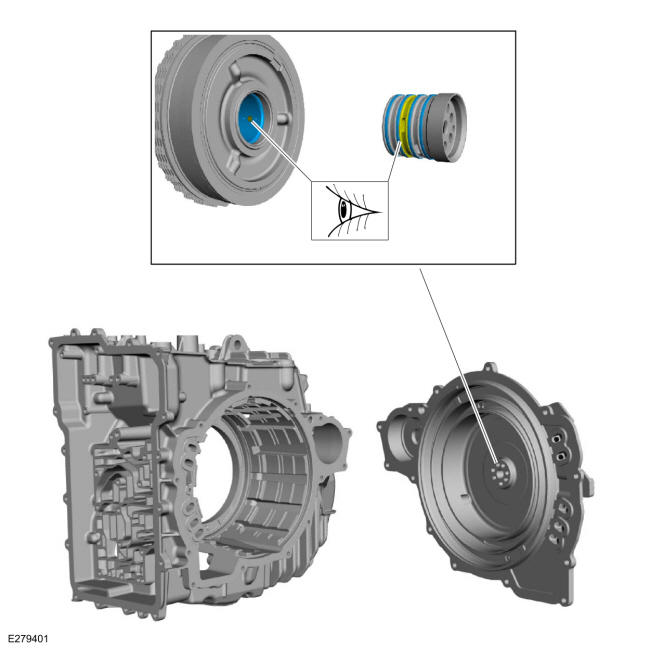

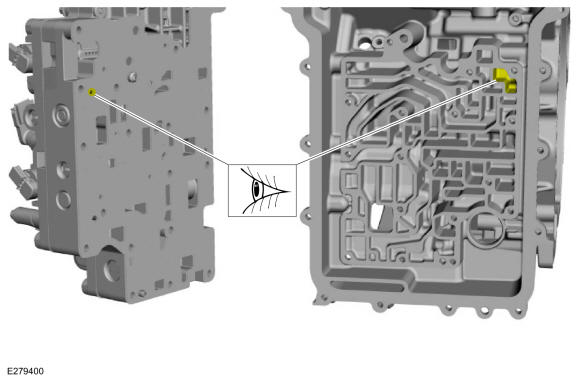

E Clutch Hydraulic Passages
