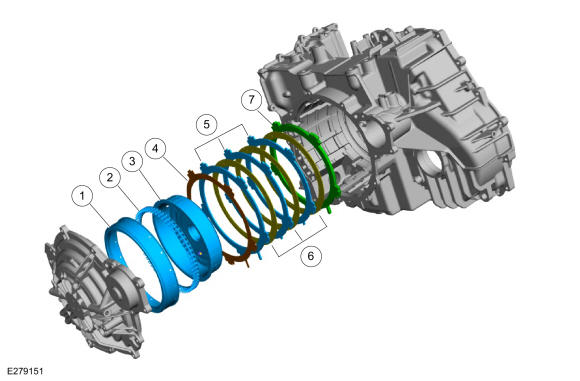

C Clutch Exploded View
WARNING: This page is about a different variant/trim than selected.
| Item | Description |
|---|---|
| 1 | C (3, 7) clutch piston |
| 2 | Spring assembly |
| 3 | Sun gear and shell |
| 4 | Wave plate |
| 5 | C (3, 7) clutch steel plates |
| 6 | C (3, 7) clutch friction plates |
| 7 | C (3, 7) clutch reaction plate |

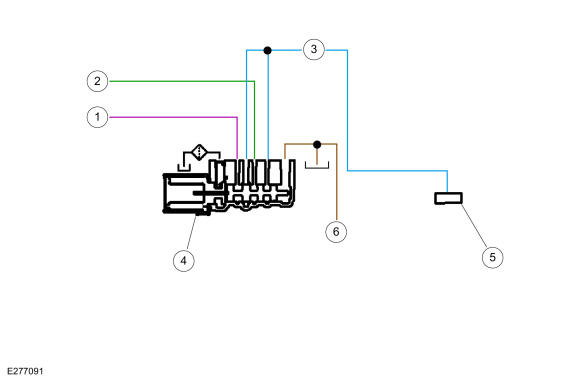

C Clutch Hydraulic Circuits
| Item | Description |
|---|---|
| 1 | Line pressure |
| 2 | Clutch exhaust |
| 3 | C (3, 7) clutch control |
| 4 | SSC/control valve |
| 5 | Mechanical C (3, 7) clutch |
| 6 | Elevated exhaust |
C Clutch Hydraulic Operation
Line pressure is supplied to the C (3, 7) clutch control valve. As SSC turns on, it moves the C (3, 7) clutch control valve allowing regulated line pressure to flow to the mechanical C (3, 7) clutch.

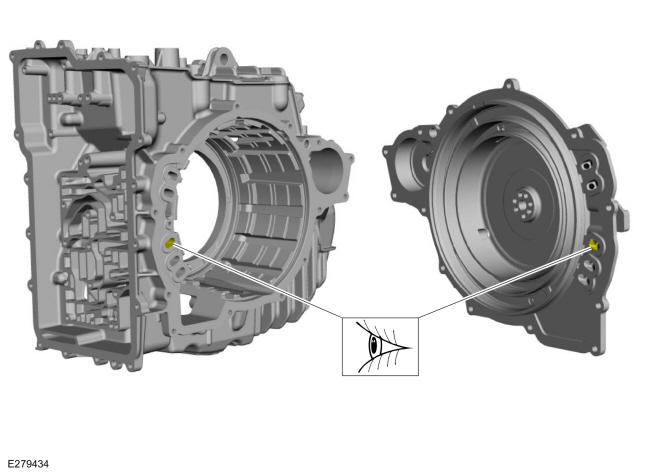

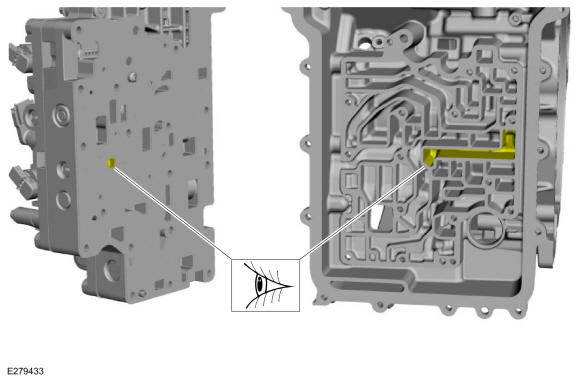

C Clutch Hydraulic Passages
