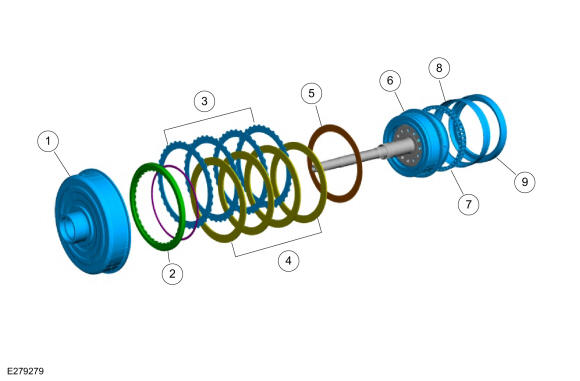

B Clutch Exploded View
WARNING: This page is about a different variant/trim than selected.
| Item | Description |
|---|---|
| 1 | Reaction carrier sunshell |
| 2 | B (4, 6, R) clutch apply plate |
| 3 | B (4, 6, R) clutch steel plate (4 required) |
| 4 | B (4, 6, R) clutch friction plate (4 required) |
| 5 | Wave plate |
| 6 | B (4, 6, R)/E (5, 6, 7, 8) clutch hub |
| 7 | B (4, 6, R) clutch piston return spring |
| 8 | B (4, 6, R) clutch piston |
| 9 | B (4, 6, R) clutch piston collar |

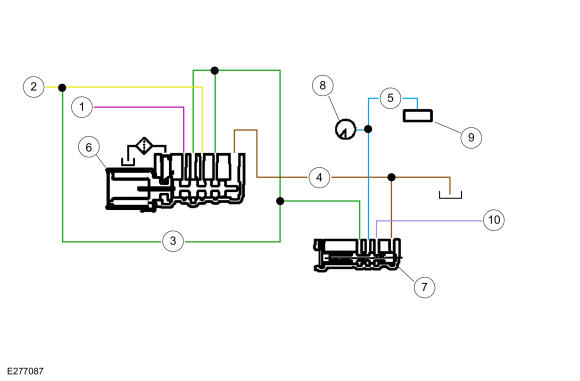

B Clutch Hydraulic Circuits
| Item | Description |
|---|---|
| 1 | Pump output |
| 2 | Clutch exhaust |
| 3 | B (4, 6, R) clutch control |
| 4 | Elevated exhaust |
| 5 | Apply pressure to mechanical B (4, 6, R) clutch |
| 6 | SSB/control valve |
| 7 | B (4, 6, R) clutch latch valve |
| 8 | B (4, 6, R) clutch pressure sensor |
| 9 | Mechanical B (4, 6, R) clutch |
| 10 | Pump output |
B Clutch Hydraulic Operation
Pump output pressure is supplied to the B (4, 6, R) clutch control valve. As SSB turns on, it moves the control valve allowing regulated pump output pressure to flow to the B (4, 6, R) clutch latch valve and than to the mechanical B (4, 6, R) clutch. When the regulated pump output pressure in the B (4, 6, R) clutch control circuit reaches approximately 100 psi, the mechanical B (4, 6, R) clutch is fully applied. The pressure in the B (4, 6, R) clutch control circuit moves the B (4, 6, R) clutch latch valve to the left which allows pump output pressure to hold the mechanical B (4, 6, R) clutch applied.

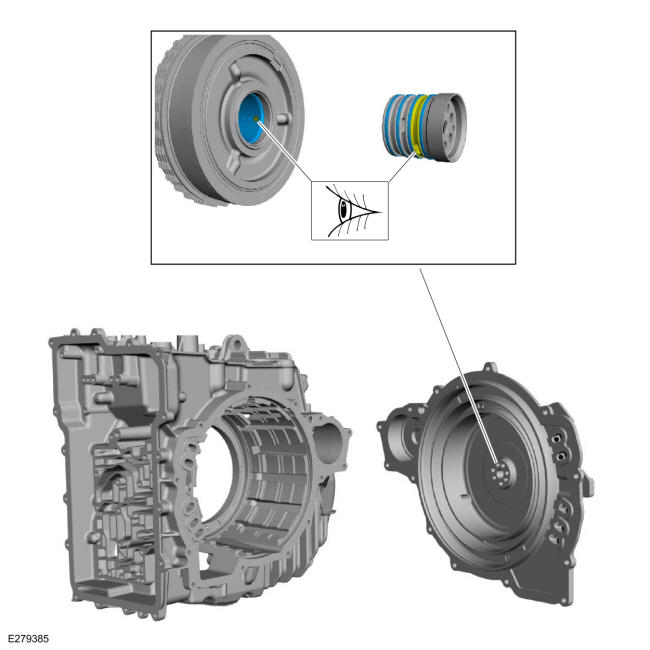

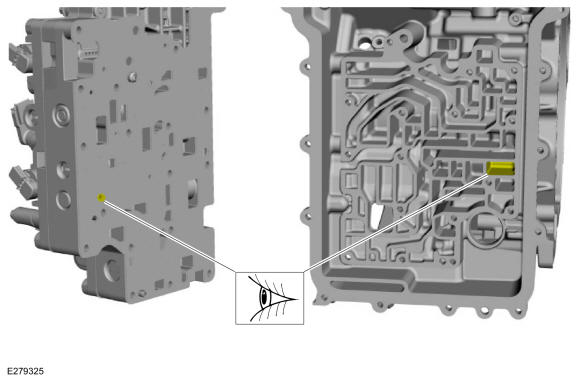

B Clutch Hydraulic Passages
