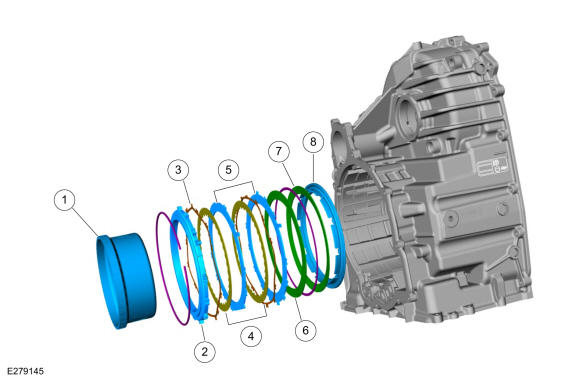

A Clutch Exploded View
WARNING: This page is about a different variant/trim than selected.
| Item | Description |
|---|---|
| 1 | Output sun gear and shell |
| 2 | A (1, 2, 3, 4, 5) clutch reaction plate |
| 3 | Anti drag spring |
| 4 | A (1, 2, 3, 4, 5) clutch friction plates |
| 5 | A (1, 2, 3, 4, 5) clutch steel plates |
| 6 | Wave spring |
| 7 | A (1, 2, 3, 4, 5) clutch piston return spring |
| 8 | A (1, 2, 3, 4, 5) clutch piston |

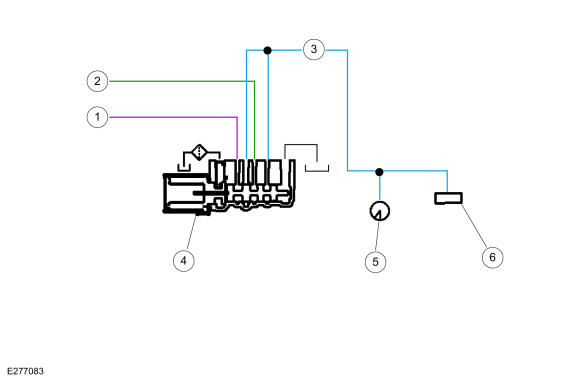

A Clutch Hydraulic Circuits
| Item | Description |
|---|---|
| 1 | Line pressure |
| 2 | Clutch exhaust |
| 3 | A (1, 2, 3, 4, 5) clutch control |
| 4 | SSA/control valve |
| 5 | A (1, 2, 3, 4, 5) clutch pressure sensor |
| 6 | Mechanical A (1, 2, 3, 4, 5) clutch |
A Clutch Hydraulic Operation
Line pressure is supplied to the A (1, 2, 3, 4, 5) clutch control valve. As SSA turns on, it moves the A (1, 2, 3, 4, 5) clutch control valve allowing regulated line pressure to flow to the mechanical A (1, 2, 3, 4, 5) clutch.

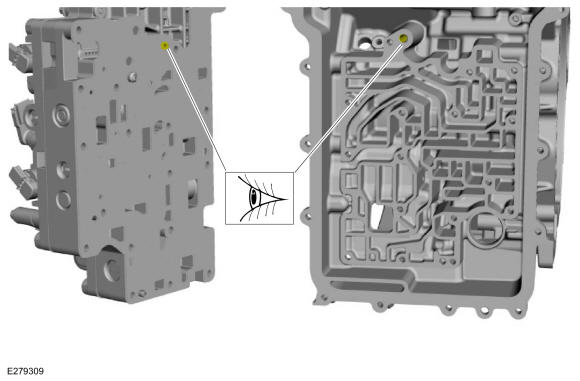

A Clutch Hydraulic Passages
