Power Transfer Unit Input Shaft Seal LH - 8-Speed Automatic Transmission - 8F57: Removal
WARNING: This page is about a different variant/trim than selected.
- A video of steps 1-6 is available.
Refer to the video version of this procedure.
multimedia:A supplement to the article is available. - Remove the PTU actuator motor. Refer to: Power Transfer Unit Actuator Motor 2.7L EcoBoost
- Remove the PTU cooler. Refer to: Power Transfer Unit Cooler - Vehicles With: Power Transfer Unit Oil-to-Coolant Cooler 2.7L EcoBoost
- Remove the PTU oil temperature sensor. Refer to: Oil Temperature Sensor 2.7L EcoBoost

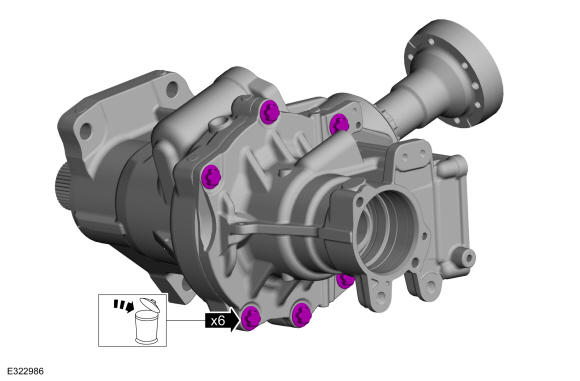

- Remove and discard PTU case bolts.

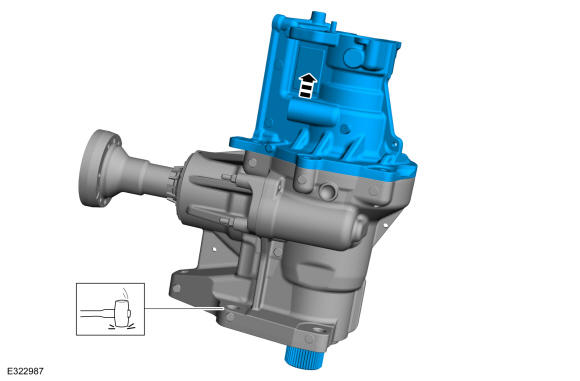

- Remove the casing. Use the General Equipment: Plastic Mallet

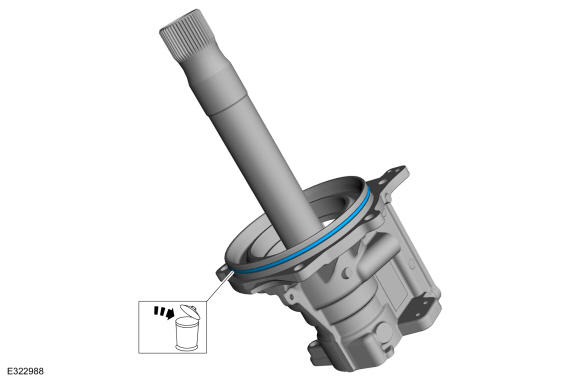

- Remove and discard the O ring.

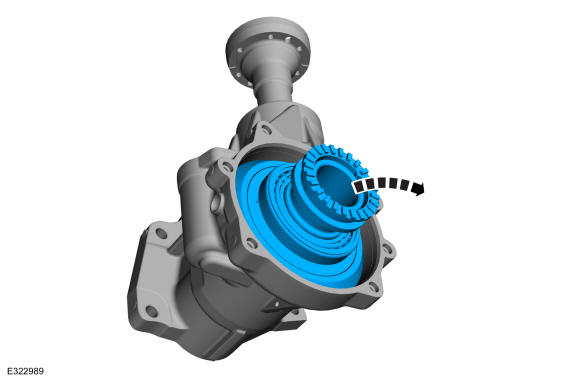

- Remove the ring gear and input shaft assembly.
-
NOTE: The bearing race and shim may come out when the seal is removed.

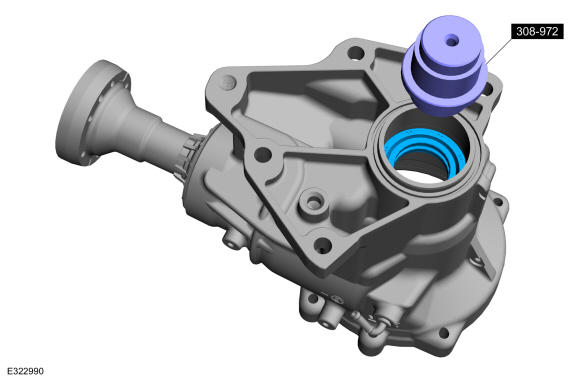

Using the special tools, remove and discard the LH input shaft seal. Use Special Service Tool: 308-972 Installer, Input Sleeve.
Refer to the video version of this procedure.
multimedia:A supplement to the article is available.
