Fuel Pump Driver Module (FPDM): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: The fuel pump driver module is attached to the underside of the rear floor above the rear subframe on the left side.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

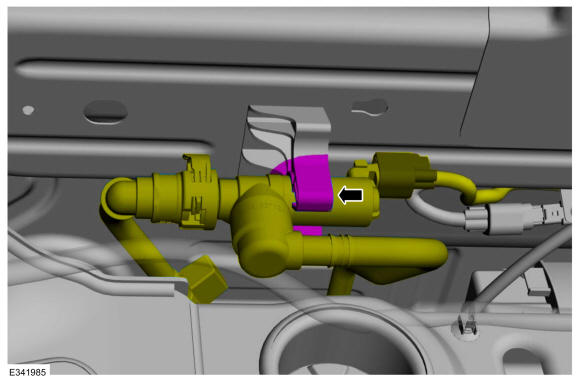

Position aside the EVAP blocking valve and hoses.

Courtesy of FORD MOTOR COMPANY

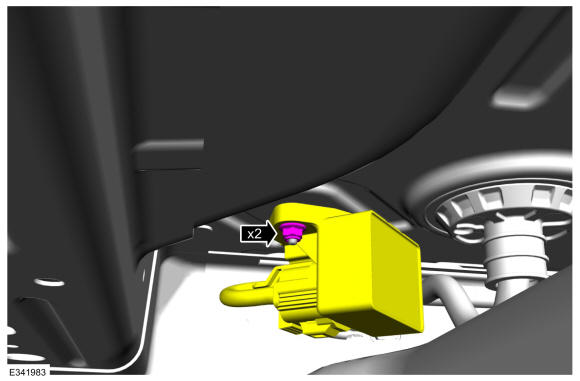

Remove the fuel pump driver module nuts.

Courtesy of FORD MOTOR COMPANY

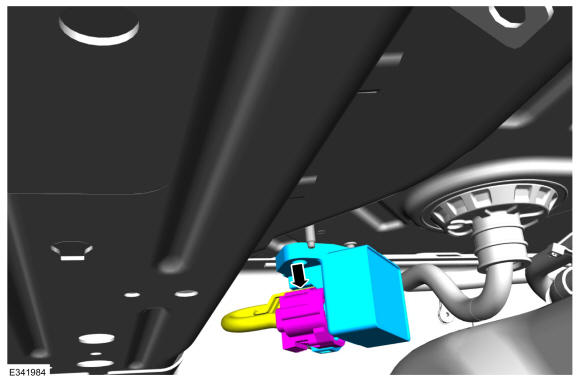

Disconnect the electrical connector, then remove the fuel pump driver module.

Courtesy of FORD MOTOR COMPANY
