Section 13 (Engine - 2.7L ECOBOOST (238KW/324PS) (2 Of 2)): Removal: Engine

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	303-1246 Engine Spreader Bar TKIT-2006UF-FLM TKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	303-1634 Lift Eyes (2) TKIT-2014D-ROW3 TKIT-2014D-FL_ROW
Courtesy of FORD MOTOR COMPANY	307-346 (T97T-7902-A) Retainer, Torque Converter TKIT-1998-LM (NavigatoR) TKIT-1997-F/FLM/LT
Courtesy of FORD MOTOR COMPANY	307-569 Disconnect Tool TOC Line (1/2) TKIT-2006U-F/FM TKIT-2006U-FLM/LM TKIT-2006U-ROW1 TKIT-2006U-ROW2
Tie Rod End Remover
Floor Crane
Adjustable Mounting Arm
Oil Drain Equipment
Cable Ties
Hose Clamp Remover/Installer
Powertrain Jack
Wooden Block

LHD AWD/LHD FWD

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
2. Evacuate the A/C system. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - Vehicles With: R134A Refrigerant .
3. Release the fuel pressure. Refer to: Fuel System Pressure Release 2.7L EcoBoost .
4. NOTE: Use a steering wheel holding device (such as Hunter® 28-75-1 or equivalent).

   Using a suitable holding tool, hold the steering wheel in the straight-ahead position.

   Courtesy of FORD MOTOR COMPANY

5. NOTE: Do not allow the intermediate shaft to rotate while it is disconnected from the gear or damage to the clockspring can occur. If there is evidence that the intermediate shaft has rotated, the clockspring must be removed and recentered. Refer to the Supplemental Restraint Systems article.
   • Remove and discard the steering intermediate shaft bolt.
   • Separate the steering intermediate shaft from the steering gear.

   Courtesy of FORD MOTOR COMPANY

6. Remove the retainers and the upper air deflector.

   Courtesy of FORD MOTOR COMPANY

7. NOTE: Make sure the cooling module is secure before removing the bottom cooling module support panel.
   1. Remove the upper cooling module support brackets.
   2. Using cable ties or mechanics wire through the upper location holes, to support the cooling module. Use the General Equipment: Cable Ties

   Courtesy of FORD MOTOR COMPANY

8. Remove the following items:
   1. Front fender splash shields. Refer to: Fender Splash Shield .
   2. Front suspension height sensors. Refer to: Front Suspension Height Sensor .

9. Remove the retainers and the underbody shield.

   Courtesy of FORD MOTOR COMPANY

10. Remove the retainers and the front underbody shield.

    Courtesy of FORD MOTOR COMPANY

11. Remove the retainers and the underbody shields.

    Courtesy of FORD MOTOR COMPANY

12. Drain the engine cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
13. 1. Remove the nut.
    2. Remove the bolt.
    • Remove the engine appearance cover.
    • If the engine appearance cover stud bolt is loosened or removed, it must be installed/tightened.

      Torque: 62 lb.in (7 Nm)

    Courtesy of FORD MOTOR COMPANY

14. Remove the following items:
    1. Degas bottle. Refer to: Degas Bottle .
    2. Air cleaner. Refer to: Air Cleaner 2.7L EcoBoost .
    3. LH air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe LH 2.7L EcoBoost .
    4. Upper RH air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe RH 2.7L EcoBoost .

15. NOTE: When removing any turbocharger air intake system components, make sure to cover any open ports to prevent debris from entering the system. The turbocharger compressor vanes can be damaged by even the smallest particles. All components need to be inspected and cleaned prior to installation or reassembly.
    1. Loosen the clamp, remove the bolt and disconnect the CAC inlet pipe.
    • Cover all open ports.

    Courtesy of FORD MOTOR COMPANY

16. Disconnect the wiring harness electrical connector and detach the retainer.

    Courtesy of FORD MOTOR COMPANY

17. NOTE: When removing any turbocharger air intake system components, make sure to cover any open ports to prevent debris from entering the system. The turbocharger compressor vanes can be damaged by even the smallest particles. All components need to be inspected and cleaned prior to installation or reassembly.
    1. Loosen the clamps and remove the CAC outlet pipe.
    • Cover all open ports.

    Courtesy of FORD MOTOR COMPANY

18. NOTE: When removing any turbocharger air intake system components, make sure to cover any open ports to prevent debris from entering the system. The turbocharger compressor vanes can be damaged by even the smallest particles. All components need to be inspected and cleaned prior to installation or reassembly.
    1. Loosen the clamps and remove the CAC inlet pipe.
    • Cover all open ports.

    Courtesy of FORD MOTOR COMPANY

19. Remove the following items:
    1. Accessory drive belt. Refer to: Accessory Drive Belt 2.7L EcoBoost .
    2. Battery tray. Refer to: Battery Tray .

20. Remove the stud bolt and position aside the ground cable.

    Courtesy of FORD MOTOR COMPANY

21. Disconnect the junction box electrical connector.

    Courtesy of FORD MOTOR COMPANY

22. 1. Release the tabs.
    2. Lift and position top part of junction box aside.

    Courtesy of FORD MOTOR COMPANY

23. Open the junction box cover.

    Courtesy of FORD MOTOR COMPANY

24. Remove the nuts and disconnect the electrical wiring harness.

    Courtesy of FORD MOTOR COMPANY

25. Remove the bolts and detach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

26. Disconnect the vacuum tube quick release couplings and position the tube aside. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

27. 1. Detach the cable from the manual control lever.
    2. Remove the bolts and position the cable aside.

    Courtesy of FORD MOTOR COMPANY

28. Loosen the clamp and disconnect the upper radiator hose. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

29. 1. Detach the heater hose retainer.
    2. Disconnect the heater hose coupling.
    3. Loosen the radiator hose clamp.
    4. Remove the radiator hose off of the retaining tab.

    Courtesy of FORD MOTOR COMPANY

30. 1. Release the clamp and disconnect the heater hose. Use the General Equipment: Hose Clamp Remover/Installer
    2. Detach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

31. 1. Release the clamp and disconnect the lower radiator hose. Use the General Equipment: Hose Clamp Remover/Installer
    2. Release the clamp and disconnect the heater hose.
    3. Detach the heater hose retainer.

    Courtesy of FORD MOTOR COMPANY

32. 1. Remove the ground wire bolt.
    2. Detach the retainers and position the ground wire aside.

    Courtesy of FORD MOTOR COMPANY

33. • Detach the wiring harness retainer.
    • Remove the bolt and position the bracket aside.

    Courtesy of FORD MOTOR COMPANY

34. • Disconnect the PCM electrical connectors.
    • Disconnect the engine harness electrical connectors and detach the retainer.

    Courtesy of FORD MOTOR COMPANY

35. 1. Remove the high-pressure fuel pump insulator. Refer to: Quick Release Coupling .
    2. Disconnect the high-pressure fuel pump fuel supply tube quick release coupling. Refer to: Quick Release Coupling .
    3. Detach the EVAP tube retainer.
    4. Disconnect the EVAP tube quick release coupling. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

36. Disconnect and remove the EVAP tube.

    Courtesy of FORD MOTOR COMPANY

37. NOTE: Use a shop towel when removing the oil filter housing to prevent oil from spilling on the engine or accessory drive belt.
    1. Loosen the oil filter housing and allow the oil to drain out of the housing and down into the engine.
    2. Remove the oil filter housing and discard the oil filter element.
    3. Remove and discard the O-ring seals.

    Courtesy of FORD MOTOR COMPANY

38. Remove the nut, bolt and the battery tray support bracket.

    Courtesy of FORD MOTOR COMPANY

39. Disconnect the coolant tube couplings.

    Courtesy of FORD MOTOR COMPANY

40. Remove the transmission fluid cooler tube secondary latches.

    Courtesy of FORD MOTOR COMPANY

41. Using the special tool, disconnect the transmission fluid cooler tubes. Use Special Service Tool: 307-569 Disconnect Tool TOC Line (1/2).

    Courtesy of FORD MOTOR COMPANY

42. Detach and disconnect the wiring harness electrical connector.

    Courtesy of FORD MOTOR COMPANY

43. Disconnect the TSS sensor.

    Courtesy of FORD MOTOR COMPANY

44. NOTE: Make sure the cooling module is secure.
    • Remove the pin-type retainers.
    • Remove the bolts and the cooling module support panel.

    Courtesy of FORD MOTOR COMPANY

45. Detach the wiring harness retainers, slide up the insulator and disconnect the electrical connectors.

    Courtesy of FORD MOTOR COMPANY

46. NOTE: During the removal of components, cap, tape or otherwise appropriately protect all openings to prevent the ingress of dirt or other contamination. Remove protective materials prior to installation.

    Remove the A/C compressor inlet and outlet line nuts and disconnect the fittings.

    • Discard the O-ring seals and gaskets.
    • Make sure to cover any open ports to prevent debris from entering the system.

    Courtesy of FORD MOTOR COMPANY

47. Remove the bolts, stud bolt and the A/C compressor.

    Courtesy of FORD MOTOR COMPANY

48. 1. Turn the oil drain plug counterclockwise 120 degrees. Use the General Equipment: Oil Drain Equipment
    2. Pull the oil drain plug out of the oil pan.
    3. After the oil has drained, push the oil drain plug into the oil pan.
    4. NOTE: Overtightening will damage the oil drain plug.

       Turn the oil drain plug clockwise 120 degrees.

    Courtesy of FORD MOTOR COMPANY

49. Remove the bolt and the LH anti-lock sensor.

    Courtesy of FORD MOTOR COMPANY

50. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Remove the nut and position the LH sway bar link aside.

    Courtesy of FORD MOTOR COMPANY

51. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Remove the nut and position the RH sway bar link aside.

    Courtesy of FORD MOTOR COMPANY

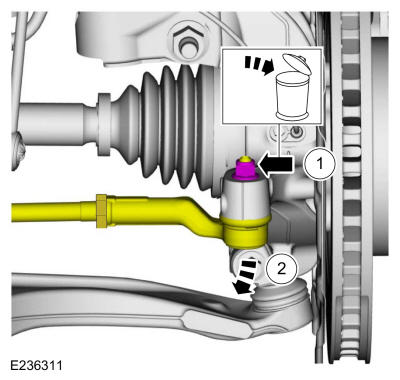

52. 1. Remove and discard the RH outer tie rod end nut.
    2. NOTE: Do not use a hammer to separate the outer tie-rod end from the wheel spindle or damage to the wheel spindle may result.
       NOTE: Use care when installing the tie rod end remover or damage to the outer tie-rod end boot may occur.

       Separate the outer tie rod end from the wheel knuckle. Use the General Equipment: Tie Rod End Remover

    Courtesy of FORD MOTOR COMPANY

53. Remove the retainers and the shield.

    Courtesy of FORD MOTOR COMPANY

54. Remove the following items:
    1. RH front halfshaft. Refer to: Front Halfshaft RH - FWD . Refer to: Front Halfshaft RH - 2.7L EcoBoost (238kW/324PS), All-Wheel Drive (AWD) .
    2. NOTE: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.

       Remove the LH brake disc. Refer to: Brake Disc .

55. 1. If equipped, disconnect the wiring harness electrical connectors.
    2. If equipped, remove the nuts and position the wiring harness support bracket(s) aside.
    3. Remove the nuts and the subframe support bracket.

    Courtesy of FORD MOTOR COMPANY

56. Remove the following items:
    1. Exhaust flexible pipes. Refer to: Exhaust Flexible Pipe 2.7L EcoBoost .
    2. LH catalytic convertor. Refer to: Catalytic Converter LH 2.7L EcoBoost .

    LHD AWD

57. Remove the driveshaft. Refer to: Rear Driveshaft - 2.7L EcoBoost (238kW/324PS) .

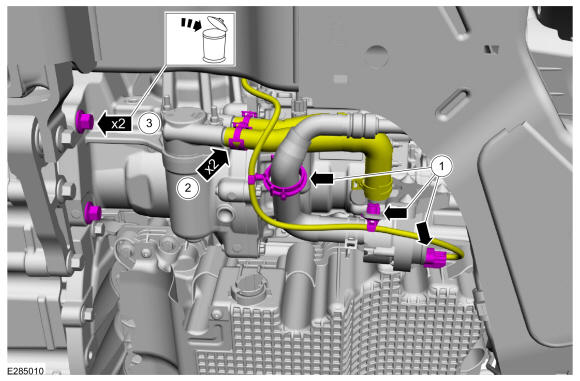

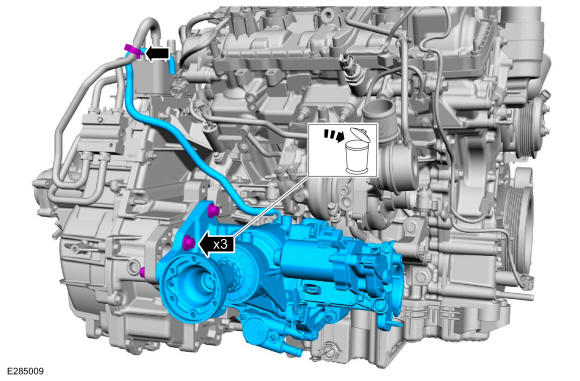

58. 1. Disconnect the coolant pump electrical connector and detach the wiring harness retainers.
    2. Loosen the clamps and disconnect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer
    3. Remove and discard the lower transfer case bolts.

    Courtesy of FORD MOTOR COMPANY

59. Disconnect the transfer case coolant hose quick connect couplings.

    Courtesy of FORD MOTOR COMPANY

    LHD AWD/LHD FWD

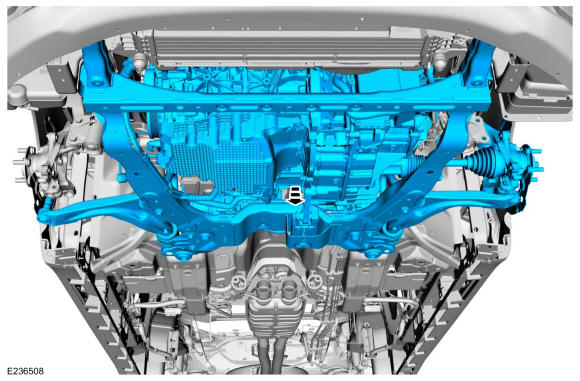

60. Mark the subframe location.

    Courtesy of FORD MOTOR COMPANY

61. Mark the subframe location.

    Courtesy of FORD MOTOR COMPANY

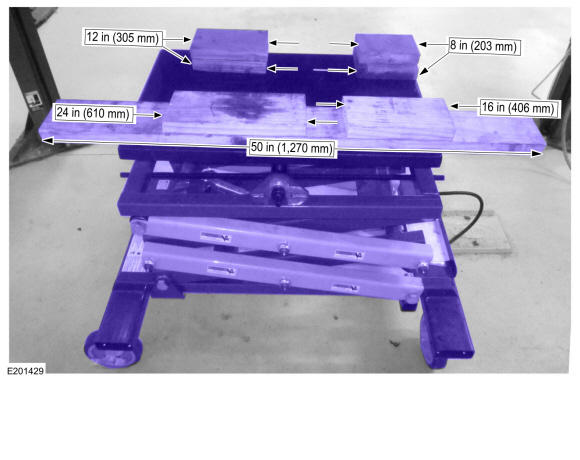

62. NOTE: The boards must be positioned to properly support the engine, transmission and subframe, and allow clearance between the powertrain jack and the exhaust components to prevent damage.

    Position lengths of 2 x 6 boards on the powertrain jack to support the oil pan, transmission and subframe. Use the General Equipment: Powertrain Jack. Use the General Equipment: Wooden Block

    Courtesy of FORD MOTOR COMPANY

63. NOTE: View from rear of vehicle.

    Position the powertrain jack and boards under the engine, transmission and subframe. Use the General Equipment: Powertrain Jack. Use the General Equipment: Wooden Block

    Courtesy of FORD MOTOR COMPANY

64. Remove the engine-to-transmission bolt.

    Courtesy of FORD MOTOR COMPANY

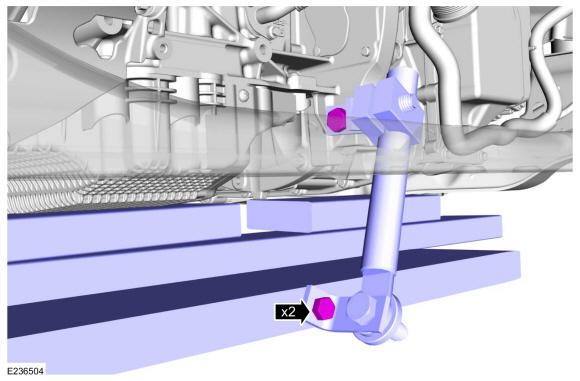

65. 1. Position the powertrain jack and boards under the powertrain and subframe. Use the General Equipment: Powertrain Jack. Use the General Equipment: Wooden Block
    2. Install. Use the General Equipment: Adjustable Mounting Arm

    Courtesy of FORD MOTOR COMPANY

66. Remove and discard the nuts and the bolts.
    • Separate the LH knuckle from the strut.

    Courtesy of FORD MOTOR COMPANY

67. NOTE: The engine mount and bracket are serviced as an assembly. Do not remove the engine mount bracket-to-engine mount bolt, this fastener is not serviceable.
    • Remove and discard the nuts and bolts.
    • Remove the engine mount and bracket assembly.

    Courtesy of FORD MOTOR COMPANY

68. Remove and discard the transmission mount bolts.

    Courtesy of FORD MOTOR COMPANY

69. 1. Remove and discard the subframe bolts.
    2. Remove the bolts and the subframe brackets.

    Courtesy of FORD MOTOR COMPANY

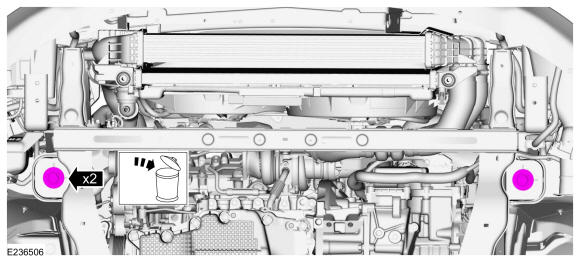

70. Remove and discard the subframe bolts.

    Courtesy of FORD MOTOR COMPANY

71. Using the powertrain jack, lower the powertrain and subframe as an assembly. Use the General Equipment: Powertrain Jack

    Courtesy of FORD MOTOR COMPANY

72. NOTE: When removing any turbocharger air intake system components, make sure to cover any open ports to prevent debris from entering the system. The turbocharger compressor vanes can be damaged by even the smallest particles. All components need to be inspected and cleaned prior to installation or reassembly.
    1. Remove the bolt.
    2. Release the clamps and disconnect the hoses. Use the General Equipment: Hose Clamp Remover/Installer
    • Cover all open ports.

    Courtesy of FORD MOTOR COMPANY

73. NOTE: When removing any turbocharger air intake system components, make sure to cover any open ports to prevent debris from entering the system. The turbocharger compressor vanes can be damaged by even the smallest particles. All components need to be inspected and cleaned prior to installation or reassembly.
    1. Loosen the clamp and remove the turbocharger intake pipe.
    • Cover all open ports.

    Courtesy of FORD MOTOR COMPANY

74. NOTE: When removing any turbocharger air intake system components, make sure to cover any open ports to prevent debris from entering the system. The turbocharger compressor vanes can be damaged by even the smallest particles. All components need to be inspected and cleaned prior to installation or reassembly.
    1. Loosen the clamp and remove the turbocharger outlet pipe.
    • Cover all open ports.

    Courtesy of FORD MOTOR COMPANY

75. • Disconnect the HO2S and the catalyst monitor sensor electrical connectors.
    • Detach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

76. If equipped, remove the bolt and position the transducer aside.

    Courtesy of FORD MOTOR COMPANY

77. 1. Loosen.
    2. Remove.

    Courtesy of FORD MOTOR COMPANY

78. 1. Remove and discard the RH catalytic converter nuts.
    2. Remove the RH catalytic converter.

    Courtesy of FORD MOTOR COMPANY

79. Remove and discard the RH catalytic converter gasket.

    Courtesy of FORD MOTOR COMPANY

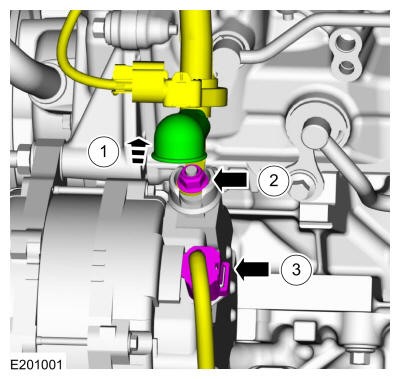

80. 1. Lift up the generator cable protective cover.
    2. Remove the nut and disconnect the generator cable.
    3. Disconnect the generator electrical connector.

    Courtesy of FORD MOTOR COMPANY

81. • Detach the retainers and position the battery cable aside.

    Courtesy of FORD MOTOR COMPANY

    1. If equipped, remove the nut and position the transducer aside.

82. • Disconnect the coolant pump electrical connector.
    • Detach the wiring harness retainer.
    • Remove the nuts, bolt and the coolant pump and hose assembly.

    Courtesy of FORD MOTOR COMPANY

83. Detach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

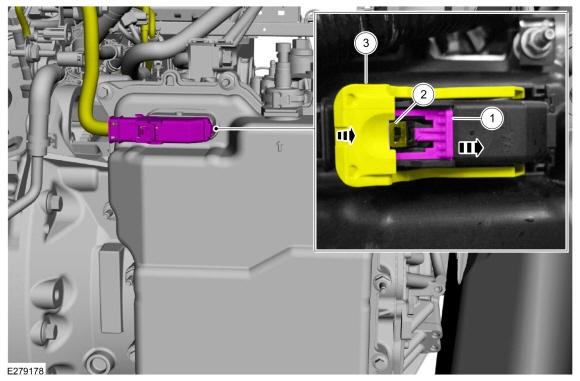

84. Disconnect the transmission electrical connector.
    1. Slide the locking clip.
    2. Press the tab
    3. While pressing the tab, rotate the connector latch.

    Courtesy of FORD MOTOR COMPANY

85. Remove the starter cable protective cover.

    Courtesy of FORD MOTOR COMPANY

86. 1. Remove the nut.
    2. Remove the nut and position the starter cable aside.

    Courtesy of FORD MOTOR COMPANY

87. 1. Detach the retainer position the wiring harness aside.
    2. Remove the nuts and the bracket.

    Courtesy of FORD MOTOR COMPANY

88. Remove the stud bolts and the starter.

    Courtesy of FORD MOTOR COMPANY

89. Remove the retainers and the access cover.

    Courtesy of FORD MOTOR COMPANY

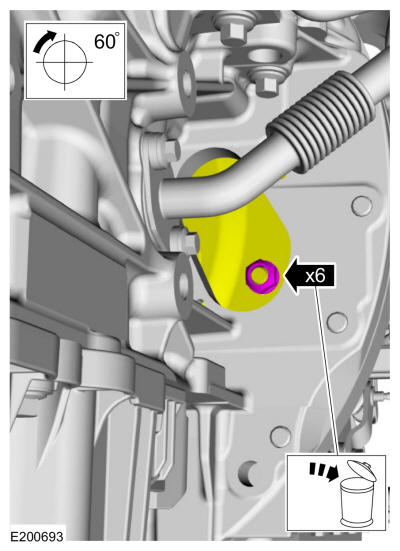

90. NOTE: Using the crankshaft pulley bolt, turn the engine clockwise.

    Remove and discard the torque converter nuts.

    Courtesy of FORD MOTOR COMPANY

    LHD AWD

91. Remove the bolts and the heat shield.

    Courtesy of FORD MOTOR COMPANY

92. • Release the clamp and disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
    • Detach the coolant hose retainer.

    Courtesy of FORD MOTOR COMPANY

93. Remove the nuts and position the coolant pump aside.

    Courtesy of FORD MOTOR COMPANY

94. Disconnect the transfer case electrical connectors and detach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

95. Remove the intermediate shaft. Refer to: Intermediate Shaft .
96. Remove the bolts and the bracket.

    Courtesy of FORD MOTOR COMPANY

97. 1. Detach the vent hose retainer.
    2. Remove and discard the bolts.
    3. Remove the transfer case.

    Courtesy of FORD MOTOR COMPANY

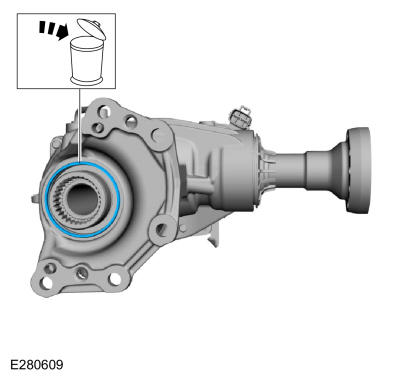

98. Remove and discard the transfer case compression seal.

    Courtesy of FORD MOTOR COMPANY

    LHD AWD/LHD FWD

99. 1. Install Special Service Tool: 303-1634 Lift Eyes (2), 303-1246 Engine Spreader Bar.
    2. Support the engine using the floor crane and length of chain with connecting links. Use the General Equipment: Floor Crane

    Courtesy of FORD MOTOR COMPANY

100. Remove. Use the General Equipment: Adjustable Mounting Arm

     Courtesy of FORD MOTOR COMPANY

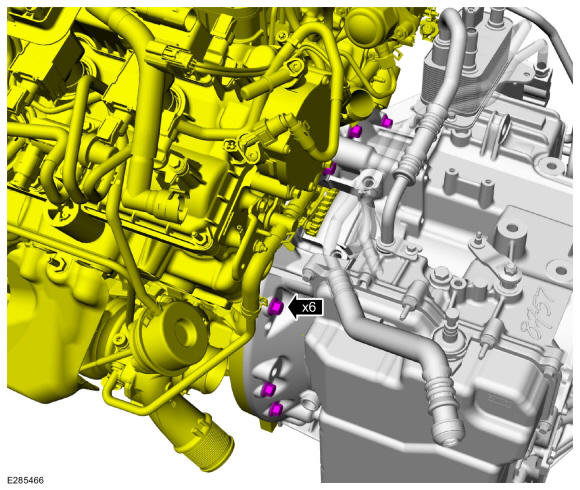

101. NOTE: AWD shown, FWD similar.

     Remove the transmission bellhousing bolts.

     Courtesy of FORD MOTOR COMPANY

102. 1. Remove the bellhousing bolts.
     2. Separate the engine from the transmission.

     Courtesy of FORD MOTOR COMPANY

103. Remove the engine from the transmission and subframe assembly. Use the General Equipment: Floor Crane

     Courtesy of FORD MOTOR COMPANY

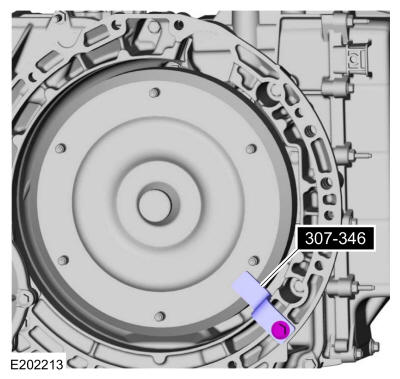

104. Install Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

Courtesy of FORD MOTOR COMPANY
