Valve Cover RH: Installation

WARNING: This page is about a different variant/trim than selected.
  1. NOTE: Installation of new seals is only required if damaged seals were removed.

    Using the special tools, install new spark plug tube seals. Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

    GFD426751Courtesy of FORD MOTOR COMPANY
  2. Install a new gasket.
    GFD426752Courtesy of FORD MOTOR COMPANY
  3. Apply clean engine oil to the surface.
    GFD426753Courtesy of FORD MOTOR COMPANY
  4. NOTE: If the valve cover is not installed and the fasteners tightened within 10 minutes, the sealant must be removed and the sealing area cleaned.

    Apply an 8 mm (0.31 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover-to-cylinder head joints.

    Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    GFD426754Courtesy of FORD MOTOR COMPANY
  5. Install the valve cover and tighten the bolts.

    Torque: 89 lb.in (10 Nm)

    Fig 1: RH Valve Cover Bolts Tightening Sequence
    GFD426755Courtesy of FORD MOTOR COMPANY
  6. Install the RH coil-on-plugs. Refer to: Ignition Coil-On-Plug 2.7L EcoBoost .
    • Connect the TC vacuum supply tube. Use the General Equipment: Hose Clamp Remover/Installer

    • Attach the vacuum tube retainers.

    GFD426659Courtesy of FORD MOTOR COMPANY
    • Attach the vacuum tube and coolant tube retainers.

    • Connect the engine wiring harness electrical connector and retainers.

    GFD426658Courtesy of FORD MOTOR COMPANY

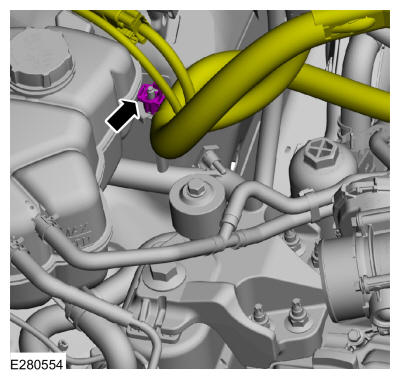

  9. Attach the engine wiring harness retainer.
    GFD426928Courtesy of FORD MOTOR COMPANY
    1. Position the PCV tube and connect the quick release couplings. Refer to: Quick Release Coupling 2.7L EcoBoost .
    2. Connect the throttle body electrical connector.
    GFD426654Courtesy of FORD MOTOR COMPANY
  11. Install the following items:

    1. RH charge air cooler intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe 2.7L EcoBoost .
    2. Refer to: Air Cleaner Outlet Pipe RH 2.7L EcoBoost .

    1. Install the engine appearance cover and the nut.

      Torque: 42 lb.in (4.8 Nm)

    2. Install the bolt.

      Torque: 93 lb.in (10.5 Nm)

GFD426595Courtesy of FORD MOTOR COMPANY
