Intake Manifold: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris if found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

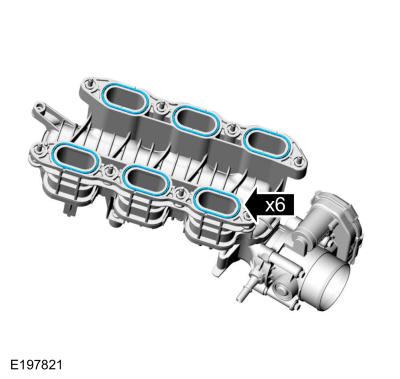

Install the gaskets.

Courtesy of FORD MOTOR COMPANY
Install the intake manifold and tighten the bolts.
Torque: 89 lb.in (10 Nm)

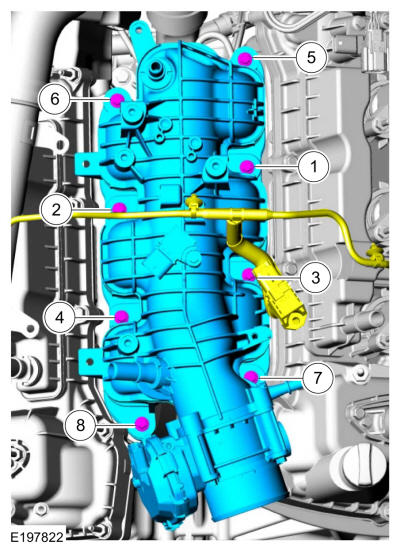

Fig 1: Intake Manifold Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY

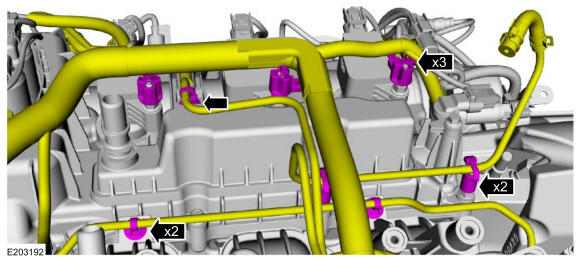

Attach the engine wiring harness and vacuum hose retainers.

Courtesy of FORD MOTOR COMPANY
- Connect the engine wiring harness electrical connectors and attach the harness and vacuum hose retainers.
- Slide the insulator down to cover the CHT electrical connector.
Courtesy of FORD MOTOR COMPANY

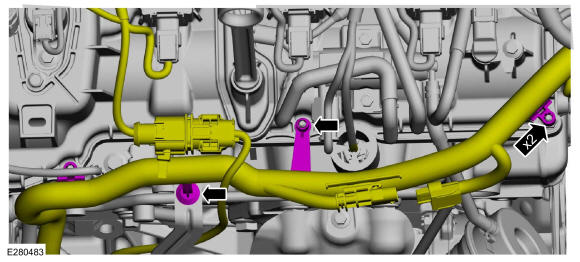

Attach the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY
1. Position the vacuum harness pressure sensor and install the bolt.
  Torque: 62 lb.in (7 Nm)
2. Connect the wiring harness electrical connectors.
3. Attach the wiring harness and vacuum harness retainers.
Courtesy of FORD MOTOR COMPANY
Connect the engine wiring harness electrical connectors and retainers.

Courtesy of FORD MOTOR COMPANY
Connect the vacuum tube quick release couplings. Refer to: Quick Release Coupling 2.7L EcoBoost .

Courtesy of FORD MOTOR COMPANY

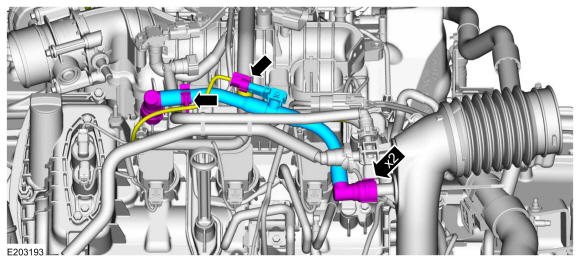

- Position the PCV tube and connect the quick release couplings. Refer to: Quick Release Coupling 2.7L EcoBoost .
- Attach the PCV tube retainer. Refer to: Quick Release Coupling 2.7L EcoBoost .
- Connect the crankcase pressure sensor electrical connector.
Courtesy of FORD MOTOR COMPANY
1. Slide the EVAP purge valve onto the intake manifold mounting tab.
2. Connect the EVAP purge valve electrical connector.
3. Connect the EVAP tube quick release coupling. Refer to: Quick Release Coupling 2.7L EcoBoost .
Courtesy of FORD MOTOR COMPANY
- Install the PCV tube and connect the quick release couplings. Refer to: Quick Release Coupling 2.7L EcoBoost .
- Connect the throttle body electrical connector and wiring harness retainer.
Courtesy of FORD MOTOR COMPANY

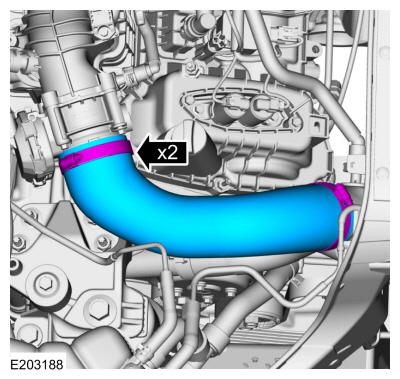

Install the upper CAC outlet pipe and tighten the clamps.
Torque: 48 lb.in (5.4 Nm)

Courtesy of FORD MOTOR COMPANY
Install the upper RH CAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe 2.7L EcoBoost .
1. Install the engine appearance cover and the nut.
  Torque: 42 lb.in (4.8 Nm)
2. Install the bolt.
  Torque: 93 lb.in (10.5 Nm)
Courtesy of FORD MOTOR COMPANY
Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
