Removal And Installation: Radiator: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the cooling module. Refer to: Cooling Module 2.7L EcoBoost .
- Detach the harness retainer, remove the bolts, and the cooling fan assembly.
Torque
: 55 lb.in (6.2 Nm)
-

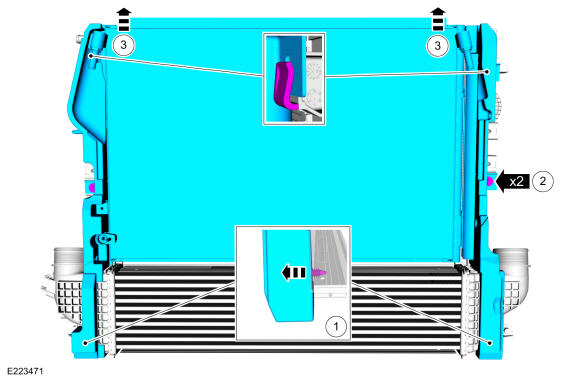

- Detach the pin-type retainers securing the condenser seals.
- Remove the bolts.
Torque
: 55 lb.in (6.2 Nm)
- Remove the condenser and the seals.

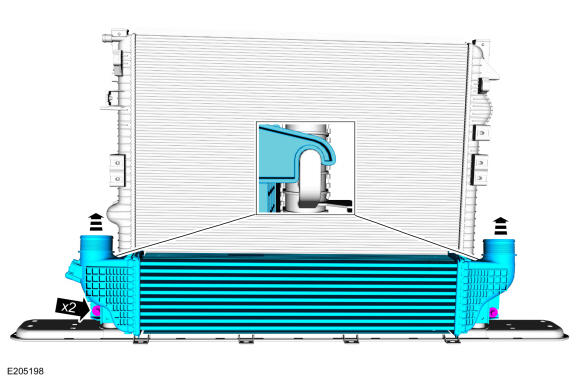

- Remove the bolts and CAC.
Torque
: 55 lb.in (6.2 Nm)

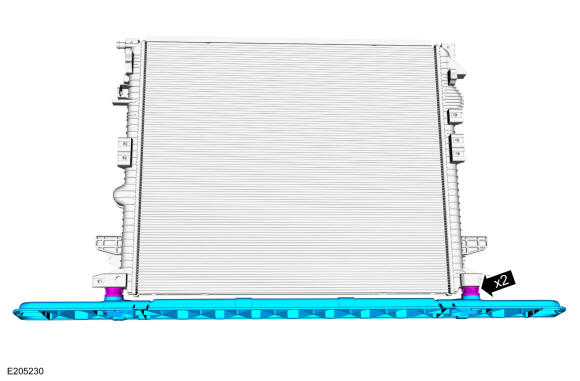

- Remove the lower radiator support.

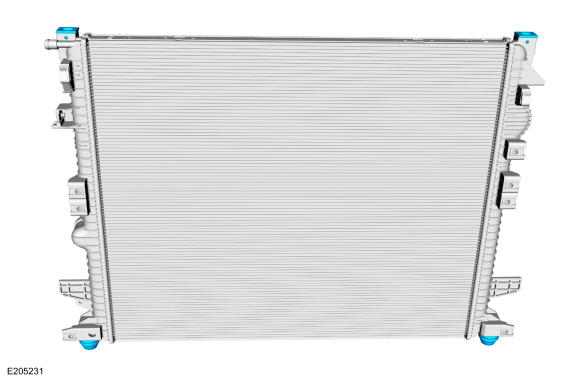

- Remove the lower isolators and upper mounts.
