Cylinder Head to Coolant Outlet Connector Hose Assembly: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.

Left-hand (LH) side

  1. Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding  .

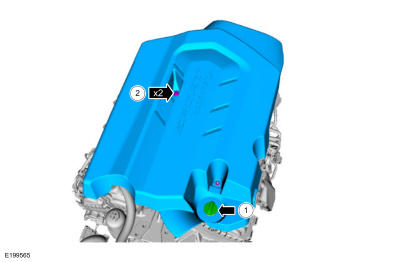

    1. Remove the oil filler cap.
    2. Remove the fasteners and the engine appearance cover.
    GFD427180Courtesy of FORD MOTOR COMPANY
  3. Remove the air cleaner. Refer to: Air Cleaner 2.0L EcoBoost .
  4. Remove the RH air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe RH 2.7L EcoBoost .
  5. Remove the LH air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe LH 2.7L EcoBoost .

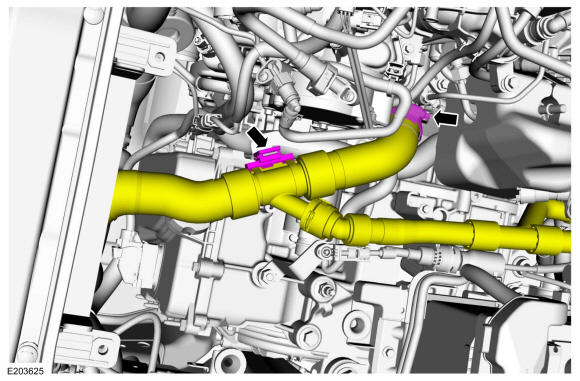

  6. Detach the bracket retainer, loosen the clamp, and disconnect the coolant hose.
    GFD427181Courtesy of FORD MOTOR COMPANY

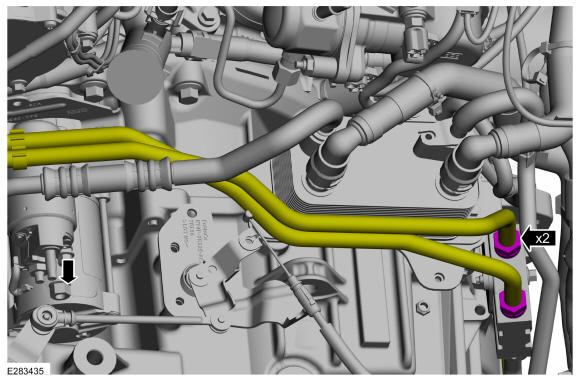

  7. Remove the nuts and disconnect the transmission oil cooler tubes. Use the General Equipment: Fluid Container
    GFD427182Courtesy of FORD MOTOR COMPANY

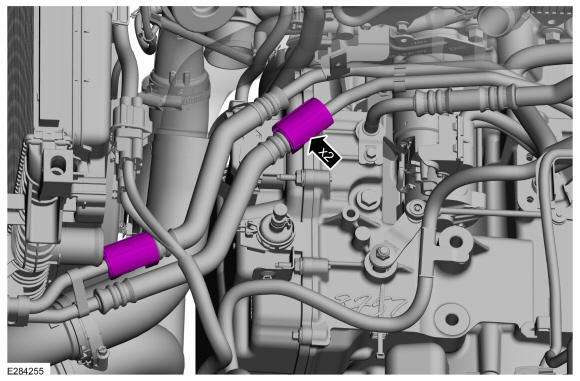

  8. Remove the transmission cooler tube secondary latches.
    GFD427183Courtesy of FORD MOTOR COMPANY

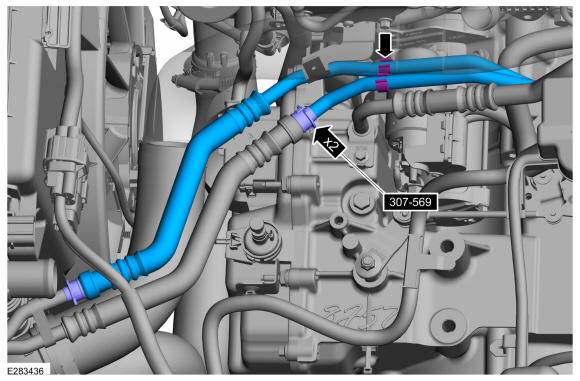

  9. NOTE: Failure to cap the openings for the transmission cooler tubes may result in siphoning of the transmission fluid. This may result in damage to the transmission, if the transmission fluid is not checked and filled after the repair is completed.
    NOTE: Install caps on the transmission cooler tubes.

    • Detach the transmission oil cooler tubes clip.

    • Using the special tool, remove the transmission fluid cooler tubes. Use Special Service Tool: 307-569 Disconnect Tool TOC Line (1/2).

    GFD427184Courtesy of FORD MOTOR COMPANY

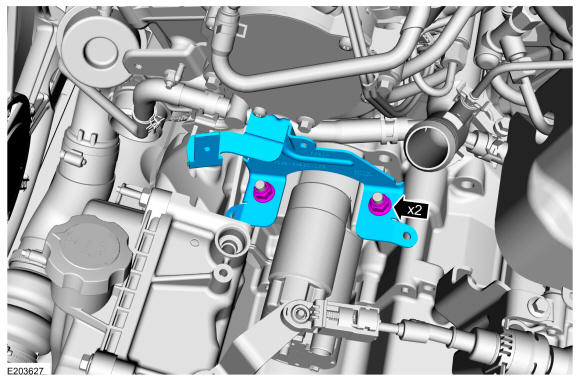

  10. Remove the fasteners and the coolant hose support bracket.
    GFD427185Courtesy of FORD MOTOR COMPANY

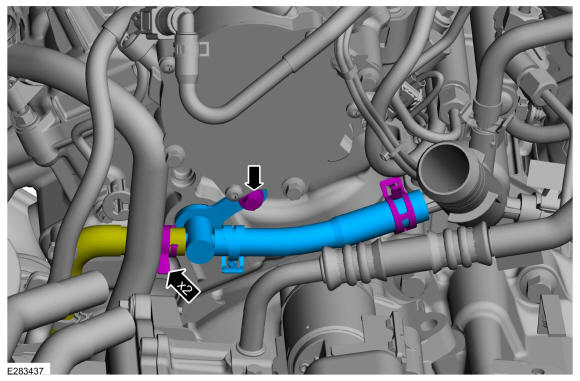

  11. NOTE: Do not pry the cylinder head to coolant outlet connector behind the fastener bracket. If necessary use gripping pliers to pull the cylinder head to coolant outlet connector from the cylinder head.

    Release the hose clamps and disconnect the coolant hoses. Remove the bolt and the cylinder head to coolant outlet connector hose assembly. Use the General Equipment: Hose Clamp Remover/Installer

    Torque

    : 89 lb.in (10 Nm)

    GFD427186Courtesy of FORD MOTOR COMPANY
  12. Inspect the O-ring and replace if necessary.
    GFD426843Courtesy of FORD MOTOR COMPANY

    Right-hand (RH) side

  13. Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding  .
    1. Remove the oil filler cap.
    2. Remove the fasteners and the engine appearance cover.
    GFD427180Courtesy of FORD MOTOR COMPANY
  15. Remove the air cleaner. Refer to: Air Cleaner 2.0L EcoBoost .
  16. Remove the RH air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe RH 2.7L EcoBoost .
  17. Remove the LH air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe LH 2.7L EcoBoost .
  18. Remove the transmission fluid cooler. Refer to: Transmission Fluid Cooler .

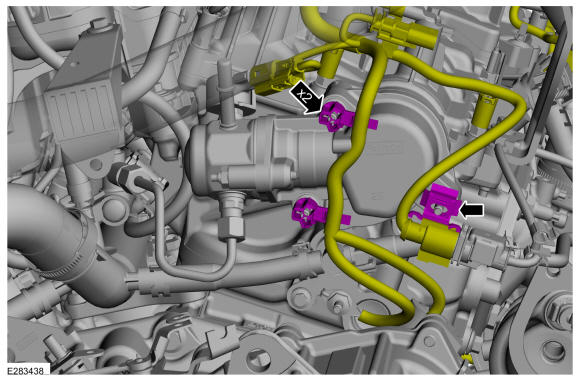

  19. Detach the wiring harness retainers.
    GFD427187Courtesy of FORD MOTOR COMPANY

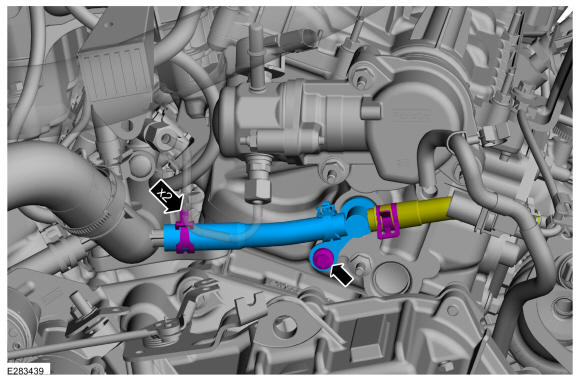

  20. NOTE: Do not pry the cylinder head to coolant outlet connector behind the fastener bracket. If necessary use gripping pliers to pull the cylinder head to coolant outlet connector from the cylinder head.

    Release the hose clamps and disconnect the coolant hoses. Remove the bolt and the cylinder head to coolant outlet connector hose assembly. Use the General Equipment: Hose Clamp Remover/Installer

    Torque

    : 89 lb.in (10 Nm)

    GFD427188Courtesy of FORD MOTOR COMPANY
  21. Inspect the O-ring and replace if necessary.
GFD426843Courtesy of FORD MOTOR COMPANY
