Cooling Fan Motor and Shroud: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the cooling module. Refer to: Cooling Module 2.7L EcoBoost  .

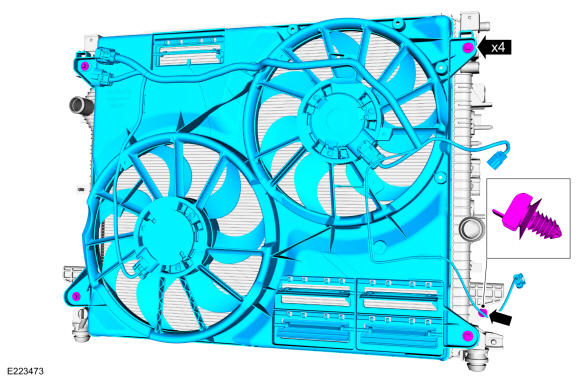

  2. Detach the harness retainer, remove the bolts, and the cooling fan motor and shroud.

    Torque

    : 55 lb.in (6.2 Nm)

GFD427142Courtesy of FORD MOTOR COMPANY
