Coolant Outlet Connector: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the fuel rail. Refer to: Fuel Rail 2.7L EcoBoost .
- Remove the coolant pump. Refer to: Coolant Pump 2.7L EcoBoost .
-
- Loosen the clamp and disconnect the coolant hose.
- Depress the tabs and disconnect the coolant tube.
- Remove the knock sensor harness retainer from the stud bolt.
- Release the clamps and disconnect the coolant hoses. Remove the fasteners and the coolant outlet connector and inlet pipe assembly. Use the General Equipment: Hose Clamp Remover/Installer
-
NOTE: This step is only necessary when installing a new component.
Separate the coolant inlet pipe from the coolant outlet connector. Inspect the grommet and replace if necessary.

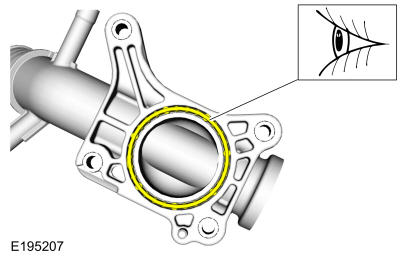

- Inspect the coolant outlet connector O-ring and replace if necessary.
