Fuel Tank Draining
WARNING: This page is about a different variant/trim than selected.
For information on Ford Color Coded Illustrations refer to OEM Color Coding .
Special Tool(s) / General Equipment
| 292-00004 Fuel Tanker 100 GPM | |
|---|---|
Draining
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
-
NOTE: The supplemental refueling adapter is located in the luggage compartment.

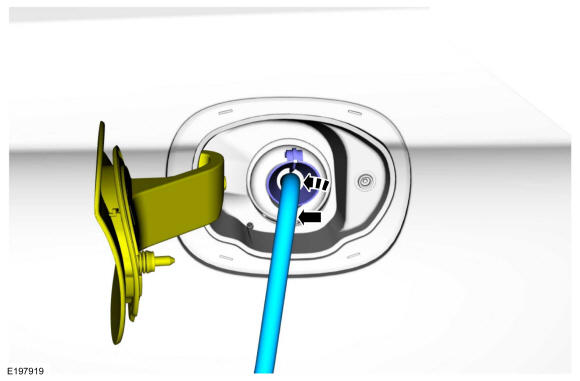

Install the supplemental refueling adapter and a length of semi-rigid fuel drain tube into the Easy Fuel™ (capless) fuel tank filler pipe.
- Attach the Fuel Storage Tanker to the fuel drain tube and drain as much fuel as possible from the Easy Fuel™ (capless) fuel tank filler pipe, lowering the fuel level below the fuel tank inlet spout. Use Special Service Tool: 292-00004 Fuel Tanker 100 GPM.

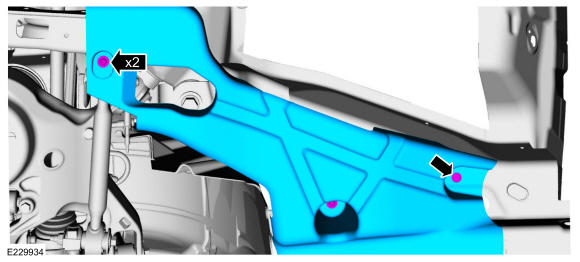

- Remove the retainers and the LH shield.
-
NOTE: Some residual fuel may remain in the fuel tank filler pipe. Carefully drain into a suitable container.

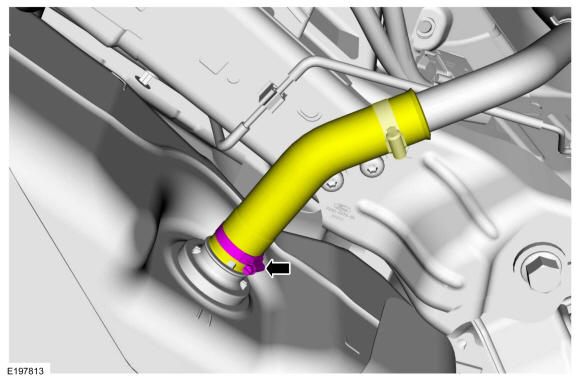

Release the clamp and position the fuel filler pipe hose aside.
Torque: 36 lb.in (4.1 Nm)

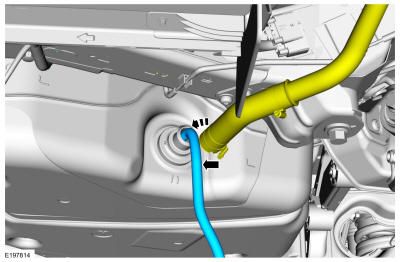

- Insert the hose from the Fuel Tanker and siphon the fuel through the fuel tank inlet spout.
