Engine Front Cover: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
  3. Remove and discard the engine oil filter and drain the engine oil. Refer to: Engine Oil Draining and Filling 2.7L EcoBoost  .
  4. Drain the engine cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding 2.7L EcoBoost .
  5. NOTE: It is not necessary to clamp off the degas bottle hose with the cooling system drained.

    Remove the degas bottle. Refer to: Degas Bottle 2.7L EcoBoost .

  6. NOTE: When removing any turbocharger air intake system components, make sure to cover any open ports to prevent debris from entering the system. The turbocharger compressor vanes can be damaged by even the smallest particles. All components need to be inspected and cleaned prior to installation or reassembly.

    1. Loosen the clamps and remove the CAC outlet pipe.

    • Cover all open ports.

    GFD426598Courtesy of FORD MOTOR COMPANY
    • Detach the wiring harness retainer.

    • Remove the bolt and position the bracket aside.

    GFD426608Courtesy of FORD MOTOR COMPANY
    1. Release the clamp and disconnect the heater hose. Use the General Equipment: Hose Clamp Remover/Installer
    2. Detach the wiring harness retainers.
    GFD426604Courtesy of FORD MOTOR COMPANY
    1. Release the clamp and disconnect the lower radiator hose. Use the General Equipment: Hose Clamp Remover/Installer
    2. Release the clamp and disconnect the heater hose.
    3. Detach the heater hose retainer.
    GFD426605Courtesy of FORD MOTOR COMPANY
    1. Remove the ground wire bolt.
    2. Detach the retainers and position the ground wire aside.
    GFD426606Courtesy of FORD MOTOR COMPANY
    • Detach the wiring harness retainer.

    • Remove the bolt and position the bracket aside.

    GFD426607Courtesy of FORD MOTOR COMPANY
  12. Remove the following items:

    1. Cowl panel grille. Refer to: Cowl Panel Grille 2.7L EcoBoost .
    2. LH valve cover. Refer to: Valve Cover LH 2.7L EcoBoost .
    3. RH valve cover. Refer to: Valve Cover RH 2.7L EcoBoost .
    4. RH fender splash shield. Refer to: Fender Splash Shield .
    5. RH ride height sensor. Refer to: Front Suspension Height Sensor .
    6. Refer to: Roll Restrictor RH .
    7. Accessory drive belt tensioner. Refer to: Accessory Drive Belt Tensioner 2.7L EcoBoost .
    8. Oil pressure control solenoid. Refer to: Oil Pressure Control Solenoid 2.7L EcoBoost .

  13. Detach the wiring harness retainers, slide up the insulator and disconnect the electrical connectors.
    GFD426615Courtesy of FORD MOTOR COMPANY

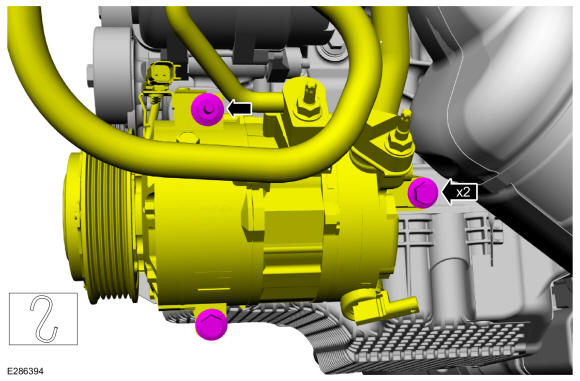

  14. Remove the bolts, stud bolt and position the A/C compressor aside and support with a length of mechanics wire.
    GFD426884Courtesy of FORD MOTOR COMPANY
    1. Remove the M8 x 50mm bolt.
    2. Remove the M10 x 43mm bolt.
    3. Remove the M8 x 30mm bolt and the A/C compressor mounting bracket.
    GFD426618Courtesy of FORD MOTOR COMPANY
  16. Remove the bolt and the idler pulley.
    GFD426669Courtesy of FORD MOTOR COMPANY
  17. Remove the nut, the bolt and position the generator aside.
    GFD426670Courtesy of FORD MOTOR COMPANY
  18. Remove the retainers and the upper air deflector.
    GFD426228Courtesy of FORD MOTOR COMPANY
  19. NOTE: Make sure the cooling module is secure before removing the bottom cooling module support panel.

    1. Remove the upper cooling module support brackets.
    2. Using cable ties or mechanics wire through the upper location holes, to support the cooling module. Use the General Equipment: Cable Ties

    GFD426229Courtesy of FORD MOTOR COMPANY
  20. Remove the retainers and the underbody shields.
    GFD426231Courtesy of FORD MOTOR COMPANY
  21. Drain the engine cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding 2.7L EcoBoost .
  22. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Remove the nut and position the RH sway bar link aside.

    GFD426252Courtesy of FORD MOTOR COMPANY

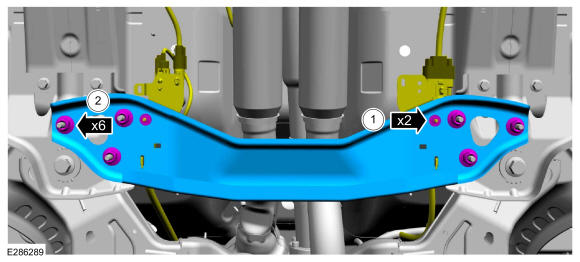

    1. If equipped, remove the nuts and position the wiring harness support bracket(s) aside.
    2. Remove the nuts and the subframe support bracket.
    GFD426885Courtesy of FORD MOTOR COMPANY
  24. Mark the subframe location.
    GFD426247Courtesy of FORD MOTOR COMPANY
  25. Mark the subframe location.
    GFD426248Courtesy of FORD MOTOR COMPANY
  26. Position adjustable stands under the sides of the subframe. Use the General Equipment: Vehicle/Axle Stands
    GFD426886Courtesy of FORD MOTOR COMPANY
  27. NOTE: Make sure the cooling module is secure.

    • Remove the pin-type retainers.

    • Remove the bolts and the cooling module support panel.

    GFD426259Courtesy of FORD MOTOR COMPANY
  28. NOTE: The original subframe fasteners will be used later in this procedure, do not discard the bolts until instructed to in this procedure.

    1. Remove the subframe bolts.
    2. Remove the bolts and the subframe brackets.

    GFD426764Courtesy of FORD MOTOR COMPANY
  29. Remove the subframe bolts.
    GFD426887Courtesy of FORD MOTOR COMPANY

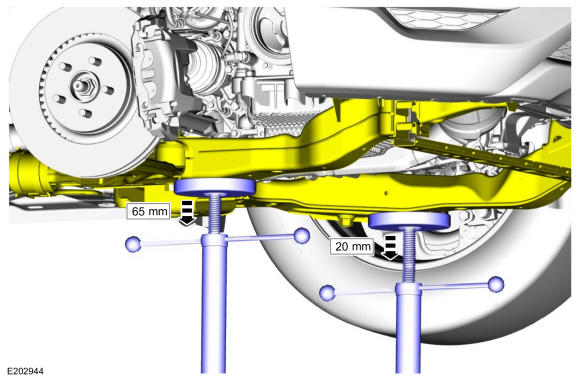

  30. Using the adjustable stands lower the LH side of the subframe 20 mm (0.75 in) and lower the RH 65 mm (2.5 in). Use the General Equipment: Vehicle/Axle Stands
    GFD426888Courtesy of FORD MOTOR COMPANY

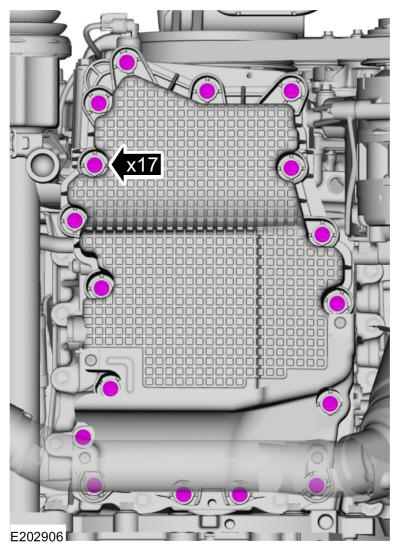

  31. Remove the oil pan bolts.
    GFD426889Courtesy of FORD MOTOR COMPANY

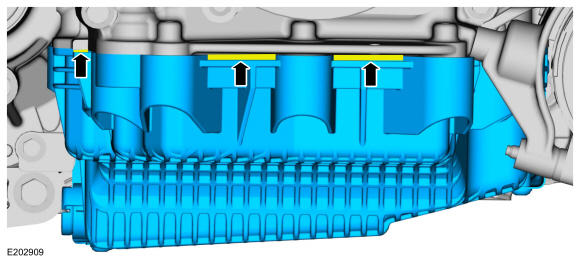

  32. Using a large flat-bladed screwdriver and the indicated pry pads, release the sealer and separate the oil pan from the bottom of the engine. Use the General Equipment: Flat-Bladed Screwdriver
    GFD426890Courtesy of FORD MOTOR COMPANY

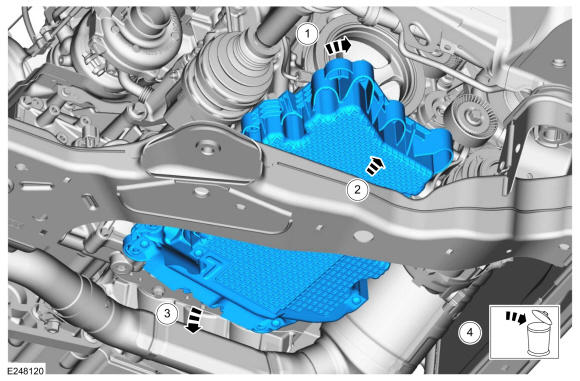

  33. NOTE: Suspension components and jackstand removed from graphic for clarity.

    1. Rotate the front of the oil pan slightly toward the front of the vehicle.
    2. Position the front of the oil pan to the RH side of the vehicle above the subframe.
    3. Lower the rear of the oil pan to clear the exhaust and remove the oil pan.
    4. NOTE: Do not reuse the oil pans sealed by Motorcraft® High Performance Engine RTV Silicone. Oil pans sealed by Motorcraft® High Performance Engine RTV Silicone are to be removed and discarded. The replacement oil pan will have a press-in-place gasket.

      Discard the oil pan if it is sealed with Motorcraft® High Performance Engine RTV Silicone.

    GFD426891Courtesy of FORD MOTOR COMPANY
  34. If equipped, remove and discard the oil pan press-in-place gasket.
    GFD426624Courtesy of FORD MOTOR COMPANY
  35. Remove and discard the oil pump seal.
    GFD426625Courtesy of FORD MOTOR COMPANY
  36. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper
    GFD426626Courtesy of FORD MOTOR COMPANY

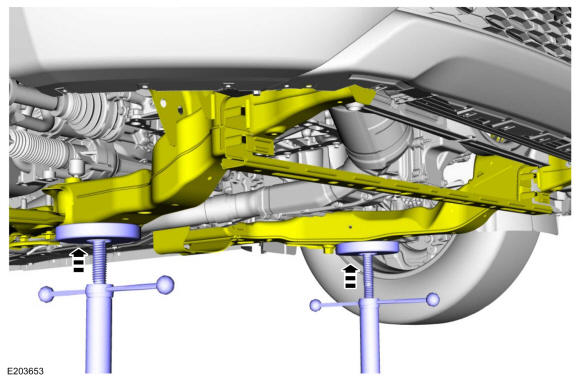

  37. Using the adjustable stands, raise the subframe into the installed position. Use the General Equipment: Vehicle/Axle Stands
    GFD426892Courtesy of FORD MOTOR COMPANY

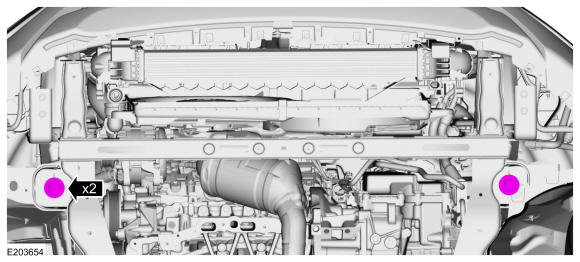

  38. Install the original subframe bolts.
    GFD426893Courtesy of FORD MOTOR COMPANY
    1. Install the subframe brackets and the original subframe bolts.
    2. Install the subframe bracket bolts.
    GFD426764Courtesy of FORD MOTOR COMPANY
  40. Remove the stands. Remove the General Equipment: Vehicle/Axle Stands
    GFD426894Courtesy of FORD MOTOR COMPANY
  41. Remove the retainers and the splash shield.
    GFD426619Courtesy of FORD MOTOR COMPANY
    • Disconnect the coolant pump electrical connector.

    • Detach the wiring harness retainer.

    • Remove the nuts, bolt and the coolant pump and hose assembly.

    GFD426640Courtesy of FORD MOTOR COMPANY
  43. Detach the wiring harness retainers.
    GFD426653Courtesy of FORD MOTOR COMPANY
  44. NOTE: Failure to position the wood block and floor jack as illustrated can result in damage to the oil pump. The floor jack will be used to lower and raise the engine during the remainder of the removal procedure.

    Support the engine with a floor jack and a wooden block placed under the engine block skirt stiffener. Use the General Equipment: Wooden Block. Use the General Equipment: Trolley Jack

    GFD426895Courtesy of FORD MOTOR COMPANY
  45. NOTE: The engine mount and bracket are serviced as an assembly. Do not remove the engine mount bracket-to-engine mount bolt, this fastener is not serviceable.

    1. Remove and discard the engine mount bracket-to-engine nuts.
    2. Remove and discard the engine mount-to-frame nut.
    3. Remove and discard the engine mount-to-frame bolts.
    4. Remove the engine mount and bracket assembly.

    GFD426896Courtesy of FORD MOTOR COMPANY
  46. Remove the bolts and the coolant pump pulley.
    GFD426674Courtesy of FORD MOTOR COMPANY
  47. Remove the bolts and the coolant pump.
    GFD426675Courtesy of FORD MOTOR COMPANY
  48. Remove and discard the coolant pump gasket and seal.
    GFD426676Courtesy of FORD MOTOR COMPANY

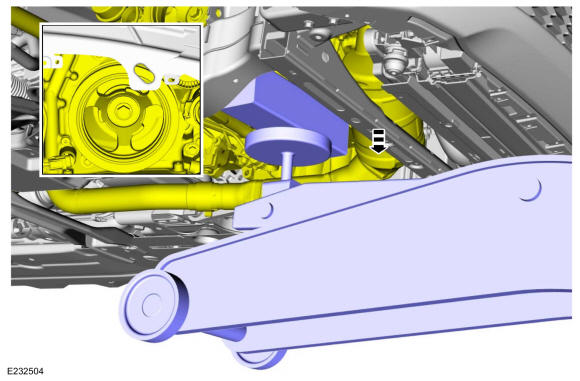

  49. Using the floor jack, lower the front of the engine to access the crankshaft pulley. Use the General Equipment: Wooden Block. Use the General Equipment: Trolley Jack
    GFD426897Courtesy of FORD MOTOR COMPANY
  50. Remove the crankshaft pulley bolt.
    GFD426671Courtesy of FORD MOTOR COMPANY
  51. Using the 3 Leg Puller and a step plate, remove the crankshaft pulley. Use the General Equipment: Three Leg Puller
    GFD426672Courtesy of FORD MOTOR COMPANY
  52. NOTE: Use care not to damage the engine front cover or the crankshaft when removing the seal.

    1. Install the crankshaft pulley bolt.
    2. Using the special tool, remove and discard the crankshaft front oil seal. Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.
    3. NOTE: If further disassembly of the engine will be performed, retain the original crankshaft pulley bolt for turning the crankshaft while the pulley is removed.

      Remove and discard the crankshaft pulley bolt.

    GFD426803Courtesy of FORD MOTOR COMPANY
  53. NOTE: There are 4 different types of fasteners, note location of each fastener for assembly.

    Remove the engine front cover fasteners.

    GFD426679Courtesy of FORD MOTOR COMPANY
  54. Using a large flat-bladed screwdriver and the indicated pry pads, release the sealer and remove the engine front cover. Use the General Equipment: Flat-Bladed Screwdriver
    GFD426680Courtesy of FORD MOTOR COMPANY
  55. Remove and discard the engine front cover gaskets.
    GFD426681Courtesy of FORD MOTOR COMPANY
  56. Remove and discard the oil gallery seal (6G068).
    GFD426682Courtesy of FORD MOTOR COMPANY
  57. GFD426683Courtesy of FORD MOTOR COMPANY
  58. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper
GFD426684Courtesy of FORD MOTOR COMPANY
