Crankshaft Pulley: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the following items:
1. RH fender splash shield. Refer to: Fender Splash Shield .
2. RH front suspension height sensor. Refer to: Front Suspension Height Sensor .
3. Refer to: Engine Mount 2.7L EcoBoost .
4. Refer to: Accessory Drive Belt 2.7L EcoBoost .

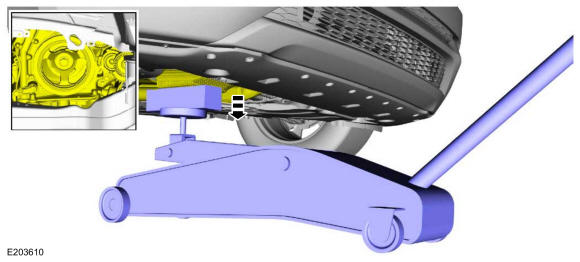

Using the floor jack, lower the front of the engine to access the crankshaft pulley. Use the General Equipment: Wooden Block. Use the General Equipment: Trolley Jack

Courtesy of FORD MOTOR COMPANY
NOTE: If further disassembly of the engine will be performed, retain the original crankshaft pulley bolt for removing the crankshaft front seal, and if necessary, turning the crankshaft while the pulley is removed.

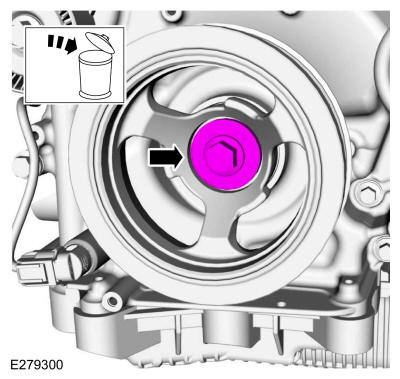

Remove and discard the crankshaft pulley bolt.

Courtesy of FORD MOTOR COMPANY
Using the 3 Leg Puller and a step plate, remove the crankshaft pulley. Use the General Equipment: Three Leg Puller

Courtesy of FORD MOTOR COMPANY
