Crankshaft Pulley: Installation
WARNING: This page is about a different variant/trim than selected.
- Lubricate the crankshaft front seal inner lip with clean engine oil.
- Lubricate the crankshaft pulley sealing surface with clean engine oil prior to installation.
- Using the special tools, install the crankshaft pulley. Use Special Service Tool: 303-335 (T88T-6701-A) Installer, Front Cover Oil Seal, 303-1531 Installer, Front Crank Seal and Damper.
- Install a new crankshaft pulley bolt finger tight.

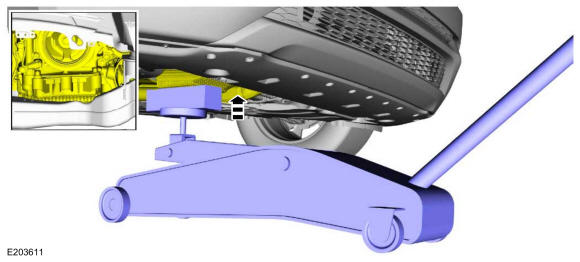

- Using the floor jack, raise the engine to the installed position. Use the General Equipment: Wooden Block. Use the General Equipment: Trolley Jack
- Install the engine mount. Refer to: Engine Mount 2.7L EcoBoost .
-
NOTE: Use a universal pulley holder (such as an OTC 4754, or equivalent).
Using a universal pulley holder, tighten the new crankshaft pulley bolt.
Torque: Stage 1: 166 lb.ft (225 Nm) | Stage 2: Loosen: 360° | Stage 3: 26 lb.ft (35 Nm) | Stage 4: 270°
- Install the following items:
- Refer to: Accessory Drive Belt 2.7L EcoBoost .
- RH front suspension height sensor. Refer to: Front Suspension Height Sensor .
- RH fender splash shield. Refer to: Fender Splash Shield .
- Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
