Camshaft Roller Follower: Removal

WARNING: This page is about a different variant/trim than selected.

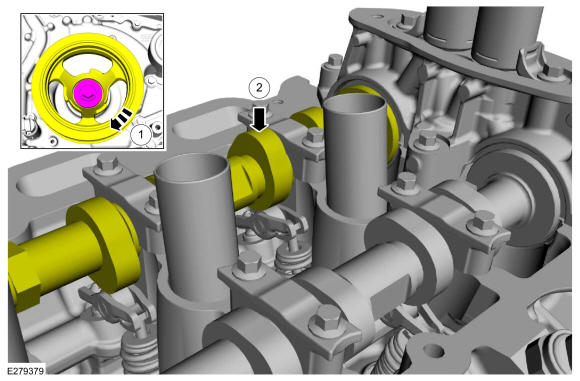

  1. Rotate the crankshaft pulley bolt clockwise to position the camshaft lobe upward for the camshaft roller follower to be removed.
    GFD426800Courtesy of FORD MOTOR COMPANY

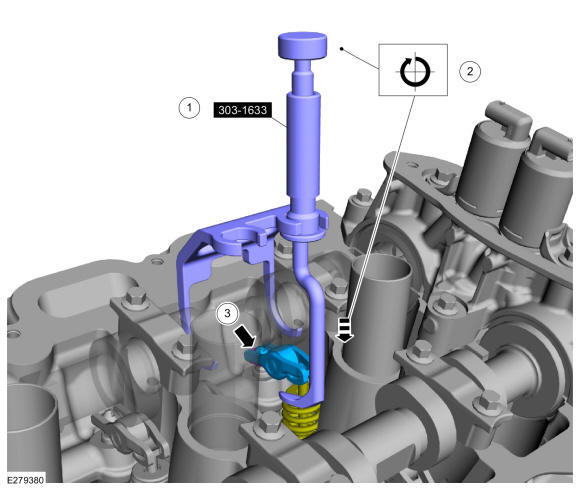

    1. Install Special Service Tool: 303-1633 Remover, Roller Rocker Follower.
    2. Turn the knob on the special tool clockwise to depress the valve and spring.
    3. Unclip the camshaft roller follower from the hydraulic lash adjuster and remove the camshaft roller follower.
GFD426801Courtesy of FORD MOTOR COMPANY
