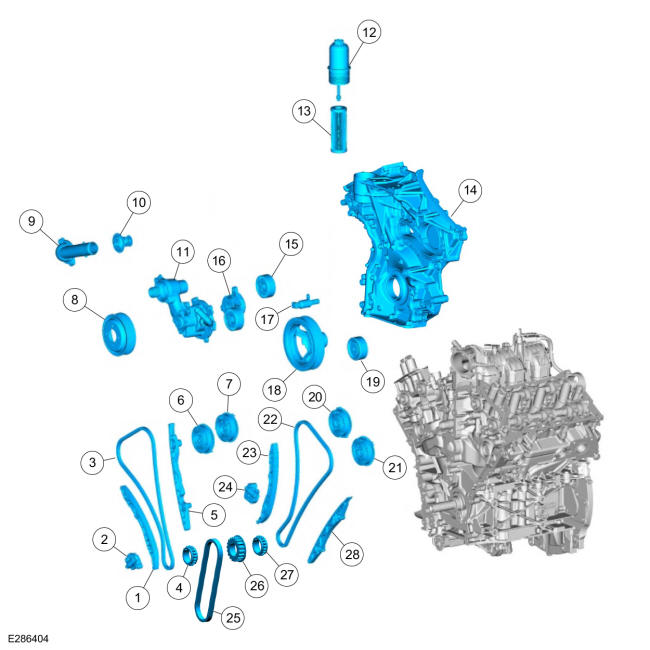

Exploded View Of Engine - Front Components
WARNING: This page is about a different variant/trim than selected.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6K255 | RH timing chain tensioner arm |
| 2 | 6L266 | RH timing chain tensioner |
| 3 | 6268 | RH timing chain |
| 4 | 6306 | Crankshaft sprocket |
| 5 | 6M256 | RH timing chain guide |
| 6 | 6C525 | RH exhaust variable Camshaft Timing (VCT) unit |
| 7 | 6C524 | RH intake variable Camshaft Timing (VCT) unit |
| 8 | 8509 | Coolant pump pulley |
| 9 | -- | Thermostat housing |
| 10 | -- | Thermostat |
| 11 | 8501 | Coolant pump |
| 12 | -- | Oil filter housing |
| 13 | 6731 | Oil filter |
| 14 | 6019 | Engine front cover |
| 15 | 19A216 | Idler pulley |
| 16 | 6A228 | Belt tensioner |
| 17 | 6C880 | Oil control solenoid |
| 18 | 6316 | Crankshaft pulley |
| 19 | 19A216 | Idler pulley |
| 20 | 6C524 | LH intake variable Camshaft Timing (VCT) unit |
| 21 | 6C525 | LH exhaust variable Camshaft Timing (VCT) unit |
| 22 | 6268 | LH timing chain |
| 23 | 6K255 | LH timing chain tensioner arm |
| 24 | 6L266 | LH timing chain tensioner |
| 25 | 6B651 | Oil pump drive Belt |
| 26 | 6306 | Crankshaft sprocket |
| 27 | 6306 | Crankshaft sprocket |
| 28 | 6B274 | LH timing chain guide |
