Transmission Controls - 8F57

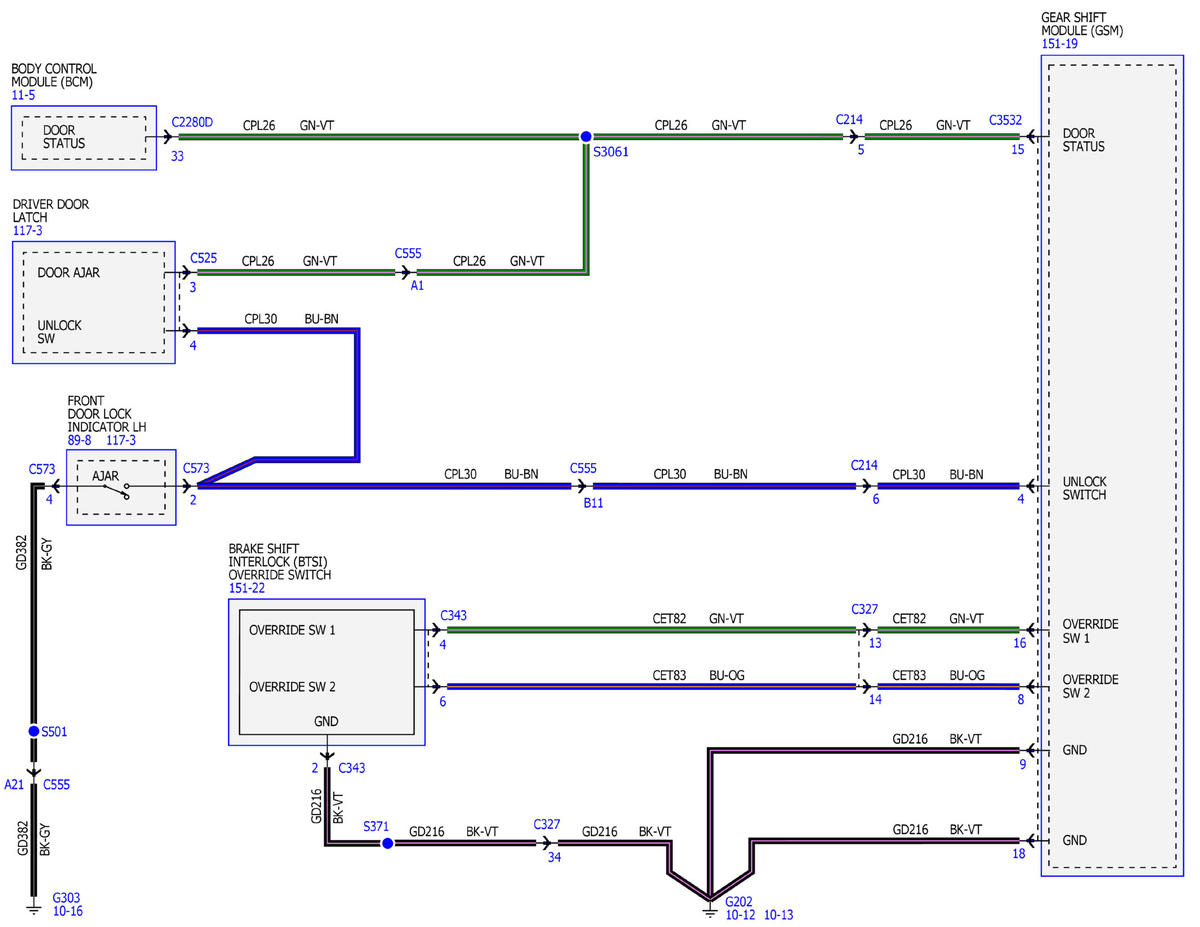

Fig 1: Transmission Controls (8F57) Wiring Diagram (1 of 9)
GFDWR68951Courtesy of FORD MOTOR COMPANY

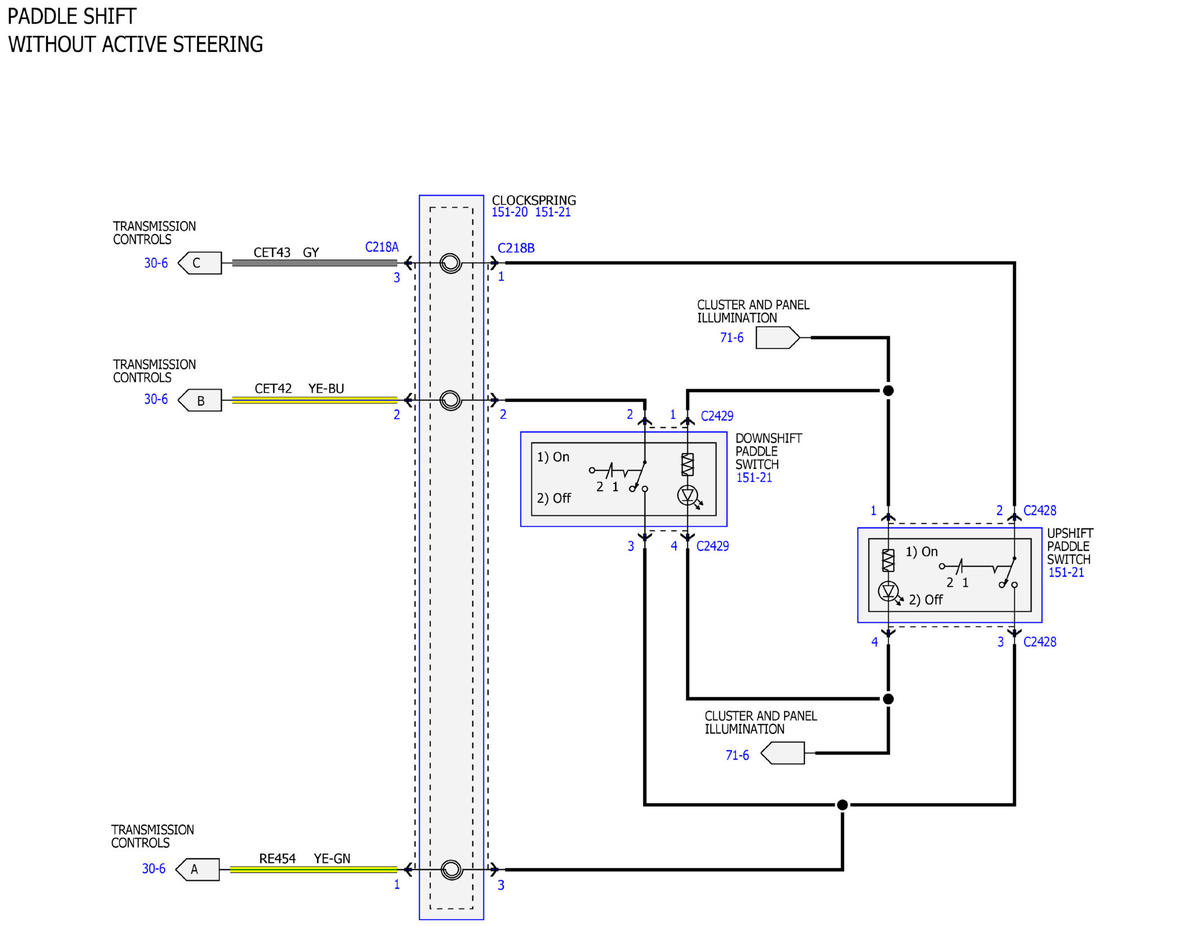

Fig 2: Transmission Controls (8F57) Wiring Diagram (2 of 9)
GFDWR68952Courtesy of FORD MOTOR COMPANY

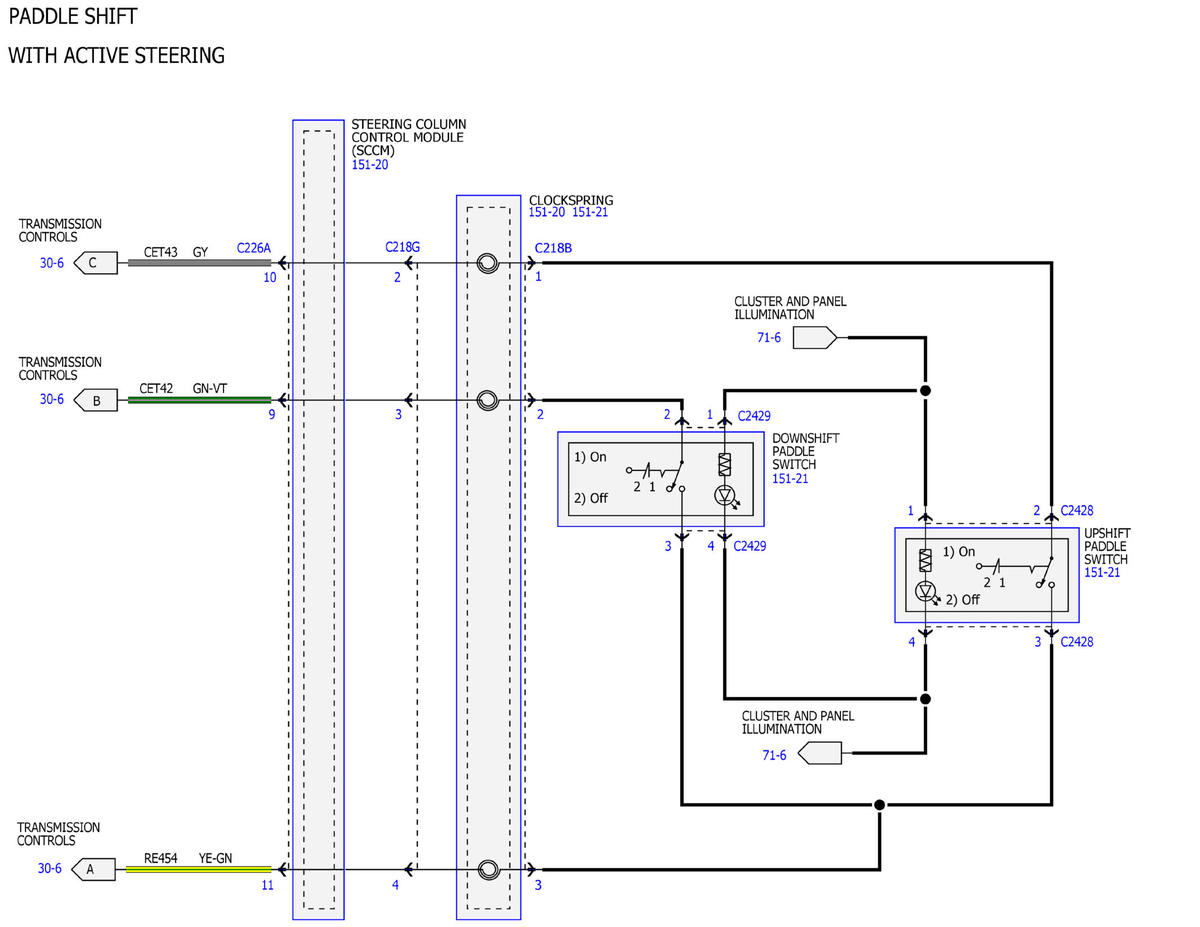

Fig 3: Transmission Controls (8F57) Wiring Diagram (3 of 9)
GFDWR68953Courtesy of FORD MOTOR COMPANY

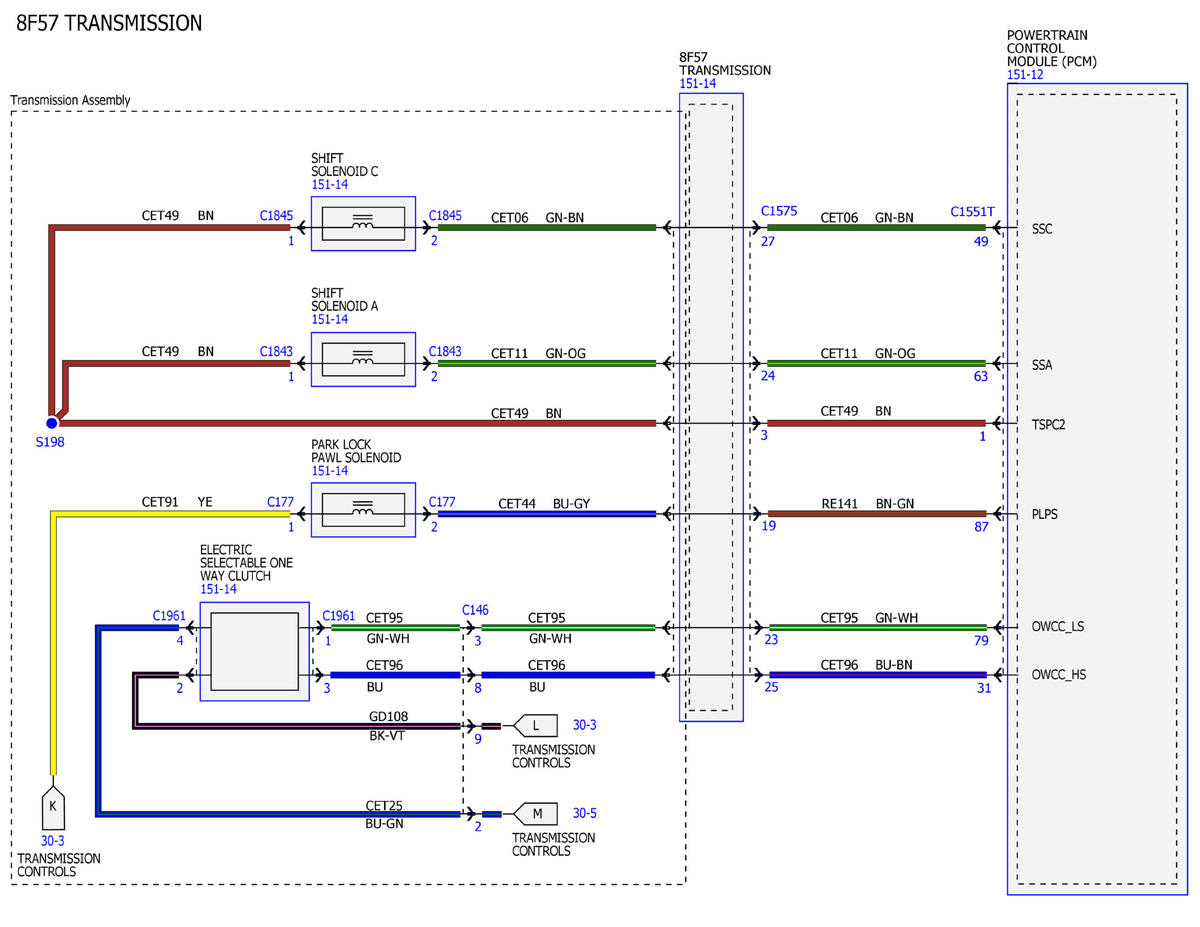

Fig 4: Transmission Controls (8F57) Wiring Diagram (4 of 9)
GFDWR68954Courtesy of FORD MOTOR COMPANY

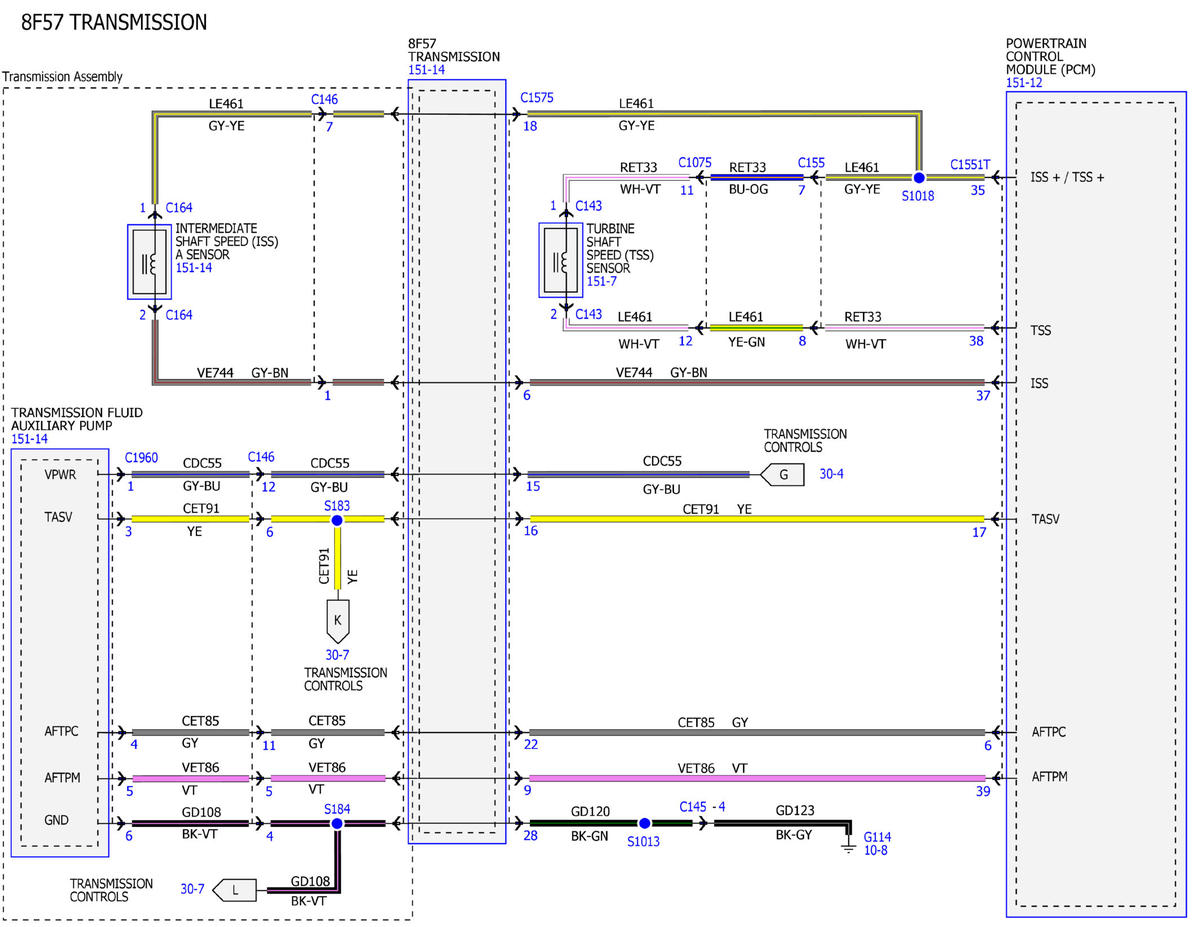

Fig 5: Transmission Controls (8F57) Wiring Diagram (5 of 9)
GFDWR68955Courtesy of FORD MOTOR COMPANY

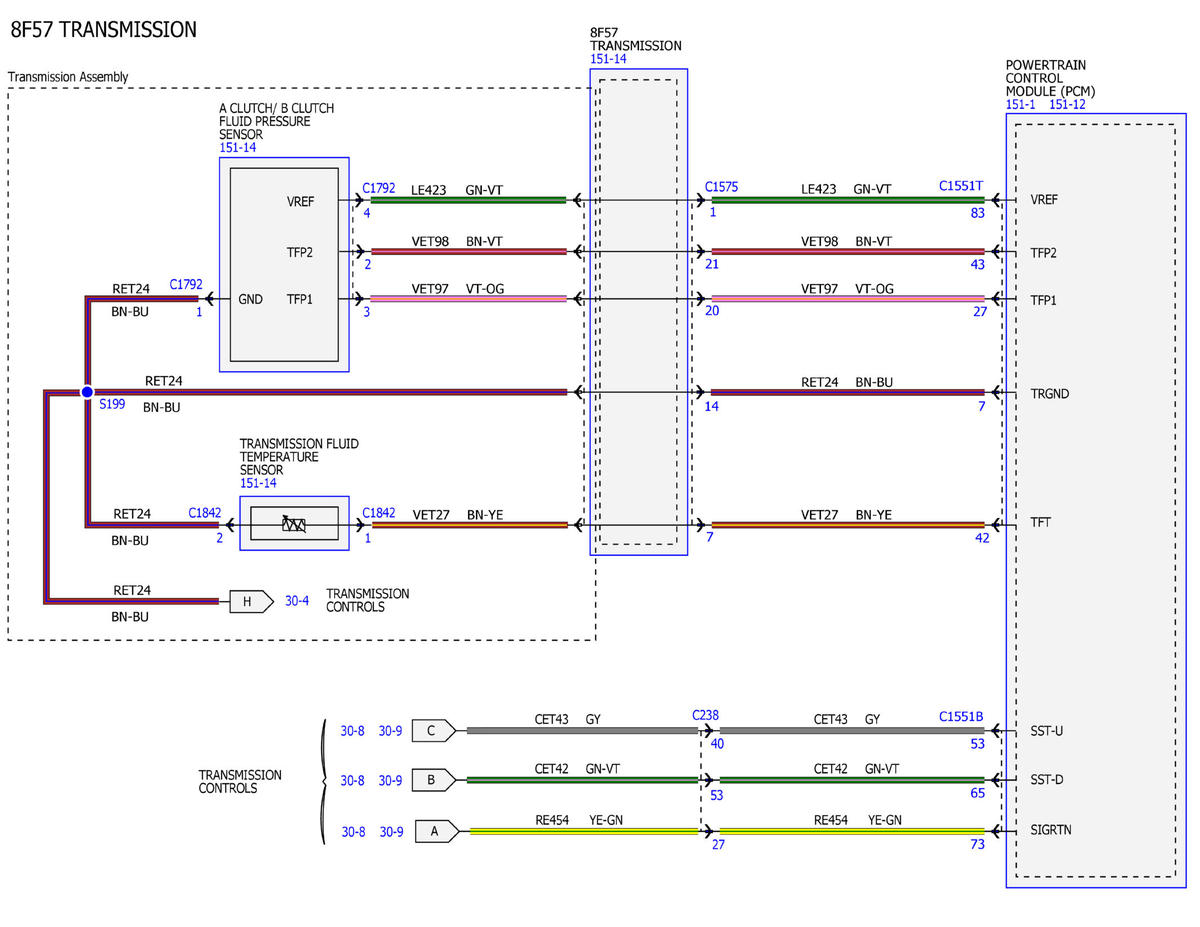

Fig 6: Transmission Controls (8F57) Wiring Diagram (6 of 9)
GFDWR68956Courtesy of FORD MOTOR COMPANY

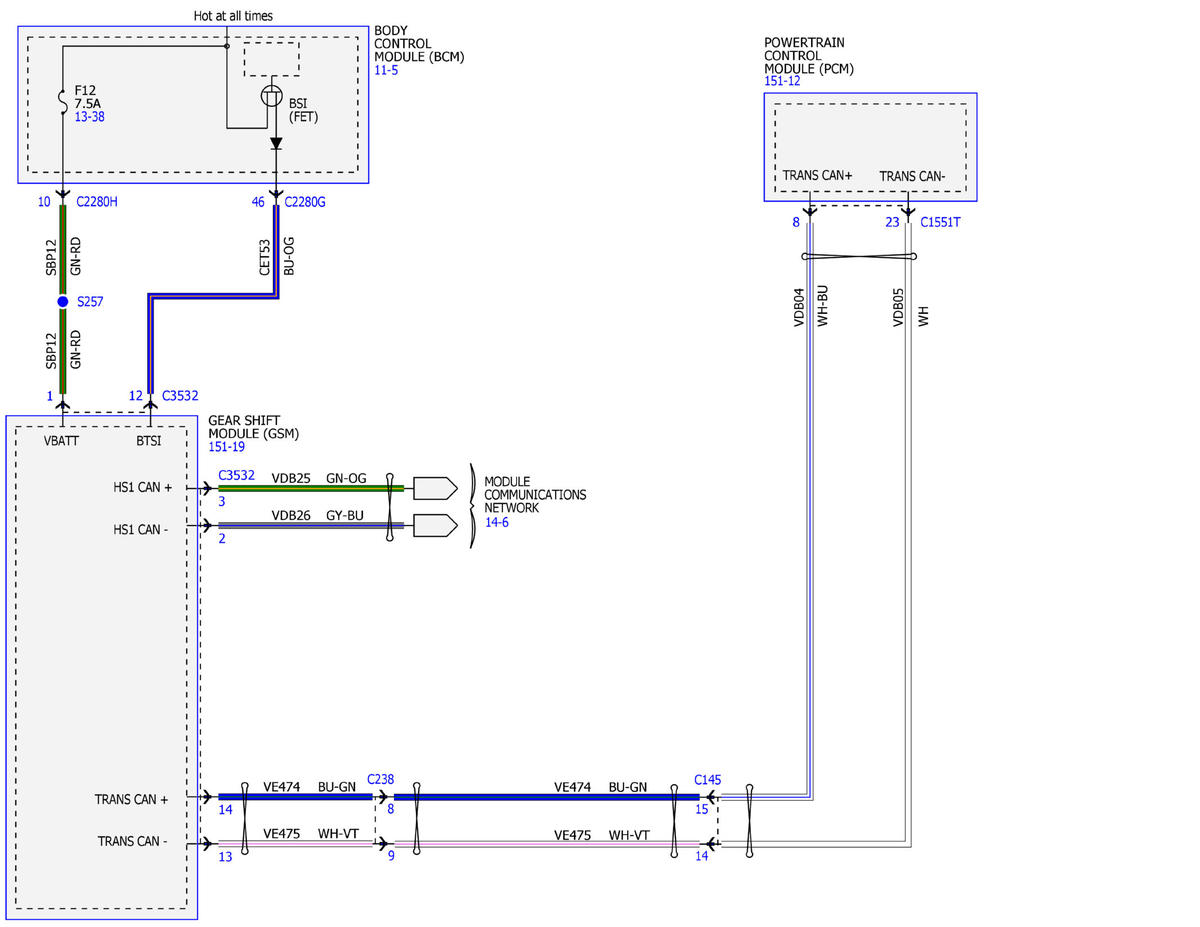

Fig 7: Transmission Controls (8F57) Wiring Diagram (7 of 9)
GFDWR68957Courtesy of FORD MOTOR COMPANY

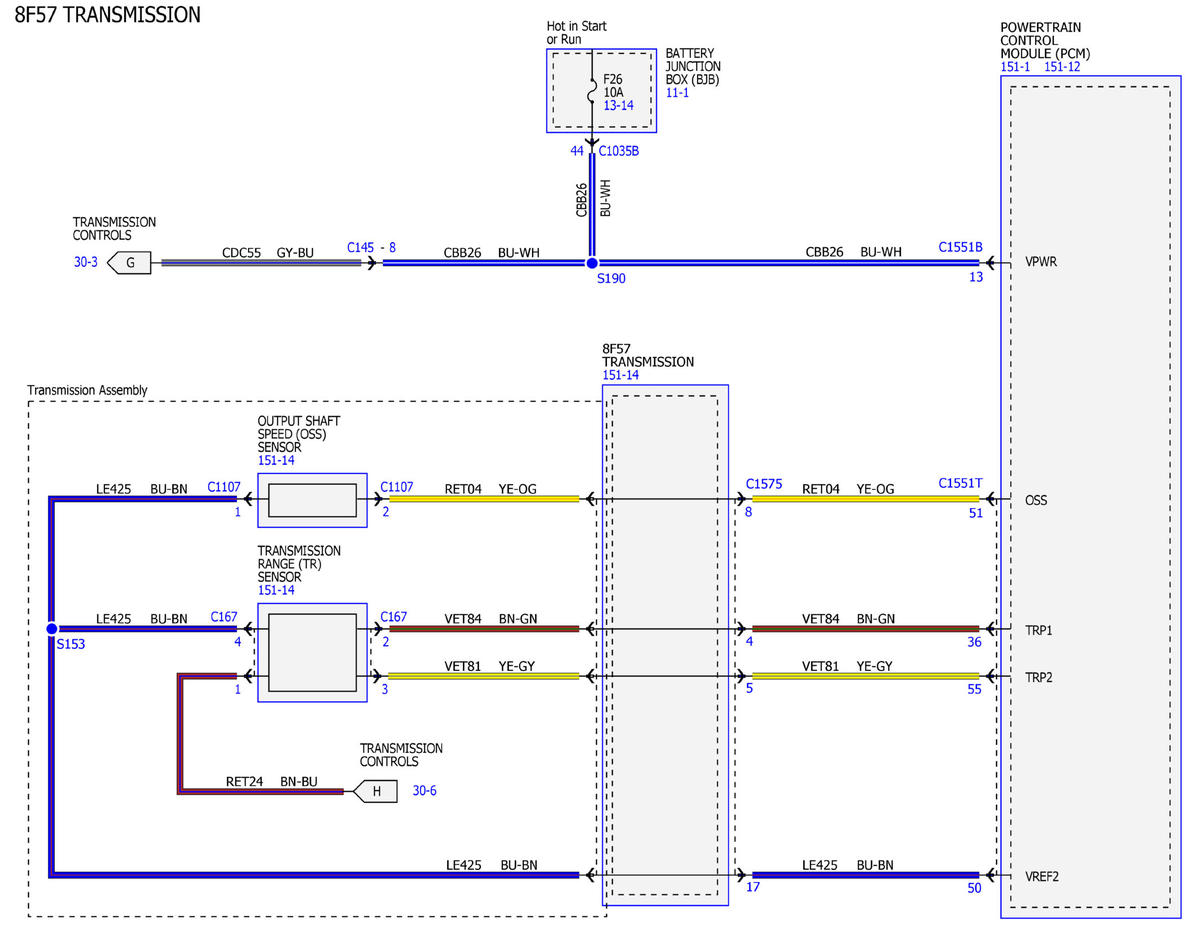

Fig 8: Transmission Controls (8F57) Wiring Diagram (8 of 9)
GFDWR68958Courtesy of FORD MOTOR COMPANY

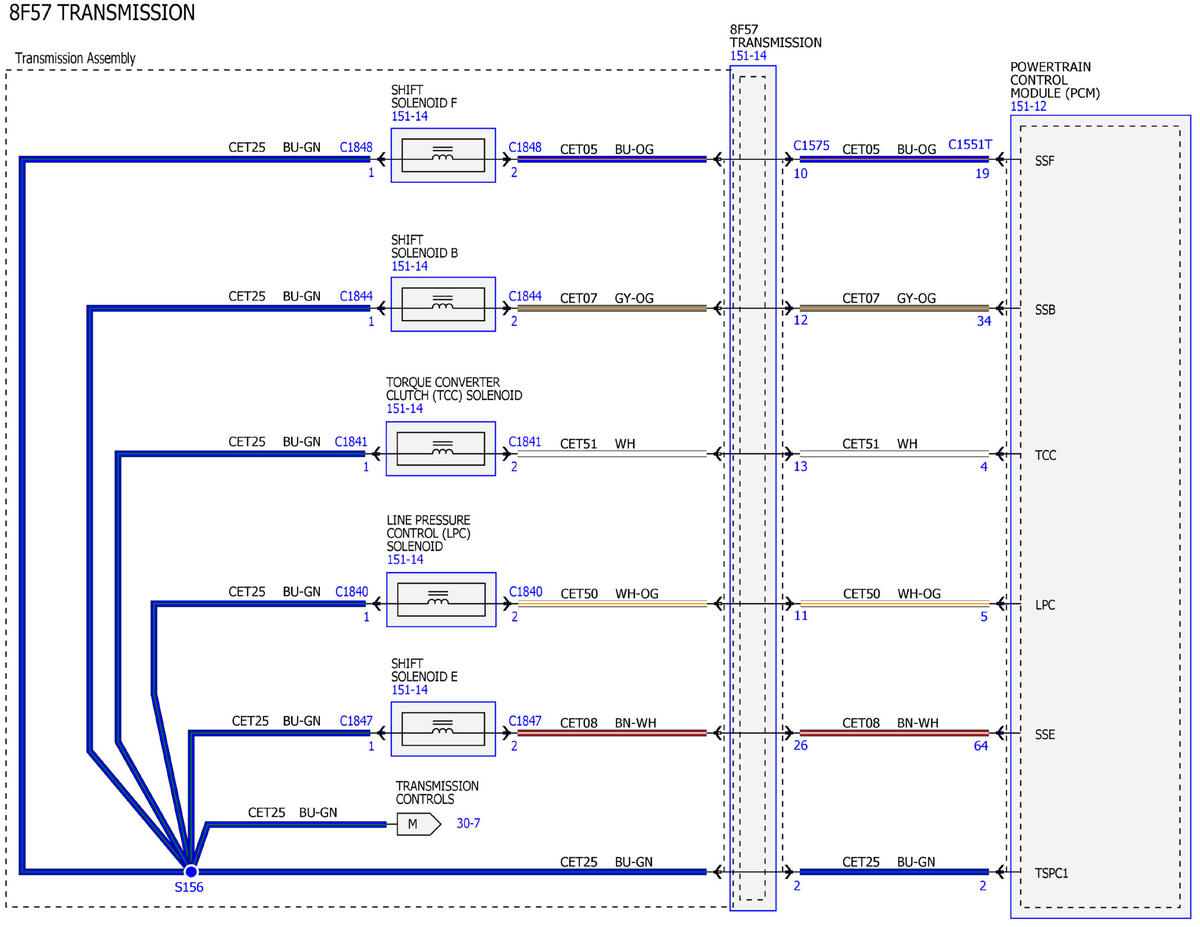

Fig 9: Transmission Controls (8F57) Wiring Diagram (9 of 9)
GFDWR68959Courtesy of FORD MOTOR COMPANY
