Transmission Controls - 8F35

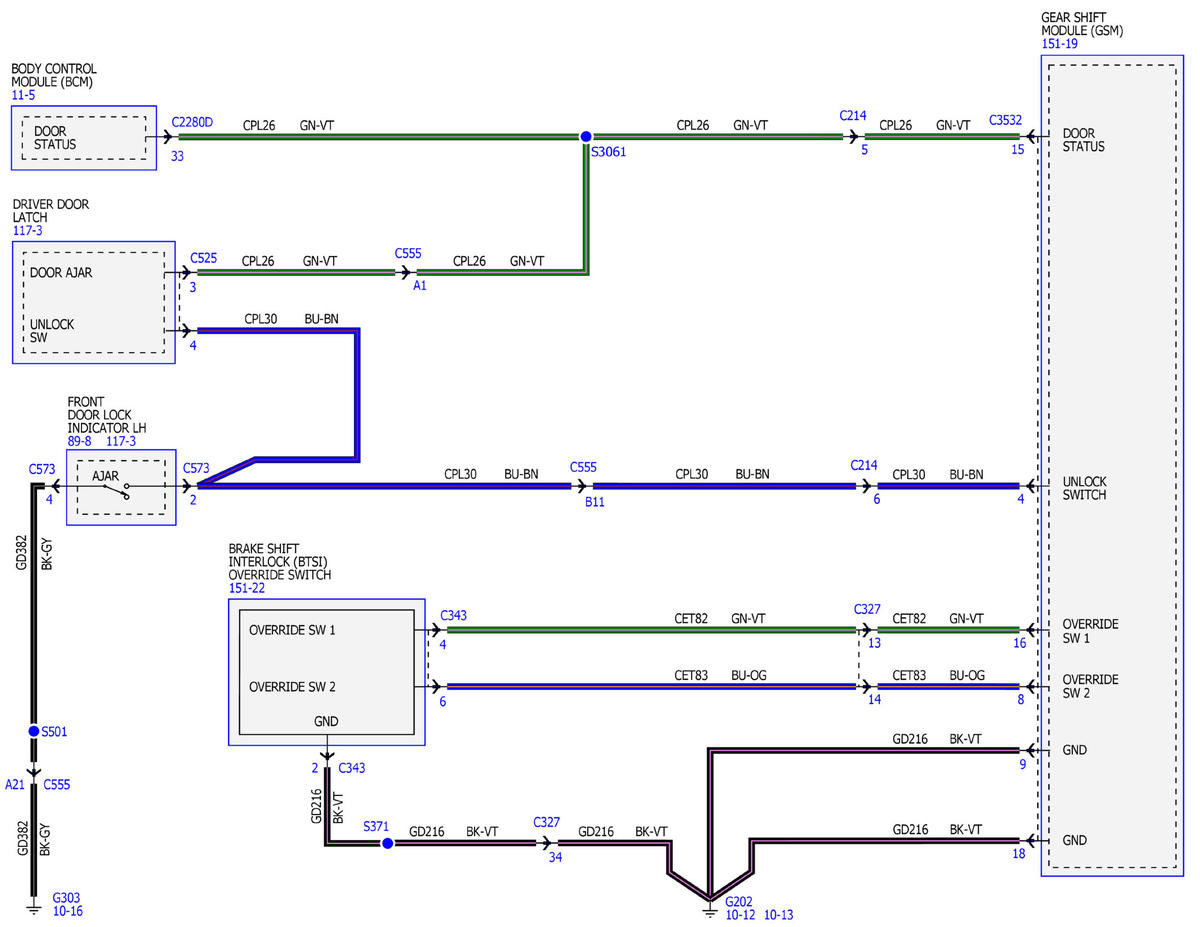

Fig 1: Transmission Controls (8F35) Wiring Diagram (1 of 9)
GFDWR68942Courtesy of FORD MOTOR COMPANY

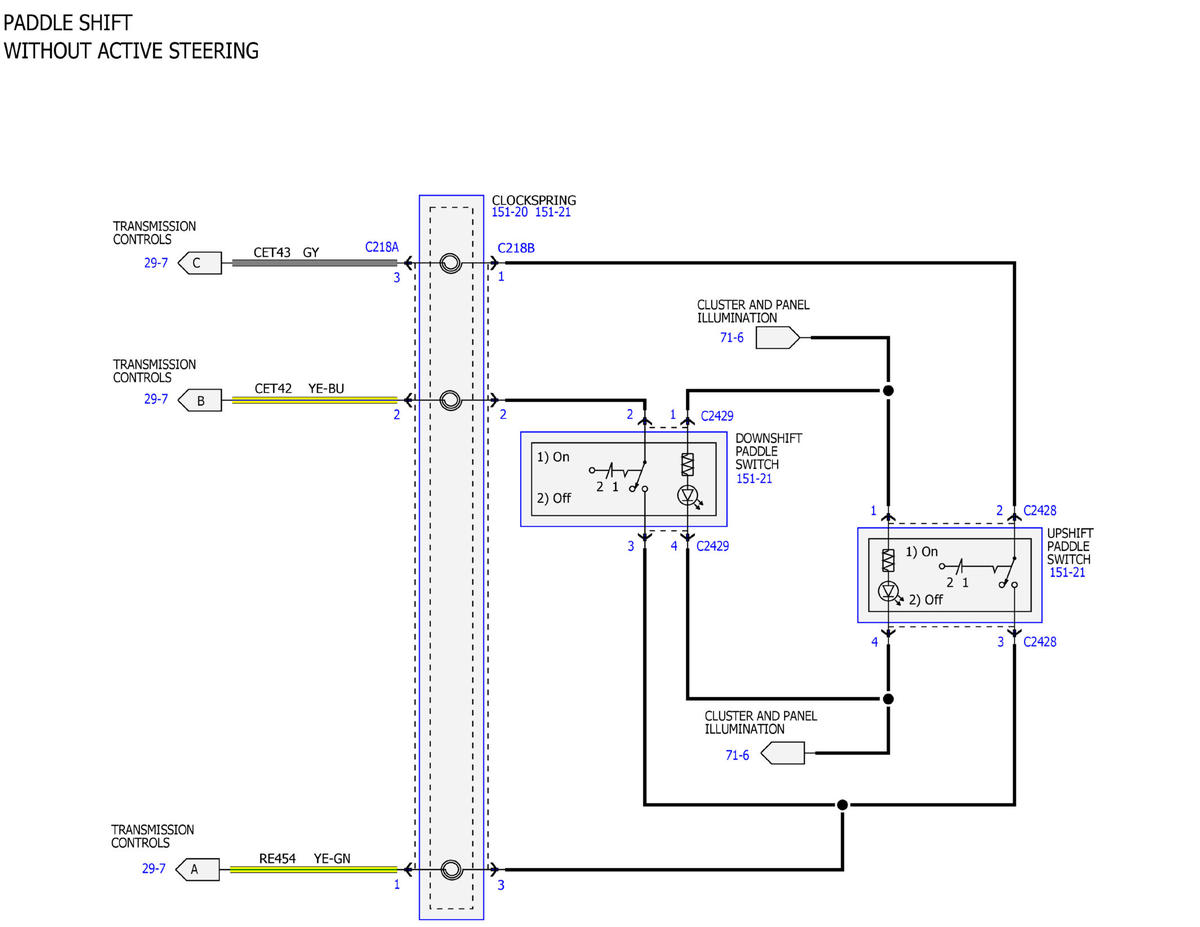

Fig 2: Transmission Controls (8F35) Wiring Diagram (2 of 9)
GFDWR68943Courtesy of FORD MOTOR COMPANY

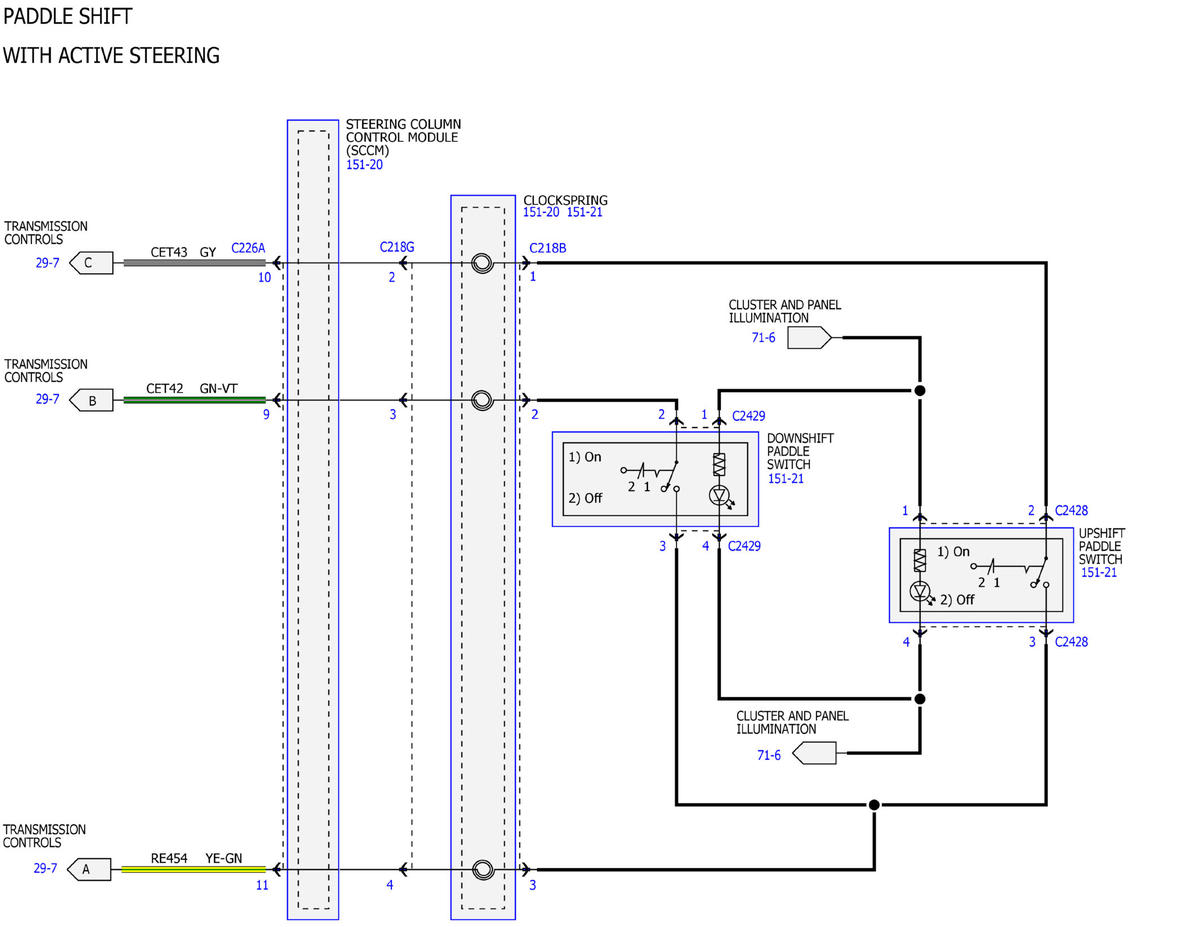

Fig 3: Transmission Controls (8F35) Wiring Diagram (3 of 9)
GFDWR68944Courtesy of FORD MOTOR COMPANY

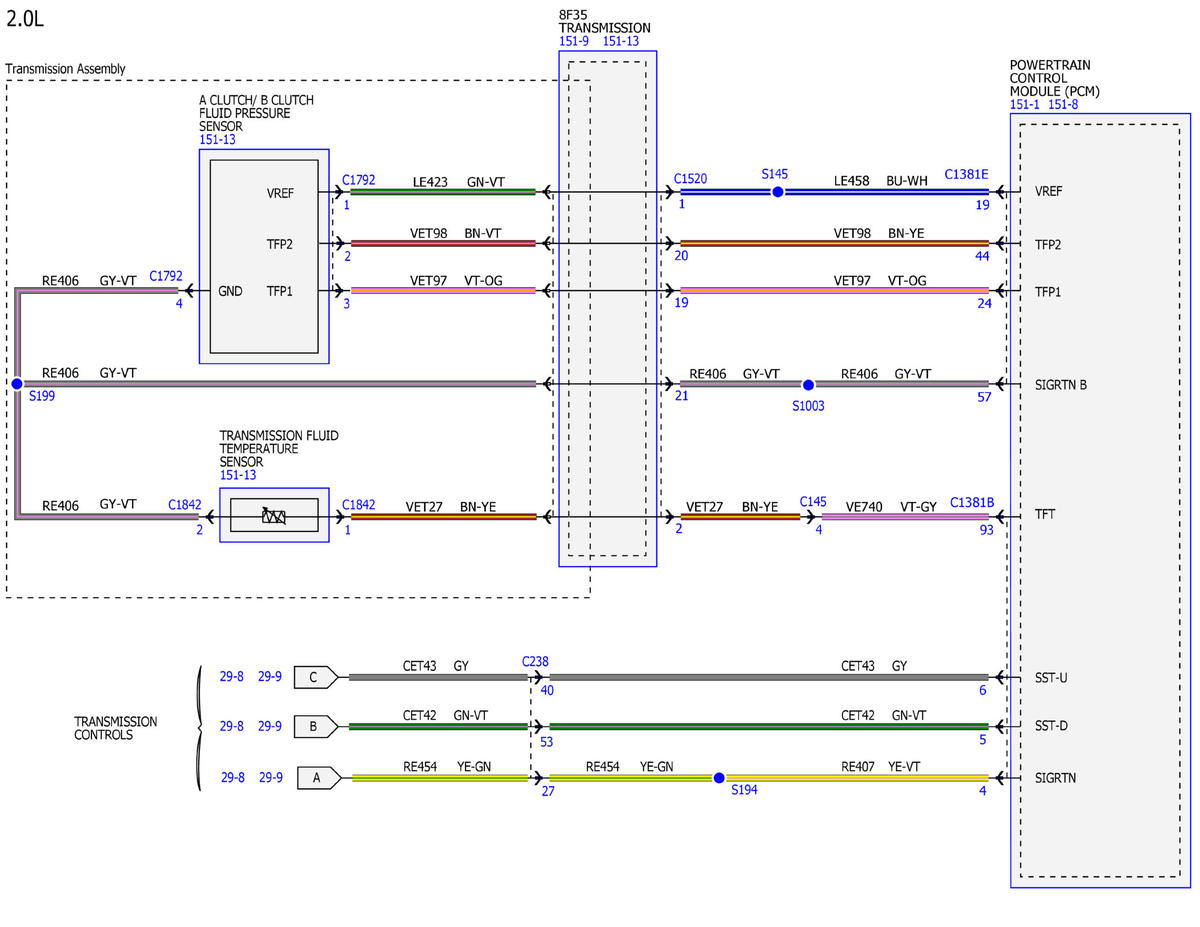

Fig 4: Transmission Controls (8F35) Wiring Diagram (4 of 9)
GFDWR68945Courtesy of FORD MOTOR COMPANY

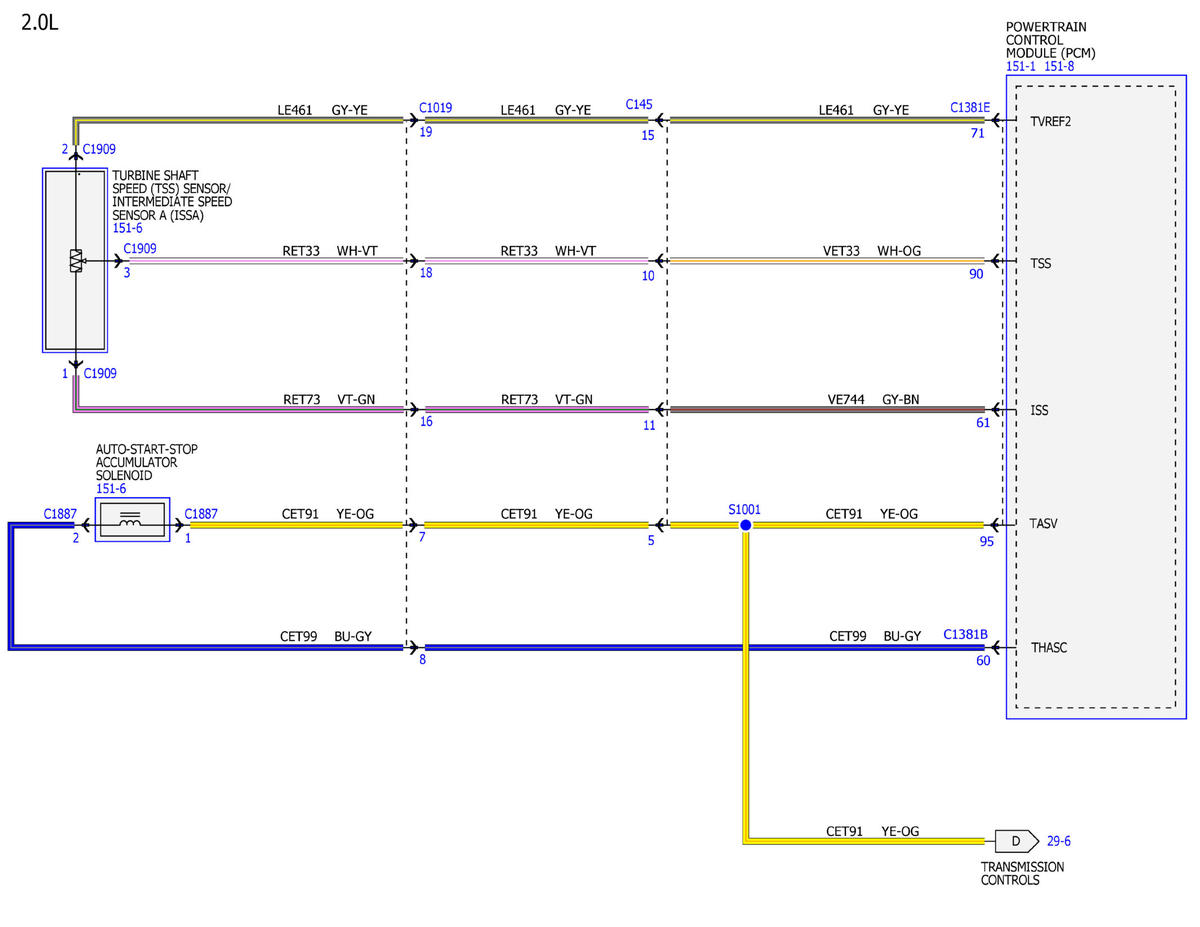

Fig 5: Transmission Controls (8F35) Wiring Diagram (5 of 9)
GFDWR68946Courtesy of FORD MOTOR COMPANY

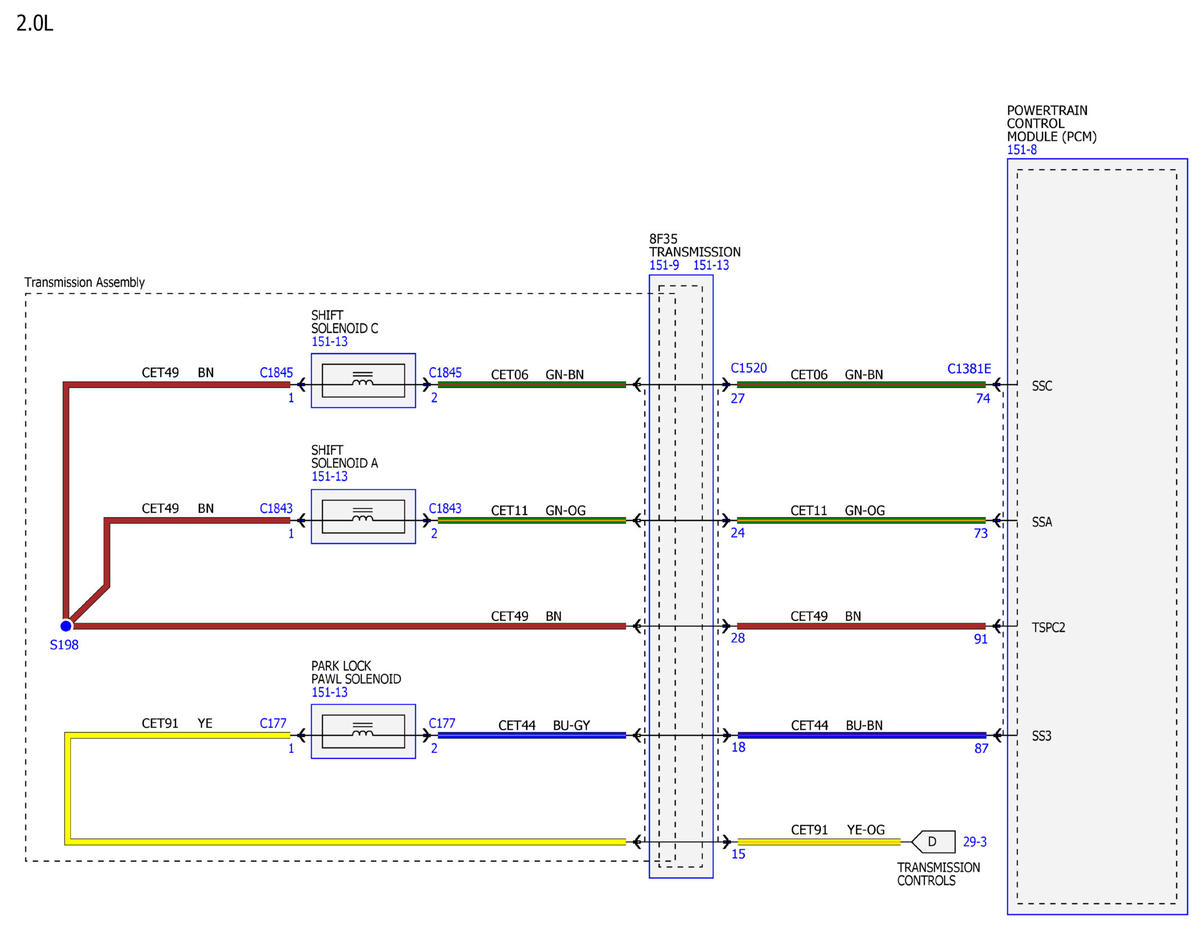

Fig 6: Transmission Controls (8F35) Wiring Diagram (6 of 9)
GFDWR68947Courtesy of FORD MOTOR COMPANY
Fig 7: Transmission Controls (8F35) Wiring Diagram (7 of 9)
GFDWR68948Courtesy of FORD MOTOR COMPANY

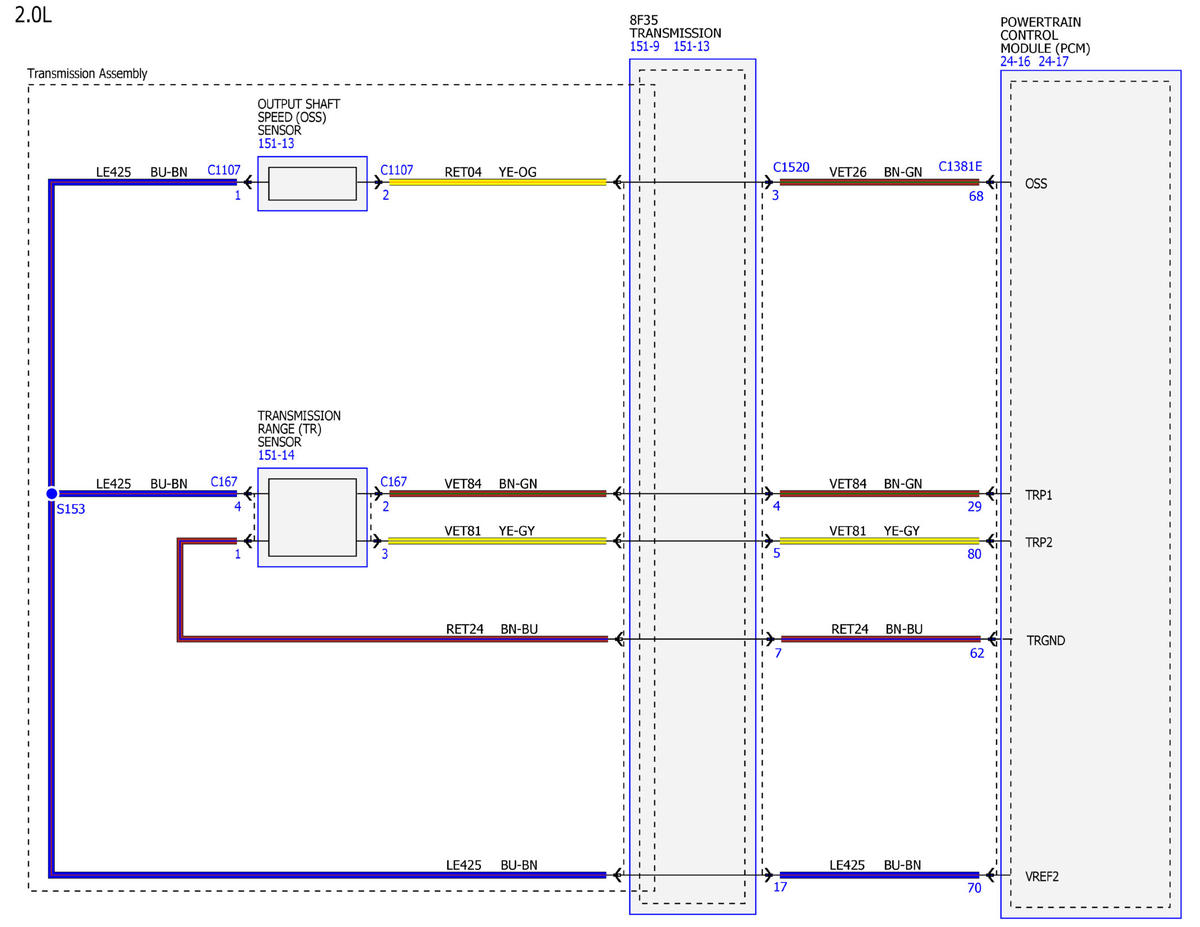

Fig 8: Transmission Controls (8F35) Wiring Diagram (8 of 9)
GFDWR68949Courtesy of FORD MOTOR COMPANY

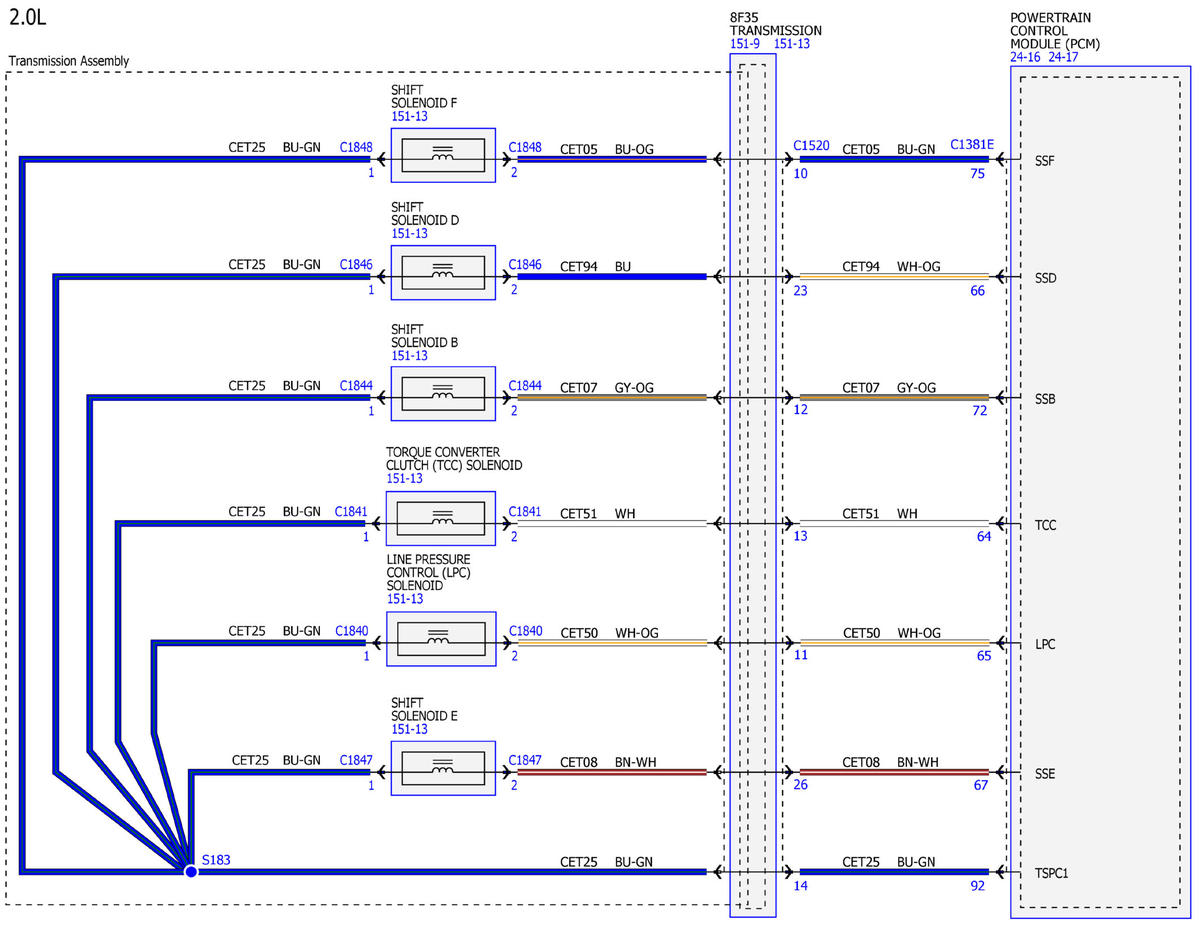

Fig 9: Transmission Controls (8F35) Wiring Diagram (9 of 9)
GFDWR68950Courtesy of FORD MOTOR COMPANY
