Power Distribution

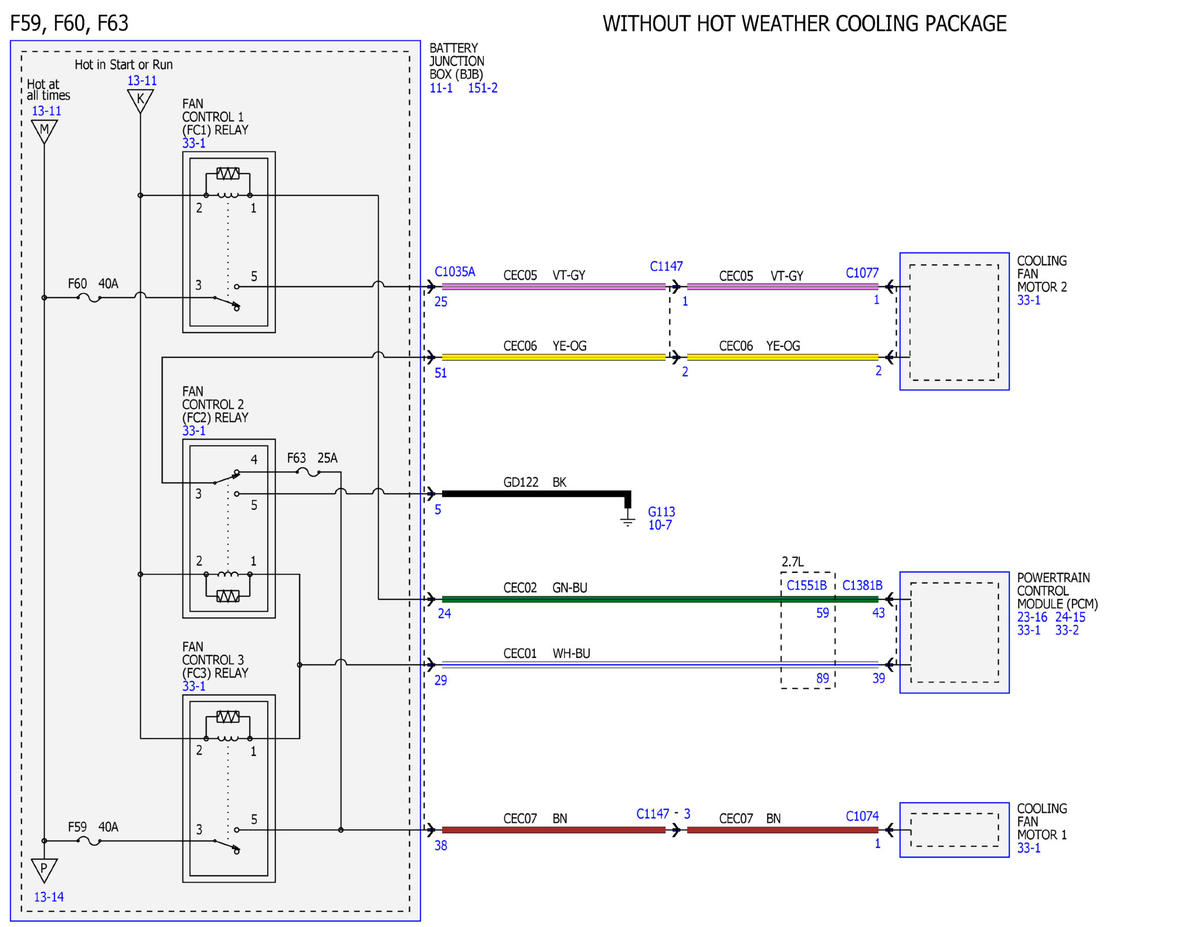

Fig 1: Power Distribution Wiring Diagram (1 of 45)

GFDWR68832

Courtesy of FORD MOTOR COMPANY

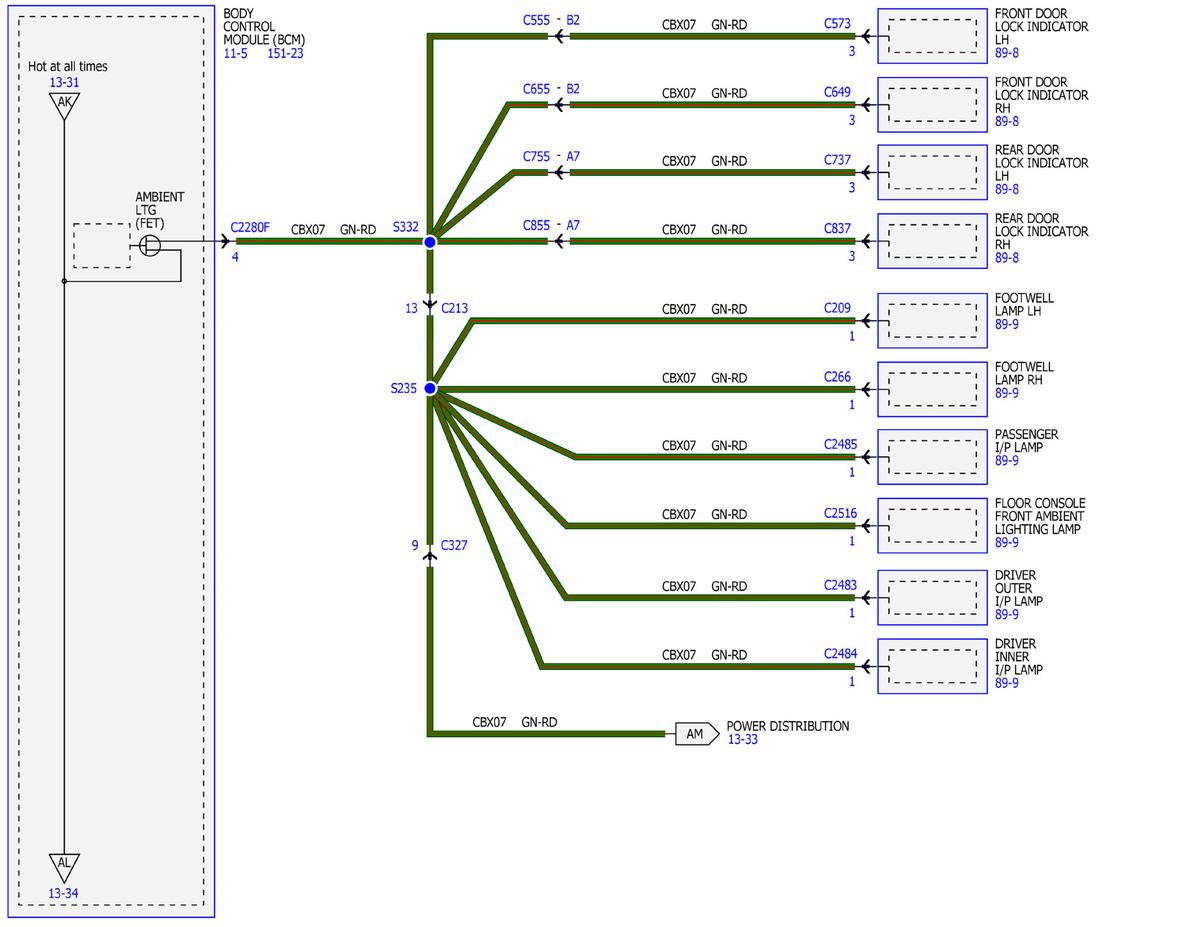

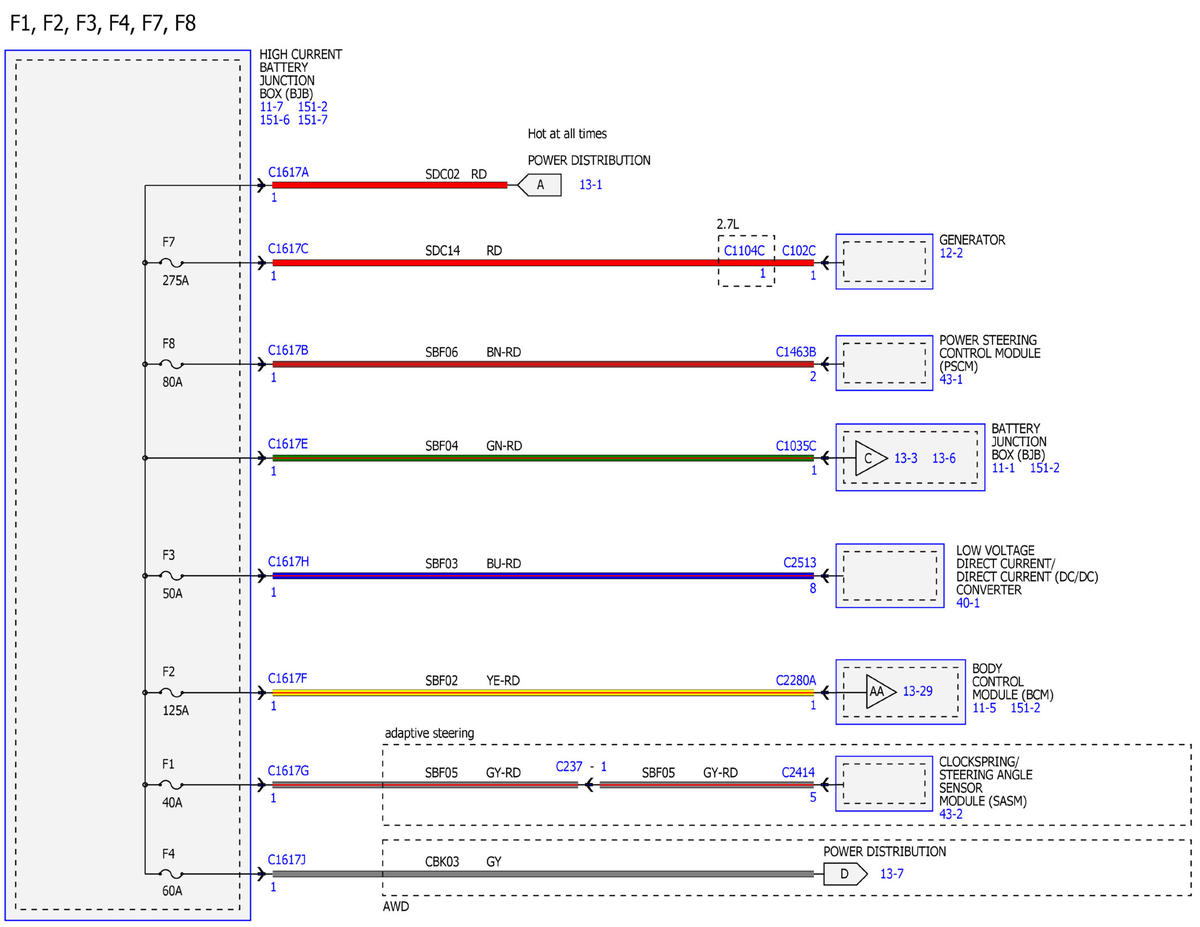

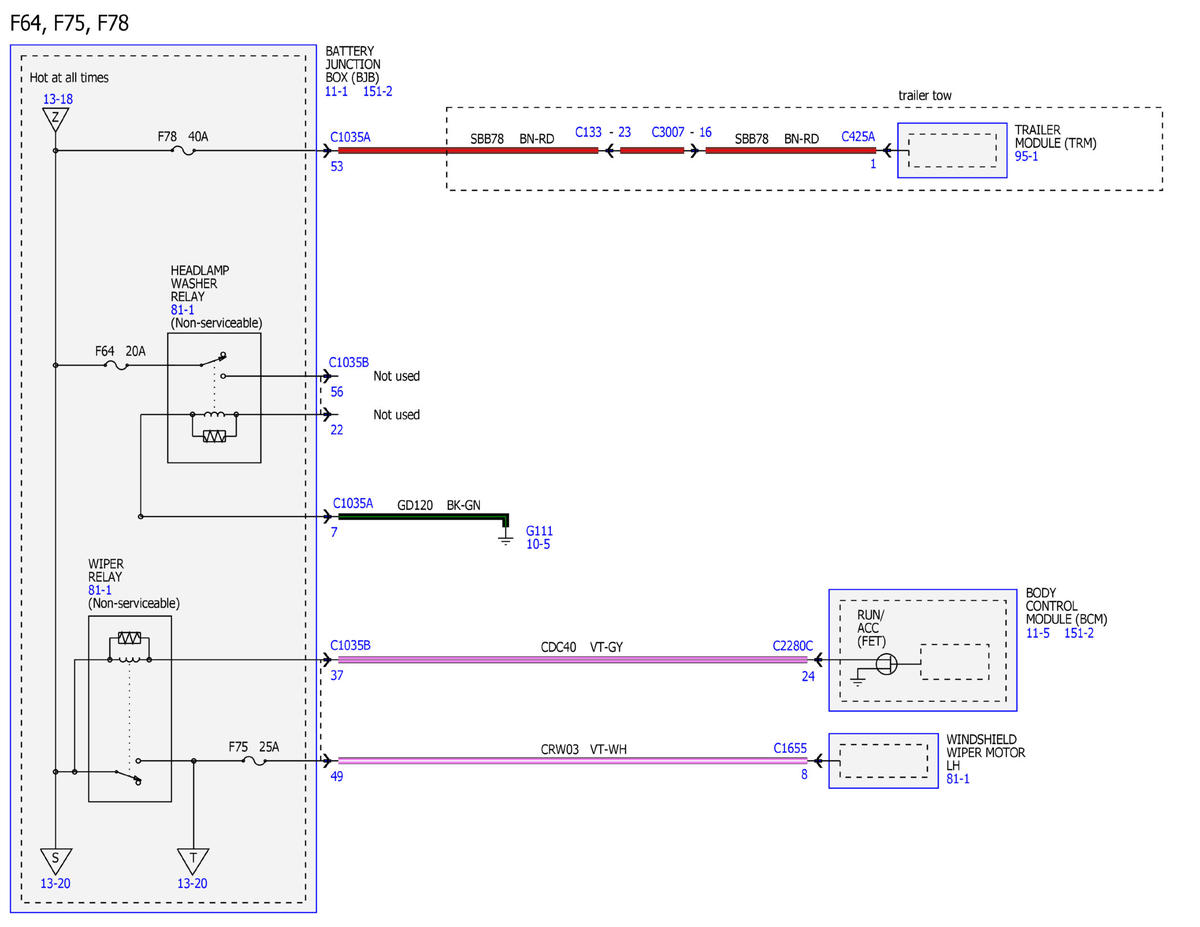

Fig 2: Power Distribution Wiring Diagram (2 of 45)

GFDWR68833

Courtesy of FORD MOTOR COMPANY

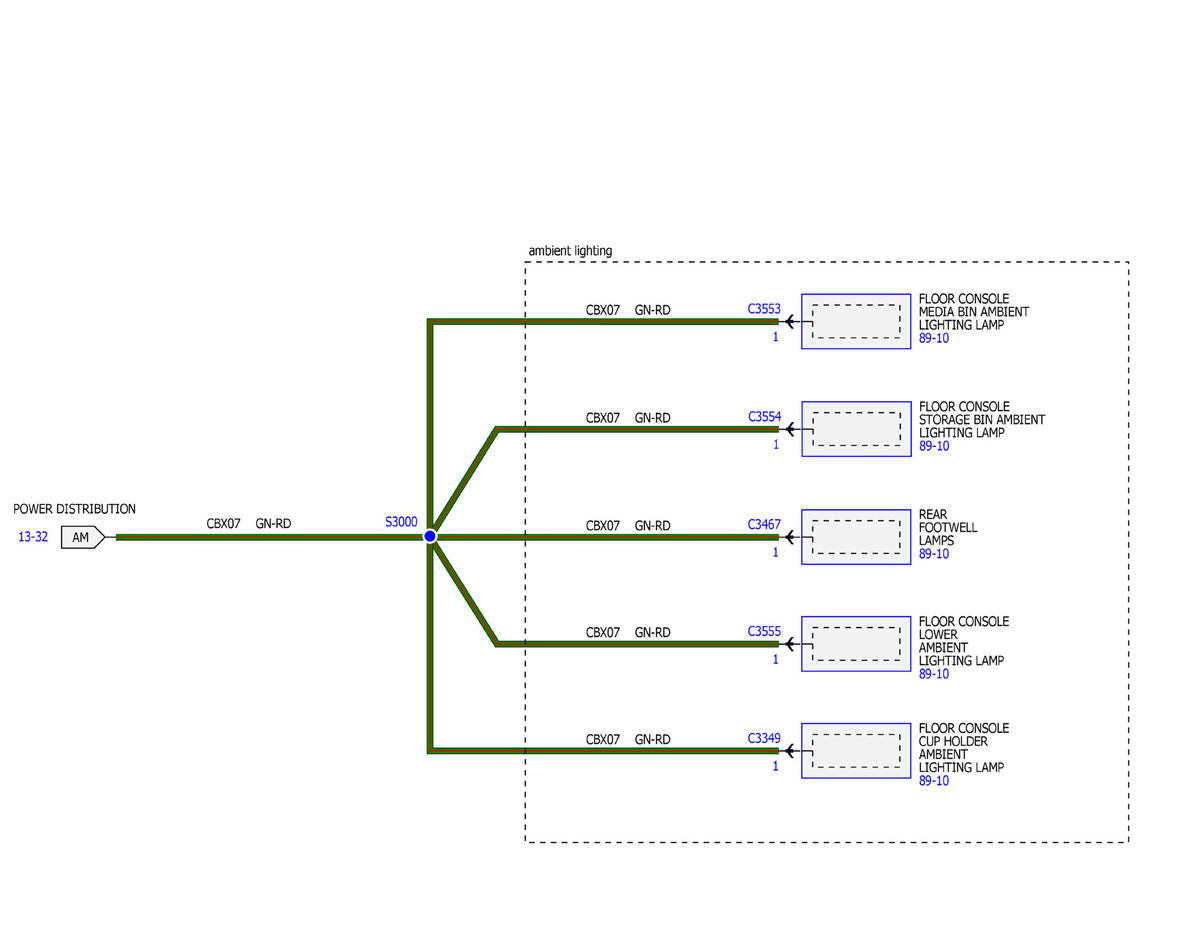

Fig 3: Power Distribution Wiring Diagram (3 of 45)

GFDWR68834

Courtesy of FORD MOTOR COMPANY

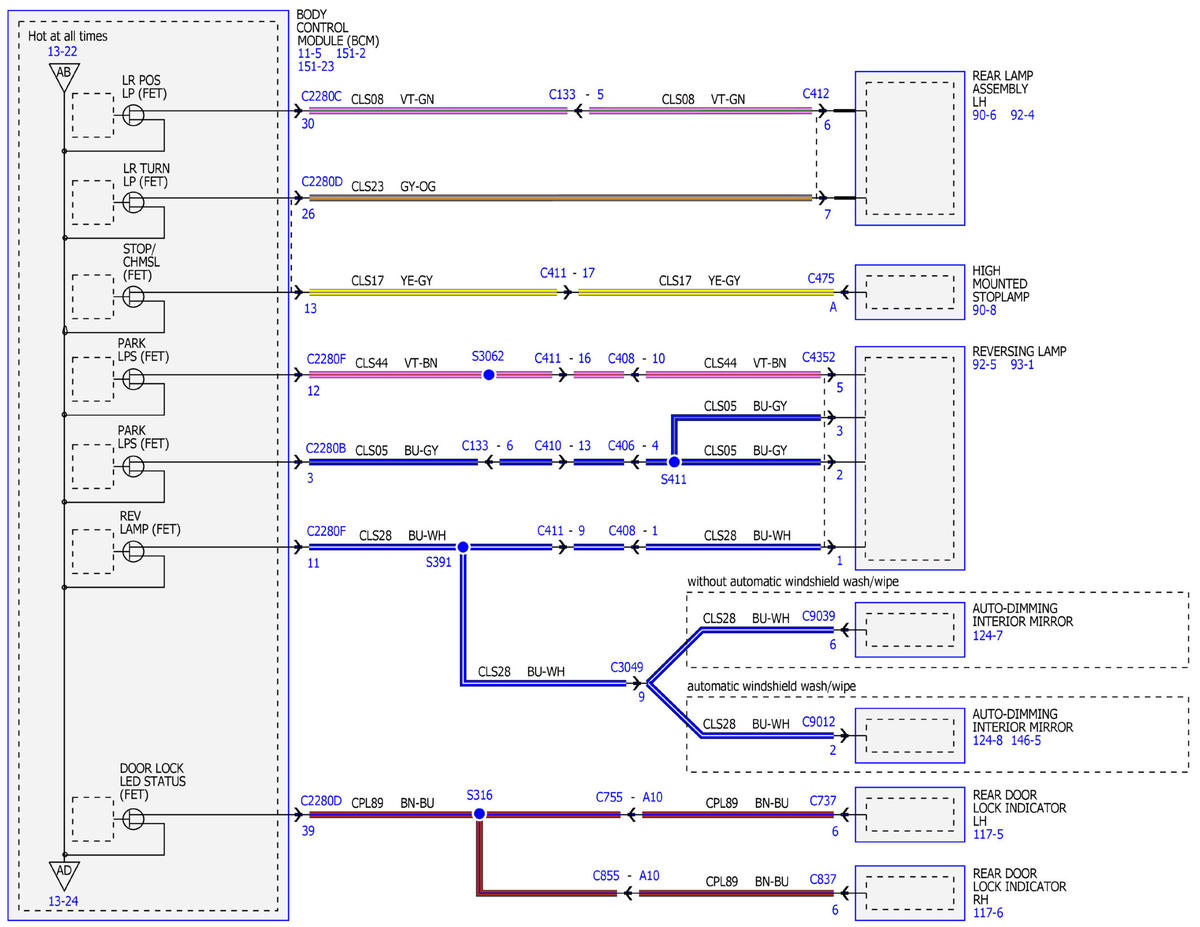

Fig 4: Power Distribution Wiring Diagram (4 of 45)

GFDWR68835

Courtesy of FORD MOTOR COMPANY

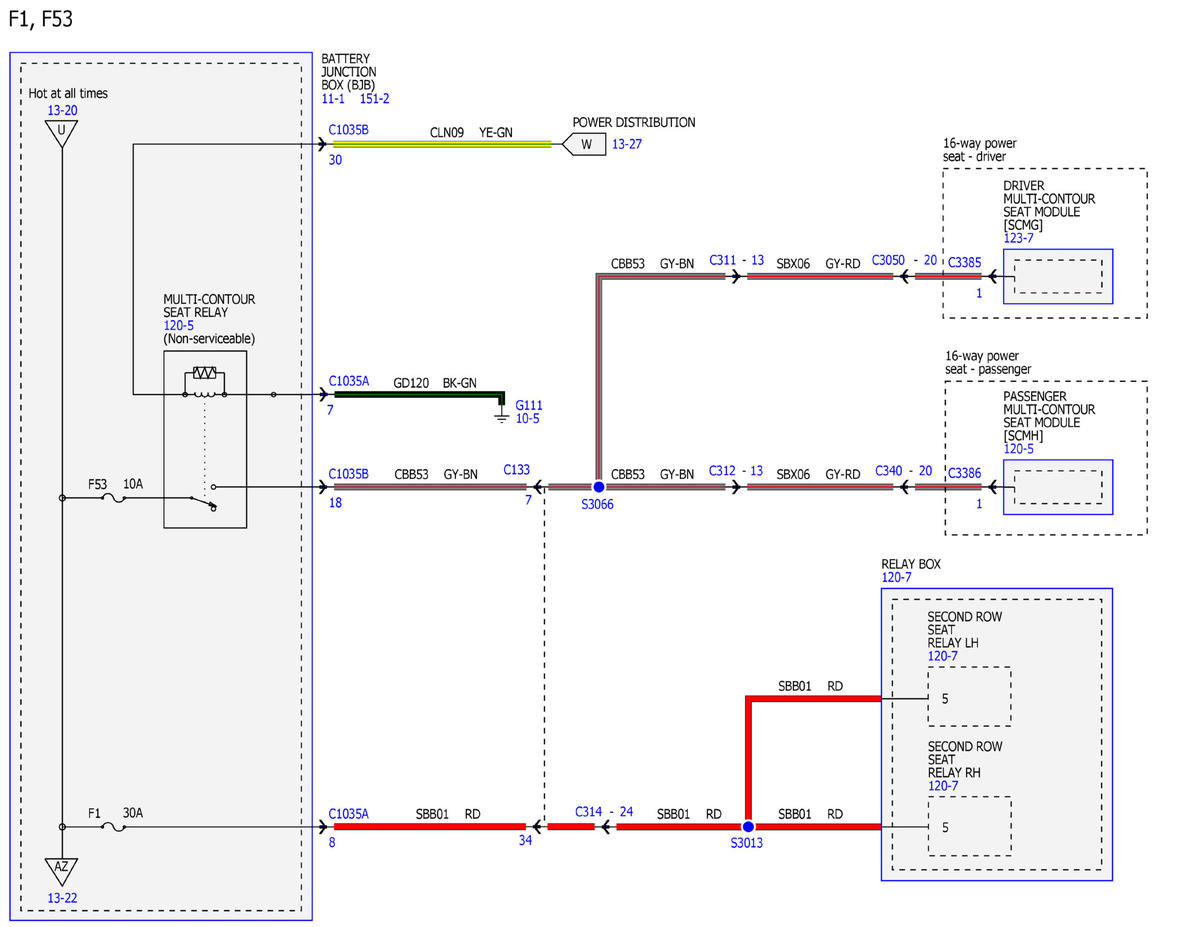

Fig 5: Power Distribution Wiring Diagram (5 of 45)

GFDWR68836

Courtesy of FORD MOTOR COMPANY

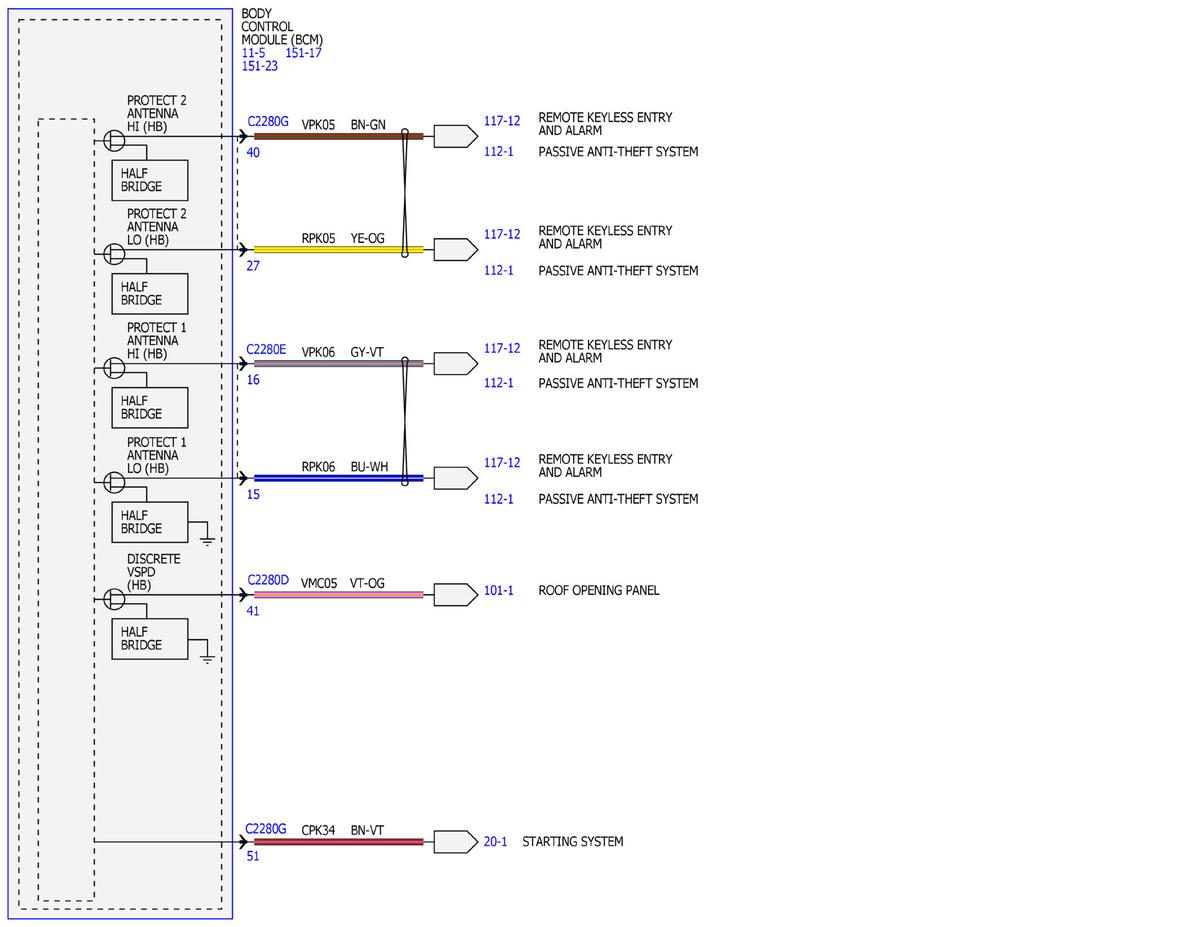

Fig 6: Power Distribution Wiring Diagram (6 of 45)

GFDWR68837

Courtesy of FORD MOTOR COMPANY

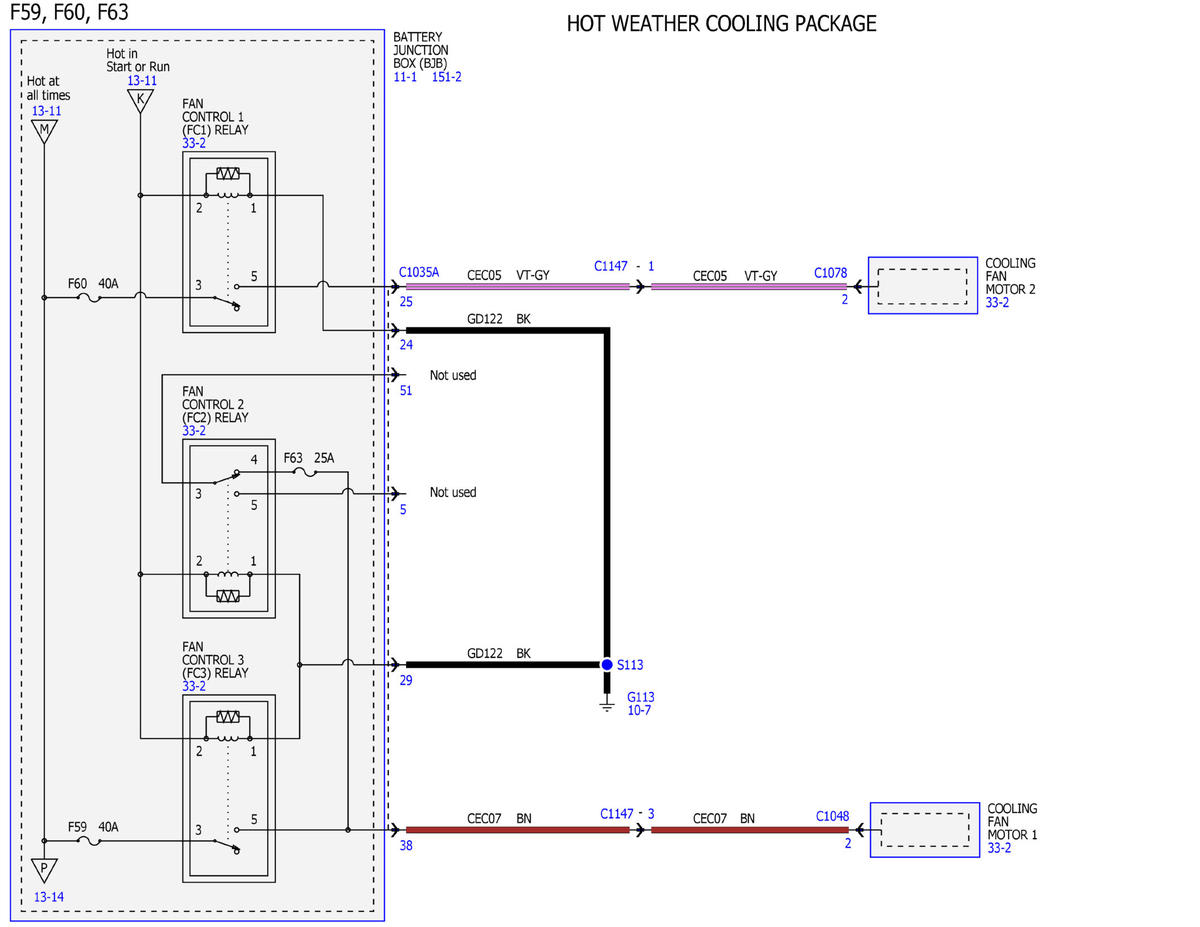

Fig 7: Power Distribution Wiring Diagram (7 of 45)

GFDWR68838

Courtesy of FORD MOTOR COMPANY

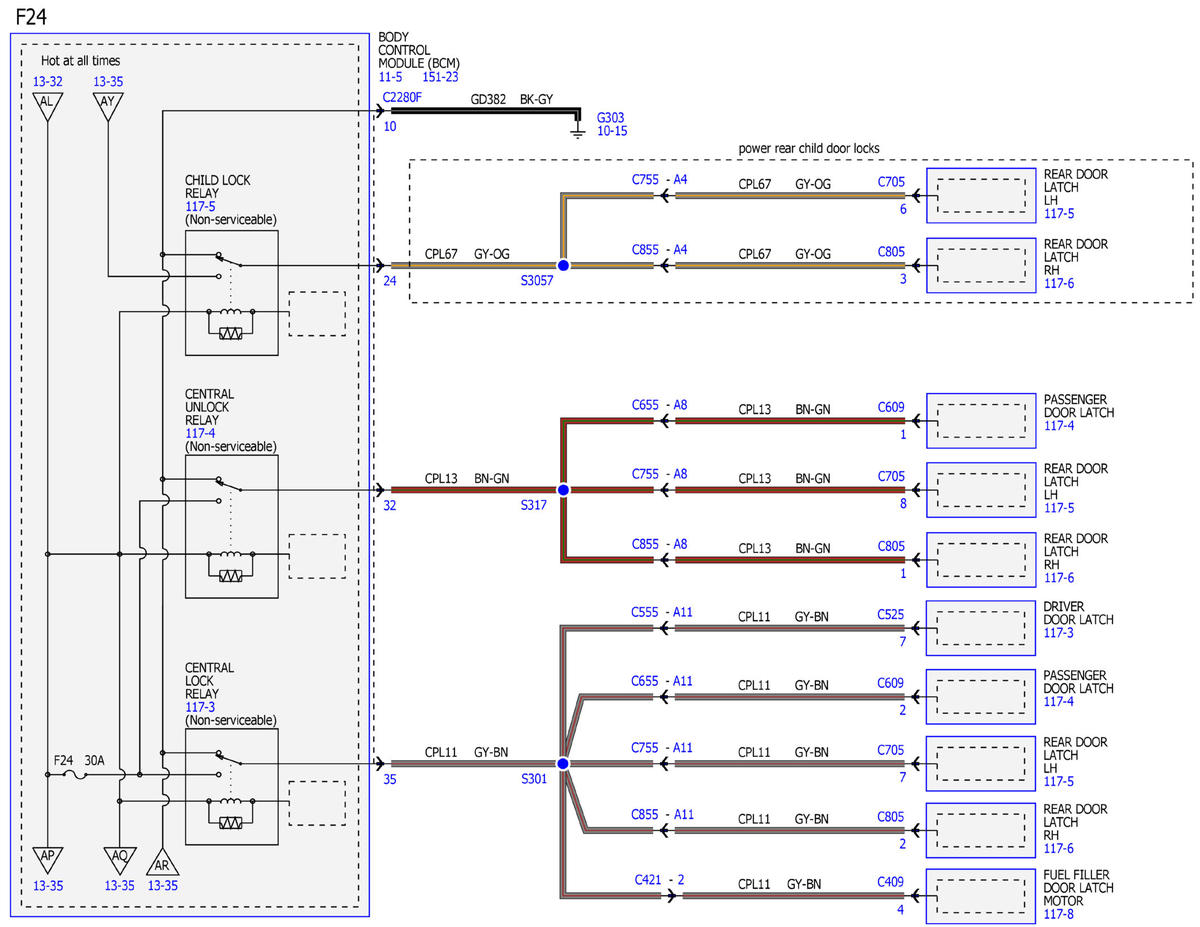

Fig 8: Power Distribution Wiring Diagram (8 of 45)

GFDWR68839

Courtesy of FORD MOTOR COMPANY

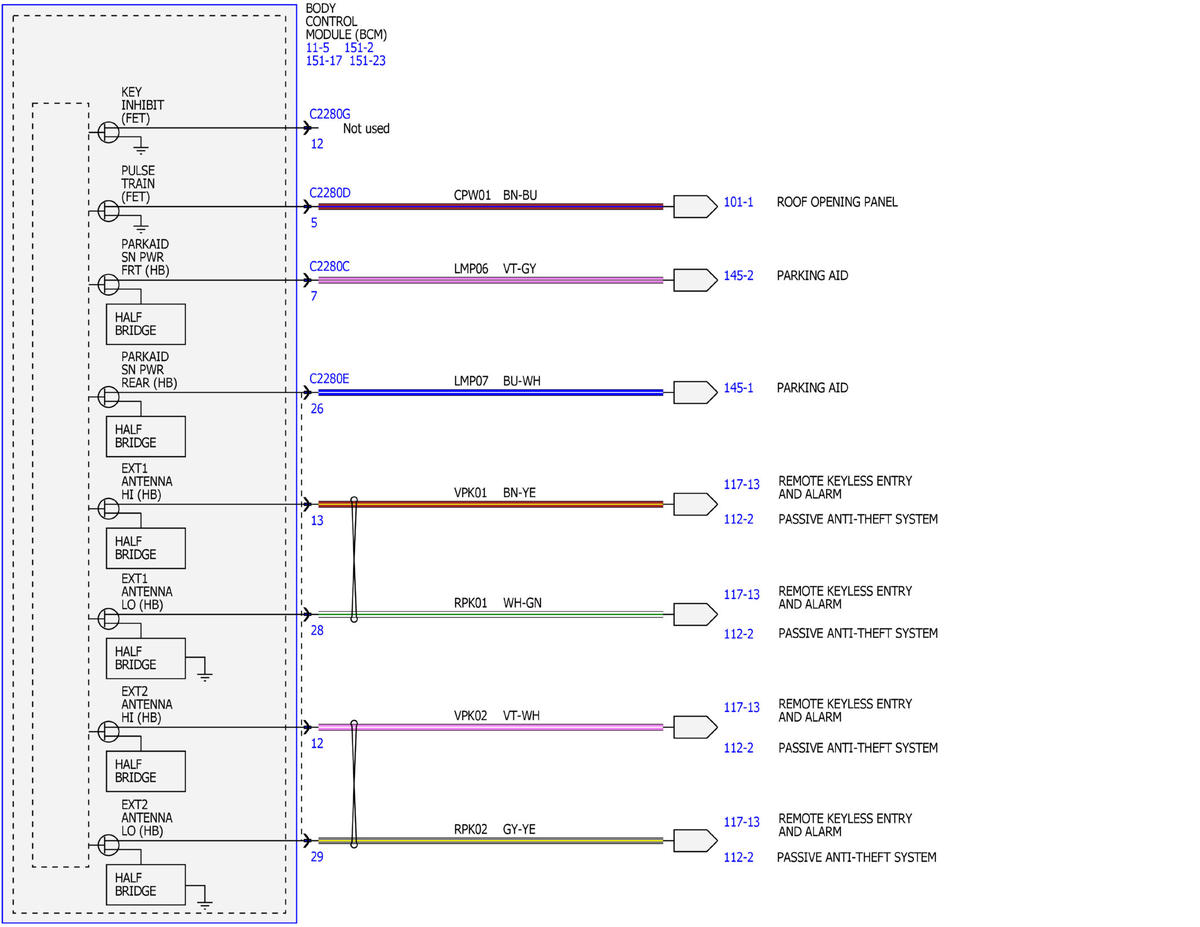

Fig 9: Power Distribution Wiring Diagram (9 of 45)

GFDWR68840

Courtesy of FORD MOTOR COMPANY

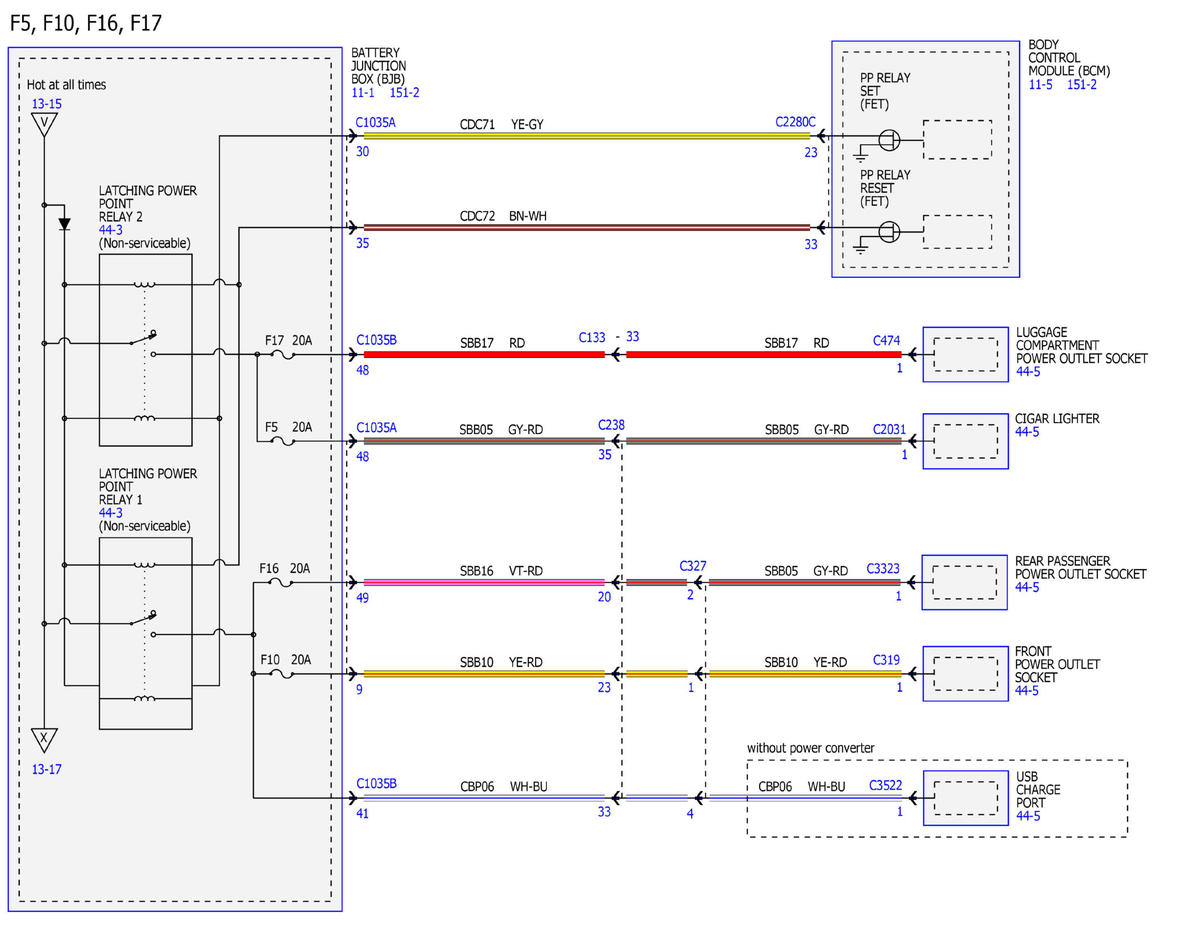

Fig 10: Power Distribution Wiring Diagram (10 of 45)

GFDWR68841

Courtesy of FORD MOTOR COMPANY

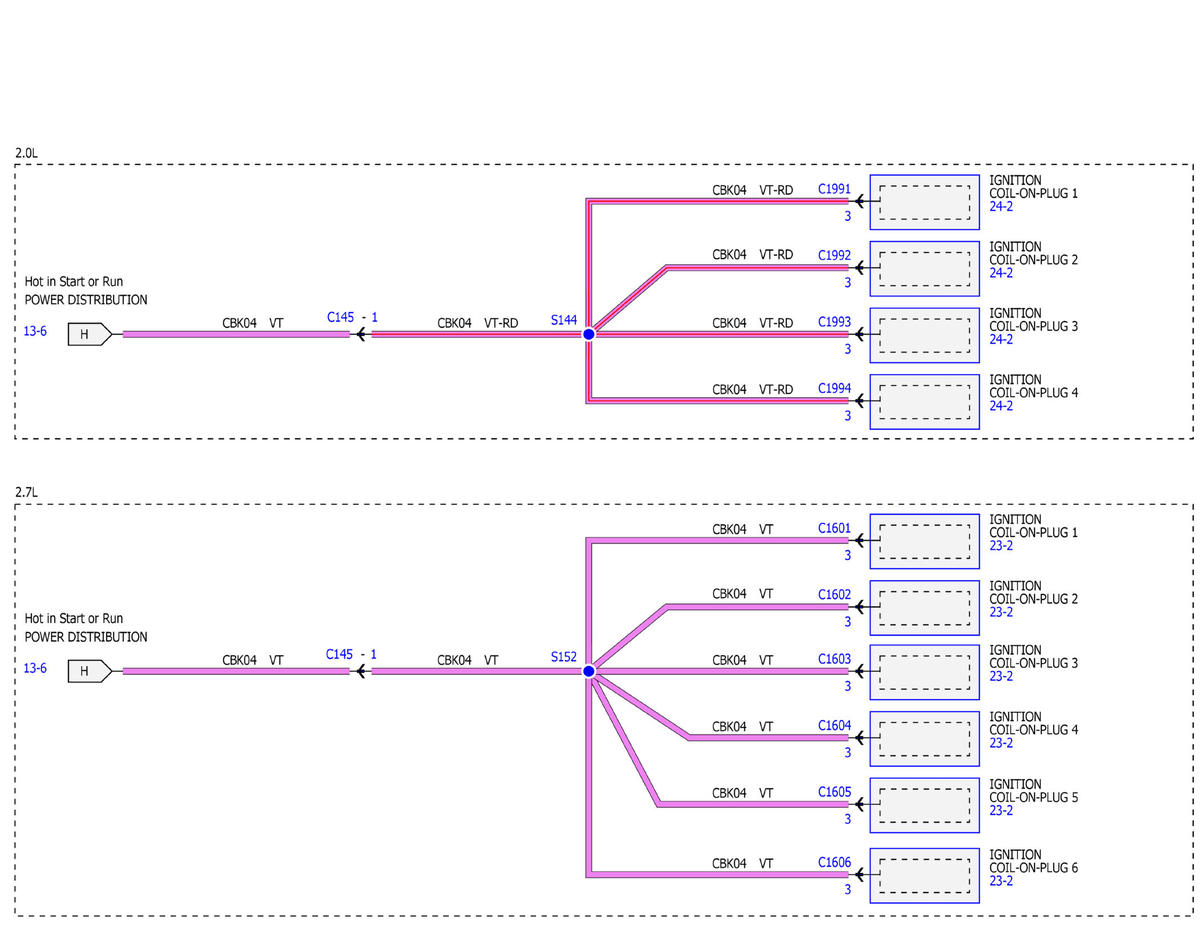

Fig 11: Power Distribution Wiring Diagram (11 of 45)

GFDWR68842

Courtesy of FORD MOTOR COMPANY

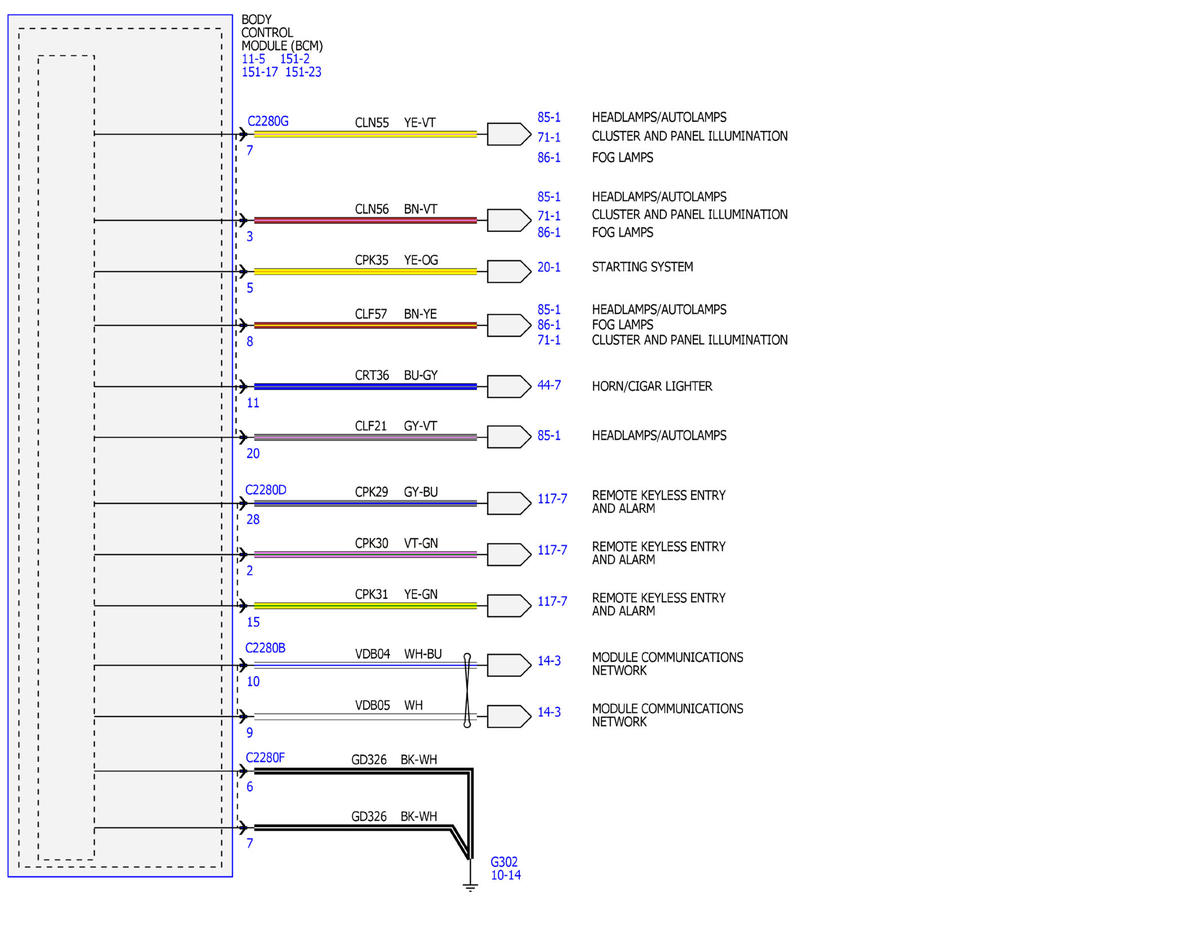

Fig 12: Power Distribution Wiring Diagram (12 of 45)

GFDWR68843

Courtesy of FORD MOTOR COMPANY

Fig 13: Power Distribution Wiring Diagram (13 of 45)

GFDWR68844

Courtesy of FORD MOTOR COMPANY

Fig 14: Power Distribution Wiring Diagram (14 of 45)

GFDWR68845

Courtesy of FORD MOTOR COMPANY

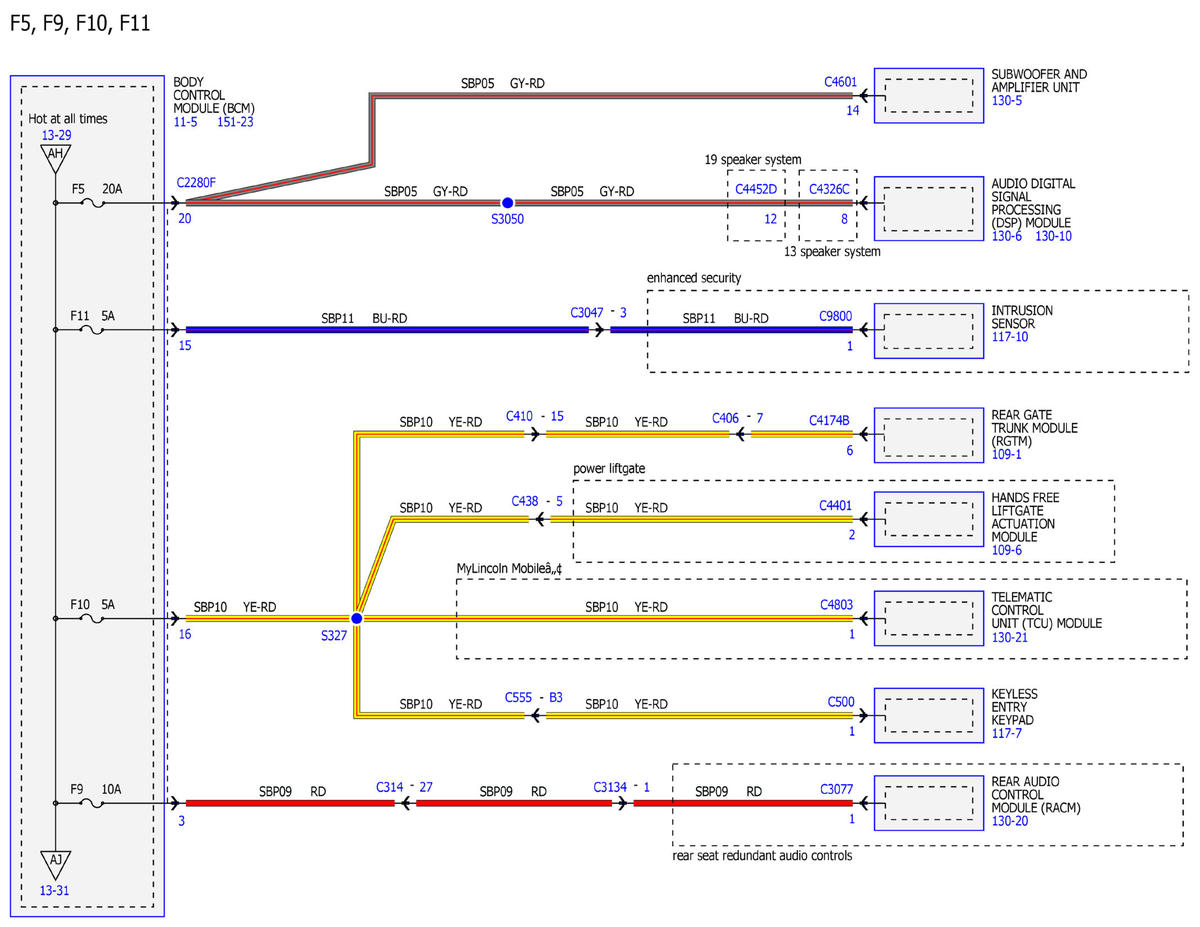

Fig 15: Power Distribution Wiring Diagram (15 of 45)

GFDWR68846

Courtesy of FORD MOTOR COMPANY

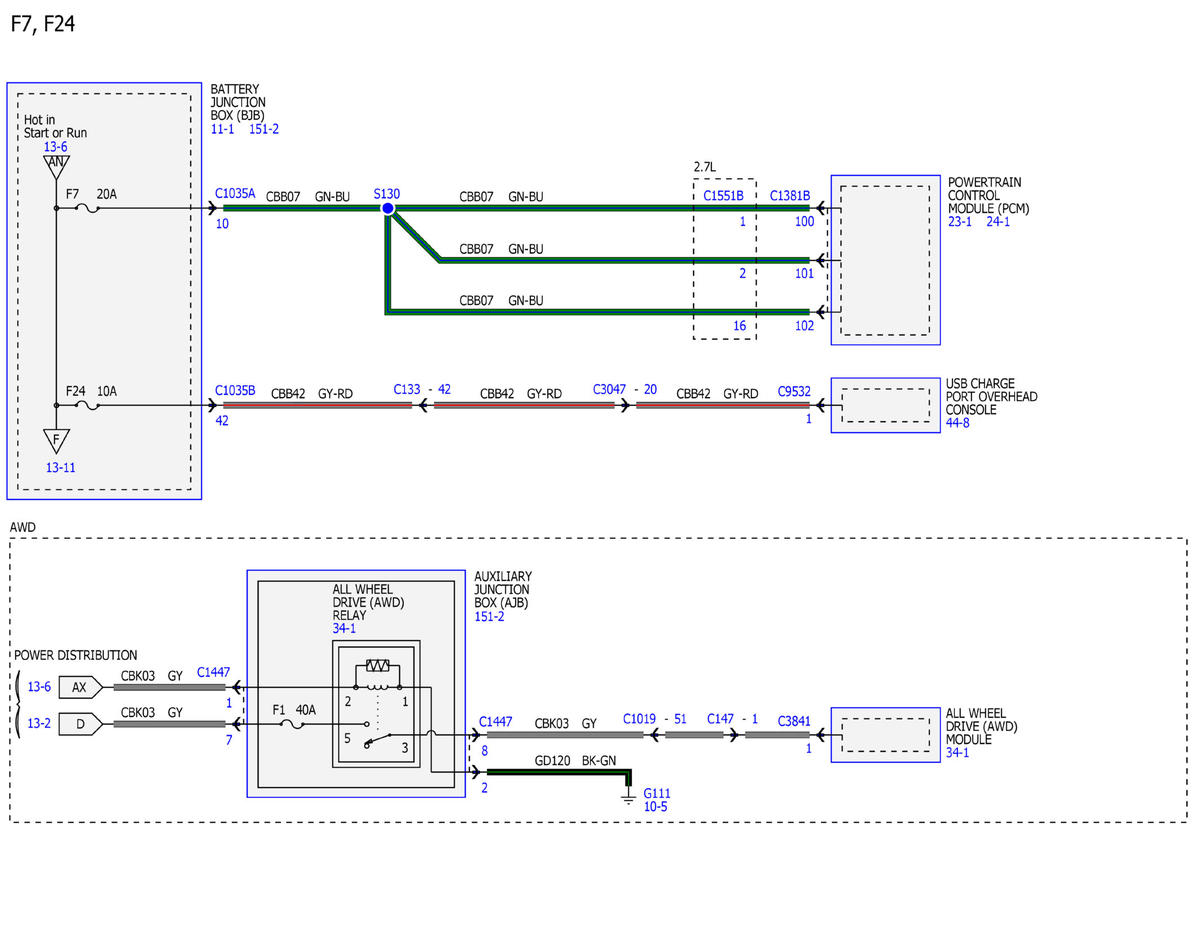

Fig 16: Power Distribution Wiring Diagram (16 of 45)

GFDWR68847

Courtesy of FORD MOTOR COMPANY

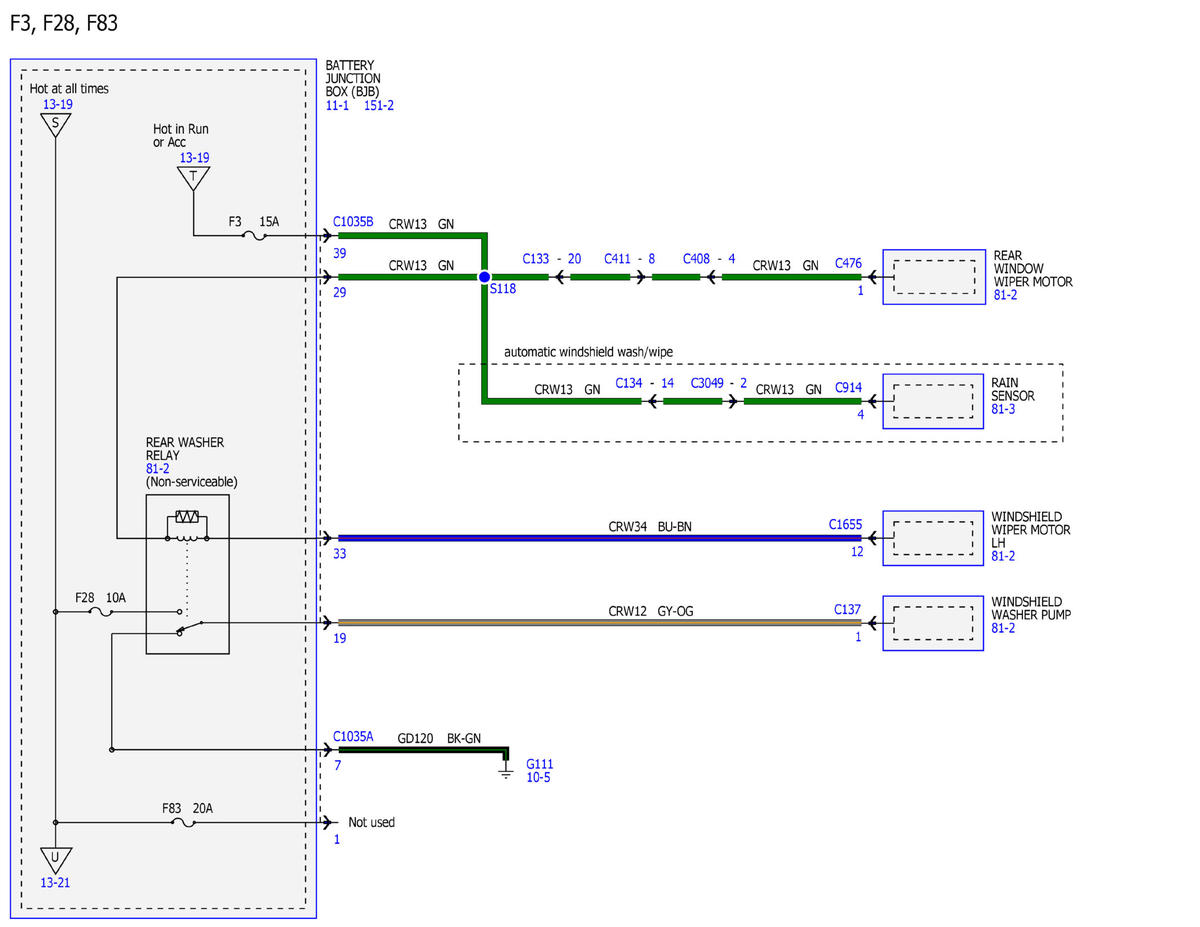

Fig 17: Power Distribution Wiring Diagram (17 of 45)

GFDWR68848

Courtesy of FORD MOTOR COMPANY

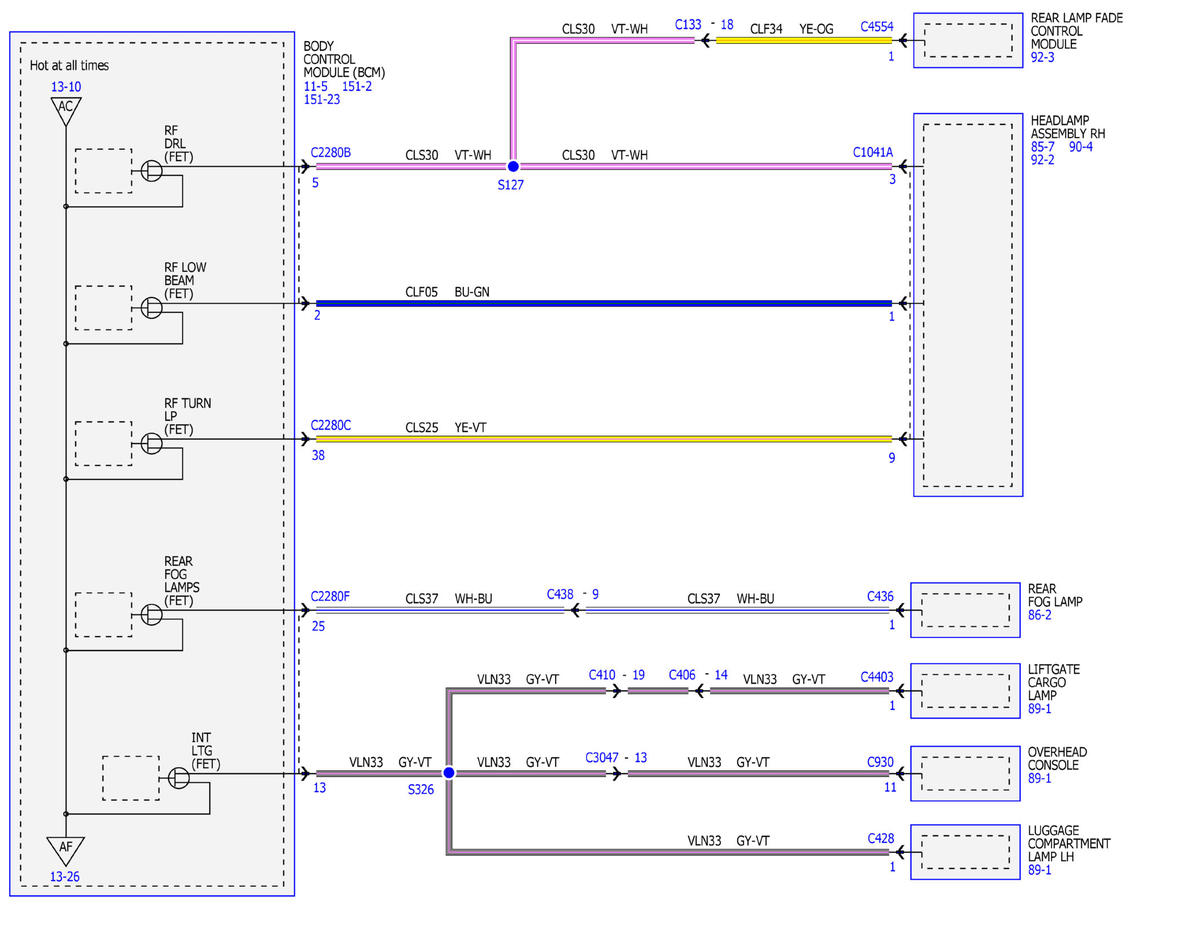

Fig 18: Power Distribution Wiring Diagram (18 of 45)

GFDWR68849

Courtesy of FORD MOTOR COMPANY

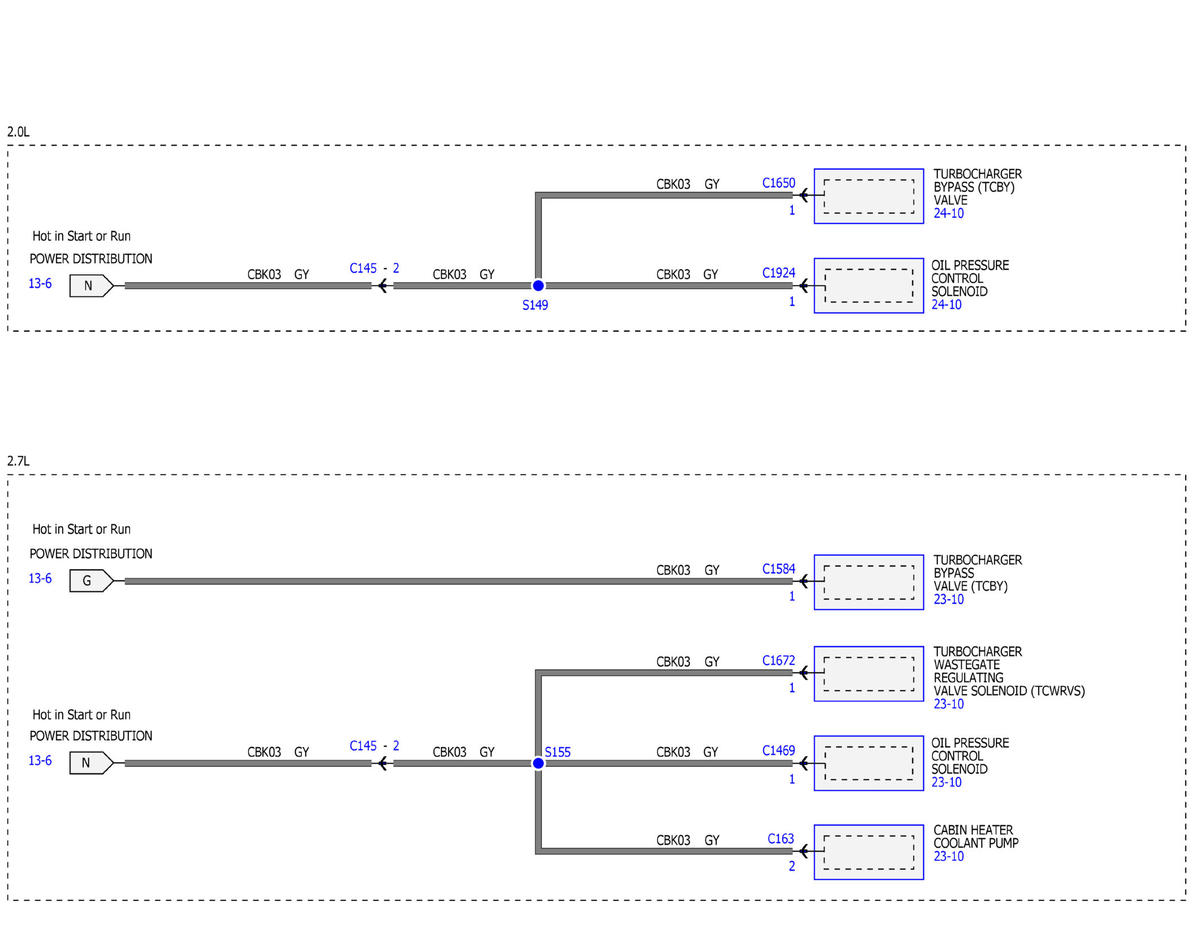

Fig 19: Power Distribution Wiring Diagram (19 of 45)

GFDWR68850

Courtesy of FORD MOTOR COMPANY

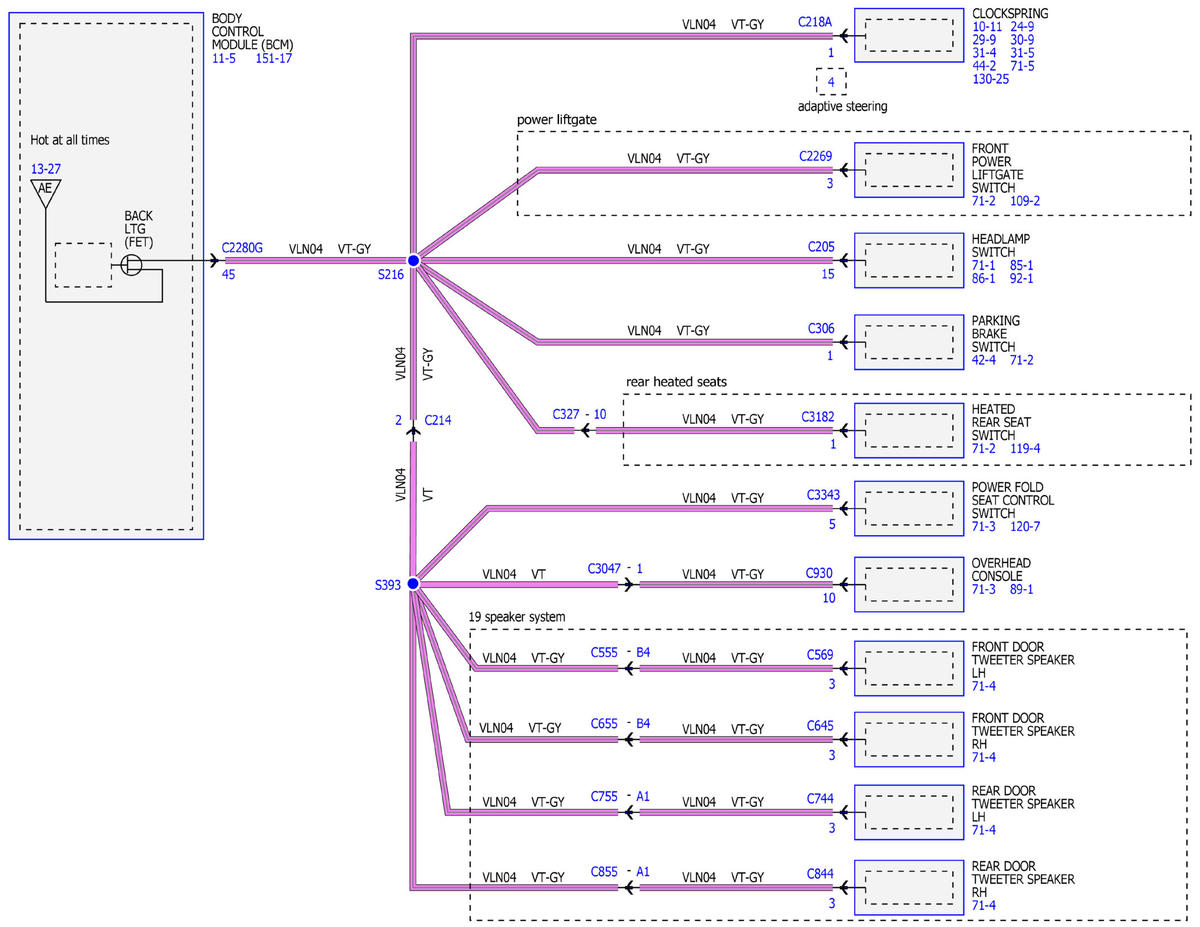

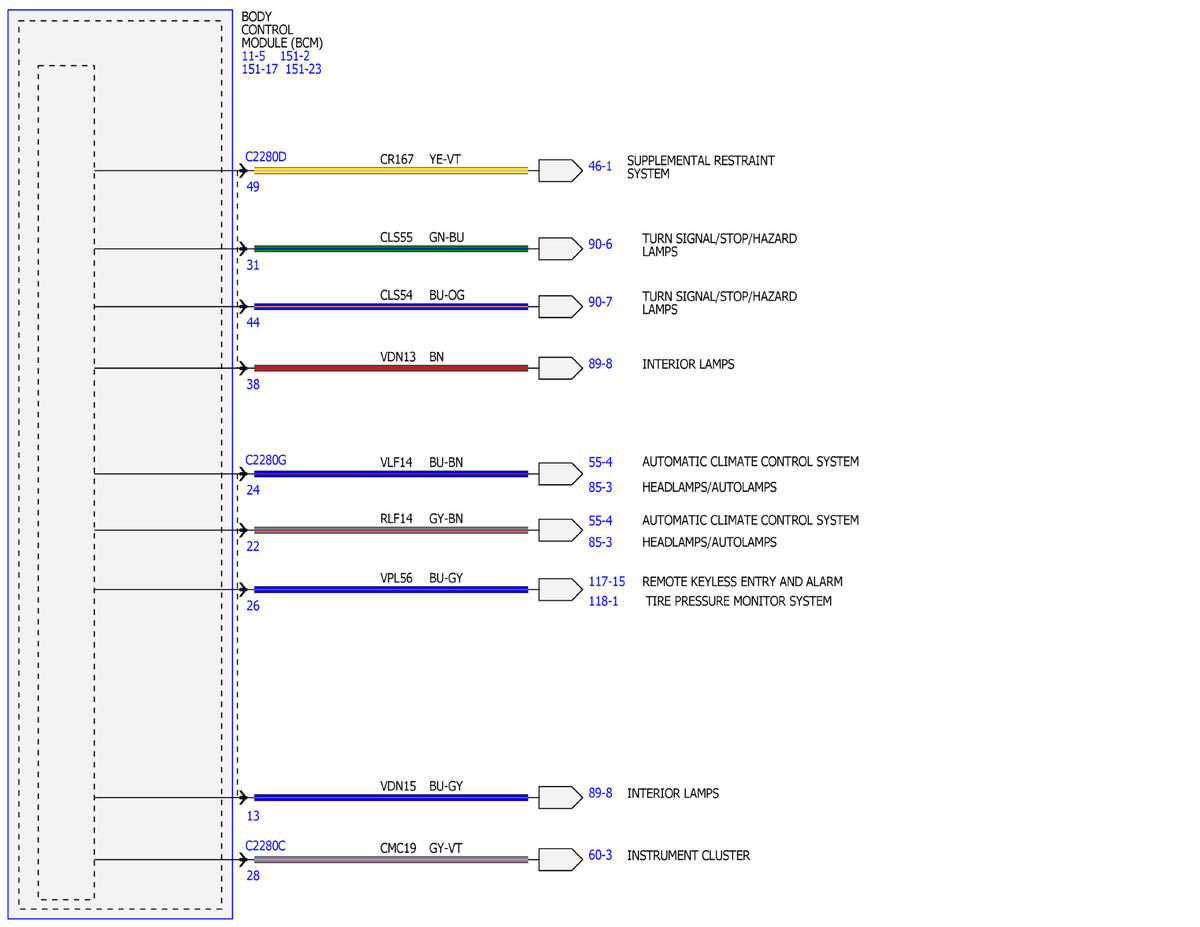

Fig 20: Power Distribution Wiring Diagram (20 of 45)

GFDWR68851

Courtesy of FORD MOTOR COMPANY

Fig 21: Power Distribution Wiring Diagram (21 of 45)

GFDWR68852

Courtesy of FORD MOTOR COMPANY

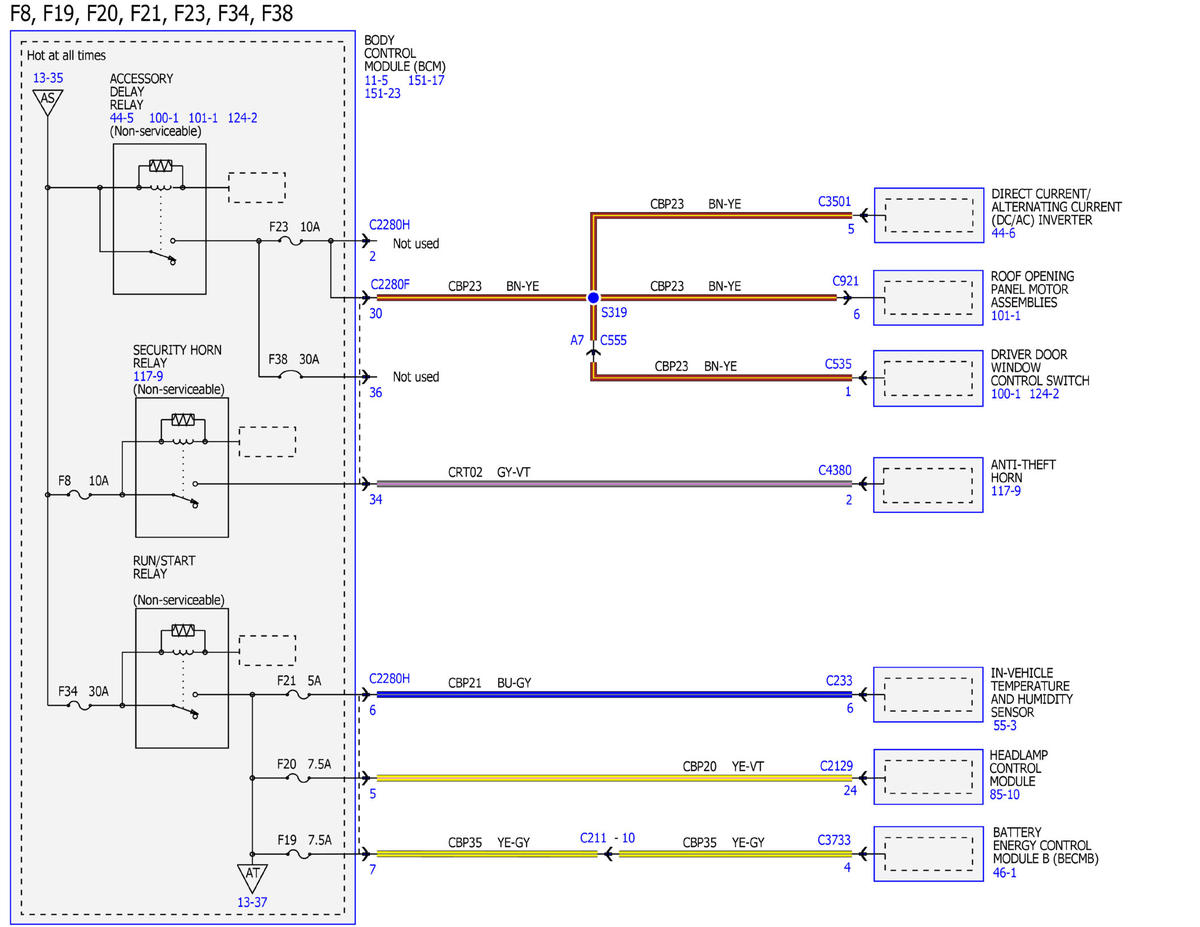

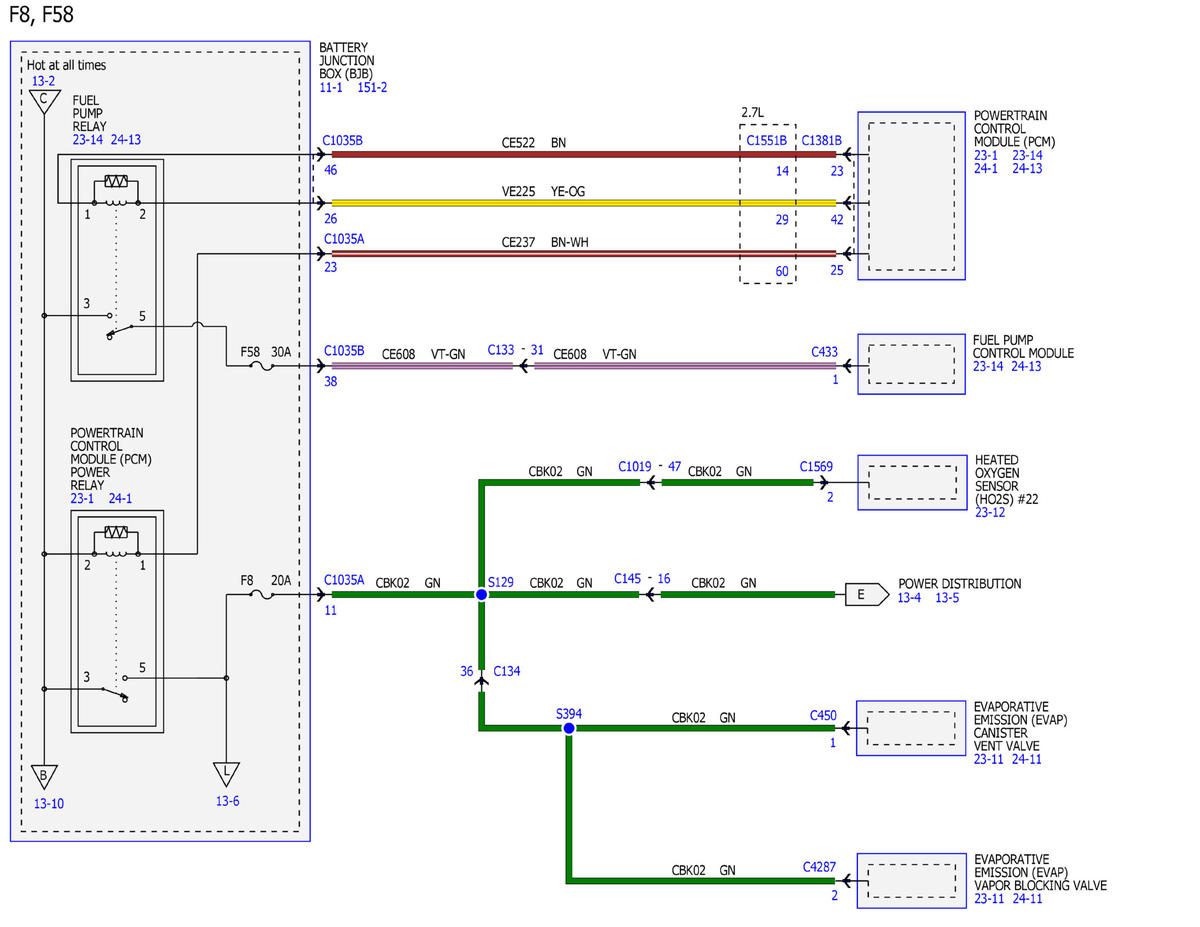

Fig 22: Power Distribution Wiring Diagram (22 of 45)

GFDWR68853

Courtesy of FORD MOTOR COMPANY

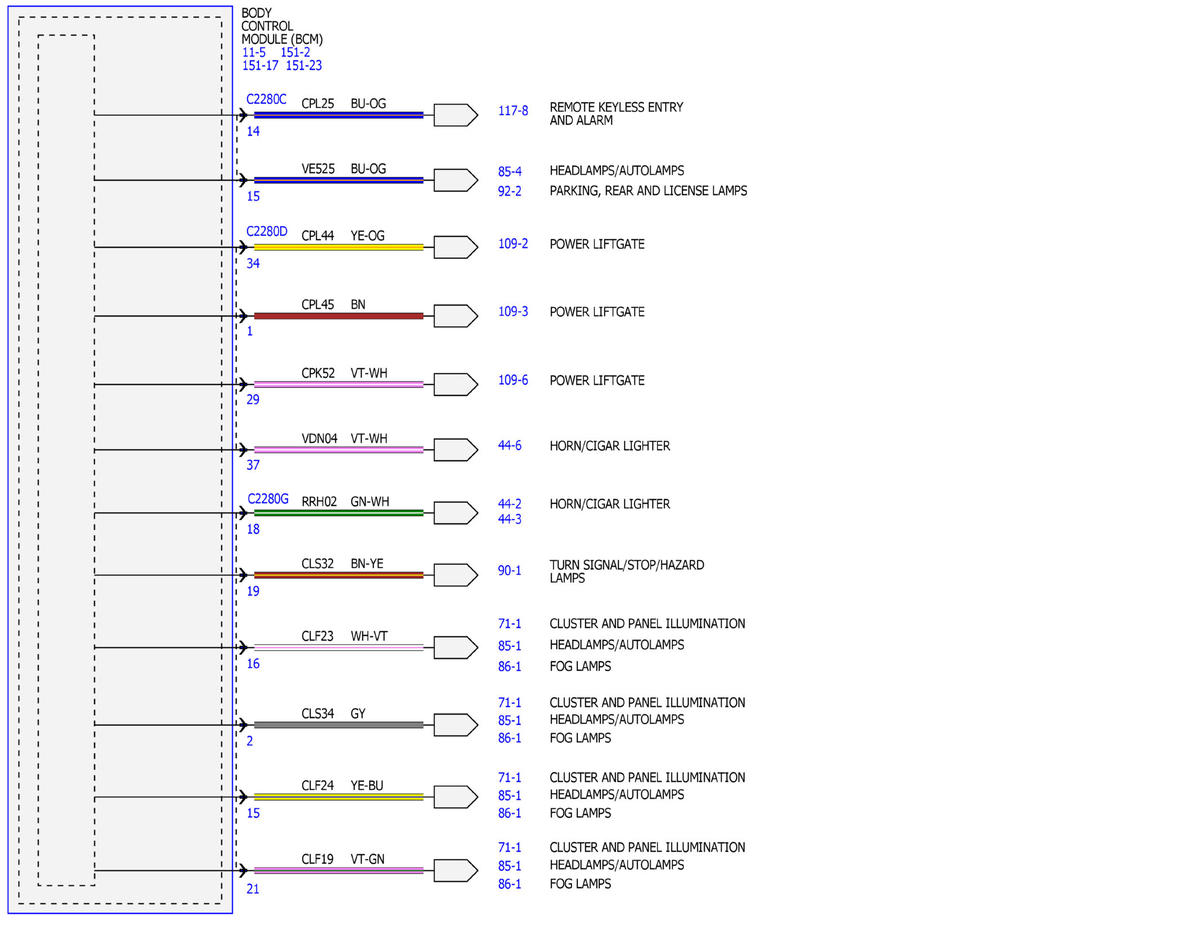

Fig 23: Power Distribution Wiring Diagram (23 of 45)

GFDWR68854

Courtesy of FORD MOTOR COMPANY

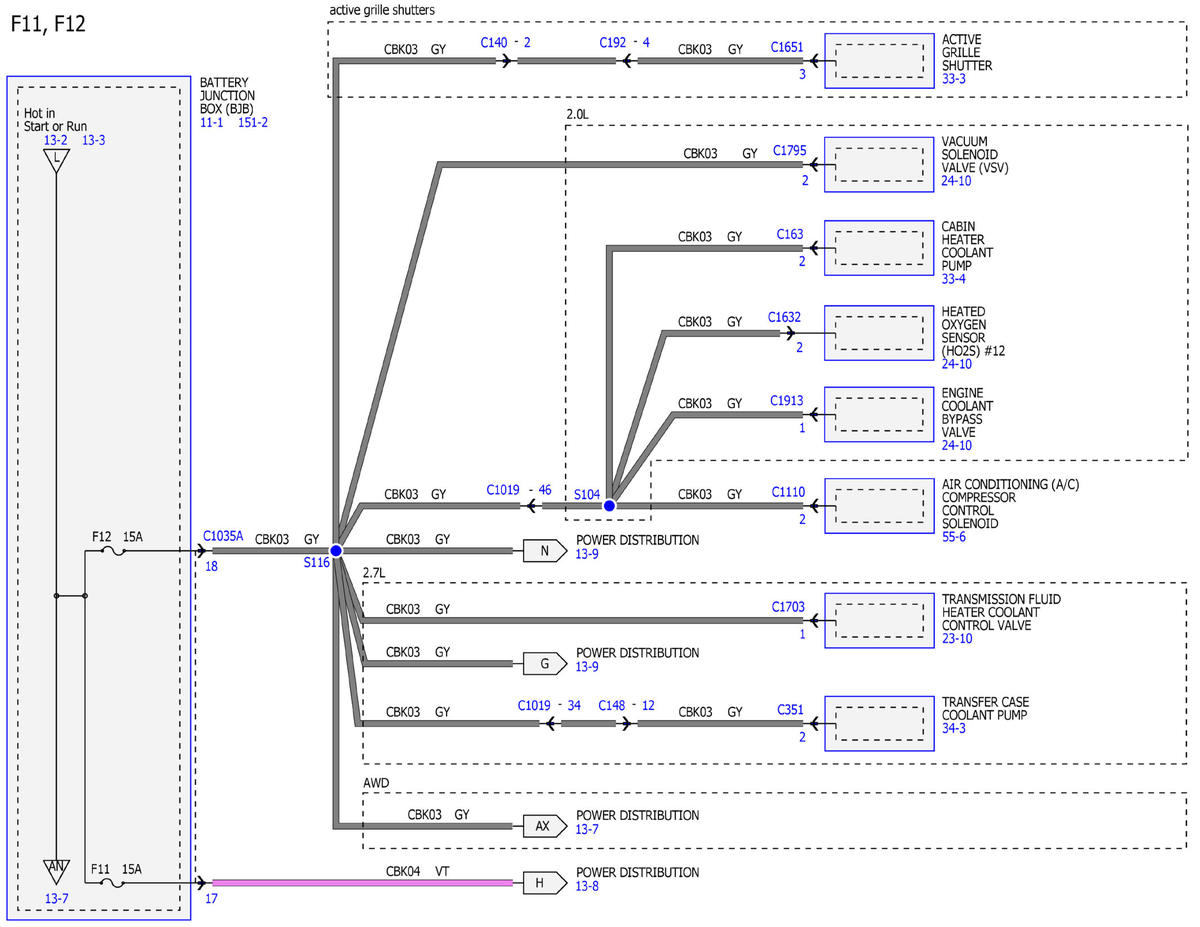

Fig 24: Power Distribution Wiring Diagram (24 of 45)

GFDWR68855

Courtesy of FORD MOTOR COMPANY

Fig 25: Power Distribution Wiring Diagram (25 of 45)

GFDWR68856

Courtesy of FORD MOTOR COMPANY

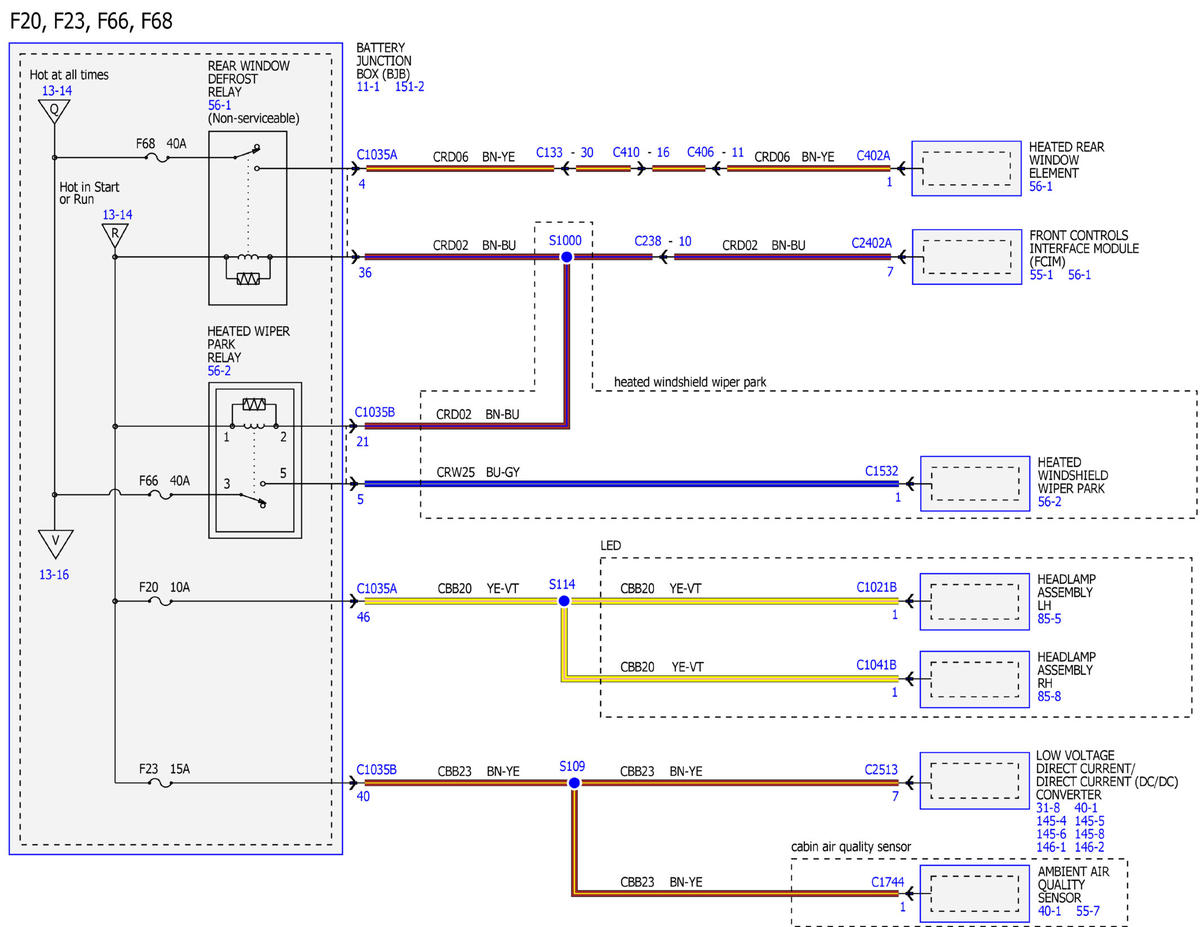

Fig 26: Power Distribution Wiring Diagram (26 of 45)

GFDWR68857

Courtesy of FORD MOTOR COMPANY

Fig 27: Power Distribution Wiring Diagram (27 of 45)

GFDWR68858

Courtesy of FORD MOTOR COMPANY

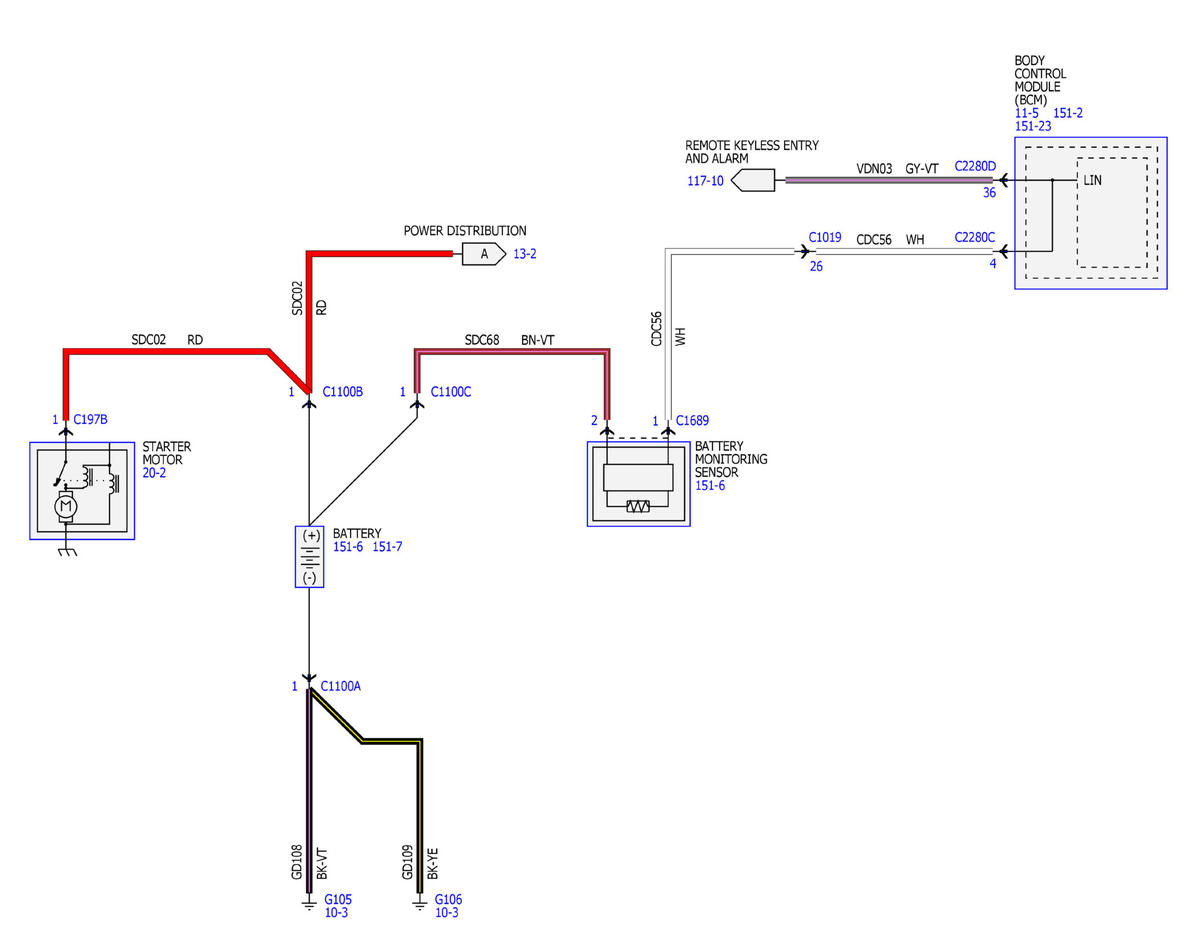

Fig 28: Power Distribution Wiring Diagram (28 of 45)

GFDWR68859

Courtesy of FORD MOTOR COMPANY

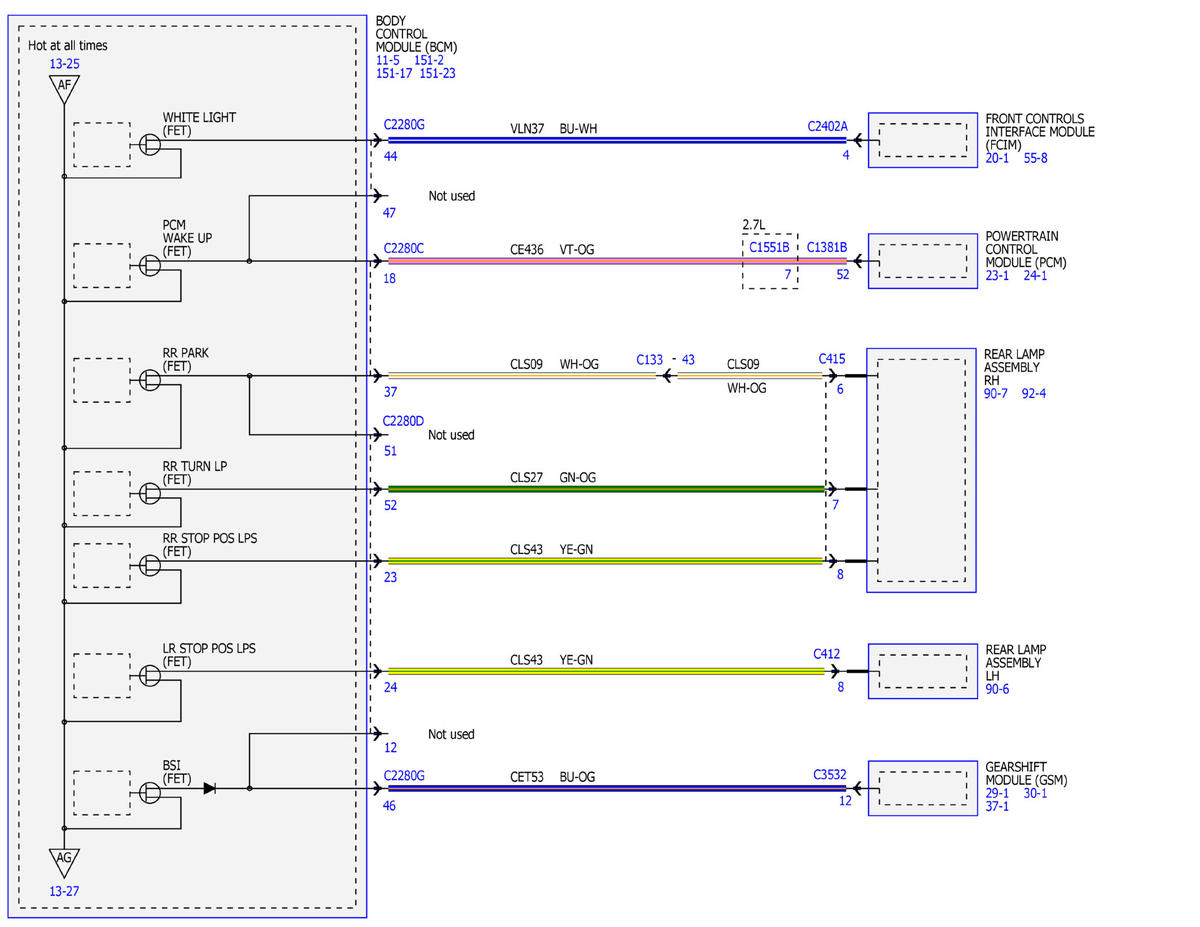

Fig 29: Power Distribution Wiring Diagram (29 of 45)

GFDWR68860

Courtesy of FORD MOTOR COMPANY

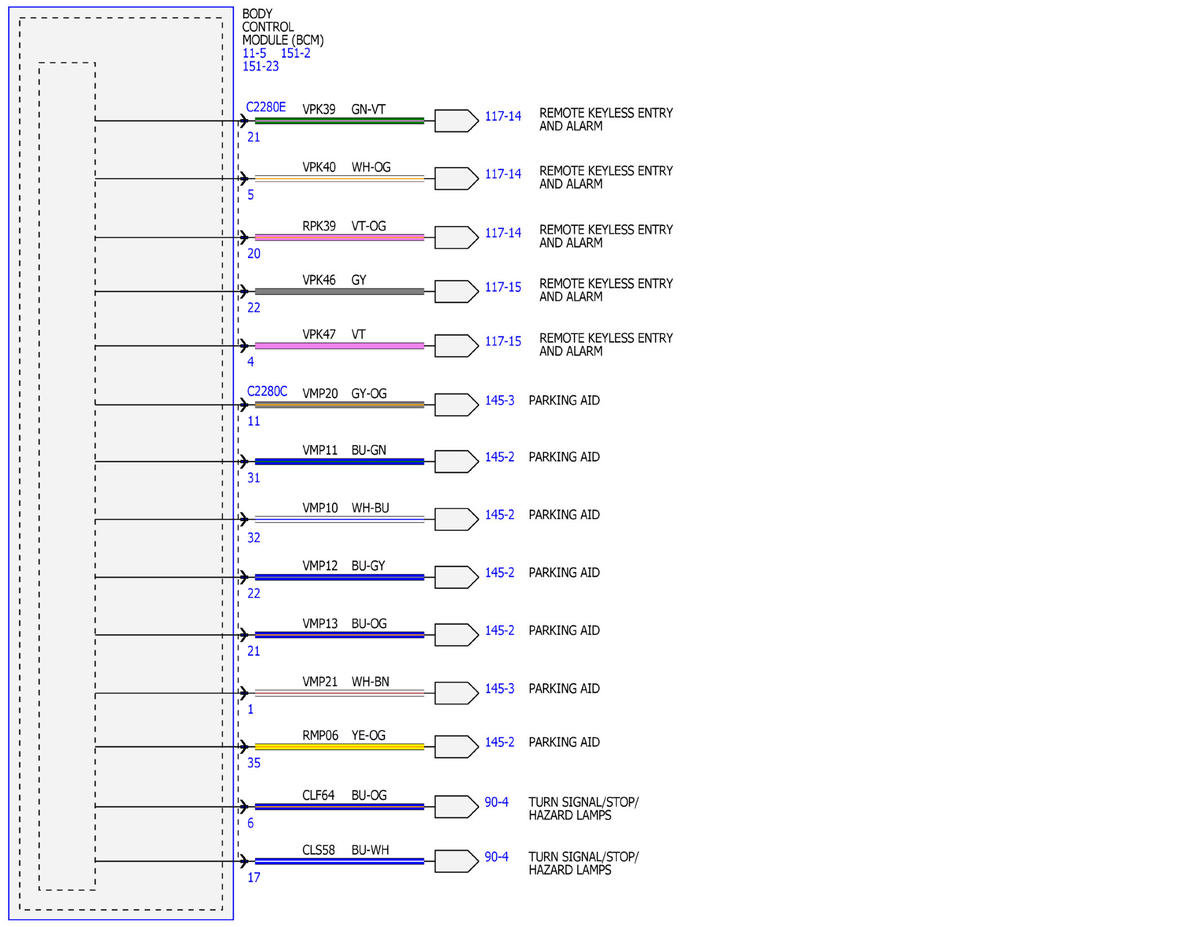

Fig 30: Power Distribution Wiring Diagram (30 of 45)

GFDWR68861

Courtesy of FORD MOTOR COMPANY

Fig 31: Power Distribution Wiring Diagram (31 of 45)

GFDWR68862

Courtesy of FORD MOTOR COMPANY

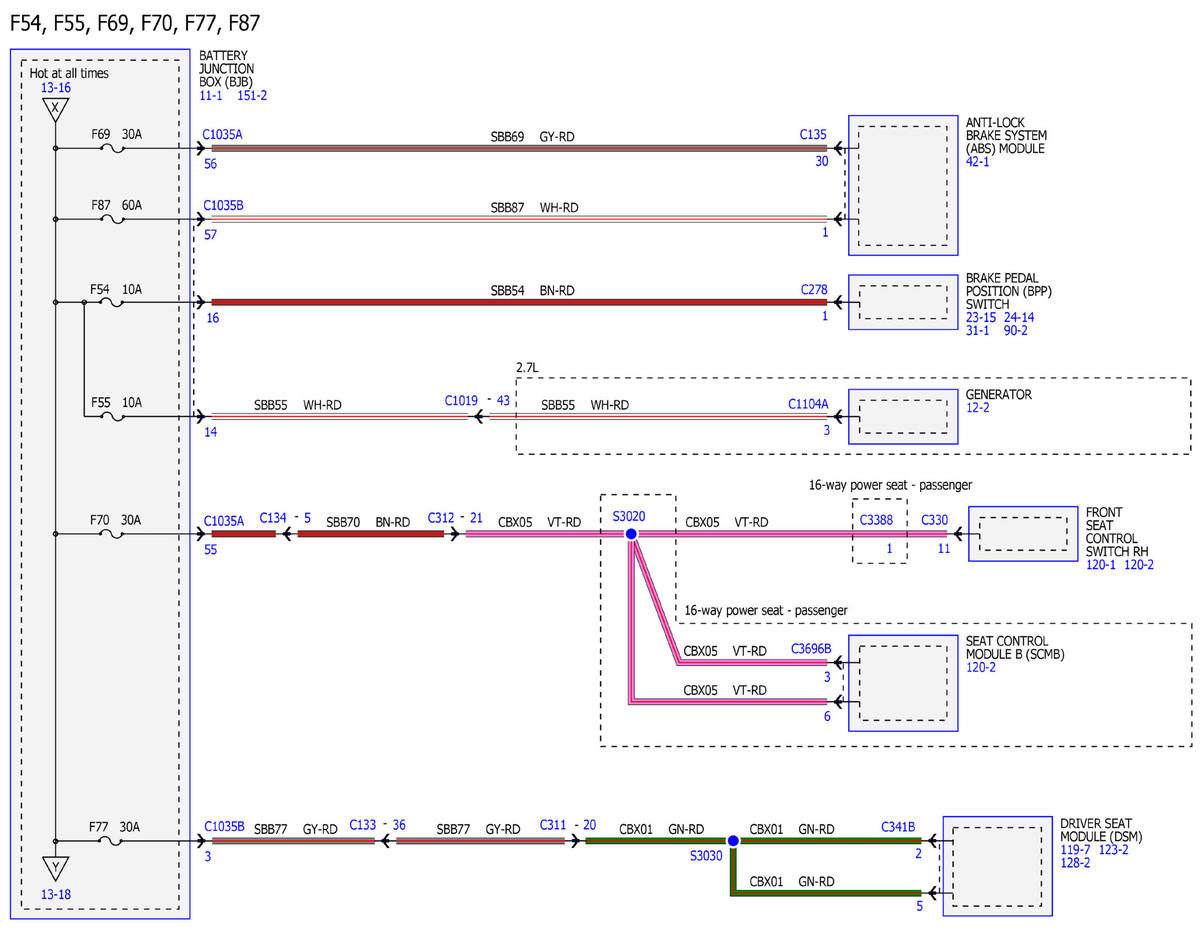

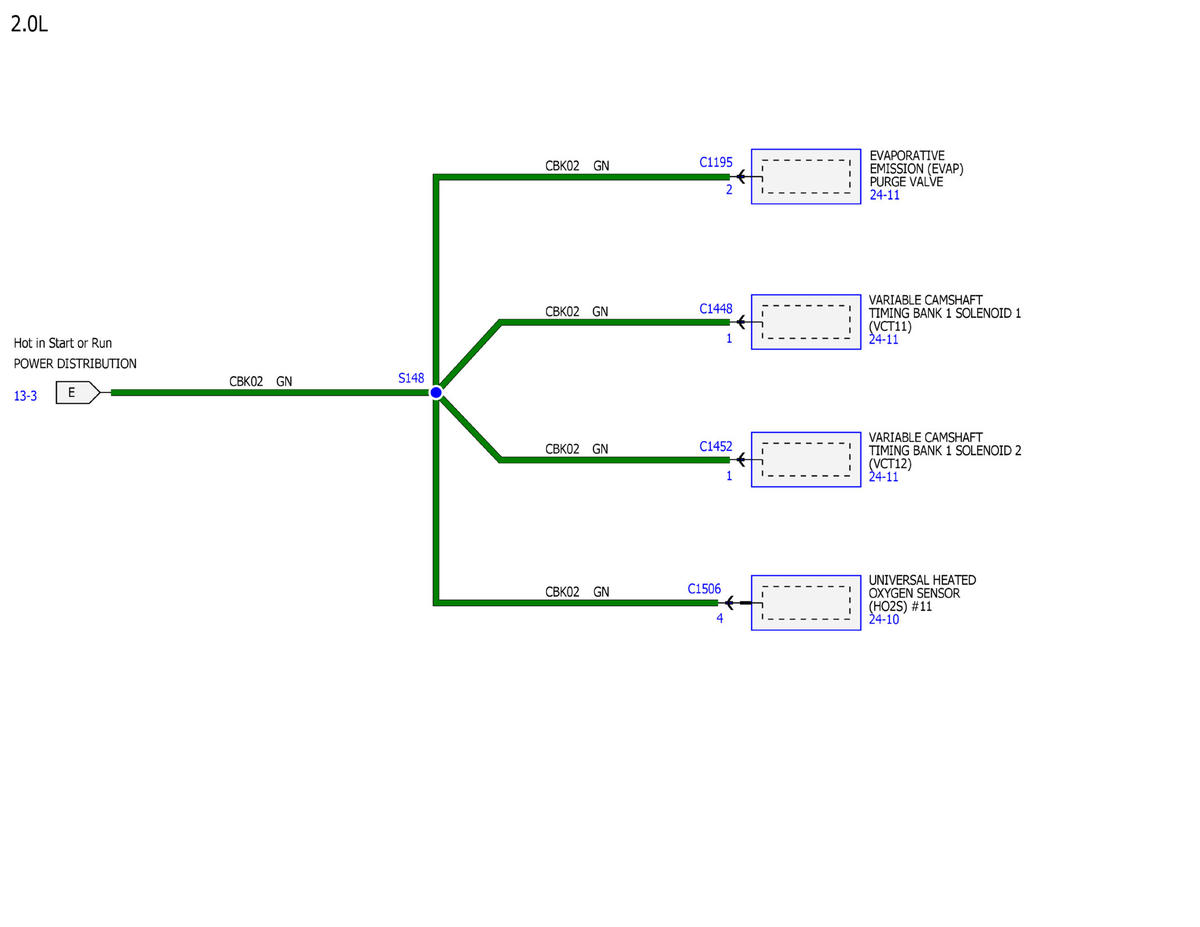

Fig 32: Power Distribution Wiring Diagram (32 of 45)

GFDWR68863

Courtesy of FORD MOTOR COMPANY

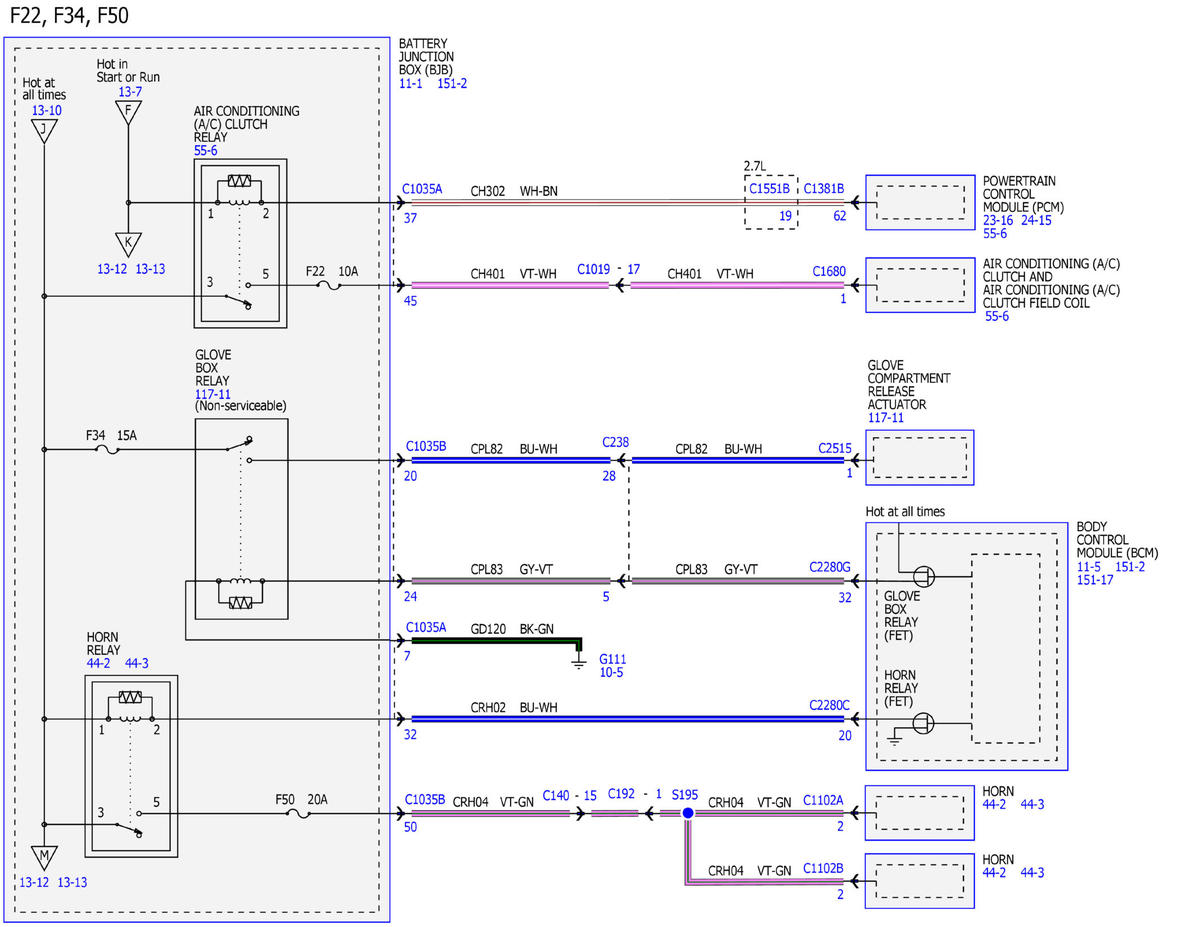

Fig 33: Power Distribution Wiring Diagram (33 of 45)

GFDWR68864

Courtesy of FORD MOTOR COMPANY

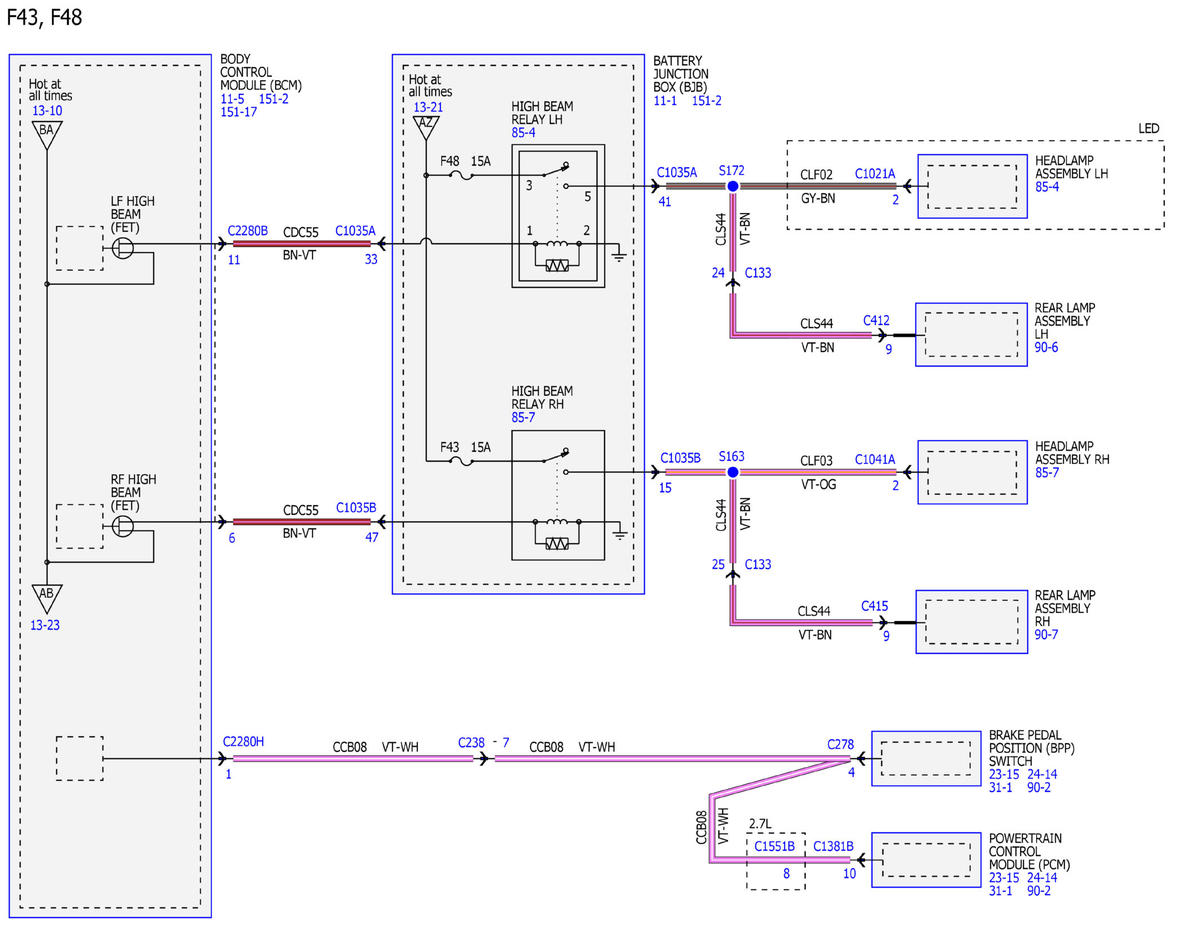

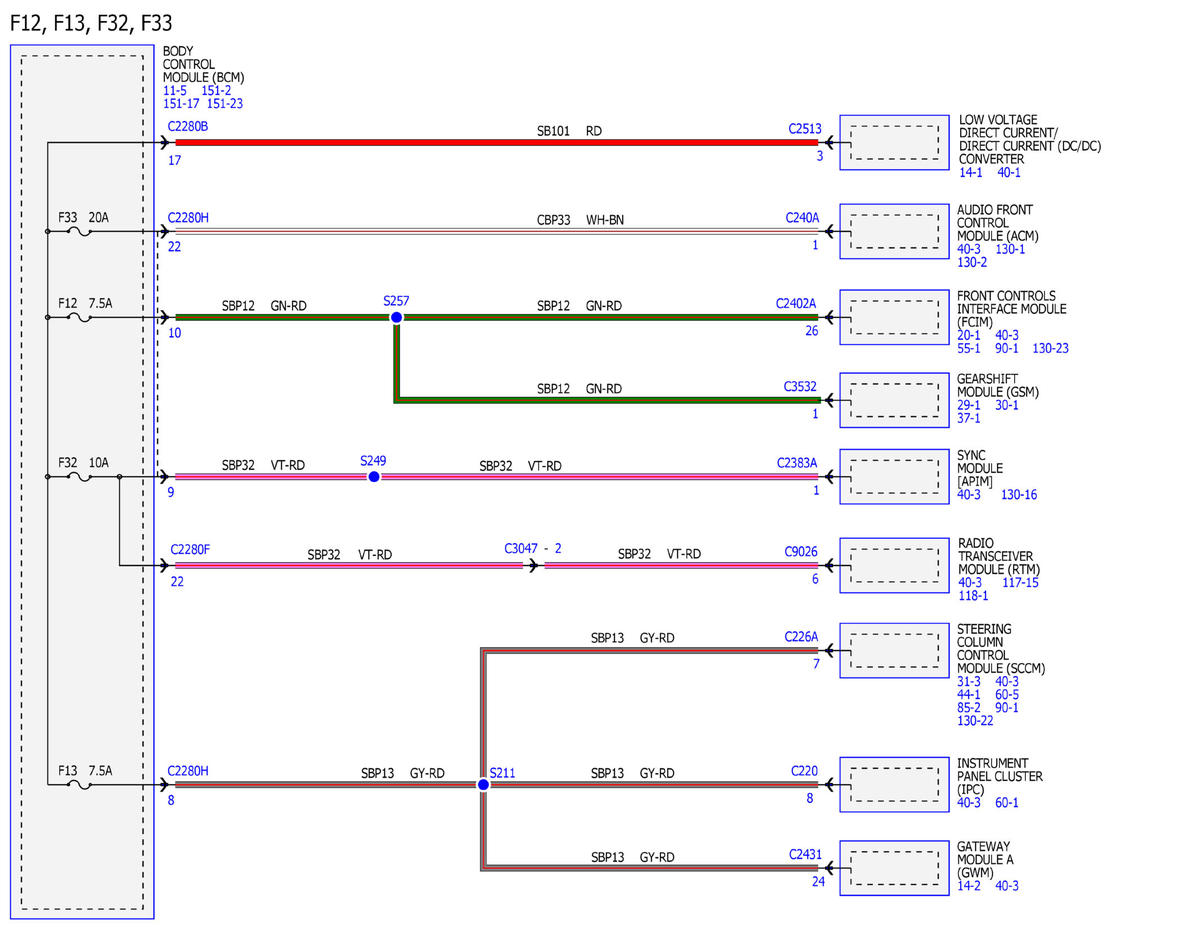

Fig 34: Power Distribution Wiring Diagram (34 of 45)

GFDWR68865

Courtesy of FORD MOTOR COMPANY

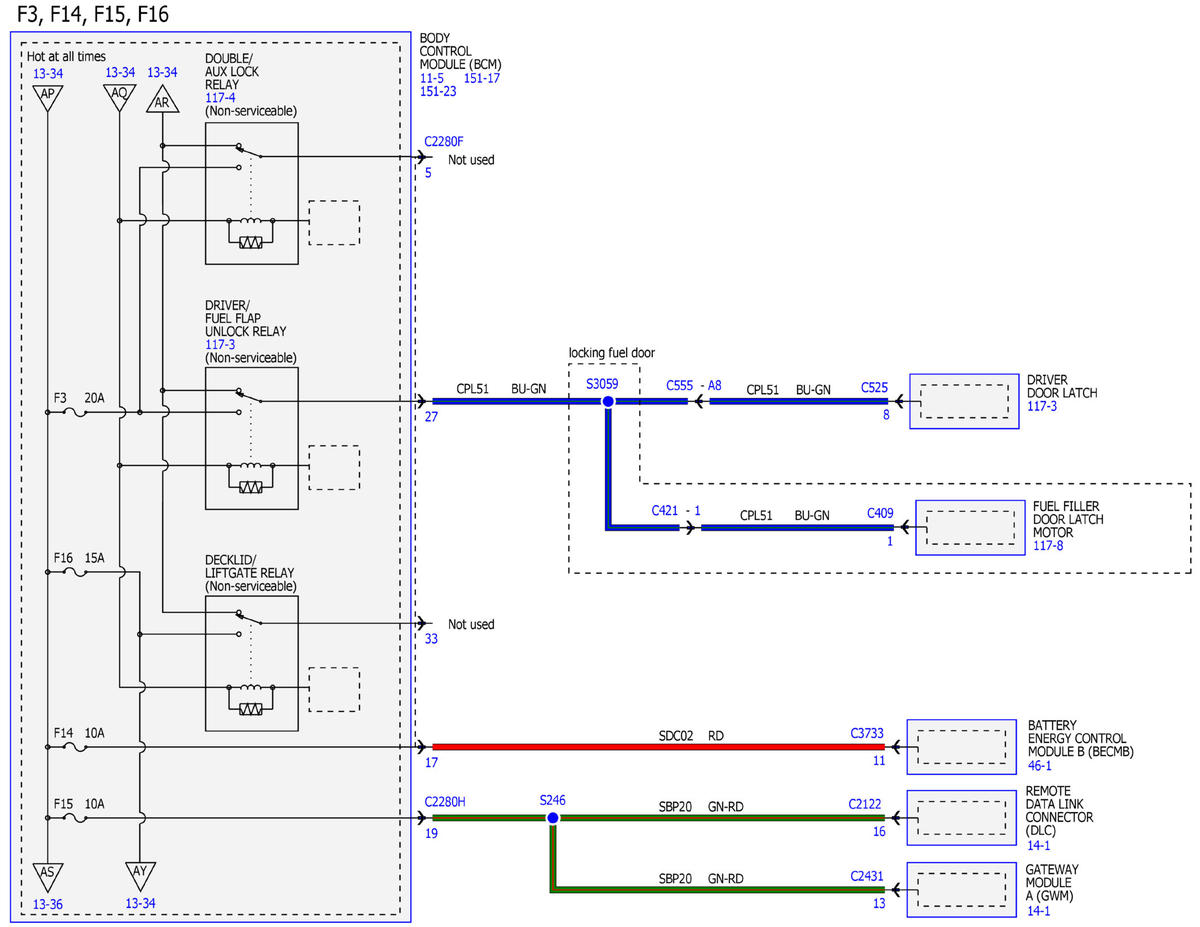

Fig 35: Power Distribution Wiring Diagram (35 of 45)

GFDWR68866

Courtesy of FORD MOTOR COMPANY

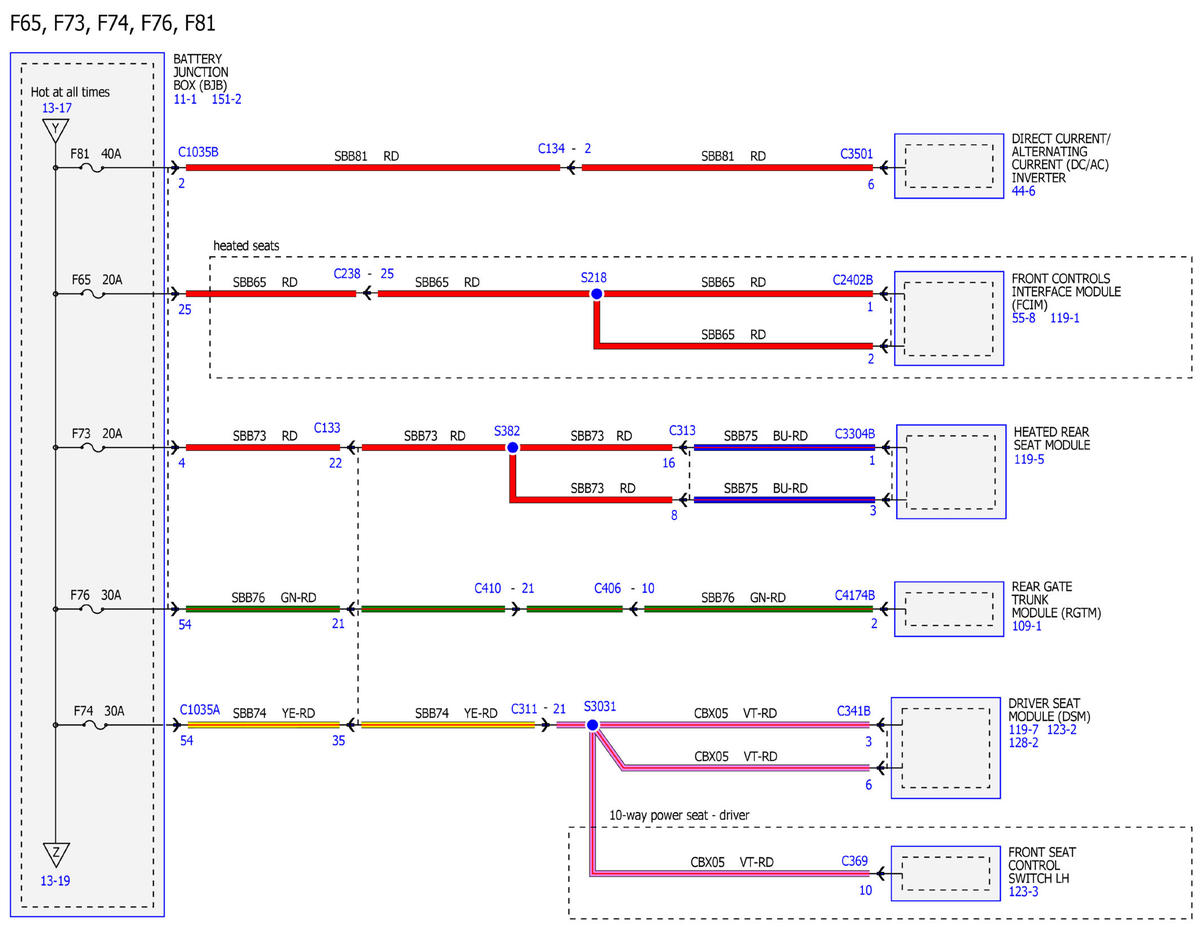

Fig 36: Power Distribution Wiring Diagram (36 of 45)

GFDWR68867

Courtesy of FORD MOTOR COMPANY

Fig 37: Power Distribution Wiring Diagram (37 of 45)

GFDWR68868

Courtesy of FORD MOTOR COMPANY

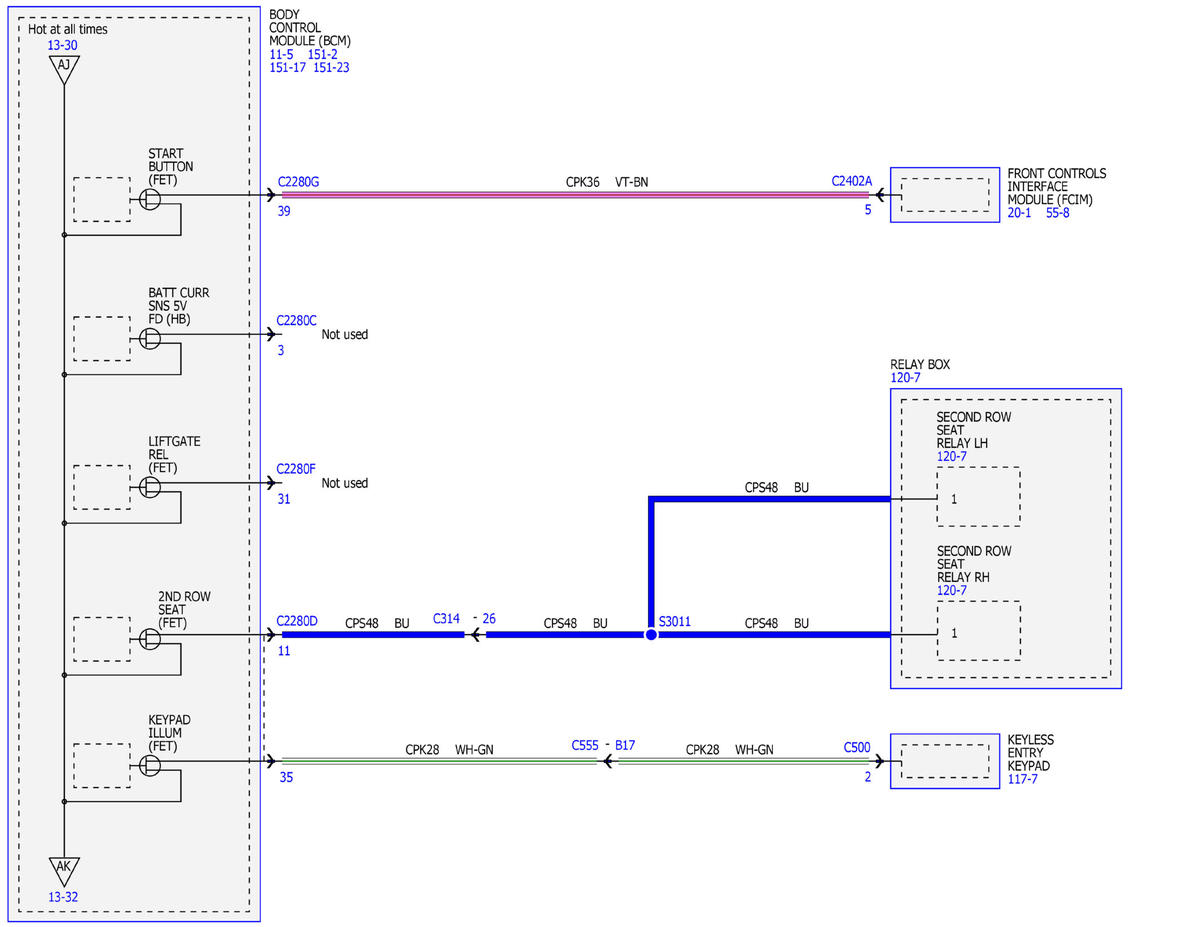

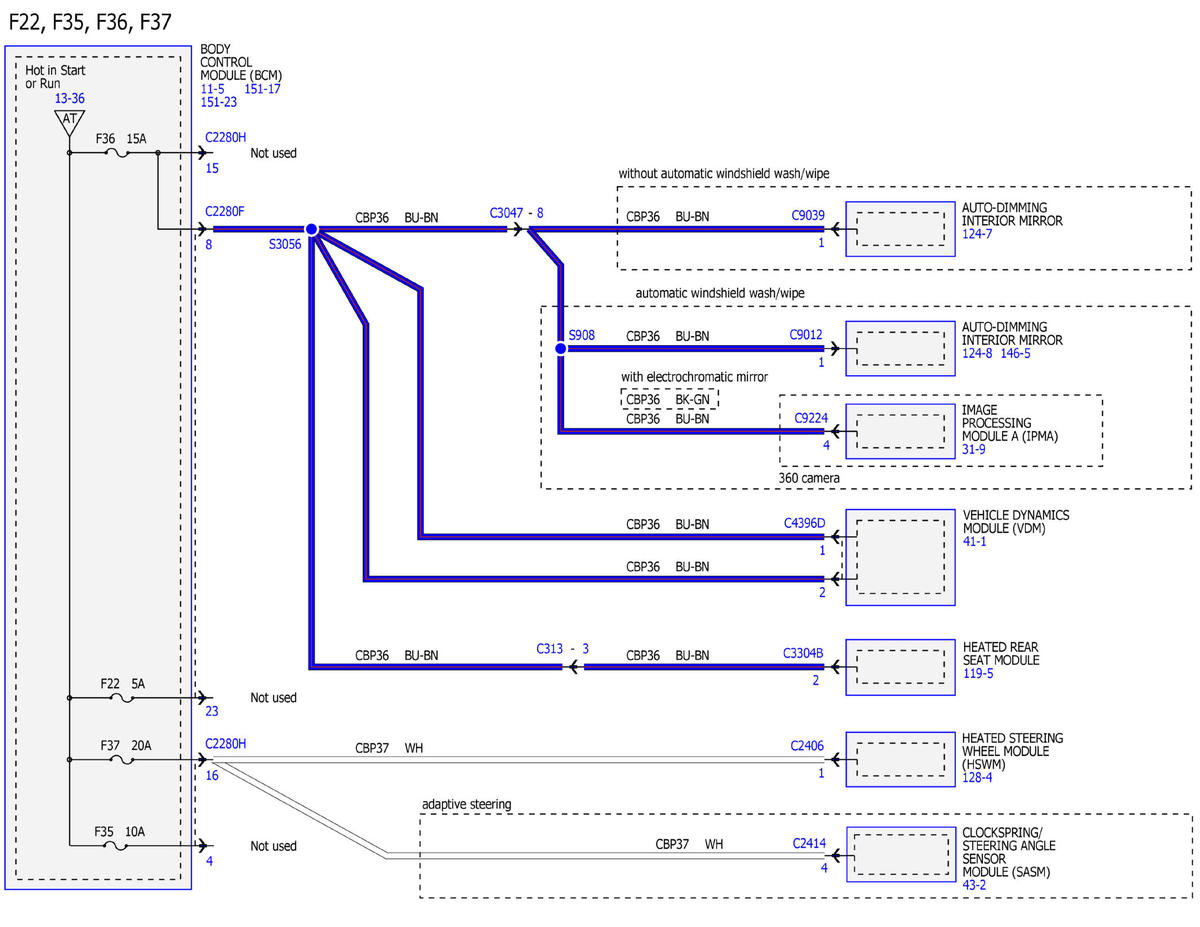

Fig 38: Power Distribution Wiring Diagram (38 of 45)

GFDWR68869

Courtesy of FORD MOTOR COMPANY

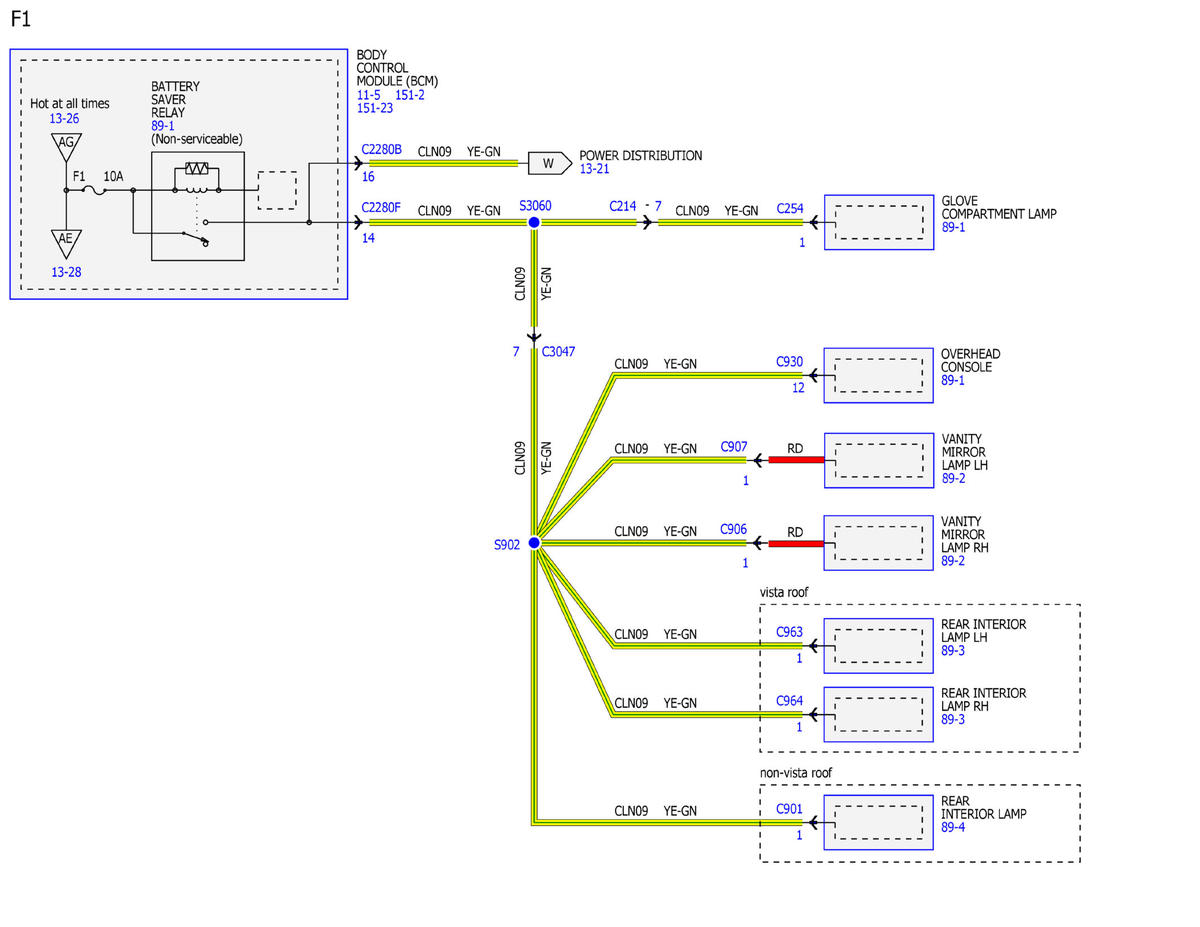

Fig 39: Power Distribution Wiring Diagram (39 of 45)

GFDWR68870

Courtesy of FORD MOTOR COMPANY

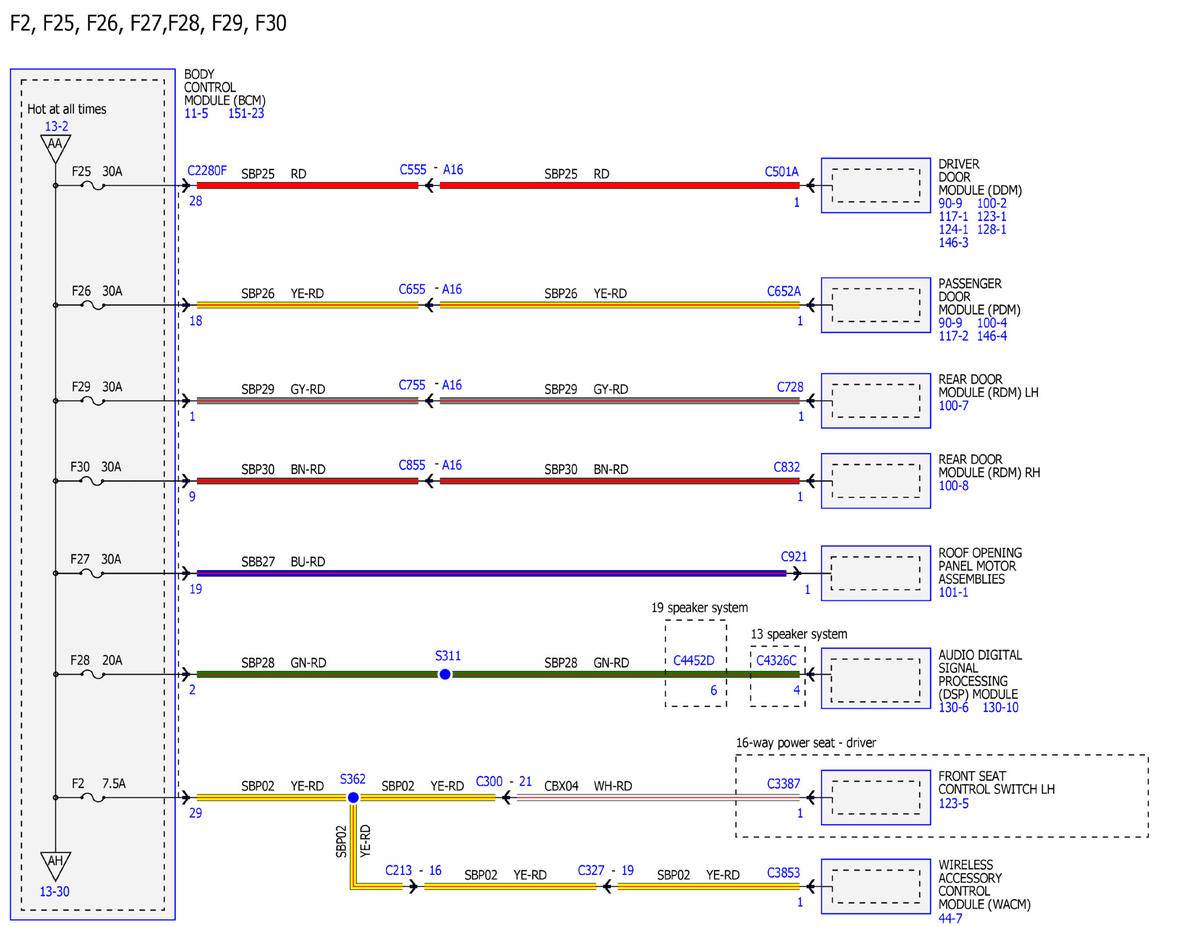

Fig 40: Power Distribution Wiring Diagram (40 of 45)

GFDWR68871

Courtesy of FORD MOTOR COMPANY

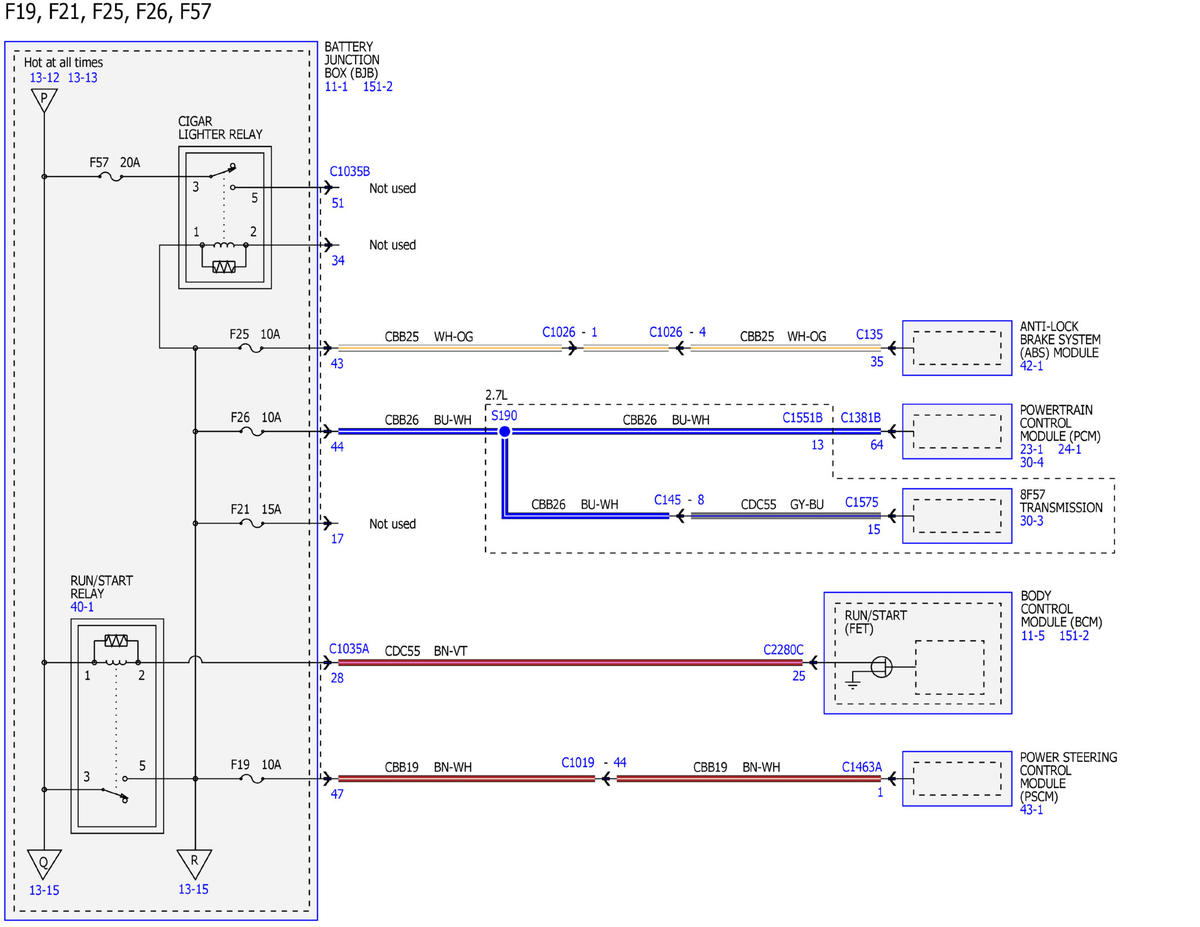

Fig 41: Power Distribution Wiring Diagram (41 of 45)

GFDWR68872

Courtesy of FORD MOTOR COMPANY

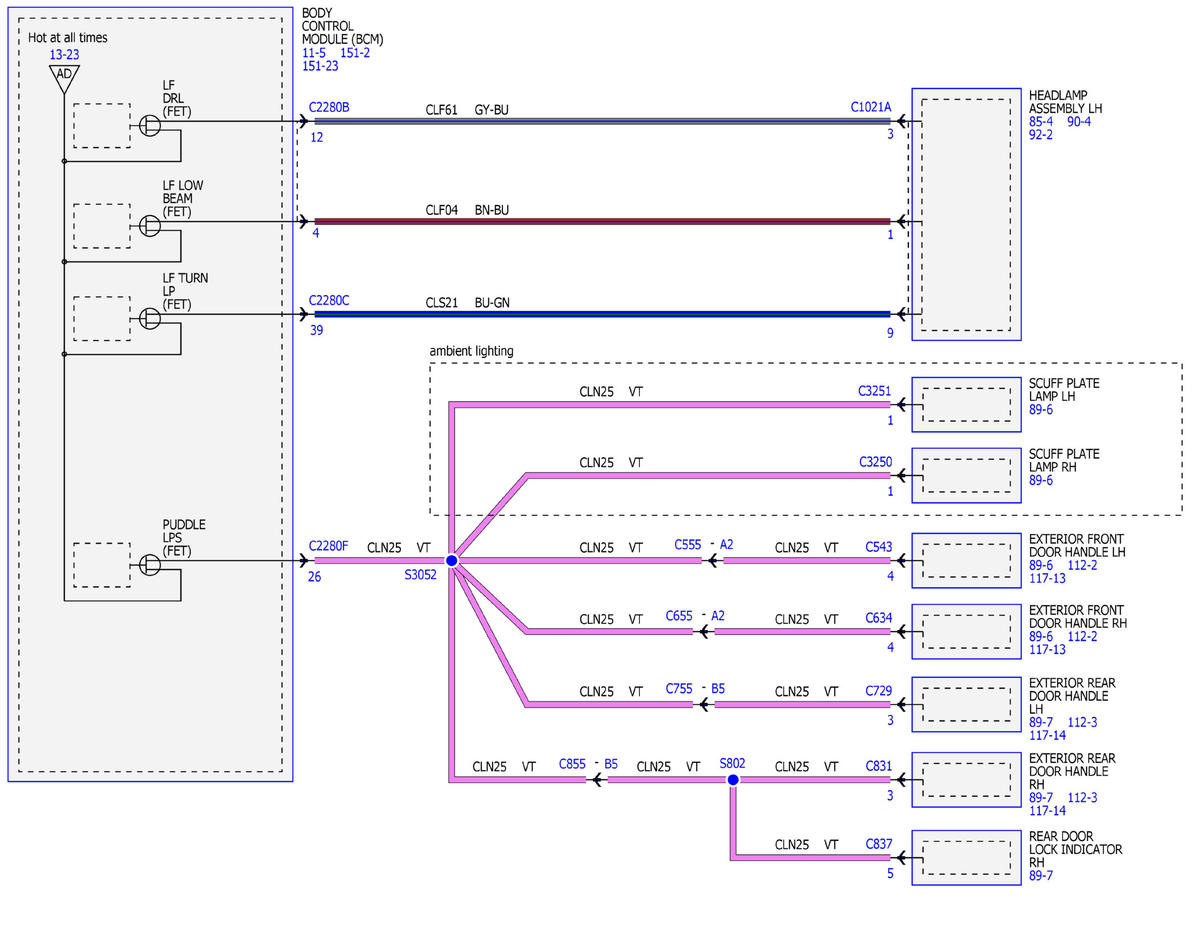

Fig 42: Power Distribution Wiring Diagram (42 of 45)

GFDWR68873

Courtesy of FORD MOTOR COMPANY

Fig 43: Power Distribution Wiring Diagram (43 of 45)

GFDWR68874

Courtesy of FORD MOTOR COMPANY

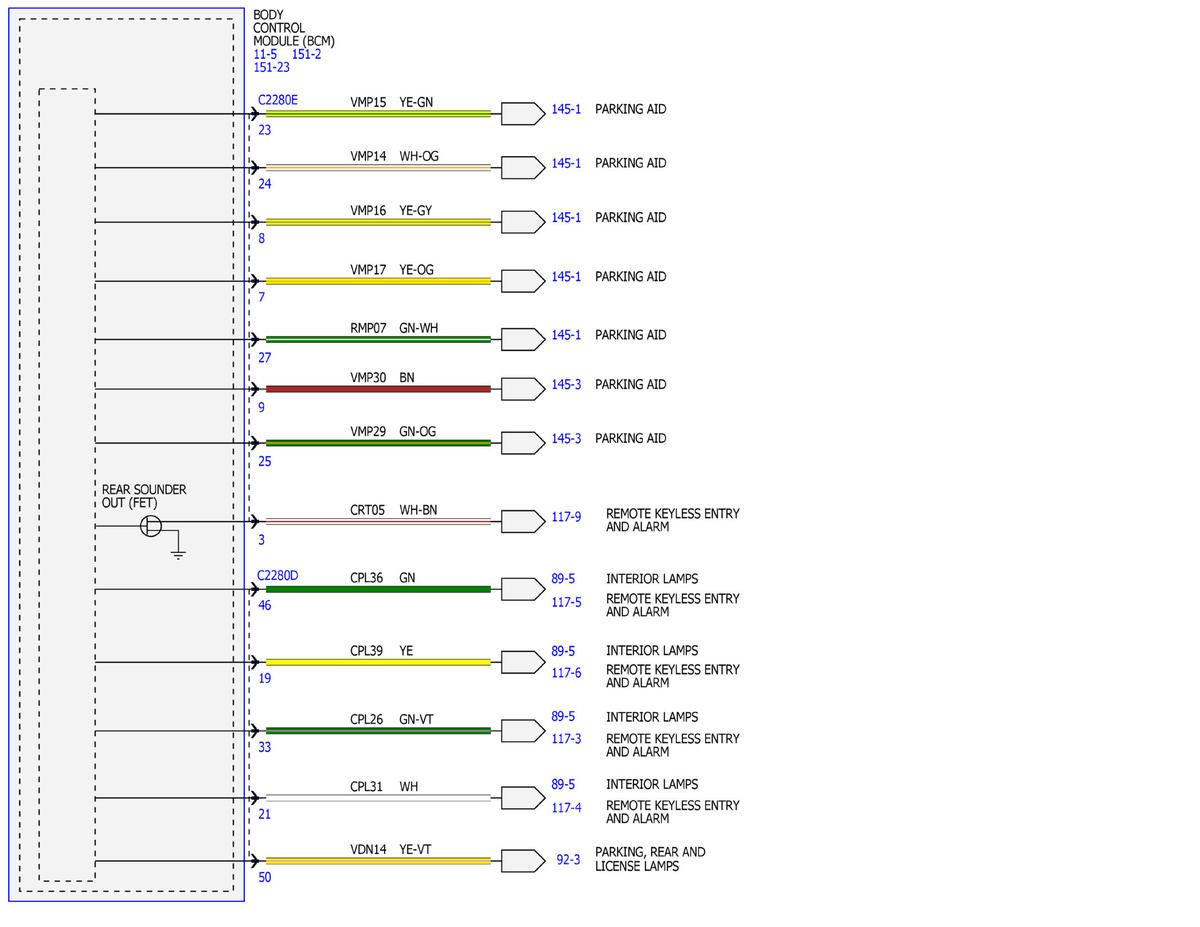

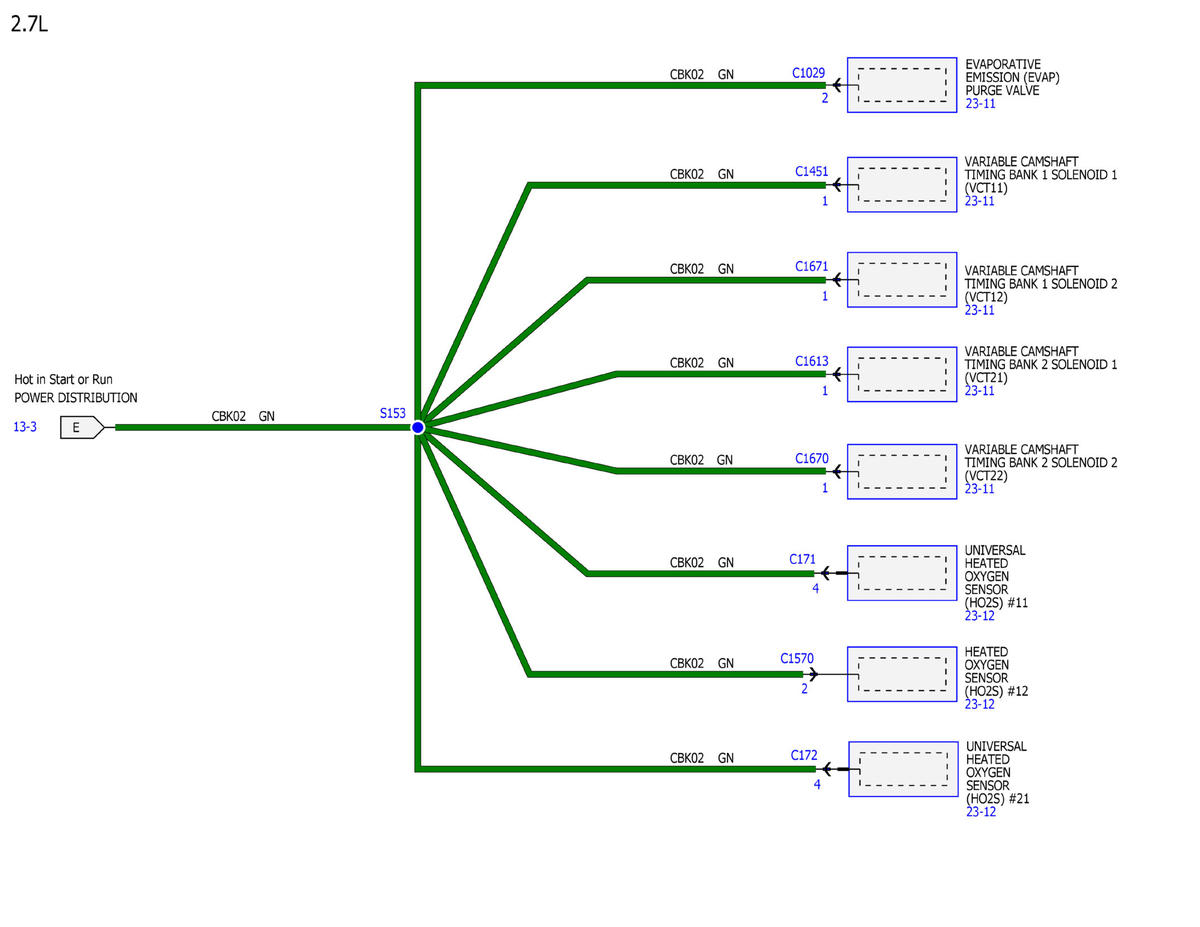

Fig 44: Power Distribution Wiring Diagram (44 of 45)

GFDWR68875

Courtesy of FORD MOTOR COMPANY

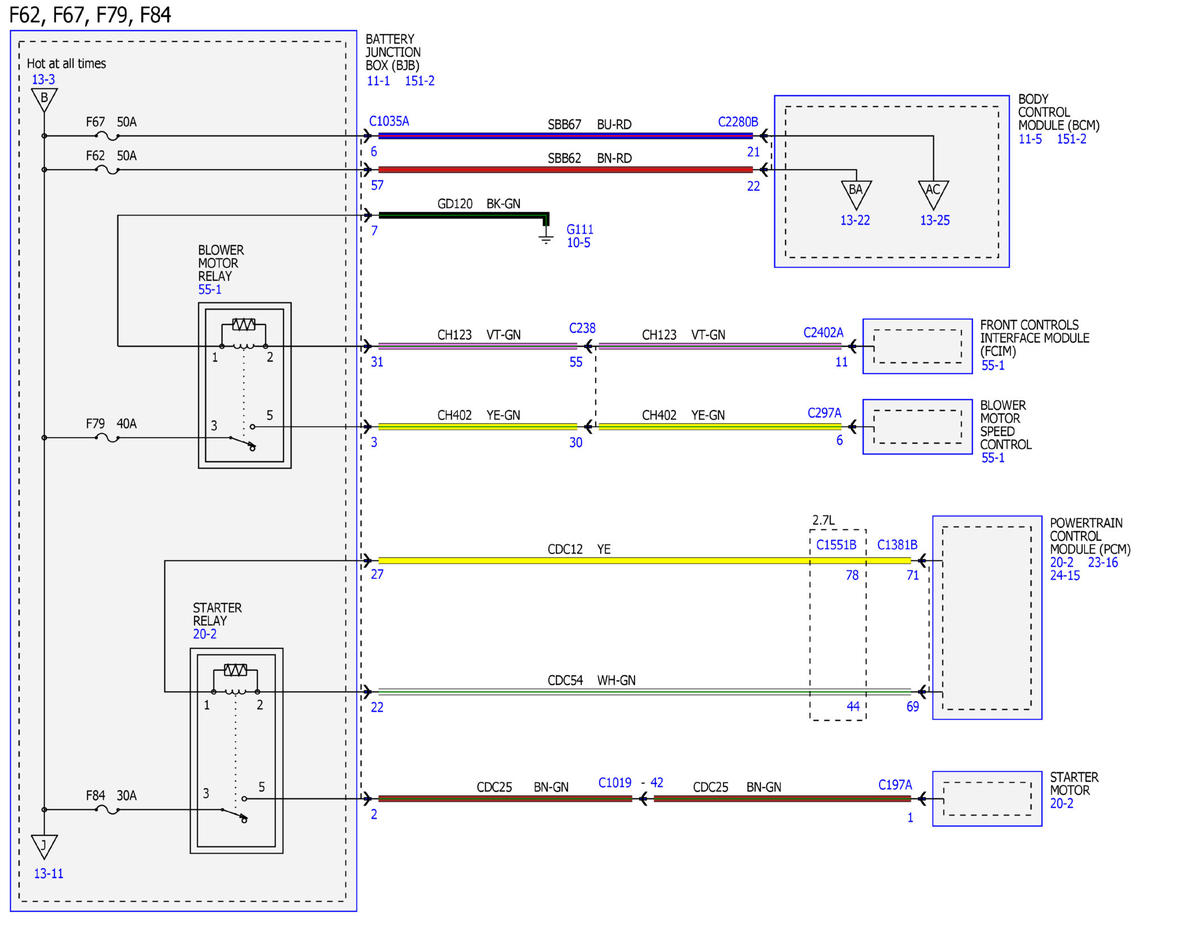

Fig 45: Power Distribution Wiring Diagram (45 of 45)

GFDWR68876

Courtesy of FORD MOTOR COMPANY
