Instrument Cluster
Instrument Cluster

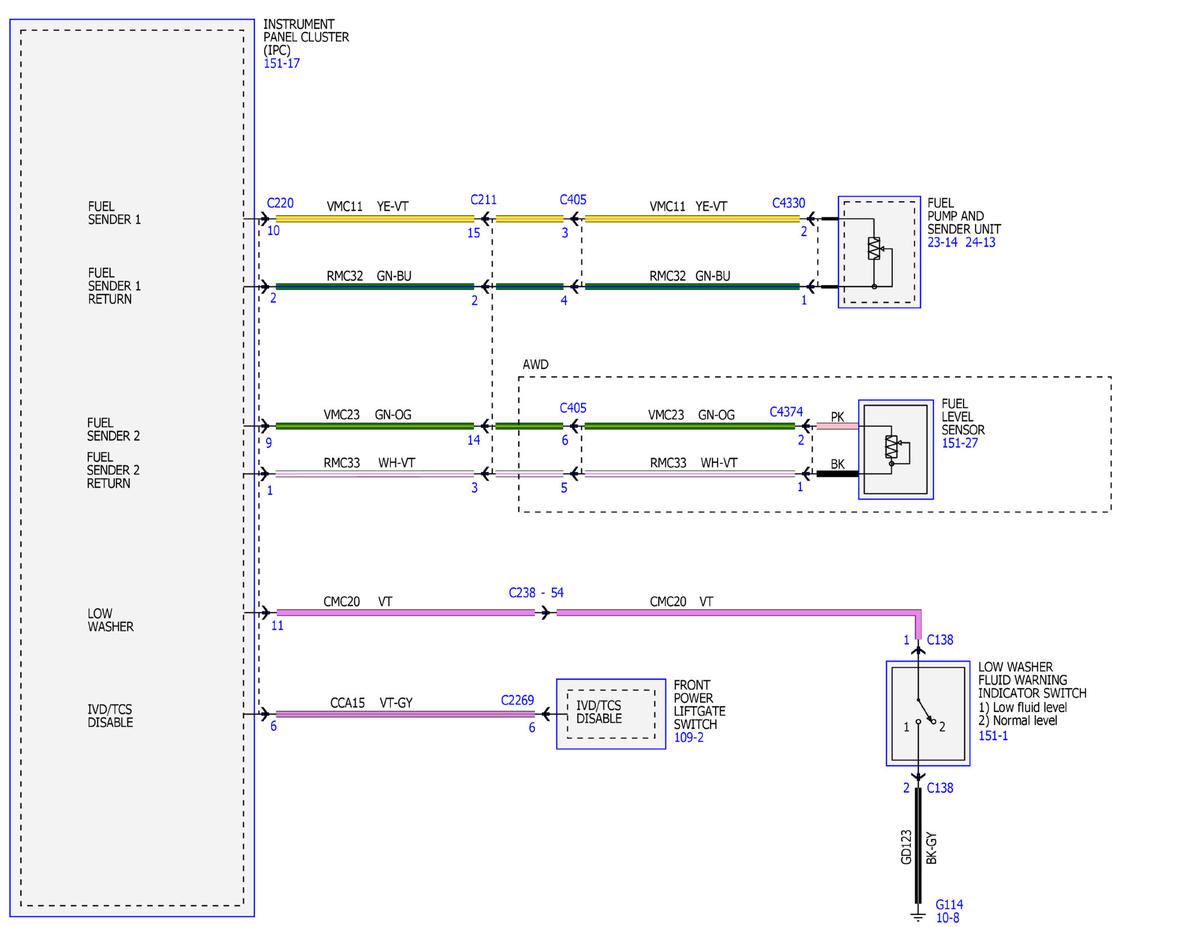

Fig 1: Instrument Cluster Wiring Diagram (1 of 7)
Courtesy of FORD MOTOR COMPANY

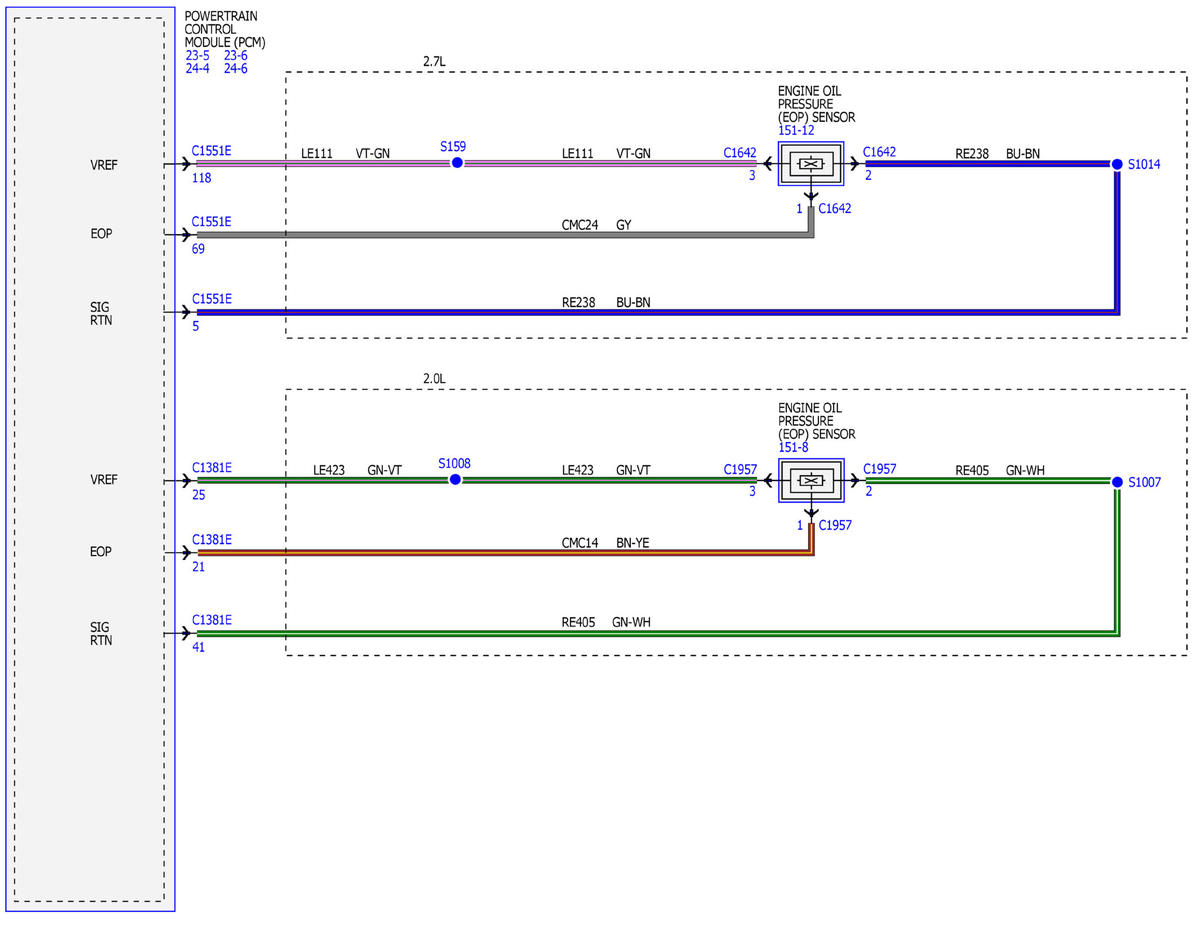

Fig 2: Instrument Cluster Wiring Diagram (2 of 7)
Courtesy of FORD MOTOR COMPANY

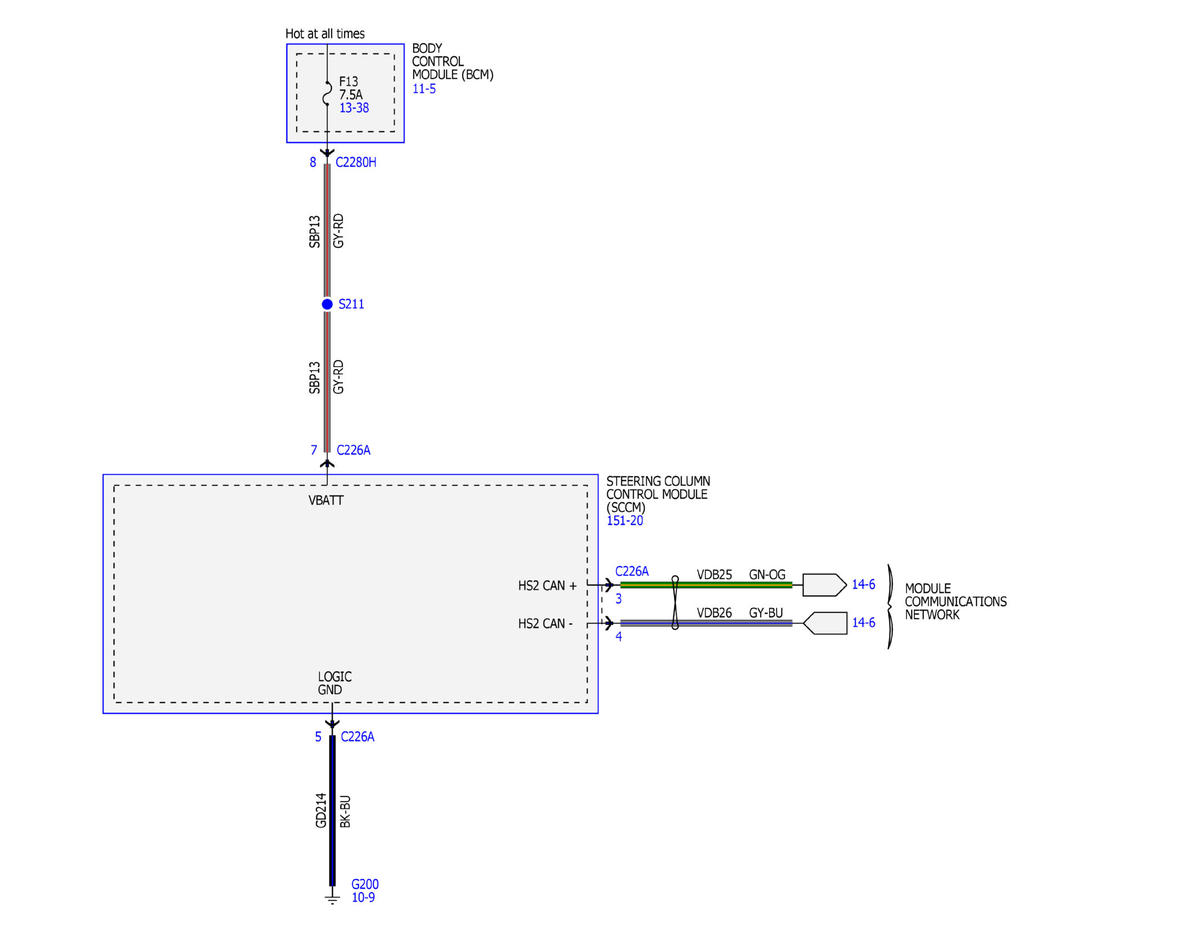

Fig 3: Instrument Cluster Wiring Diagram (3 of 7)
Courtesy of FORD MOTOR COMPANY

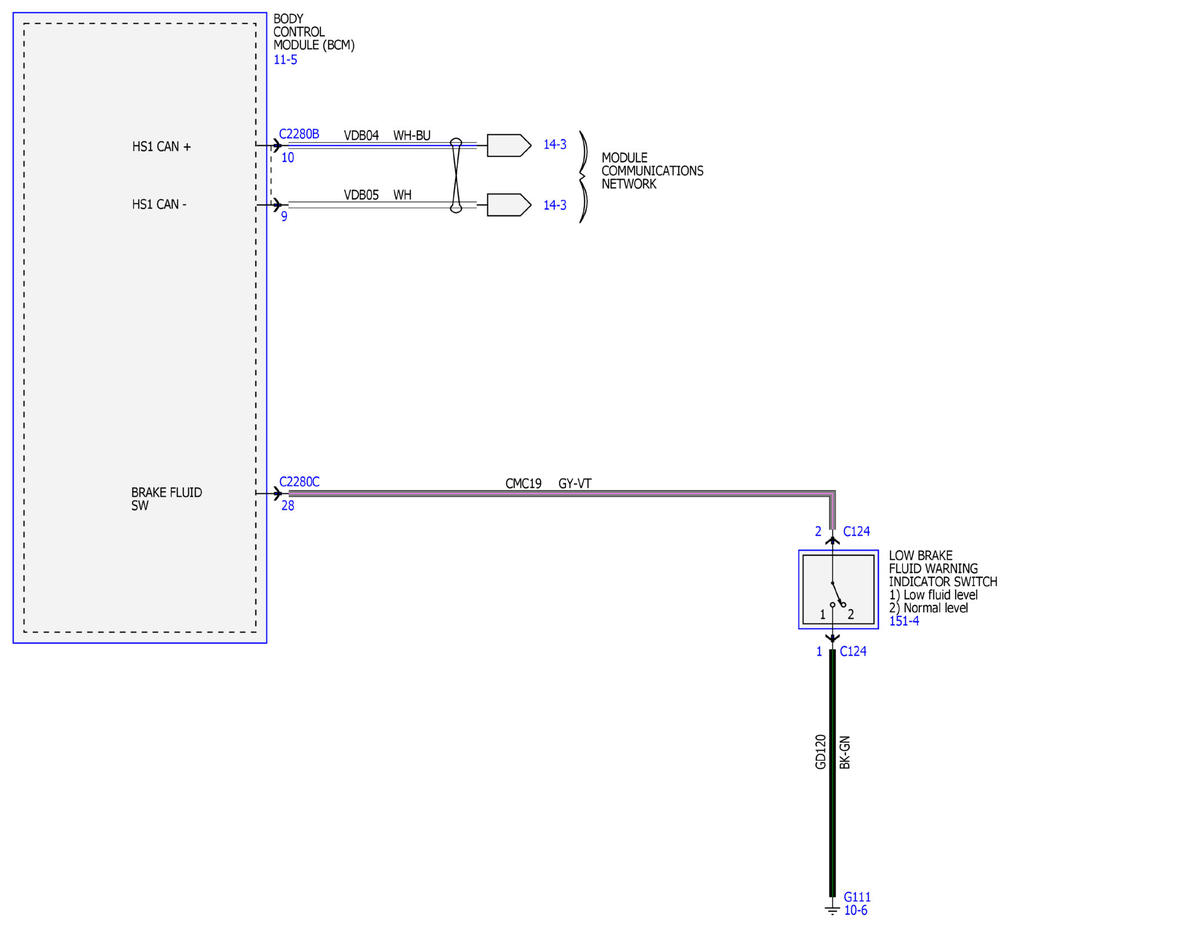

Fig 4: Instrument Cluster Wiring Diagram (4 of 7)
Courtesy of FORD MOTOR COMPANY

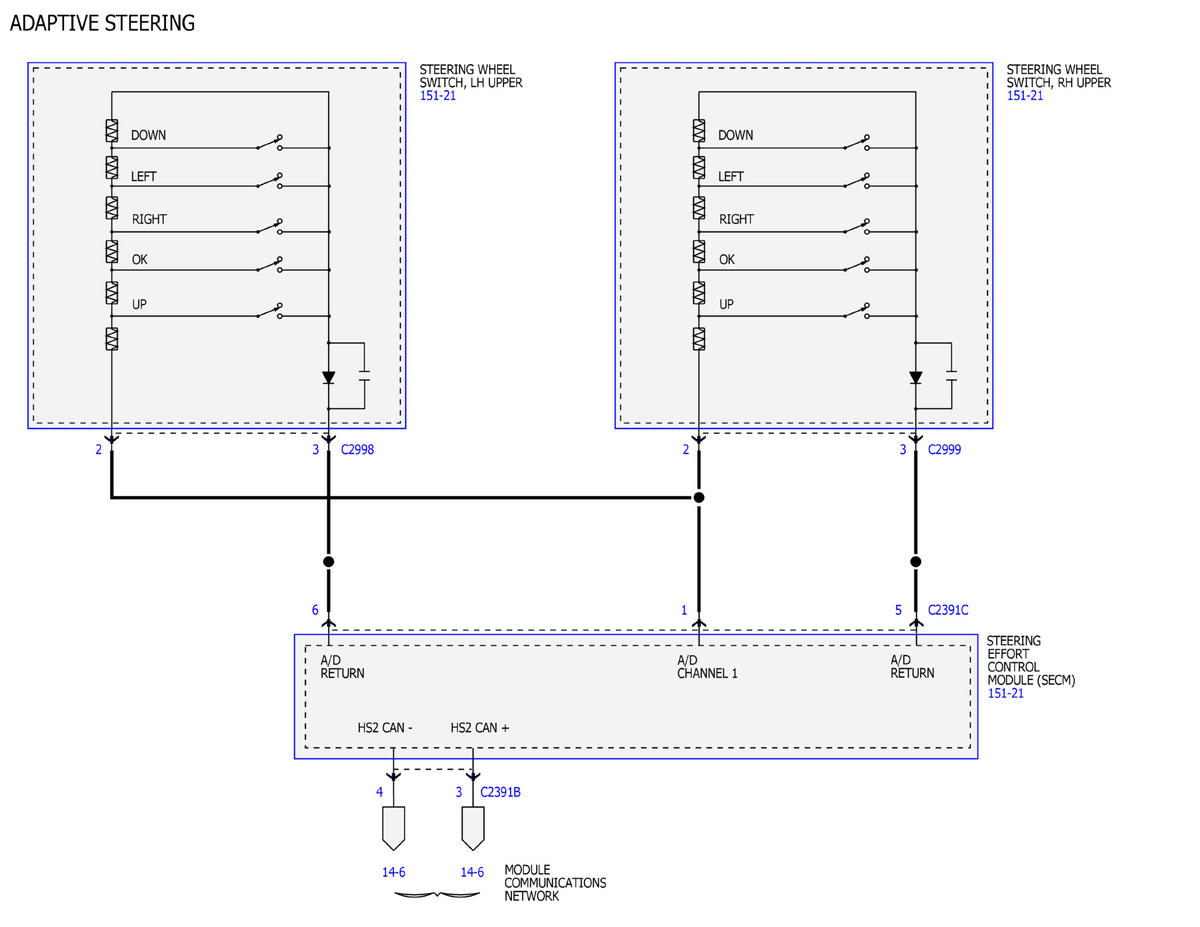

Fig 5: Instrument Cluster Wiring Diagram (5 of 7)
Courtesy of FORD MOTOR COMPANY

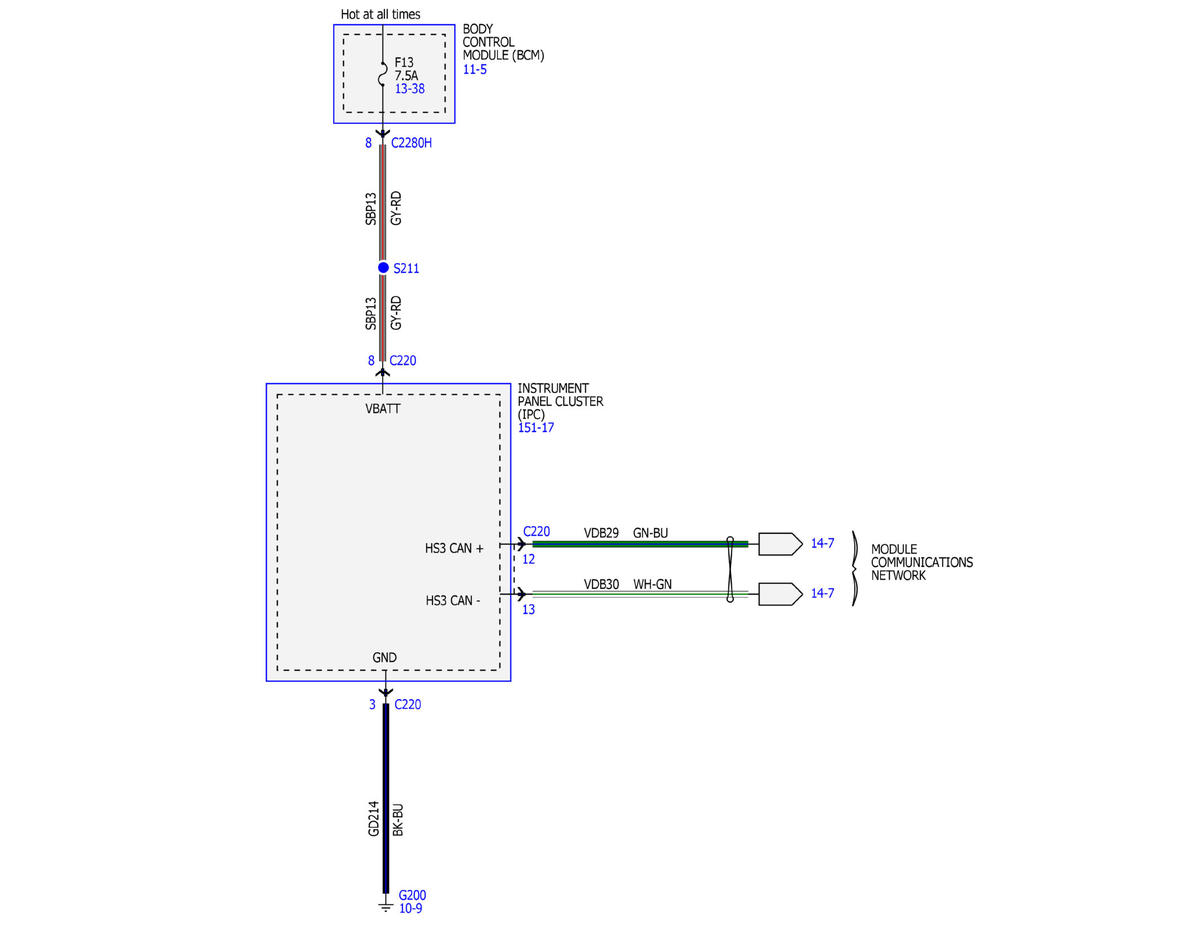

Fig 6: Instrument Cluster Wiring Diagram (6 of 7)
Courtesy of FORD MOTOR COMPANY

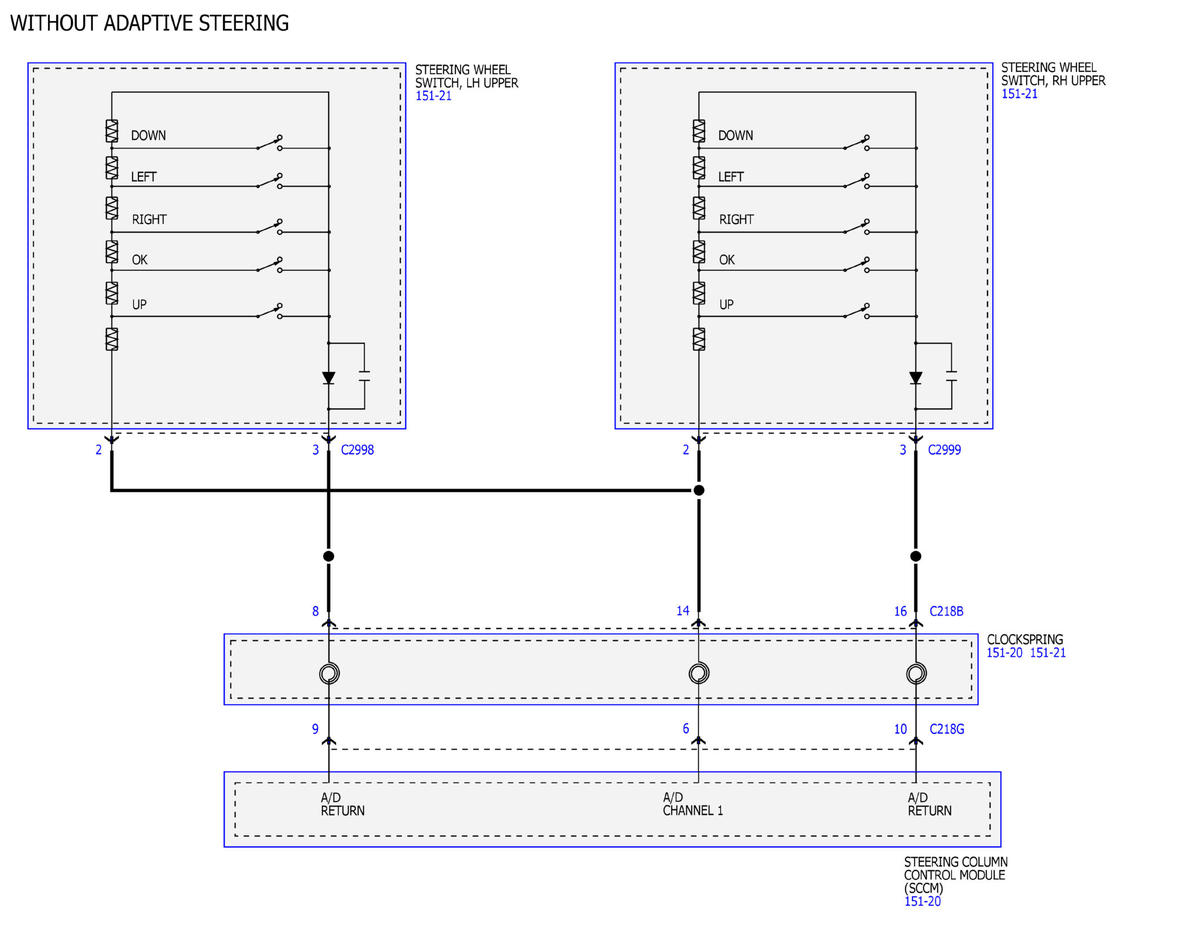

Fig 7: Instrument Cluster Wiring Diagram (7 of 7)
Courtesy of FORD MOTOR COMPANY
