Cluster And Panel Illumination

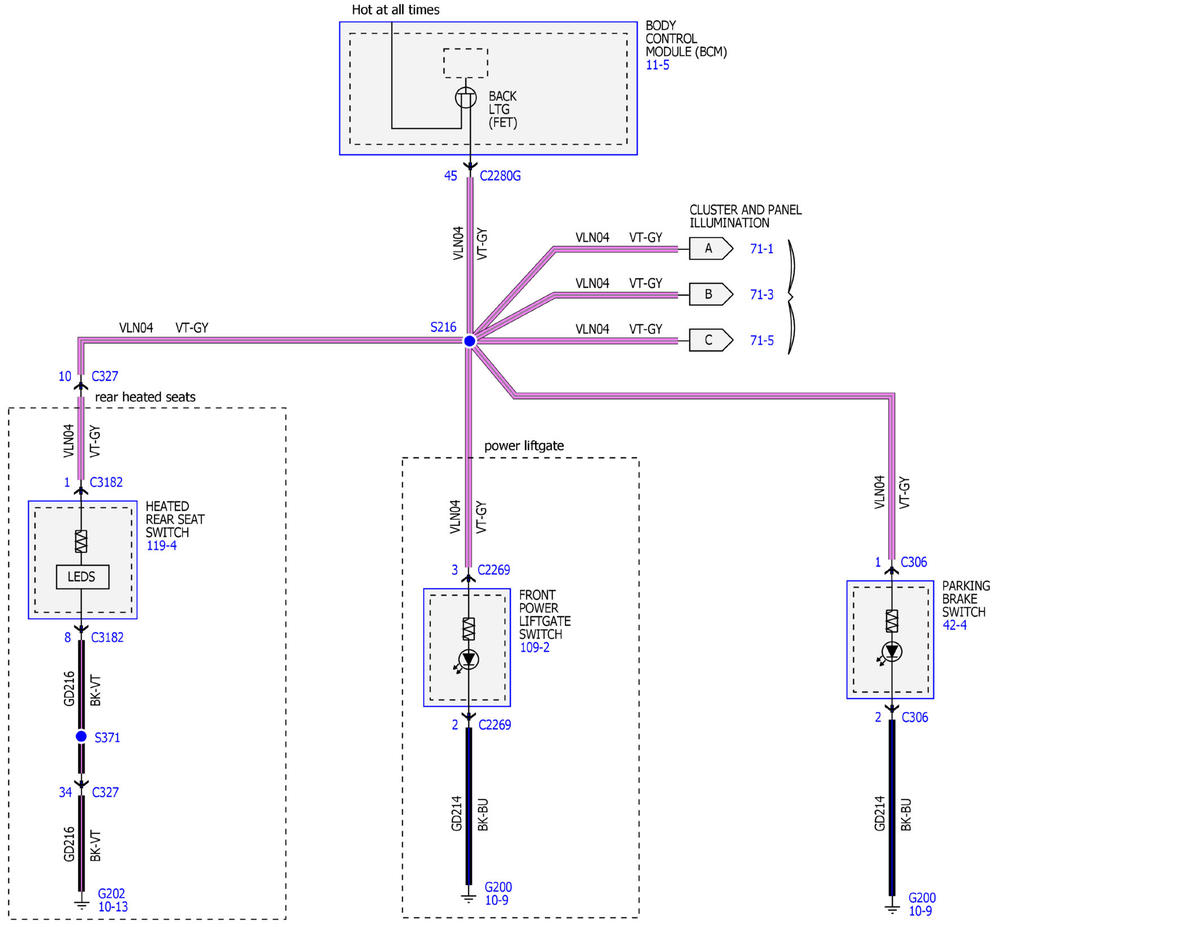

Fig 1: Cluster And Panel Illumination Wiring Diagram (1 of 6)
GFDWR68698Courtesy of FORD MOTOR COMPANY

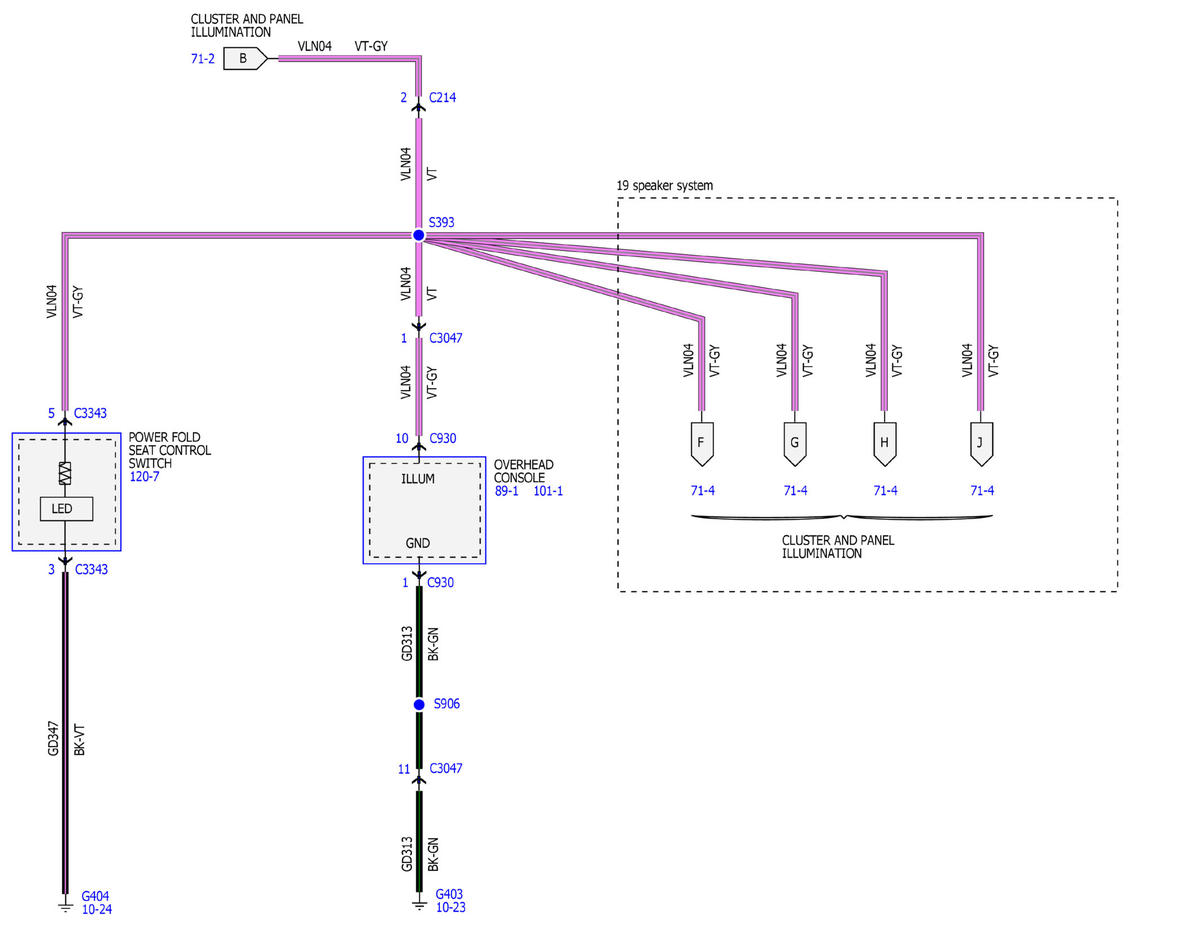

Fig 2: Cluster And Panel Illumination Wiring Diagram (2 of 6)
GFDWR68699Courtesy of FORD MOTOR COMPANY

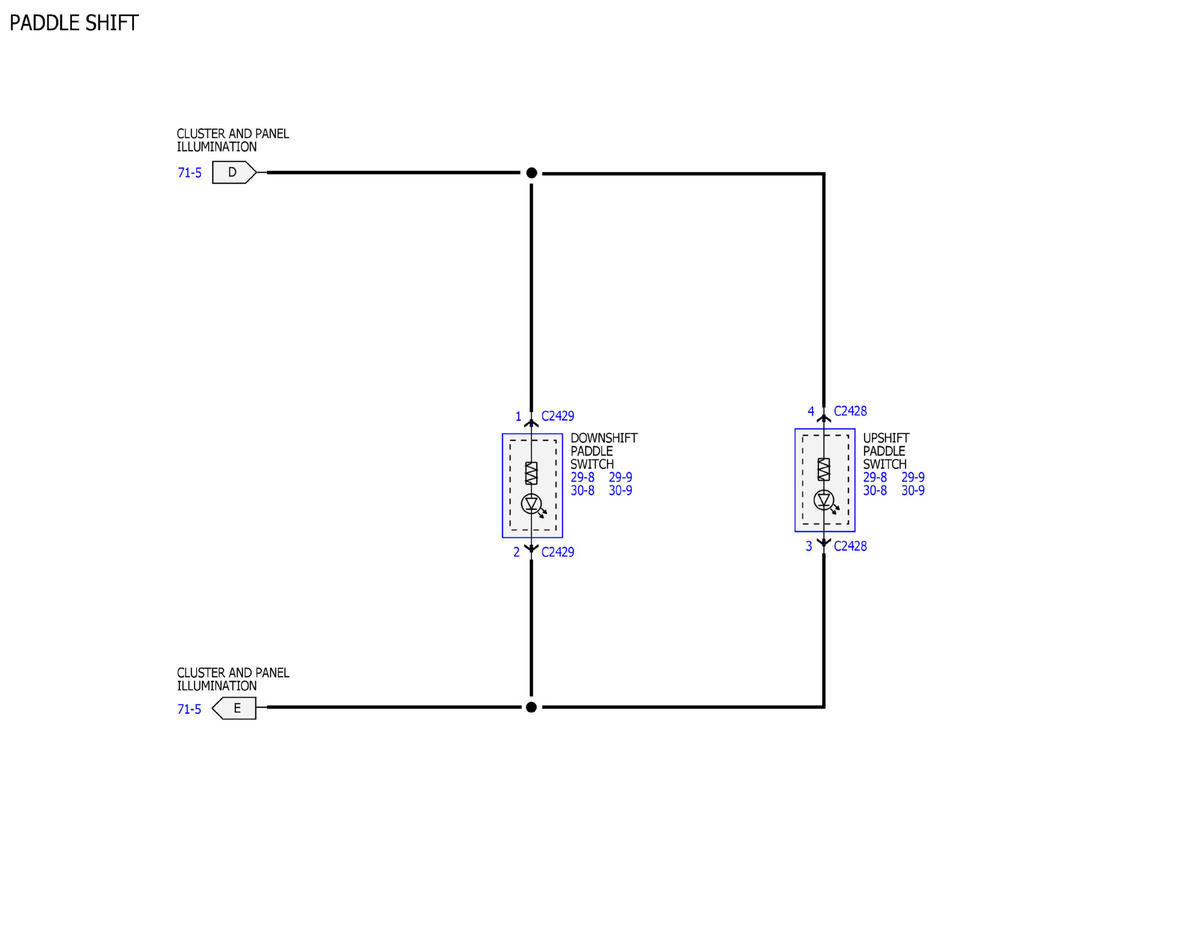

Fig 3: Cluster And Panel Illumination Wiring Diagram (3 of 6)
GFDWR68700Courtesy of FORD MOTOR COMPANY

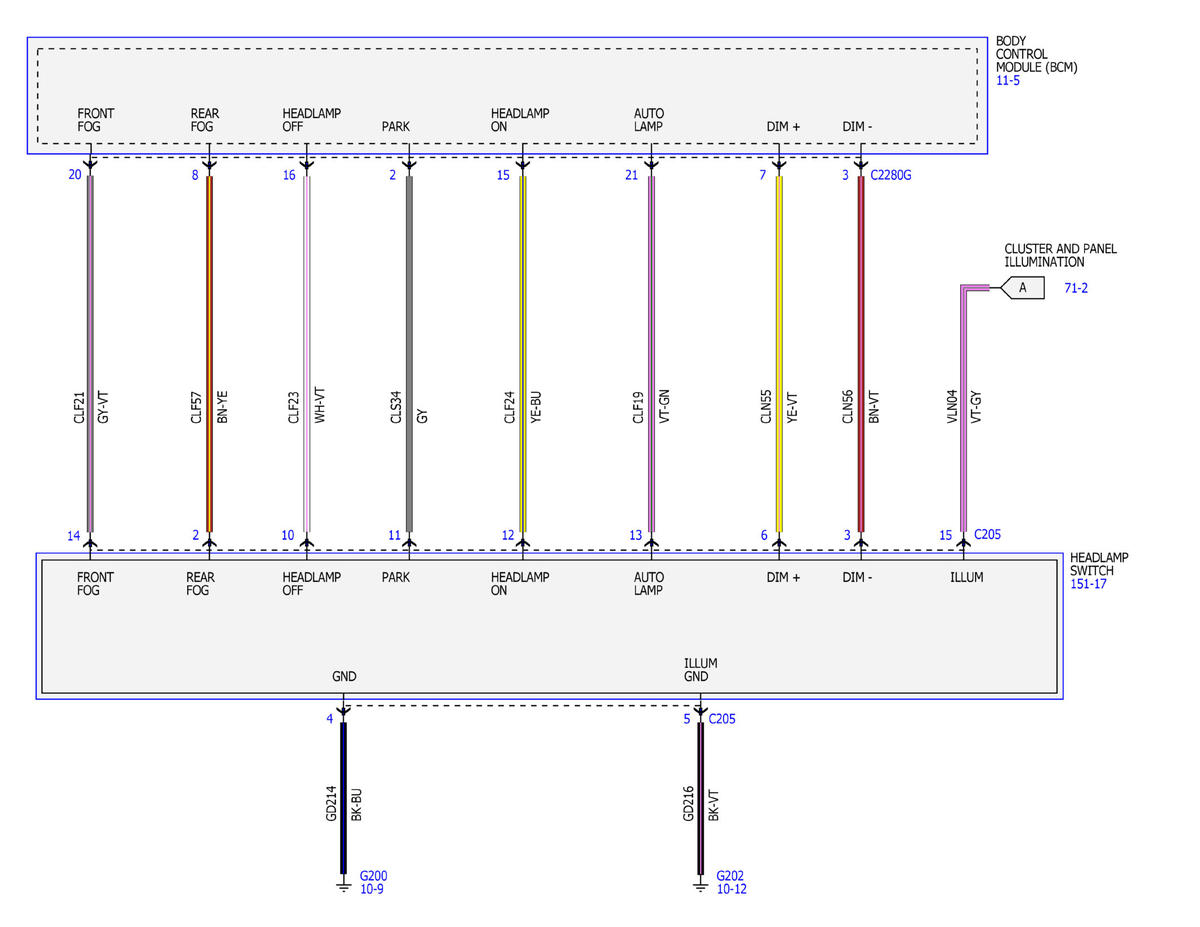

Fig 4: Cluster And Panel Illumination Wiring Diagram (4 of 6)
GFDWR68701Courtesy of FORD MOTOR COMPANY

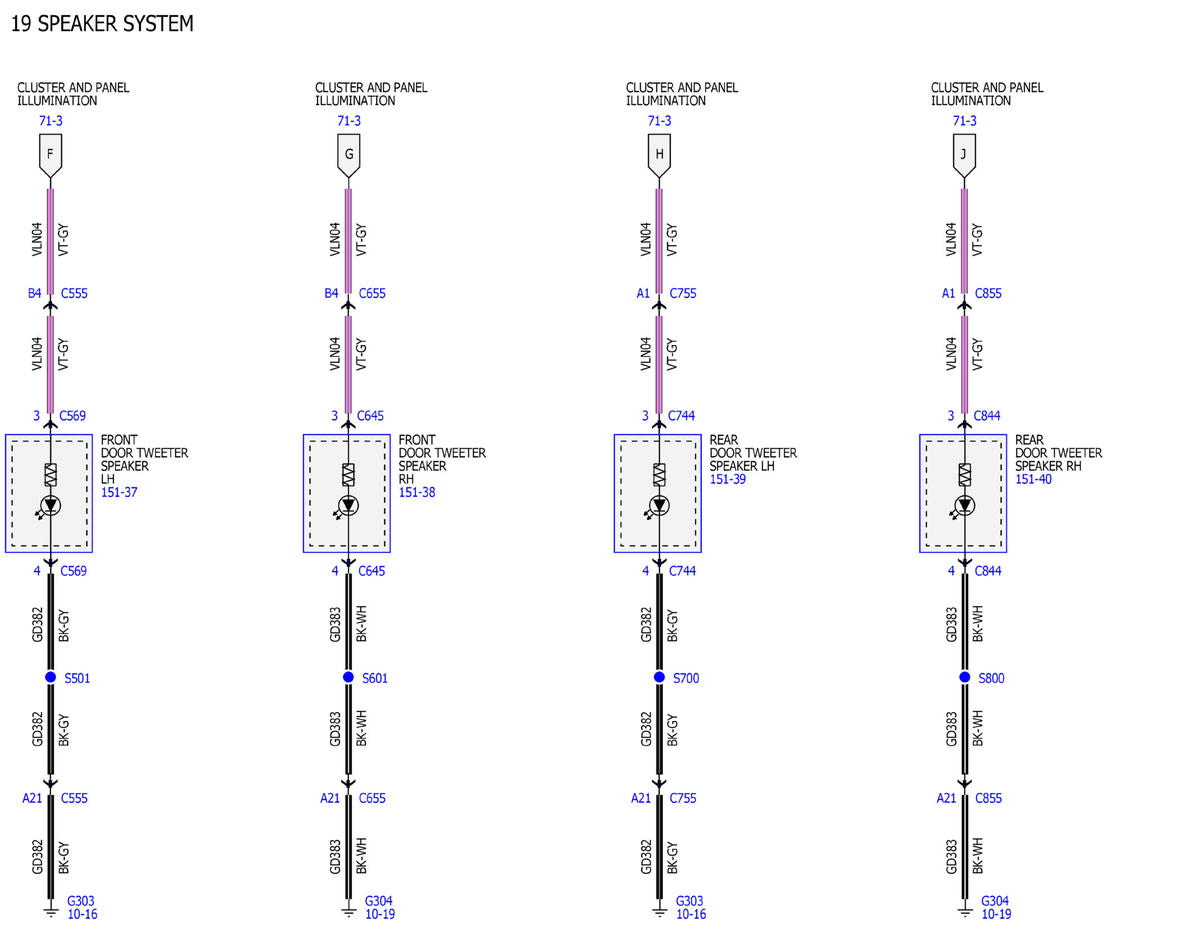

Fig 5: Cluster And Panel Illumination Wiring Diagram (5 of 6)
GFDWR68702Courtesy of FORD MOTOR COMPANY

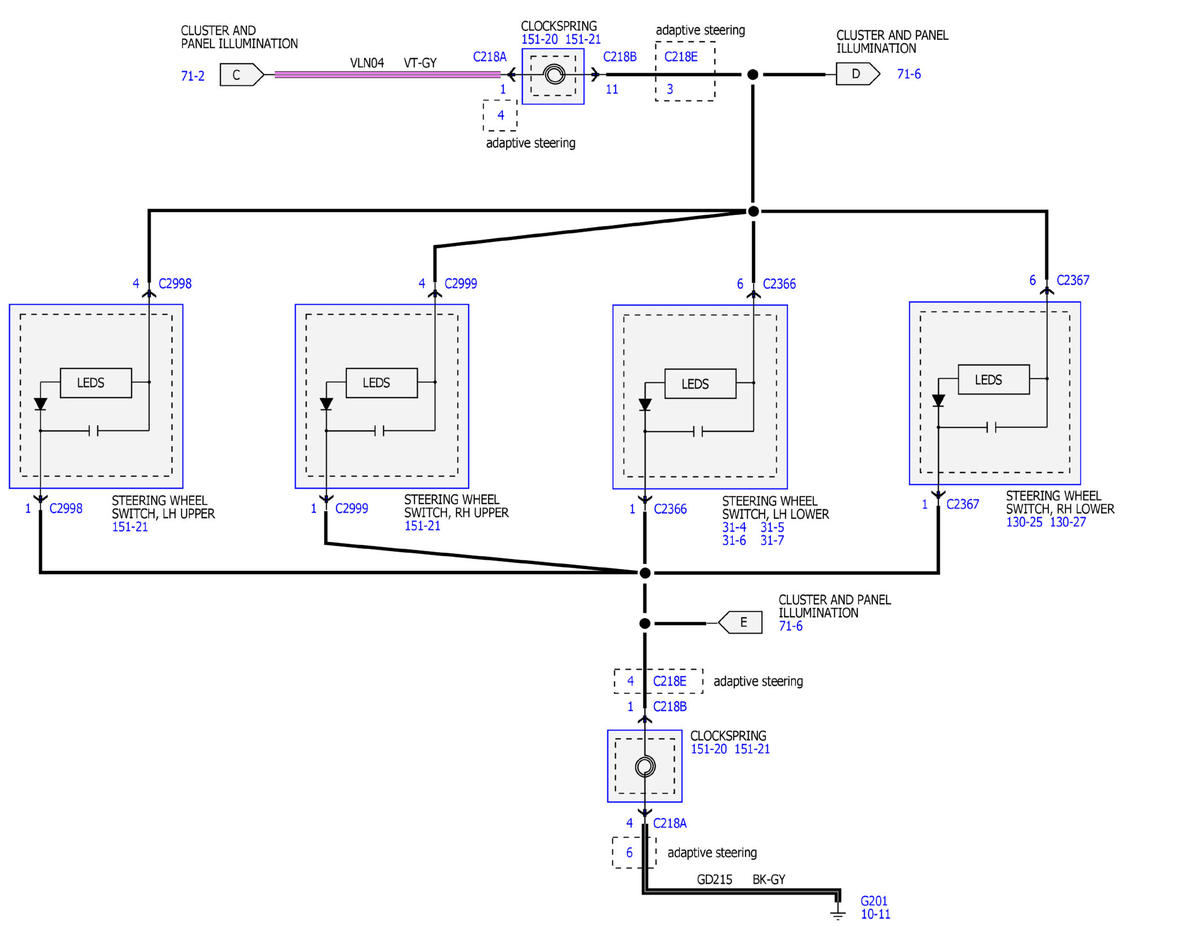

Fig 6: Cluster And Panel Illumination Wiring Diagram (6 of 6)
GFDWR68703Courtesy of FORD MOTOR COMPANY
