All Wheel Drive (AWD)

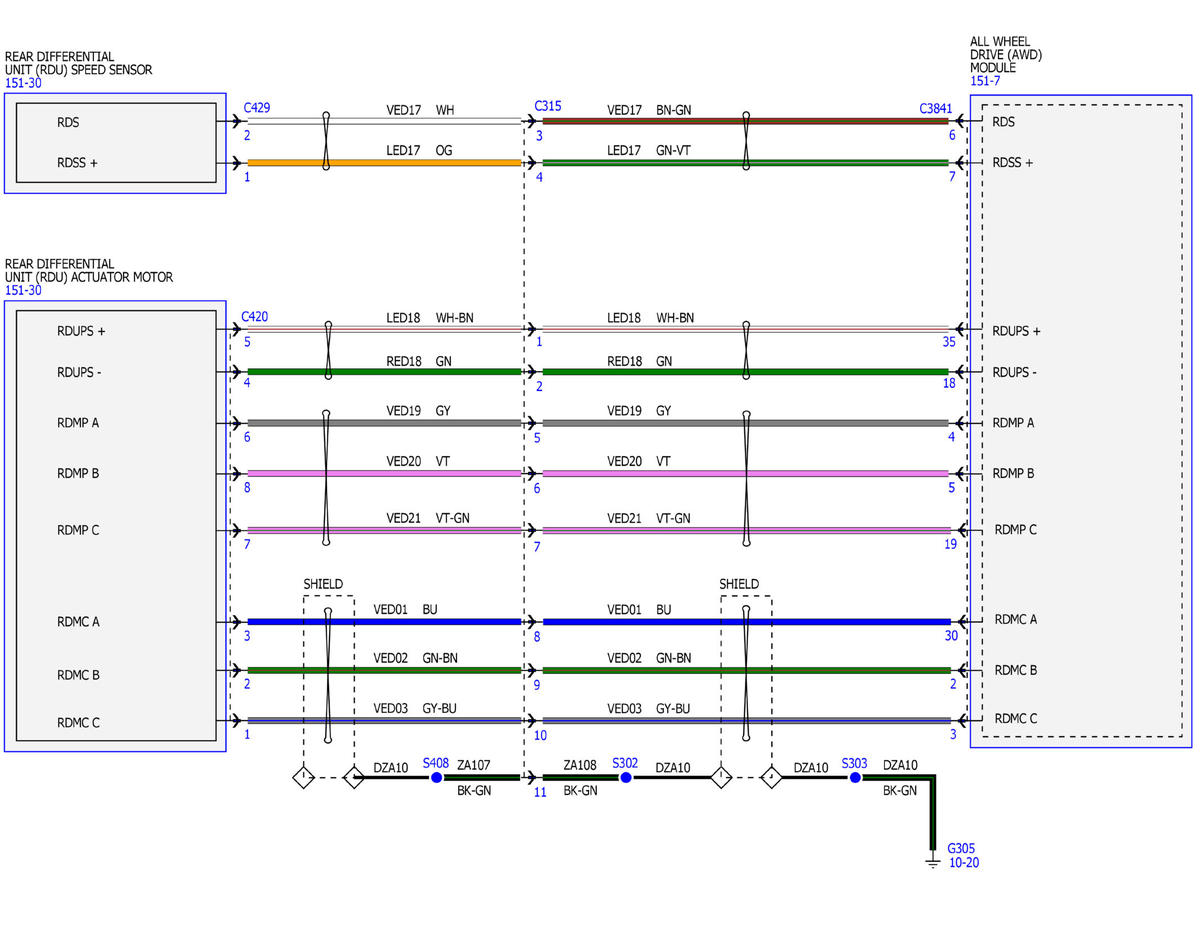

Fig 1: All Wheel Drive (AWD) Wiring Diagram (1 of 3)
GFDWR68645Courtesy of FORD MOTOR COMPANY
Fig 2: All Wheel Drive (AWD) Wiring Diagram (2 of 3)
GFDWR68646Courtesy of FORD MOTOR COMPANY
Fig 3: All Wheel Drive (AWD) Wiring Diagram (3 of 3)
GFDWR68647Courtesy of FORD MOTOR COMPANY
