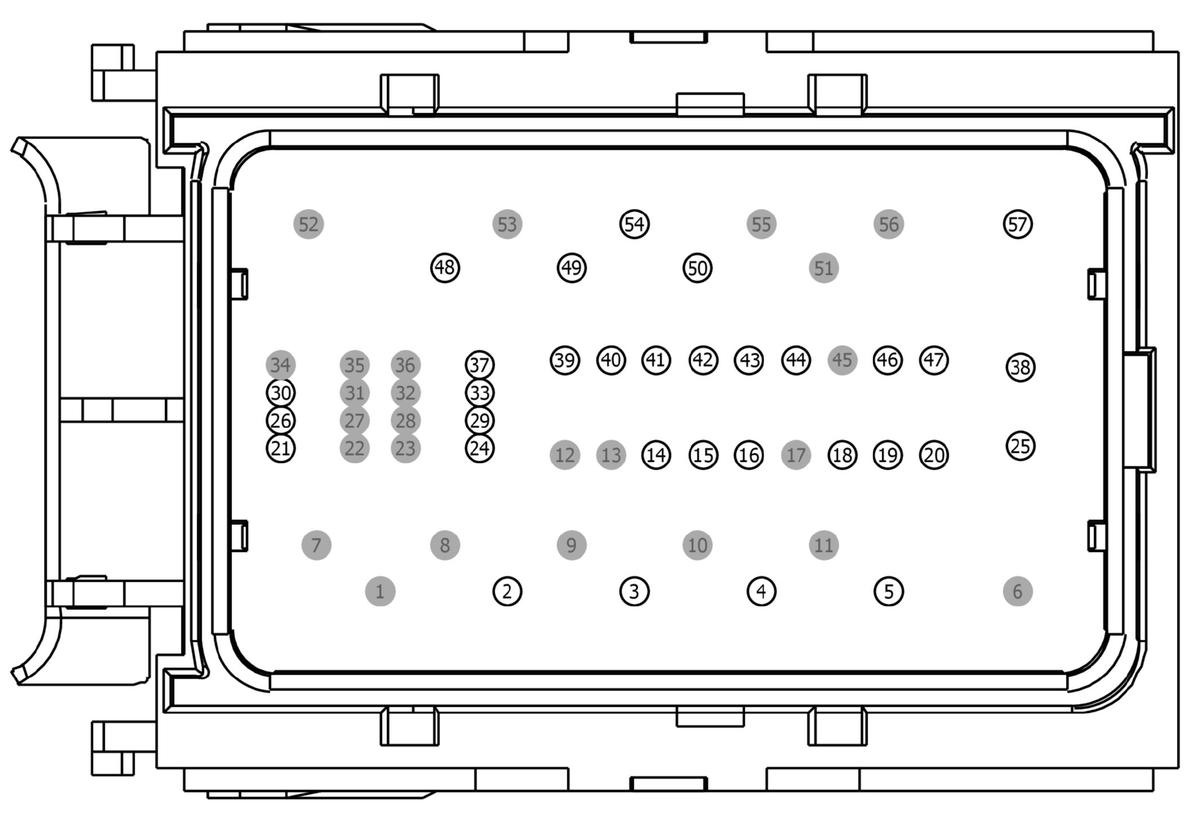

Connector End View C1035B - BATTERY JUNCTION BOX (BJB)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1035B	BATTERY JUNCTION BOX (BJB)		12A581	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
GU5T-14474-AAA	Not Available
DU5T-14474-NBB	Not Available
*XL3T-14474-BA	Not Available
DU5T-14474-JBB	Not Available
7C3T-14474-EA	DU2Z-14474-DA	1.5
BU5T-14474-UA	DU2Z-14474-DA	1.5
DU5T-14474-LBB	EU2Z-14474-AB	2.8

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used		N/A
2	SBB81 (RD)	12	FUSE - 81 OR CIRCUIT BREAKER		DU5T-14474-LBB
3	SBB77 (GY-RD)	14	FUSE - 77 OR CIRCUIT BREAKER		DU5T-14474-LBB
4	SBB73 (RD)	14	FUSE - 73 OR CIRCUIT BREAKER		DU5T-14474-LBB
5	CRW25 (BU-GY)	16	RELAY - FRONT WIPER PARK		DU5T-14474-JBB
6	*	*	Not Used		N/A
7	*	*	Not Used		N/A
8	*	*	Not Used		N/A
9	*	*	Not Used		N/A
10	*	*	Not Used		N/A
11	*	*	Not Used		N/A
12	*	*	Not Used		N/A
13	*	*	Not Used		N/A
14	SBB55 (WH-RD)	16	FUSE - 55 OR CIRCUIT BREAKER		7C3T-14474-DA
15	CLF03 (VT-OG)	20	CTRL MOD. - BEAM HIGH RIGHT		BU5T-14474-UA
16	SBB54 (BN-RD)	20	FUSE - 54 OR CIRCUIT BREAKER		BU5T-14474-UA
17	*	*	Not Used		N/A
18	CBB53 (GY-BN)	20	FUSE - 53 OR CIRCUIT BREAKER		BU5T-14474-UA
19	CRW12 (GY-OG)	20	SWITCH - REAR WASHER		BU5T-14474-UA
20	CPL82 (BU-WH)	18	SWITCH - GLOVE BOX LOCKING		7C3T-14474-DA
21	CRD02 (BN-BU)	22	CTRL MOD. - RELAY HEATER REAR WINDOW		GU5T-14474-AAA
22	*	*	Not Used		N/A
23	*	*	Not Used		N/A
24	CPL83 (GY-VT)	22	CTRL MOD. - MOTOR GLOVE BOX LOCKING		GU5T-14474-AAA
25	SBB65 (RD)	16	FUSE - 65 OR CIRCUIT BREAKER		DU5T-14474-JBB
26	VE225 (YE-OG)	22	CTRL MOD. - POWERTRAIN # FUEL PUMP MODULE COMMAND (FPC)	2.7L	GU5T-14474-AAA
26	VE225 (YE-OG)	20	CTRL MOD. - POWERTRAIN # FUEL PUMP MODULE COMMAND (FPC)		GU5T-14474-AAA
27	*	*	Not Used		N/A
28	*	*	Not Used		N/A
29	CRW13 (GN)	20	SWITCH - REAR WIPER		GU5T-14474-AAA
30	CLN09 (YE-GN)	22	RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING)		GU5T-14474-AAA
31	*	*	Not Used		N/A
32	*	*	Not Used		N/A
33	CRW34 (BU-BN)	20	CTRL MOD. - REAR WASHER		GU5T-14474-AAA
34	*	*	Not Used		N/A
35	*	*	Not Used		N/A
36	*	*	Not Used		N/A
37	CDC40 (VT-GY)	22	RELAY - DELAY ACCESSORY		GU5T-14474-AAA
38	CE608 (VT-GN)	10	RELAY - FUEL PUMP		DU5T-14474-NBB
39	CRW13 (GN)	16	SWITCH - REAR WIPER		7C3T-14474-DA
40	CBB23 (BN-YE)	20	FUSE - 23 OR CIRCUIT BREAKER		BU5T-14474-UA
41	CBP06 (WH-BU)	14	FUSE - 6 OR CIRCUIT BREAKER		7C3T-14474-EA
42	CBB42 (GY-RD)	20	FUSE - 42 OR CIRCUIT BREAKER		BU5T-14474-UA
43	CBB25 (WH-OG)	20	FUSE - 25 OR CIRCUIT BREAKER		BU5T-14474-UA
44	CBB26 (BU-WH)	20	FUSE - 26 OR CIRCUIT BREAKER		BU5T-14474-UA
45	*	*	Not Used		N/A
46	CE522 (BN)	20	DIODE - RELAY FUEL PUMP		BU5T-14474-UA
47	CDC55 (BN-VT)	16	HIGH BEAM RELAY RH CONTROL		7C3T-14474-DA
48	SBB17 (RD)	16	FUSE - 17 OR CIRCUIT BREAKER		DU5T-14474-JBB
49	CRW03 (VT-WH)	14	RELAY - FRONT WIPER		DU5T-14474-LBB
50	CRH04 (VT-GN)	16	CTRL MOD. - RELAY HORN		DU5T-14474-JBB
51	*	*	Not Used		N/A
52	*	*	Not Used		N/A
53	*	*	Not Used		N/A
54	SBB76 (GN-RD)	14	FUSE - 76 OR CIRCUIT BREAKER		DU5T-14474-LBB
55	*	*	Not Used		N/A
56	*	*	Not Used		N/A
57	SBB87 (WH-RD)	8	FUSE - 87 OR CIRCUIT BREAKER		*XL3T-14474-BA
