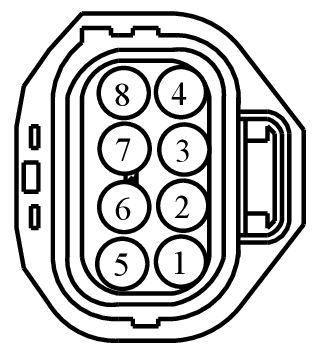

Connector End View C4371A - TRANSFER CASE CONTROL MODULE (TCCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4371A	TRANSFER CASE CONTROL MODULE (TCCM)		2C054	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14474-BFA	DU2Z-14474-FA	2.8
97BG-14474-BDA	DU2Z-14474-FA	2.8
BU5T-14421-HA	EU2Z-14421-CA	1.5

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VED03 (GY-BU)	14	CTRL MOD. - DRIVELINE # REAR DIFFERENTIAL MOTOR CONTROL C (RDMC_C)		97BG-14474-BFA
2	VED02 (GN-BN)	14	CTRL MOD. - DRIVELINE # REAR DIFFERENTIAL MOTOR CONTROL B (RDMC_B)		97BG-14474-BFA
3	VED01 (BU)	14	CTRL MOD. - DRIVELINE # REAR DIFFERENTIAL MOTOR CONTROL A (RDMC_A)		97BG-14474-BFA
4	RED18 (GN)	22	CTRL MOD. - DRIVELINE # REAR DRIVE/DIFFERENTIAL UNIT HALL SENSOR -		97BG-14474-BDA
5	LED18 (WH-BN)	22	CTRL MOD. - DRIVELINE # REAR DRIVE/DIFFERENTIAL UNIT HALL SENSOR +		BU5T-14421-HA
6	VED19 (GY)	20	SENSOR - REAR DRIVE/DIFFERENTIAL MOTOR POSITION A		97BG-14474-BDA
7	VED21 (VT-GN)	20	SENSOR - REAR DRIVE/DIFFERENTIAL MOTOR POSITION C		97BG-14474-BDA
8	VED20 (VT)	20	SENSOR - REAR DRIVE/DIFFERENTIAL MOTOR POSITION B		97BG-14474-BDA
