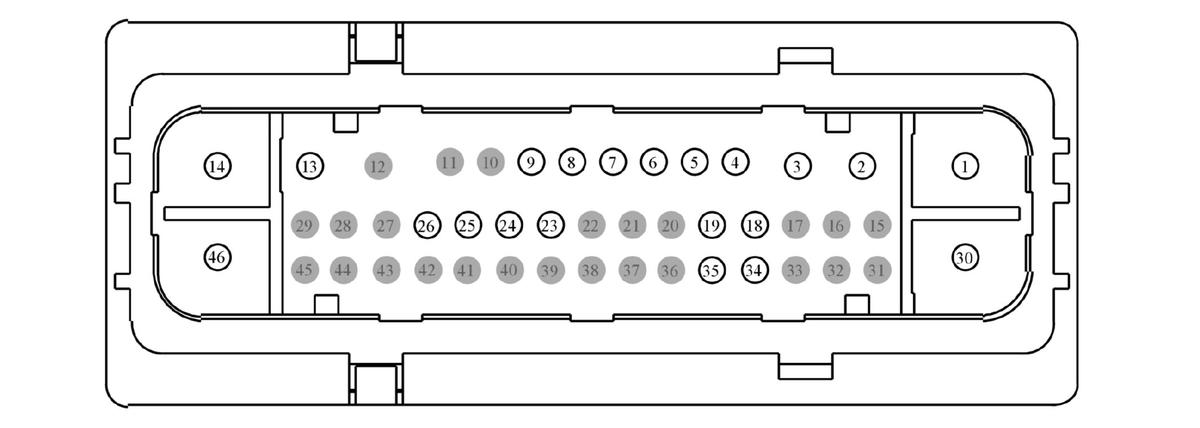

Connector End View C3841 - ALL WHEEL DRIVE (AWD) MODULE

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3841	ALL WHEEL DRIVE (AWD) MODULE	BN	14B599	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14474-BEA	DU2Z-14474-FA	2.8
97BG-14474-BDA	DU2Z-14474-FA	2.8

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBK03 (GY)	10	FUSE - 12 OR CIRCUIT BREAKER		97BG-14474-BEA
2	VED02 (GN-BN)	14	CTRL MOD. - DRIVELINE # REAR DIFFERENTIAL MOTOR CONTROL B (RDMC_B)		N/A
3	VED03 (GY-BU)	14	CTRL MOD. - DRIVELINE # REAR DIFFERENTIAL MOTOR CONTROL C (RDMC_C)		97BG-14474-BDA
4	VED19 (GY)	20	SENSOR - REAR DRIVE/DIFFERENTIAL MOTOR POSITION A		97BG-14474-BEA
5	VED20 (VT)	20	SENSOR - REAR DRIVE/DIFFERENTIAL MOTOR POSITION B		97BG-14474-BDA
6	VED17 (BN-GN)	22	SENSOR - REAR DRIVE/DIFFERENTIAL UNIT SPEED		97BG-14474-BDA
7	LED17 (GN-VT)	22	CTRL MOD. - DRIVELINE # REAR DRIVE/DIFFERENTIAL UNIT SPEED SENSOR +		N/A
8	VDB05 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW		97BG-14474-BDA
9	VDB04 (WH-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH		N/A
10	*	*	Not Used		N/A
11	*	*	Not Used		N/A
12	*	*	Not Used		N/A
13	VED04 (GY-VT)	10	CTRL MOD. - DRIVELINE # POWER TRANSFER UNIT MOTOR CONTROL + (PTUMC+)		N/A
14	VED05 (VT-WH)	10	CTRL MOD. - DRIVELINE # POWER TRANSFER UNIT MOTOR CONTROL - (PTUMC-)		N/A
15	*	*	Not Used		N/A
16	*	*	Not Used		N/A
17	*	*	Not Used		N/A
18	RED18 (GN)	22	CTRL MOD. - DRIVELINE # REAR DRIVE/DIFFERENTIAL UNIT HALL SENSOR -		N/A
19	VED21 (VT-GN)	20	SENSOR - REAR DRIVE/DIFFERENTIAL MOTOR POSITION C		N/A
20	*	*	Not Used		N/A
21	*	*	Not Used		N/A
22	*	*	Not Used		N/A
22	*	*	Not Used		N/A
23	RED14 (BU-GN)	22	CTRL MOD. - DRIVELINE # POWER TRANSFER UNIT HALL SENSOR -		N/A
24	VED15 (BN-BU)	22	SENSOR - POWER TRANSFER UNIT FORK POSITION		N/A
25	LED14 (BN-YE)	22	CTRL MOD. - DRIVELINE # POWER TRANSFER UNIT HALL SENSOR +		N/A
26	VED16 (WH-BU)	22	SENSOR - POWER TRANSFER UNIT CAM POSITION		N/A
27	*	*	Not Used		N/A
28	*	*	Not Used		N/A
29	*	*	Not Used		N/A
30	VED01 (BU)	14	CTRL MOD. - DRIVELINE # REAR DIFFERENTIAL MOTOR CONTROL A (RDMC_A)		N/A
31	*	*	Not Used		N/A
32	RED10 (YE-GY)	22	CTRL MOD. - DRIVELINE # POWER TRANSFER UNIT TEMPERATURE SENSOR -		N/A
33	*	*	Not Used		N/A
34	VED11 (VT-BN)	22	SENSOR - POWER TRANSFER UNIT TEMPERATURE		N/A
35	LED18 (WH-BN)	22	CTRL MOD. - DRIVELINE # REAR DRIVE/DIFFERENTIAL UNIT HALL SENSOR +		N/A
36	*	*	Not Used		N/A
37	*	*	Not Used		N/A
38	*	*	Not Used		N/A
39	*	*	Not Used		N/A
40	*	*	Not Used		N/A
41	*	*	Not Used		N/A
42	*	*	Not Used		N/A
43	*	*	Not Used		N/A
44	*	*	Not Used		N/A
45	*	*	Not Used		N/A
46	GD313 (BK-GN)	8	GROUND - PILLAR C OR QUARTER PANEL RIGHT # 2ND POINT		N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1603

Courtesy of FORD MOTOR COMPANY

Service Part Number:

KU2Z-14S411-NA

Gauge:

12 14 20

Pin material:

Tin

Cavities:

46

Vehicle Uses:

• Module - Anti-Lock Brake System
