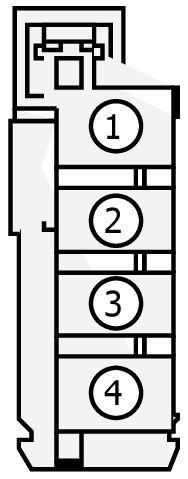

Connector End View C1792 - CYLINDER HEAD TEMPERATURE 2 (CHT2) SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1778	CYLINDER HEAD TEMPERATURE 2 (CHT2) SENSOR		12C508	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
EU5T-14474-FAB	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE712 (BU-GY)	20	SENSOR - CYLINDER HEAD TEMPERATURE 2 (CHT2)		EU5T-14474-FAB
2	RE454 (YE-GN)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN (SIGRTN)		EU5T-14474-FAB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1469

Courtesy of FORD MOTOR COMPANY

Service Part Number:

GU2Z-14S411-KA

Gauge:

18

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Sensor - Side Impact
• Sensor - Transfer Case Temperature
• Sensor - Transmission Fluid Temperature
• Solenoid - Variable Oil Pump Control
